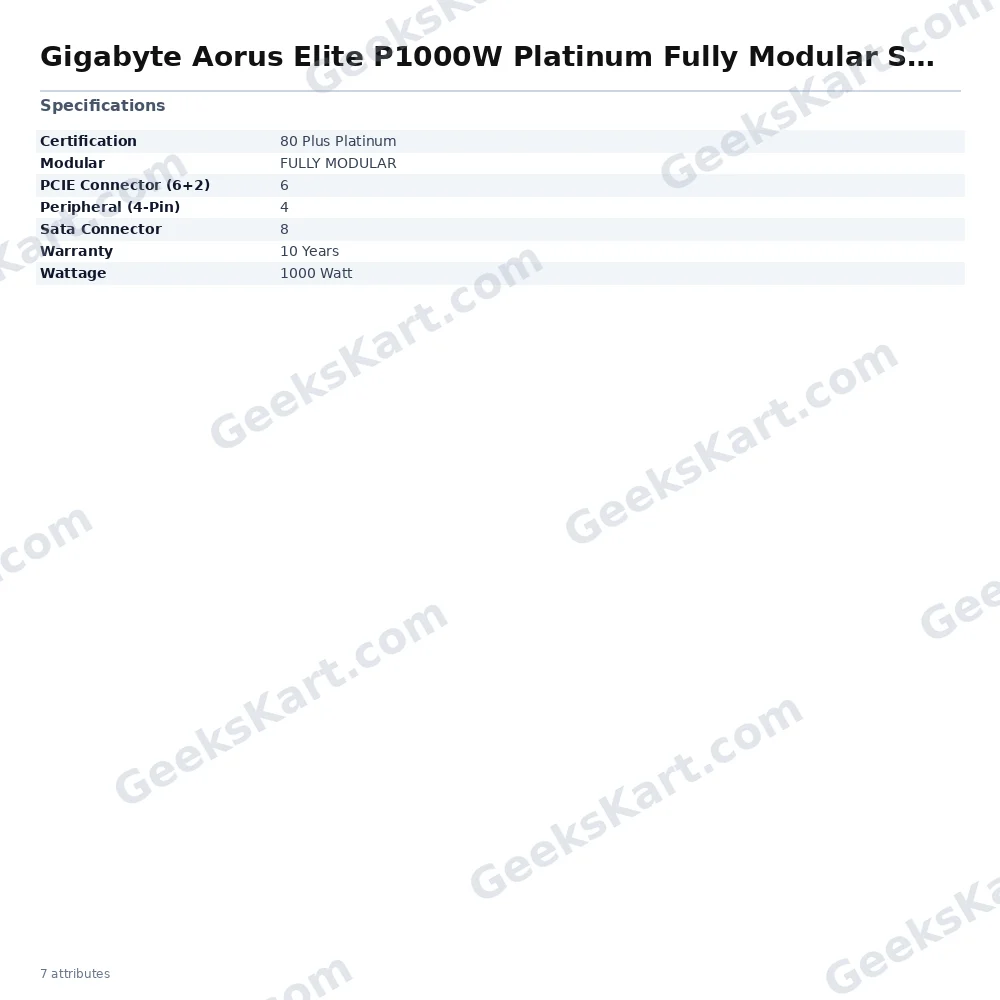

Gigabyte Aorus Elite P1000W Platinum Fully Modular Smps

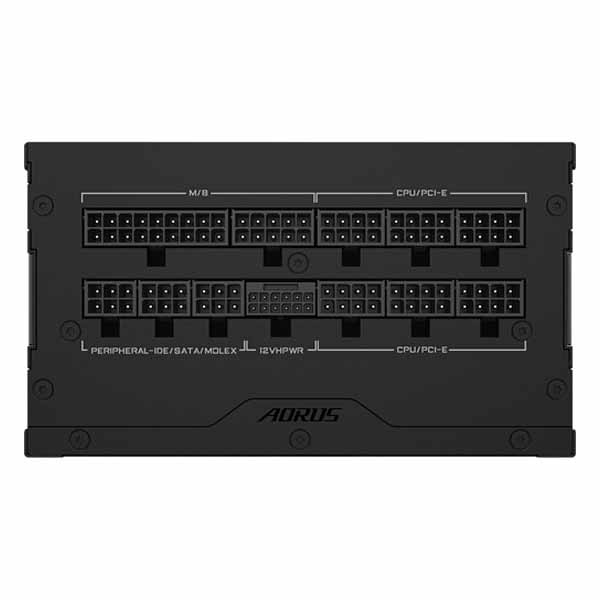

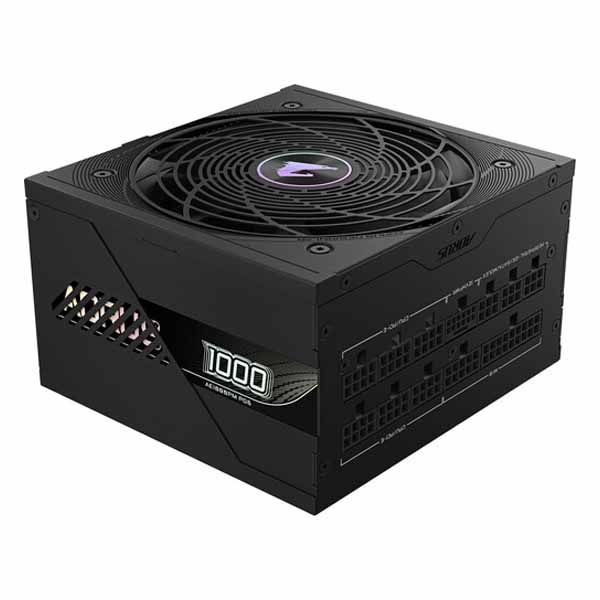

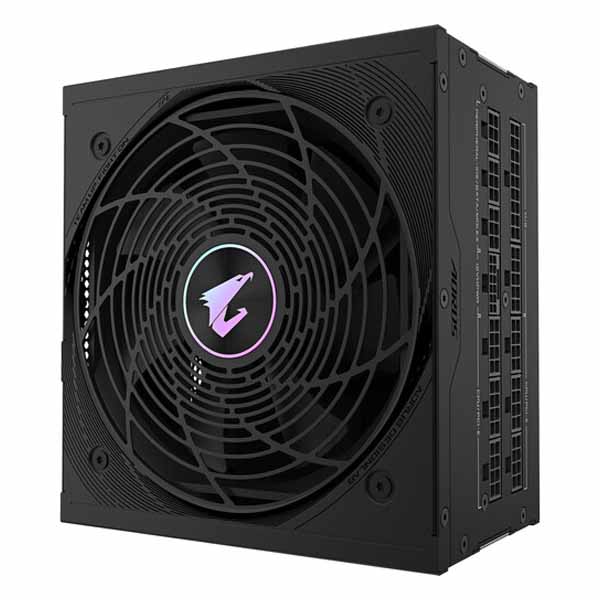

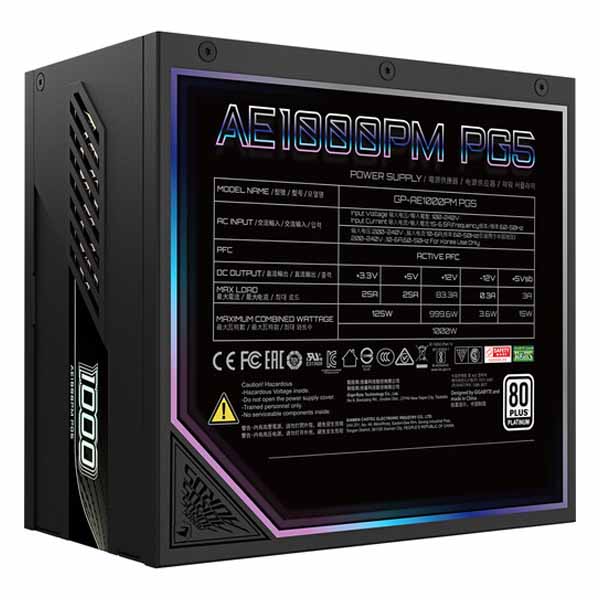

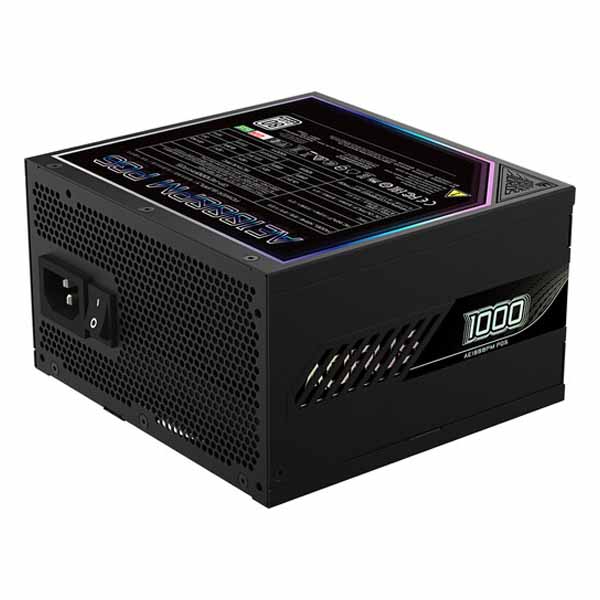

The Gigabyte Aorus Elite AE1000PM PG5 is a 1000W fully modular power supply designed for high-performance desktop builds. It carries dual efficiency certifications — 80 PLUS Platinum and Cybenetics Platinum — delivering 92% efficiency at typical load, which reduces heat output and energy consumption during sustained workloads. The unit is also Cybenetics LAMBDA A++ certified for near-silent acoustic performance, with noise levels measured below 20 dBA under typical operating conditions. Built to the Intel ATX 12V v3.1 specification, this PSU is ready for the demands of current-generation hardware. It supports PCIe Gen 5.1 graphics cards via a native 16-pin cable capable of delivering up to 600W, and it can sustain GPU power excursions of up to 3× the GPU TDP and 2× the total system power draw — keeping your system stable even during sudden transient spikes. All internal capacitors are sourced from Japanese manufacturers, contributing to long-term reliability. The MTBF rating exceeds 100,000 hours. Cooling is handled by a 120mm Fluid Dynamic Bearing (FDB) fan that operates in a semi-passive mode, remaining fully off when system load stays below 50%, for a quieter idle experience. At just 140mm in length, the chassis is compact enough to fit in space-constrained cases. The unique AORUS magnetic plate is removable and repositionable, offering a distinctive aesthetic touch. The fully modular cable system allows you to connect only the cables your build needs, reducing clutter and improving airflow inside the chassis. A powerful single +12V rail delivers clean, stable power to all connected components. The power supply includes a comprehensive protection suite: OVP (Over Voltage), OPP (Over Power), SCP (Short Circuit), UVP (Under Voltage), OCP (Over Current), OTP (Over Temperature), NLO (No Load Operation), and SIP (Surge and Inrush Protection). Verified Specifications: - Model: GP-AE1000PM-PG5 - Form Factor: Intel ATX 12V v3.1 - Output Capacity: 1000W - Efficiency: 92% at typical load (80 PLUS Platinum) - PFC: Active PFC (>0.9 typical) - Input Voltage: 100–240 Vac (full range) - Input Frequency: 50–60 Hz - Fan: 120mm Fluid Dynamic Bearing (FDB) - MTBF: >100,000 hours - Power Good Signal: 100–150ms - Hold Up Time: >16ms - Warranty: 10 Years Connectors Included: - ATX/MB 20+4 Pin × 1 (650mm) - CPU/EPS 4+4 Pin × 2 (700mm each) - PCIe 16-pin × 1 (700mm) - PCIe 6+2 Pin × 6 - SATA × 8 - 4-Pin Peripheral × 4
