The Gigabyte B360M DS3H is a Micro ATX motherboard built on the Intel B360 Express Chipset, designed for 8th Generation Intel Core processors in the LGA1151 socket. Whether you are putting together a compact home office build or a budget-conscious gaming rig, this board offers a well-rounded feature set that punches above its form-factor class. Memory capacity is a strong point here. Four DDR4 DIMM slots support dual-channel operation with speeds of 2133, 2400, or 2666 MHz and a total ceiling of 64 GB. Note that reaching 2666 MHz or using XMP profiles requires an 8th Gen Core i7 or i5 processor. XMP modules are also supported, giving enthusiasts a straightforward path to higher memory performance. Storage flexibility is handled by a single M.2 Socket 3 connector (M key, 2242/2260/2280) that accepts both SATA and PCIe x4/x2 NVMe drives, complemented by six SATA 6 Gb/s ports. The board is also Intel Optane Memory Ready for those who want to pair a small Optane module with a larger mechanical drive. Display output options include a D-Sub port (up to 1920×1200 at 60 Hz), a DVI-D port (up to 1920×1200 at 60 Hz), and an HDMI port capable of 4096×2160 at 30 Hz — useful for users relying on integrated graphics. Audio is handled by a Realtek ALC887 codec supporting 2/4/5.1/7.1-channel High Definition Audio with S/PDIF Out. Connectivity is covered by six USB 3.1 Gen 1 ports (four rear panel, two internal) and six USB 2.0/1.1 ports (two rear panel, four internal), plus a Gigabit Ethernet port via Realtek GbE LAN. Expansion slots include one PCIe x16, one PCIe x4, and one PCIe x1, all conforming to the PCIe 3.0 standard. Gigabyte’s RGB Fusion technology provides a single addressable RGB LED strip header supporting seven-colour lighting control. Smart Fan 5 delivers multiple temperature sensor support and hybrid fan headers with FAN STOP capability for silent operation at idle. The dual-chip DualBIOS design protects against firmware corruption by maintaining a backup BIOS. Verified Specifications: Chipset: Intel B360 Express | Socket: LGA1151 | Form Factor: Micro ATX (22.6 cm x 20.5 cm) | Memory: 4x DDR4 DIMM, up to 64 GB, DDR4 2666/2400/2133 MHz | Storage: 1x M.2 (PCIe x4/x2 + SATA), 6x SATA 6 Gb/s | Display: D-Sub, DVI-D, HDMI (4K@30 Hz) | Audio: Realtek ALC887, 7.1-channel, S/PDIF Out | LAN: Realtek GbE (10/100/1000 Mbit) | USB: 6x USB 3.1 Gen 1 + 6x USB 2.0 | PCIe Slots: 1x x16, 1x x4, 1x x1 (PCIe 3.0) | BIOS: AMI UEFI DualBIOS, 2x 128 Mbit flash | OS: Windows 10 64-bit | Warranty: 3 Years
MSI B550M Pro-VDH Wifi DDR4 AMD Motherboard
₹10,605.00
GIGABYTE Z790 Eagle AX WiFi DDR5 Intel Motherboard
₹21,605.00

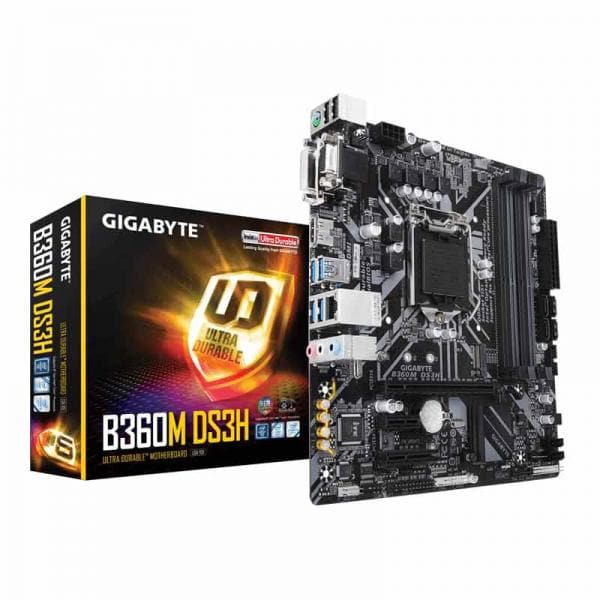

GIGABYTE B360M DS3H DDR4 Intel Motherboard
₹7,625.00
The Gigabyte B360M DS3H is an Intel LGA1151 Micro ATX motherboard supporting 8th Gen Core processors, up to 64 GB DDR4, PCIe Gen3 x4 M.2, RGB Fusion, and Gigabyte DualBIOS protection
Out of stock

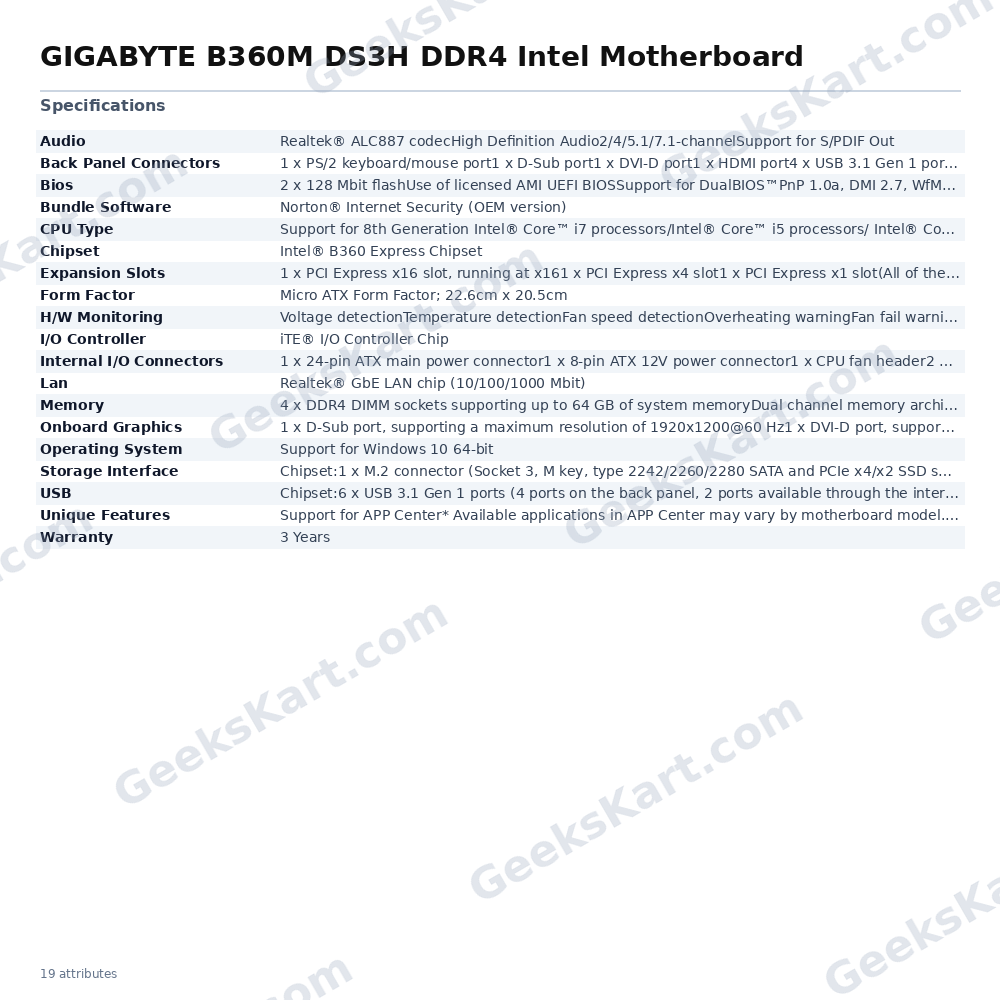

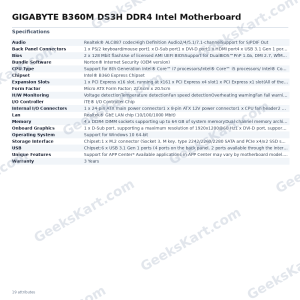

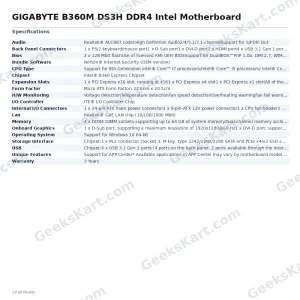

Additional information
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B360 Express Chipset |
| CPU Type | |
| Lan | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| USB | Chipset:6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 2 x 128 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC887 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memoryDual channel memory architectureSupport for DDR4 2666/2400/2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x161 x PCI Express x4 slot1 x PCI Express x1 slot(All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAuto GreenCloud StationEasy TuneFast BootGame BoostON/OFF ChargePlatform Power ManagementRGB FusionSmart BackupSmart KeyboardSmart Time LockSmart HUDSystem Information ViewerUSB BlockerV-TunerSupport for Q-FlashSupport for Xpress Install |
| Onboard Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | Chipset:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)6 x SATA 6Gb/s connectorsIntel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x D-Sub port1 x DVI-D port1 x HDMI port4 x USB 3.1 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x RGB LED strip header1 x M.2 Socket 3 connector6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x parallel port header1 x Clear CMOS jumper |
