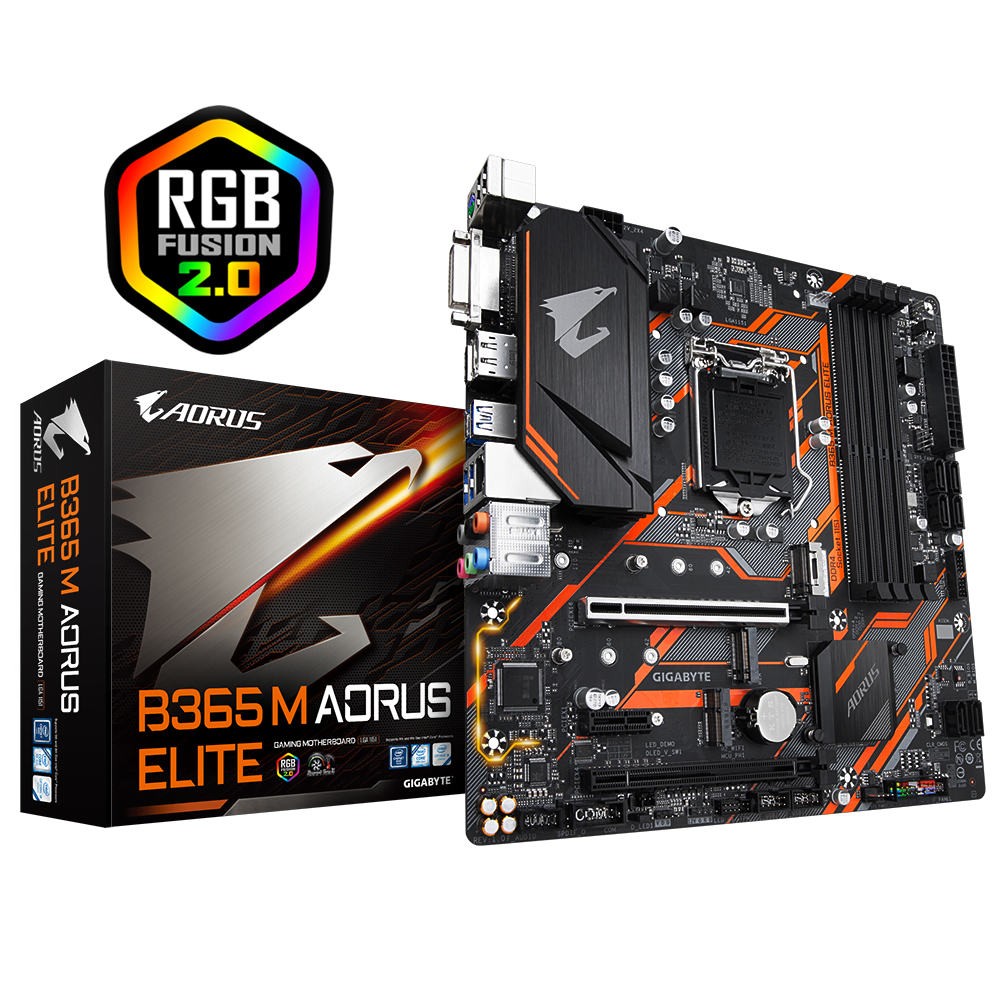

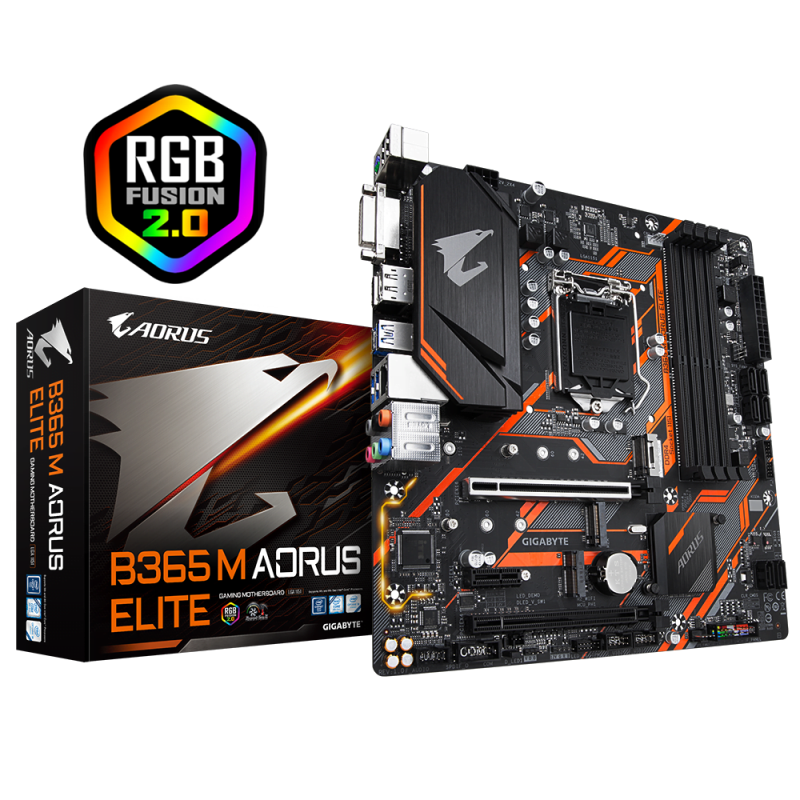

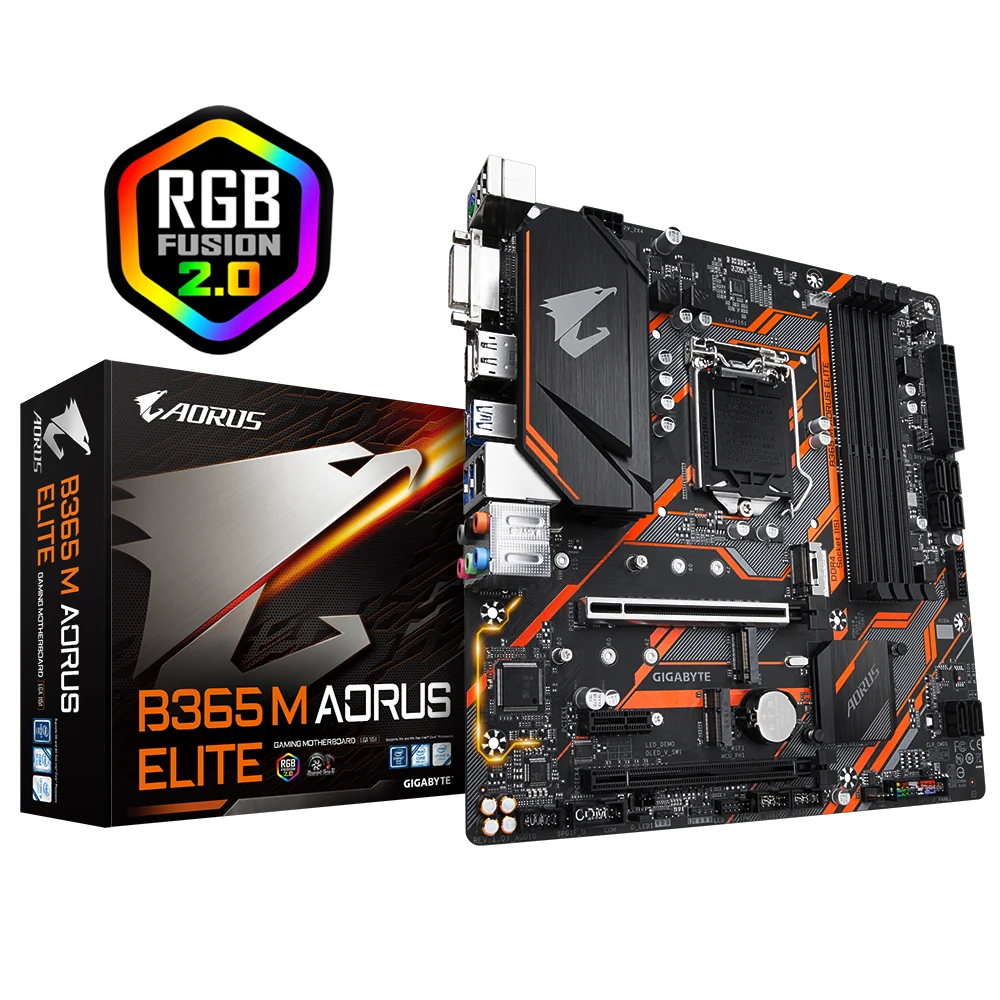

GIGABYTE B365M Aorus Elite DDR4 Intel Motherboard
MPN GIGABYTE-B365M-AORUS-ELITE · Brand Gigabyte · mATX
The Gigabyte B365M Aorus Elite is a Micro ATX DDR4 motherboard for LGA1151 supporting 8th and 9th Gen Intel Core processors, dual M.2 NVMe/SATA slots, RGB Fusion 2.0, and Intel GbE with USB Type-C on the rear panel
Inclusive of GST · GST invoice available
Overview
The Gigabyte B365M Aorus Elite is a Micro ATX motherboard (24.4 cm x 24.4 cm) built on the Intel B365 Express Chipset with an LGA1151 socket, supporting 8th and 9th Generation Intel Core i9, i7, i5, i3, Pentium, and Celeron processors. It is a strong option for compact desktop builds that need versatile connectivity without sacrificing storage expandability. Memory support spans four DDR4 DIMM slots in a dual-channel configuration, accommodating up to 64 GB of system memory at speeds of 2133, 2400, or 2666 MHz. XMP profile support is available when a compatible 8th or 9th Gen Core i9, i7, or i5 processor is installed. Storage options are generous for this form factor. Two M.2 Socket 3 (M key) connectors are provided: one (M2Q) supports PCIe x4/x2 drives in sizes 2242 through 22110, while the second (M2A) supports both SATA and PCIe x4/x2 drives in sizes 2242 through 2280. Six SATA 6 Gb/s ports complement the M.2 slots, and RAID 0, 1, 5, and 10 configurations are supported. Intel Optane Memory is also compatible. For graphics, the integrated Intel HD Graphics engine outputs via DVI-D (up to 1920×1200 @ 60 Hz), DisplayPort 1.2 (up to 4096×2304 @ 60 Hz), or HDMI 1.4 (up to 4096×2160 @ 30 Hz), with simultaneous triple-display output supported. The primary PCIe x16 slot running at full x16 bandwidth accommodates a discrete GPU, and AMD CrossFire multi-GPU configurations are supported. Connectivity includes an Intel Gigabit Ethernet controller with cFosSpeed software, a USB Type-C port with USB 3.1 Gen 1 support on the rear panel, three additional USB 3.1 Gen 1 Type-A ports on the rear, and two more via an internal header. Six USB 2.0/1.1 ports round out USB availability. Audio is handled by a Realtek ALC892 codec with High Definition Audio support for 2, 4, 5.1, and 7.1 channel configurations, plus S/PDIF output. RGB Fusion 2.0 enables addressable LED control via two ARGB headers and two standard RGB headers. Smart Fan 5 provides hybrid fan control across one CPU and three system fan headers, including FAN STOP functionality. The BIOS uses dual AMI UEFI flash chips with Gigabyte's DualBIOS protection. Verified Specifications: - Form Factor: Micro ATX, 24.4 cm × 24.4 cm - Socket / Chipset: LGA1151 / Intel B365 Express - CPU Support: 8th & 9th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron - Memory: 4 × DDR4 DIMM, up to 64 GB, DDR4-2666/2400/2133, Dual Channel, XMP - Storage: 2 × M.2 (PCIe x4 & SATA), 6 × SATA 6 Gb/s, RAID 0/1/5/10 - Display Outputs: 1 × DVI-D, 1 × DisplayPort 1.2, 1 × HDMI 1.4 - USB (Rear): 1 × USB-C 3.1 Gen 1, 3 × USB-A 3.1 Gen 1, 2 × USB 2.0 - LAN: Intel GbE (10/100/1000 Mbit) - Audio: Realtek ALC892, 7.1-channel HD Audio, S/PDIF Out - Lighting: RGB Fusion 2.0, 2 × ARGB headers, 2 × RGB headers - BIOS: Dual AMI UEFI, DualBIOS - Warranty: 3 Years
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B365 Express Chipset |
| CPU Type | |
| Lan | Intel® GbE LAN chip (10/100/1000 Mbit) |
| USB | Chipset:1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 2 x 128 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC892 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memoryDual channel memory architectureSupport for DDR4 2666/2400/2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.(Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control * Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x4 (PCIEX4)1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.)1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGreenCloud StationEasyTuneEasy RAIDFast BootGame BoostON/OFF ChargePlatform Power ManagementRGB FusionSmart BackupSmart KeyboardSmart TimeLockSmart HUDSmart SurveySystem Information ViewerUSB BlockerSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeed |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.Support for up to 3 displays at the same time Maximum shared memory of 1 GB |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | Chipset:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2A)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x DVI-D port1 x DisplayPort1 x HDMI port1 x USB Type-C™ port, with USB 3.1 Gen 1 support3 x USB 3.1 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port6 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers2 x addressable LED strip headers2 x addressable LED strip power select jumpers2 x RGB LED strip headers6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
