GIGABYTE B365M DS3H DDR4 Intel Motherboard
MPN GIGABYTE-B365M-DS3H-MOTHERBOARD · Brand Gigabyte · mATX

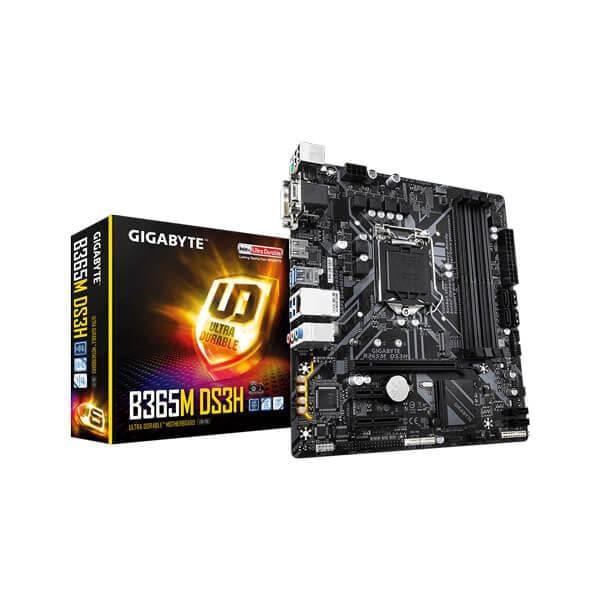

The Gigabyte B365M DS3H is a Micro ATX LGA1151 motherboard supporting 8th and 9th Gen Intel Core processors, up to 64 GB DDR4, M.2 NVMe PCIe Gen3 x4 storage, and Gigabyte DualBIOS protection
Inclusive of GST · GST invoice available
Overview
The Gigabyte B365M DS3H is a Micro ATX motherboard built on the Intel B365 Express Chipset, designed to accommodate 8th and 9th Generation Intel Core processors in the LGA1151 socket — including Core i9, i7, i5, i3, Pentium, and Celeron variants. Its compact 22.6 cm x 20.5 cm footprint makes it well suited for space-conscious desktop builds without sacrificing connectivity or feature depth. Memory support spans four DDR4 DIMM slots capable of holding up to 64 GB of system RAM in a dual-channel configuration. Supported speeds include DDR4 2133, 2400, and 2666 MHz, with XMP profile support available on qualifying i5, i7, and i9 processors. Storage options are generous for this class of board. A single M.2 Socket 3 connector (M key, supporting 2242/2260/2280 form factors) handles both SATA and PCIe x4/x2 NVMe drives at up to 32 Gb/s, while six SATA 6Gb/s ports round out the storage array. RAID 0, 1, 5, and 10 configurations are supported through the chipset, and the board is Intel Optane Memory Ready. Connectivity on the rear panel includes four USB 3.1 Gen 1 ports, two USB 2.0 ports, a Gigabit Ethernet jack powered by a Realtek GbE LAN chip, three audio jacks, plus D-Sub, DVI-D, and HDMI display outputs for systems using integrated Intel HD Graphics. The HDMI port supports up to 4096x2160 at 30 Hz (HDMI 1.4) and HDCP 2.2. Up to three displays can be used simultaneously via integrated graphics. Audio is handled by a Realtek ALC887 codec delivering High Definition Audio in 2/4/5.1/7.1-channel configurations, with PCB-level audio noise isolation and high-quality onboard audio capacitors. A separate audio noise guard physically separates analog audio circuitry from digital noise on the board. System management features include Gigabyte Smart Fan 5, which monitors multiple thermal sensors and controls fan headers in either PWM or Voltage mode, with optional Fan Stop functionality to silence fans at low temperatures. RGB Fusion support provides a single RGB LED strip header compatible with 7-colour LED strips. The BIOS uses a dual-chip AMI UEFI DualBIOS design — two 128 Mbit flash chips — providing an automatic fallback if the primary BIOS is corrupted. Software support includes the Gigabyte APP Center suite with tools such as EasyTune, RGB Fusion, Smart Backup, Game Boost, and Q-Flash. Verified Specifications: - CPU Socket: LGA1151 — 8th and 9th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron - Chipset: Intel B365 Express - Form Factor: Micro ATX, 22.6 cm x 20.5 cm - Memory: 4 x DDR4 DIMM, up to 64 GB, DDR4 2666/2400/2133 MHz, dual channel, XMP support - Storage: 1 x M.2 (PCIe x4/x2 + SATA, 2242/2260/2280), 6 x SATA 6Gb/s, RAID 0/1/5/10 - Display Outputs: D-Sub (1920x1200@60Hz), DVI-D (1920x1200@60Hz), HDMI 1.4 (4096x2160@30Hz) - USB: 6 x USB 3.1 Gen 1 (4 rear + 2 internal), 6 x USB 2.0 (2 rear + 4 internal) - LAN: Realtek GbE (10/100/1000 Mbit) - Audio: Realtek ALC887, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out - Expansion Slots: 1 x PCIe x16, 1 x PCIe x4, 1 x PCIe x1 (all PCIe 3.0) - BIOS: Dual AMI UEFI (2 x 128 Mbit flash), DualBIOS - Warranty: 3 Years

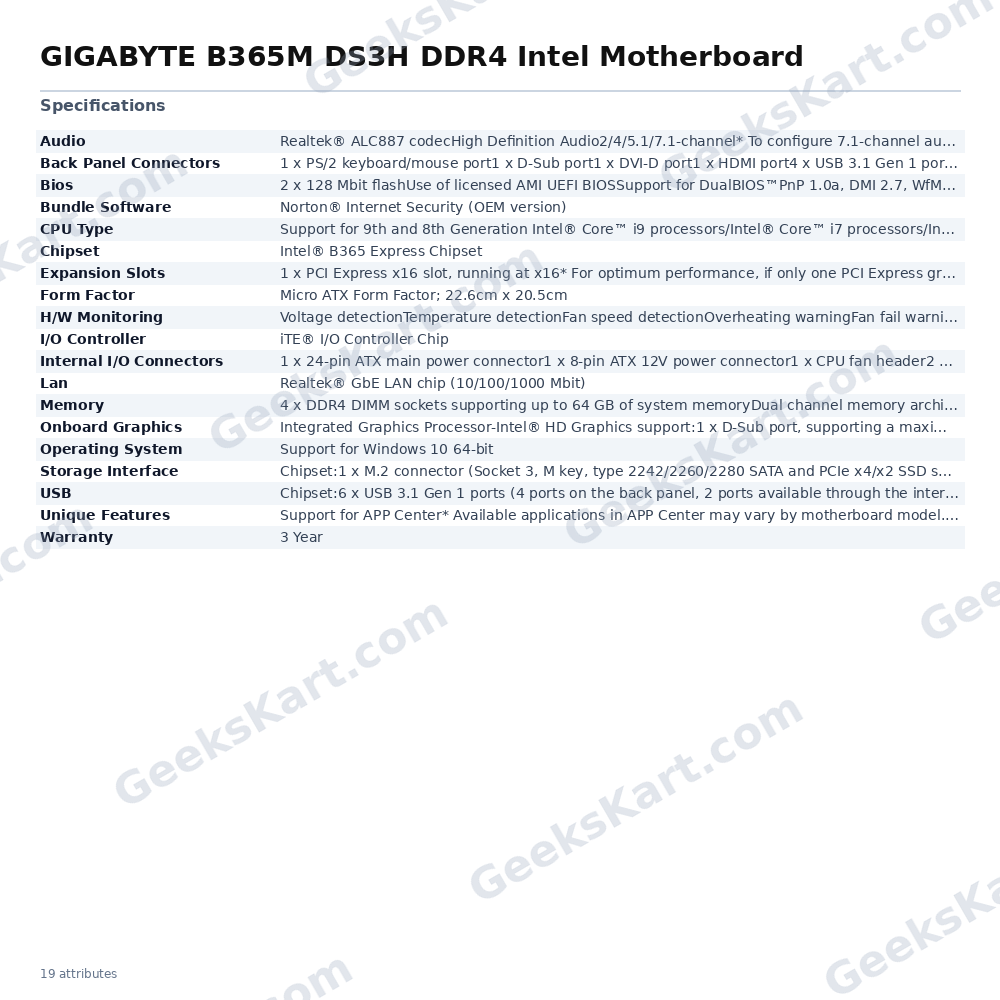

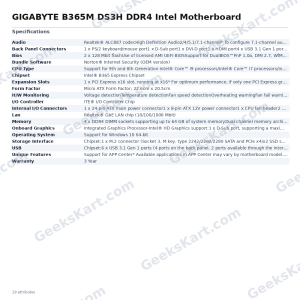

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B365 Express Chipset |
| CPU Type | |
| Lan | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| USB | Chipset:6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 2 x 128 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC887 codecHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.Support for S/PDIF Out |
| Memory | 4 x DDR4 DIMM sockets supporting up to 64 GB of system memoryDual channel memory architectureSupport for DDR4 2666/2400/2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules* To support 2666 MHz or XMP memory, you must install a 9th and 8th Generation Intel® Core™ i9/i7/i5 processor |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version) |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x4 slot1 x PCI Express x1 slot(All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGreenCloud StationEasyTuneEasy RAIDFast BootGame BoostON/OFF ChargePlatform Power ManagementRGB FusionSmart BackupSmart KeyboardSmart TimeLockSmart HUDSmart SurveySystem Information ViewerUSB BlockerSupport for Q-FlashSupport for Xpress Install |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz1 x DVI-D port, supporting a maximum resolution of 1920×1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.2.Support for up to 3 displays at the same timeMaximum shared memory of 1 GBActual support may vary by CPU |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | Chipset:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x D-Sub port1 x DVI-D port1 x HDMI port4 x USB 3.1 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers1 x RGB LED strip header1 x M.2 Socket 3 connector6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x parallel port header1 x Clear CMOS jumper |
