The GIGABYTE B550M DS3H AC R2 M-ATX Motherboard is a motherboard aimed at buyers looking for a dependable everyday option from a recognised source. Typical use cases include mid-range desktop builds, upgrade-friendly setups. Key verified specifications: Socket: AM4; Chipset: B550; Form Factor: Micro-ATX; Memory Type: DDR4; Memory Speed: up to 4733; Color: Black. Buyer-relevant takeaways: the listed capacity/speed gives buyers a concrete reference for compatibility. Best suited to mid-range desktop builds buyers; less ideal where requirements go materially beyond the listed specs. Listed at ₹8950 subject to availability — confirm at checkout
Gigabyte B760M Gaming WiFi6E GEN5 Motherboard
₹13,685.00
MSI MAG B850M Mortar WIFI M-ATX Motherboard
₹22,925.00
GIGABYTE B550M DS3H AC R2 M-ATX Motherboard
₹9,895.00
GIGABYTE B550M DS3H AC R2 M-ATX Motherboard. Highlights: up to 4733
99 in stock
This item is selling fast!
Additional information
| Platform | AMD |
|---|---|
| Graphics Port | 1 x DisplayPort,1 x HDMI |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0×16 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4 – 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 5,Bluetooth 5.0 |

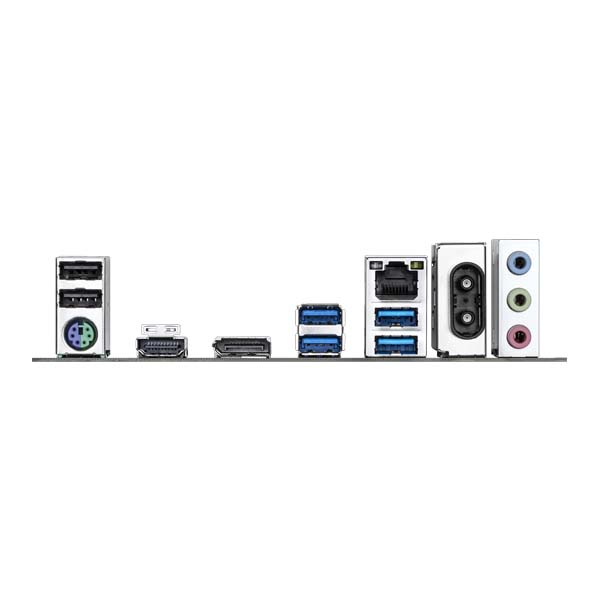

| Back Panel I/O Ports | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x antenna connectors 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
| Memory Type | DDR4 |
| Warranty | 3 Years |
| Form Factor | mATX |
| color | Black |
| Chipset | B550 |
| Socket | AM4 |
| CPU Type | Ryzen 5000,Ryzen 4000,Ryzen 3000 |
| Max Memory | 128 GB |
| Memory Speed | up to 4733 |
