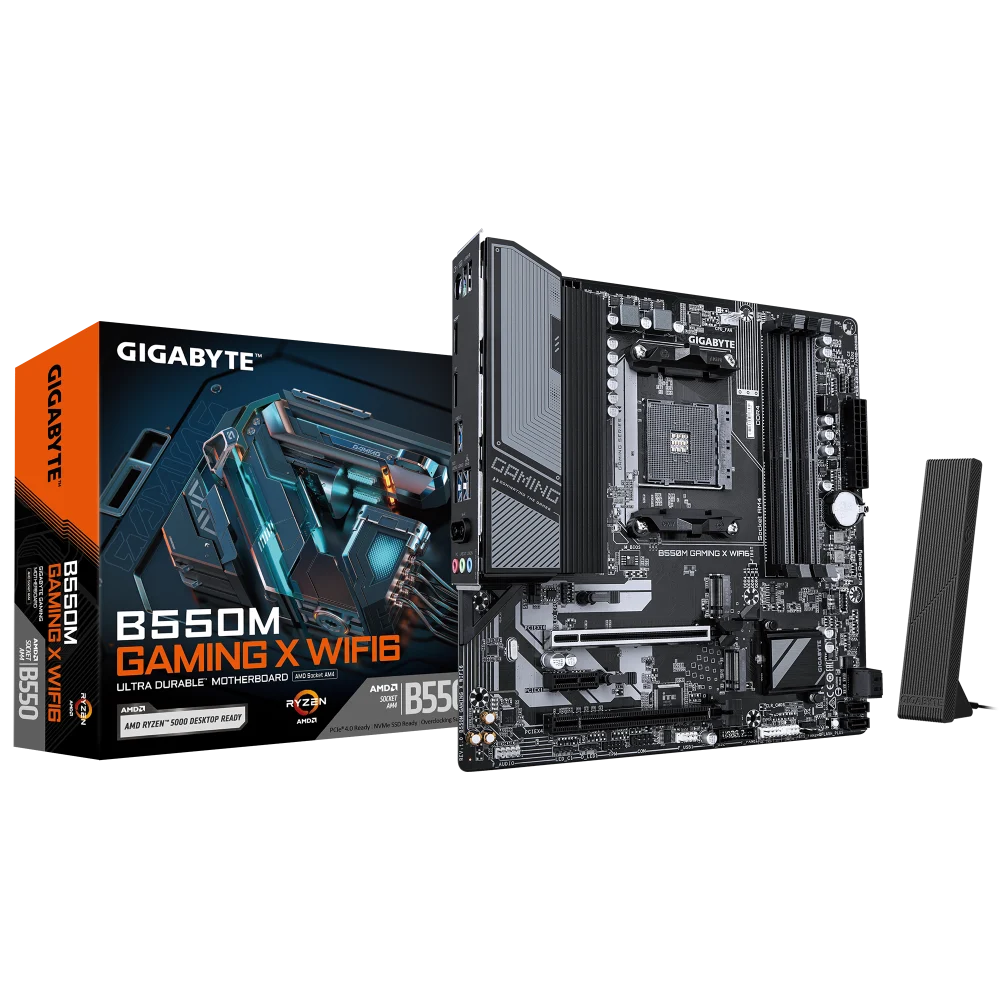

GIGABYTE B550M Gaming X Wifi6 DDR4 AMD Motherboard
MPN GIGABYTE-B550M-GAMING-X-WIFI6-DDR4 · Brand GIGABYTE · mATX
The GIGABYTE B550M Gaming X WiFi 6 is a Micro ATX AM4 motherboard with PCIe 4.0, dual M.2 slots, 128 GB DDR4 support, Wi-Fi 6, Bluetooth 5.3, and Realtek ALC1220 7.1-channel audio — built for AMD Ryzen 3000, 4000, and 5000 series processors
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B550M Gaming X WiFi 6 is a Micro ATX motherboard built on the AMD B550 chipset for the AM4 socket, offering a capable platform for AMD Ryzen 3000, 4000, and 5000 series processors — including G-Series APUs. Designed with the DIY gaming builder in mind, it balances modern connectivity and solid power delivery in a compact 24.4 cm x 24.4 cm form factor that fits a wide range of mid-tower and Micro ATX cases. Power delivery is handled by a digital twin 5+3 phase VRM solution paired with VRM Thermal Armor Advanced, helping maintain stable voltages under sustained loads. Four DDR4 DIMM slots support dual-channel configurations with up to 128 GB of system memory (32 GB per DIMM), and speeds spanning DDR4 2133 through 3200 MT/s including XMP profiles. ECC unbuffered memory is also supported for workstation-adjacent use cases. Storage options are versatile: two M.2 connectors (type 2280) cater to both SATA and NVMe drives, with the CPU-attached M.2 slot supporting PCIe 4.0 x4 speeds on Ryzen 5000 and 3000 Series processors. Four SATA 6 Gb/s connectors round out the storage suite, and RAID 0, 1, and 10 configurations are available for both NVMe and SATA arrays. Wireless connectivity is provided by a Realtek Wi-Fi 6 RTL8851BE module with Bluetooth 5.3, covering 2.4 GHz and 5 GHz bands at 802.11ax with 80 MHz channel support. A WIFI EZ-Plug header simplifies antenna installation. Wired networking uses a Realtek GbE LAN chip for 1 Gbps connectivity. The primary PCIe x16 slot (CPU-attached) supports PCIe 4.0 x16 on Ryzen 5000/3000 non-G processors and features GIGABYTE's PCIe UD Slot reinforcement design with EZ-Latch for tool-assisted GPU removal. Display output is available via integrated AMD Radeon graphics using the rear HDMI 2.1 port (up to 4096x2160 @ 60 Hz) and DisplayPort 1.4 (up to 5120x2880 @ 60 Hz), both with HDCP 2.3 and HDR support. Audio is managed by a Realtek ALC1220 CODEC with High Definition Audio and up to 7.1-channel support. USB connectivity includes four USB 3.2 Gen 1 Type-A ports on the rear panel, plus a front-panel USB Type-C header (USB 3.2 Gen 1). RGB and ARGB headers (two each) plus a CPU cooler LED header allow addressable lighting control via GIGABYTE RGB Fusion software. Key Specifications: - Socket: AMD AM4 | Chipset: AMD B550 - Form Factor: Micro ATX, 24.4 cm x 24.4 cm - Memory: 4x DDR4 DIMM, up to 128 GB, DDR4 3200/2933/2667/2400/2133 MT/s, XMP support - Storage: 2x M.2 (PCIe 4.0 x4 / PCIe 3.0 x2 / SATA), 4x SATA 6 Gb/s, RAID 0/1/10 - Expansion: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x4, 1x PCIe 3.0 x1 - Wireless: Wi-Fi 6 (802.11ax, 2.4/5 GHz, 80 MHz), Bluetooth 5.3 — Realtek RTL8851BE - LAN: Realtek GbE (1 Gbps) - Display Output: HDMI 2.1 (4K@60 Hz), DisplayPort 1.4 (5K@60 Hz) - Audio: Realtek ALC1220, 7.1-channel HD Audio - Rear USB: 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0 - BIOS: AMI UEFI, Q-Flash, Q-Flash Plus - OS Support: Windows 10 / Windows 11 (64-bit) - Warranty: 3 Years

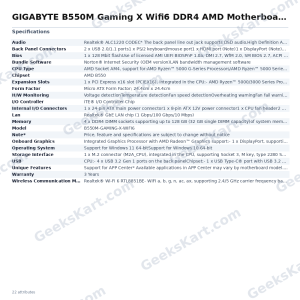

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | AMD B550 |
| CPU Type | |
| Lan | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| USB | CPU:- 4 x USB 3.2 Gen 1 ports on the back panelChipset:- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header- 2 x USB 3.2 Gen 1 ports available through the internal USB header- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Bios | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220 CODEC* The back panel line out jack supports DSD audio.High Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
| Model | B550M-GAMING-X-WIFI6 |
| Note* | Price, feature and specifications are subject to change without notice |
| Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memorySupport for DDR4 3200/2933/2667/2400/2133 MT/s memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version)LAN bandwidth management software |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0×16 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot (PCIEX4), supporting PCIe 3.0 and running at x4- 1 x PCI Express x1 slot (PCIEX1), supporting PCIe 3.0 and running at x1 |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.- @BIOS- EasyTune- RGB Fusion- Smart Backup- System Information ViewerSupport for Q-Flash PlusSupport for Q-Flash |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)Maximum shared memory of 16 GB |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:- AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0×4/x2 SSDs- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSDs4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x HDMI port (Note)1 x DisplayPort (Note)4 x USB 3.2 Gen 1 ports1 x RJ-45 port2 x antenna connectors3 x audio jacks(Note) Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button |
| Wireless Communication Module | Realtek® Wi-Fi 6 RTL8851BE- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 80MHz wireless standard(Actual data rate may vary depending on environment and equipment.) |
