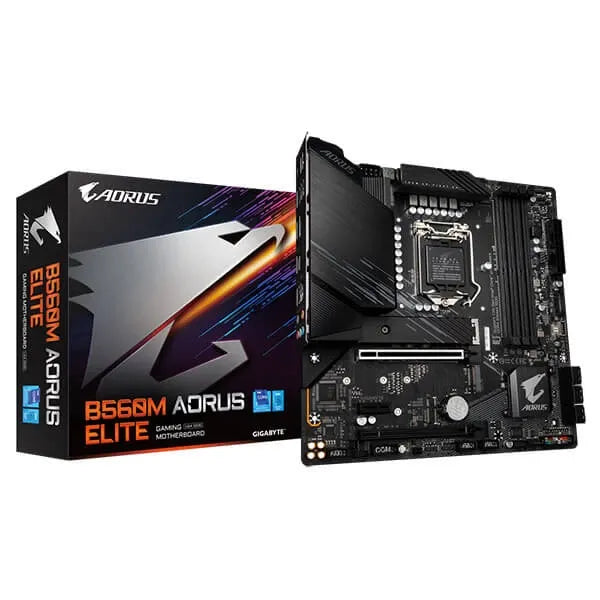

GIGABYTE B560M Aorus Elite DDR4 Intel Motherboard
MPN GIGABYTE-B560M-AORUS-ELITE · Brand Gigabyte · mATX
The Gigabyte B560M Aorus Elite is a Micro ATX LGA1200 motherboard featuring a 12+1 phase digital VRM, dual M.2 with PCIe 4.0 support, 2.5GbE LAN, and USB 3.2 Gen2 — compatible with Intel 10th and 11th Gen Core processors
Inclusive of GST · GST invoice available
Overview
The Gigabyte B560M Aorus Elite is a Micro ATX motherboard built on the Intel B560 Express Chipset, designed for LGA1200 socket processors from Intel's 10th and 11th Generation Core lineup — including Core i9, i7, i5 (11th Gen) and Core i9, i7, i5, i3, Pentium, and Celeron (10th Gen). Its compact 24.4 cm x 24.4 cm footprint makes it a strong choice for space-efficient mid-range and enthusiast builds without sacrificing feature density. Power delivery is handled by a Direct 12+1 Phases Digital VRM with Low RDS MOSFETs, paired with fully covered MOSFET heatsinks and thick thermal pads to keep VRM temperatures in check during sustained workloads. Shielded memory routing supports memory overclocking up to DDR4 5333 MHz (O.C.) when paired with compatible 11th Gen processors, across 4 x DDR4 DIMM slots for a maximum of 128 GB system memory. XMP profiles are supported, and the board accepts both ECC and non-ECC unbuffered DIMMs, though ECC modules operate in non-ECC mode. Storage connectivity includes two M.2 slots: one CPU-direct M.2 (PCIe 4.0 x4, 2260/2280, 11th Gen only) and one chipset M.2 (PCIe 3.0 x4 or SATA, up to 22110 length), both with Thermal Guard heatsinks. Six SATA 6 Gb/s ports provide additional drive capacity, and the board is Intel Optane Memory Ready. The rear I/O features a USB 3.2 Gen2 Type-C port, a USB 3.2 Gen2 Type-A port, a front-panel USB 3.2 Gen1 Type-C header, Realtek 2.5GbE LAN (2.5 Gbit/1 Gbit/100 Mbit), HDMI 1.4 (up to 4096×2160 @ 30 Hz), DisplayPort 1.2 (up to 4096×2304 @ 60 Hz), and 6 audio jacks powered by a Realtek HD Audio codec supporting up to 7.1-channel output. The primary PCIe x16 slot runs at full x16 bandwidth and conforms to PCIe 4.0 when using 11th Gen processors. RGB Fusion 2.0 provides multi-zone addressable LED control with two ARGB and two standard RGB strip headers onboard. Smart Fan 6 manages up to five fan/pump headers — each rated at up to 2A/24W — with FAN STOP support. Q-Flash Plus allows BIOS updates without installing a CPU, memory, or GPU. The AMI UEFI BIOS (256 Mbit flash) includes EasyTune, Game Boost, @BIOS, Fast Boot, Smart Backup, and an intuitive load-line calibration curve display. Verifiable Specifications: - Form Factor: Micro ATX, 24.4 cm x 24.4 cm - Socket: LGA1200 - Chipset: Intel B560 Express - Memory: 4 x DDR4 DIMM, up to 128 GB, DDR4-5333 (O.C.) with 11th Gen - M.2 Slots: 1 x PCIe 4.0 x4 (CPU, 11th Gen only), 1 x PCIe 3.0 x4/SATA (chipset) - SATA: 6 x SATA 6 Gb/s - LAN: Realtek 2.5GbE (RTL8125) - USB Rear: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 6 x USB 2.0 - Display: 1 x HDMI 1.4, 1 x DisplayPort 1.2 - VRM: 12+1 Phase Digital - Warranty: 3 Years

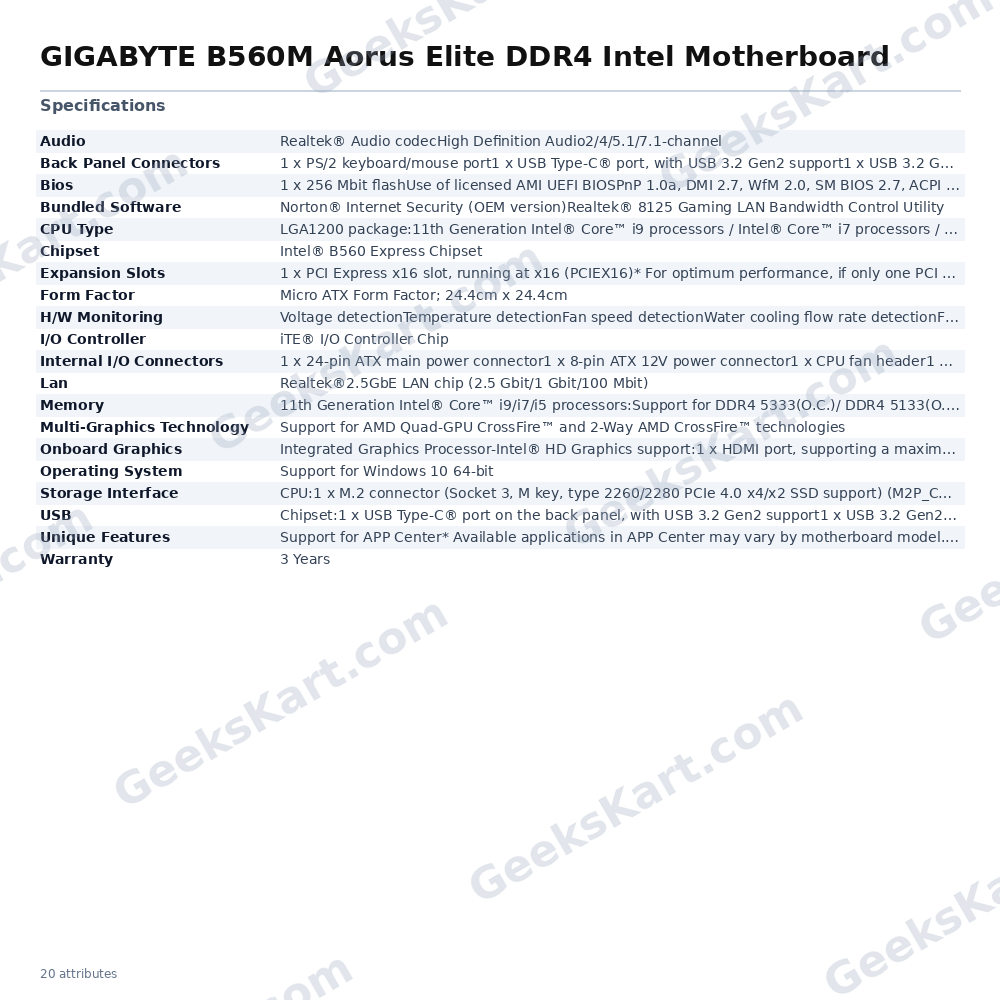

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B560 Express Chipset |
| CPU Type | |
| Lan | Realtek®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen2 support1 x USB 3.2 Gen2 Type-A ports (red) on the back panel3 x USB 3.2 Gen1 ports (2 ports on the back panel, 1 port available through the internal USB header)2 x USB 2.0/1.1 ports on the back panelChipset+USB 3.2 Gen 1 Hub:1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header2 x USB 3.2 Gen1 ports available through the internal USB headerChipset+ 2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio codecHigh Definition Audio2/4/5.1/7.1-channel |
| Memory | 11th Generation Intel® Core™ i9/i7/i5 processors:Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules10th Generation Intel® Core™ i9/i7 processors:Support for DDR4 2933/2666/2400/2133 MHz memory modules10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 4.0 standard.)**Supported by 11th Generation processors only.1 x PCI Express x16 slot, running at x4 (PCIEX4)1 x PCI Express x1 slot(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSpecificationsSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)Realtek® 8125 Gaming LAN Bandwidth Control Utility |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version, HDCP 2.3(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)** Supported by 11th Generation processors only.Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)6 x SATA 6Gb/s connectors* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x USB Type-C® port, with USB 3.2 Gen2 support1 x USB 3.2 Gen2 Type-A port (red)2 x USB 3.2 Gen1 ports6 x USB 2.0/1.1 ports1 x DisplayPort1 x HDMI port1 x RJ-45 port6 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
