GIGABYTE B560M Aorus Pro DDR4 Intel Motherboard
MPN GIGABYTE-B560M-AORUS-PRO · Brand Gigabyte · mATX

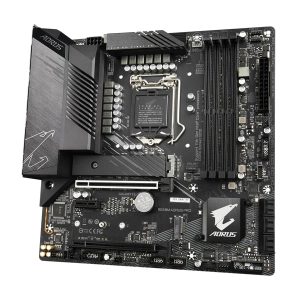

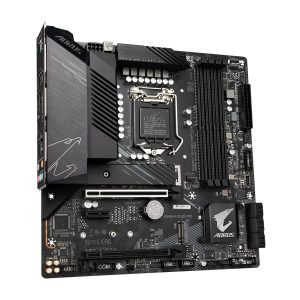

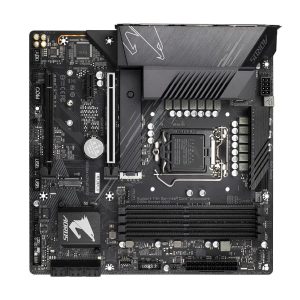

The Gigabyte B560M Aorus Pro is a Micro-ATX LGA1200 motherboard featuring a 12+1 phase digital VRM, dual M.2 slots with PCIe 4.0 support (11th Gen), DDR4 memory overclocking up to 5333 MHz, Intel 2.5GbE LAN, and USB 3.2 Gen2x2 Type-C connectivity
Inclusive of GST · GST invoice available
Overview
The Gigabyte B560M Aorus Pro is a Micro-ATX motherboard built on the Intel B560 Express chipset, designed to pair with 10th and 11th Generation Intel Core processors in the LGA1200 socket. Its 12+1 phase digital VRM, powered by 50A DrMOS components and an 8-pin ATX 12V connector, delivers clean, stable power to demanding processors — a configuration that suits both everyday computing and enthusiast-level workloads. Memory flexibility is a defining strength of this board. When paired with 11th Generation Core i9, i7, or i5 processors, the four DDR4 DIMM slots support overclocked speeds up to DDR4 5333 MHz (O.C.), with a maximum capacity of 128 GB across four slots (up to 32 GB per DIMM). The board ships with Shielded Memory Routing to improve signal integrity for high-frequency memory kits and full XMP profile support. Storage options are equally capable. The primary M.2 slot (M2P_CPU) supports PCIe 4.0 x4 NVMe drives when used with an 11th Generation processor, while a secondary M.2 slot on the board's reverse side (M2A_SB) accepts both SATA and PCIe 3.0 x4 NVMe drives. Both slots feature Gigabyte's Thermal Guard heatsinks. Six SATA 6Gb/s ports round out the internal storage connectivity. Connectivity on the rear I/O panel includes a USB 3.2 Gen2x2 Type-C port delivering up to 20 Gb/s, one USB 3.2 Gen2 Type-A port, two USB 3.2 Gen1 ports, six USB 2.0 ports, an Intel 2.5GbE LAN port (with cFosSpeed traffic-shaping software), one DisplayPort 1.2 output, one HDMI 1.4 port, and six audio jacks driven by a Realtek HD Audio codec with 2/4/5.1/7.1-channel support. The board's RGB Fusion 2.0 system manages two addressable LED strip headers and two standard RGB strip headers, enabling multi-zone lighting control. Smart Fan 6 provides hybrid fan control across five headers (one CPU, one water-cooling pump, three system), each rated up to 2A/24W, with support for fan-stop functionality. The pre-installed I/O shield and Q-Flash Plus button — which allows BIOS updates without installing a CPU, memory, or GPU — simplify initial builds and maintenance. Verified Specifications: - Socket: LGA1200 | Chipset: Intel B560 Express - Form Factor: Micro-ATX, 244 mm x 244 mm - Memory: 4x DDR4 DIMM, dual-channel, up to 128 GB; up to DDR4 5333 MHz O.C. (11th Gen i9/i7/i5) - Storage: 1x M.2 PCIe 4.0 x4 (CPU, 11th Gen only), 1x M.2 PCIe 3.0 x4 / SATA (Chipset), 6x SATA 6Gb/s - PCIe Slots: 1x PCIe 4.0 x16 (11th Gen), 1x PCIe 3.0 x16 (running x4), 1x PCIe 3.0 x1 - LAN: Intel 2.5GbE (2.5G/1G/100M) - USB Rear: 1x USB 3.2 Gen2x2 Type-C, 1x USB 3.2 Gen2 Type-A, 2x USB 3.2 Gen1, 6x USB 2.0 - Display: 1x HDMI 1.4 (max 4096x2160@30Hz), 1x DisplayPort 1.2 (max 4096x2304@60Hz) - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus - Warranty: 3 Years

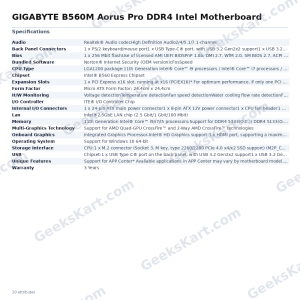

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B560 Express Chipset |
| CPU Type | |
| Lan | Intel®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen2x2 support1 x USB 3.2 Gen2 Type-A ports (red) on the back panel2 x USB 3.2 Gen1 ports on the back panel2 x USB 2.0/1.1 ports on the back panelChipset+USB 3.2 Gen 1 Hub:1 x USB Type-C® port with USB 3.2 Gen1 support, available through the internal USB header2 x USB 3.2 Gen1 ports available through the internal USB headerChipset+ 2 USB 2.0 Hub:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio codecHigh Definition Audio2/4/5.1/7.1-channel |
| Memory | 11th Generation Intel® Core™ i9/i7/i5 processors:Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules10th Generation Intel® Core™ i9/i7 processors:Support for DDR4 2933/2666/2400/2133 MHz memory modules10th Generation Intel® Core™ i5/i3 /Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz memory modules4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 4.0 standard.)**Supported by 11th Generation processors only.1 x PCI Express x16 slot, running at x4 (PCIEX4)1 x PCI Express x1 slot(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeed |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version, HDCP 2.3(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)** Supported by 11th Generation processors only.Chipset:1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)6 x SATA 6Gb/s connectors* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port1 x USB Type-C® port, with USB 3.2 Gen2x2 support1 x USB 3.2 Gen2 Type-A port (red)2 x USB 3.2 Gen1 ports6 x USB 2.0/1.1 ports1 x DisplayPort1 x HDMI port1 x RJ-45 port6 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
