GIGABYTE B560M Gaming HD DDR4 Intel Motherboard
MPN GIGABYTE-B560M-GAMING-HD · Brand Gigabyte · mATX
The GIGABYTE B560M Gaming HD is a Micro ATX LGA1200 motherboard with dual M.2 PCIe 4.0/3.0 storage, DDR4 up to 64 GB, RGB Fusion 2.0, and Q-Flash Plus BIOS update support for Intel 10th and 11th Gen processors
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B560M Gaming HD is a Micro ATX motherboard built on the Intel B560 Express Chipset, designed for LGA1200-socket processors. It supports both 10th and 11th Generation Intel Core processors — including Core i9, i7, i5, i3, Pentium, and Celeron families — making it a flexible foundation for a range of Intel-platform builds. Memory support spans up to 64 GB of DDR4 across two DIMM slots in a dual-channel configuration. With an 11th Gen processor installed, DDR4 speeds reach up to 3200 MHz; 10th Gen i9 and i7 processors support up to 2933 MHz, while i5, i3, Pentium, and Celeron variants top out at 2666 MHz. XMP profiles are also supported for straightforward memory tuning. For storage, the board provides two M.2 Socket 3 connectors: one CPU-connected M.2 running at PCIe 4.0 x4 (types 2260/2280), and one chipset-connected M.2 supporting both SATA and PCIe 3.0 x4 (types 2260/2280). Four SATA 6 Gb/s ports round out the storage options, and Intel Optane Memory support is available via the CPU M.2 slot with an 11th Gen processor. The single PCIe x16 slot operates at PCIe 4.0 speeds, while an additional PCIe x1 slot conforms to PCIe 3.0. USB connectivity includes six USB 3.2 Gen 1 ports (four on the rear panel, two via internal header) and eight USB 2.0/1.1 ports (two rear, six via internal headers). Onboard graphics output is handled through Intel HD Graphics integration, offering a D-Sub port (up to 1920×1200 @ 60 Hz) and an HDMI 2.0 port (up to 4096×2160 @ 30 Hz, HDCP 2.3 compliant). Audio is powered by a Realtek HD Audio CODEC supporting 2/4/5.1/7.1-channel output. Networking uses the Realtek 8118 Gaming LAN chip with bandwidth management utilities included. RGB Fusion 2.0 enables addressable LED (5 V) and standard RGB (12 V) strip control, with support for up to 300 LEDs. Smart Fan 6 provides multi-sensor fan management with a hybrid fan header and FAN STOP capability. Q-Flash Plus allows BIOS updates without installing a CPU, memory, or GPU. Key Specifications: - Form Factor: Micro ATX, 24.4 cm × 22.5 cm - Socket: LGA1200 - Chipset: Intel B560 Express - Memory: 2× DDR4 DIMM, up to 64 GB, dual-channel, XMP support - Storage: 1× M.2 PCIe 4.0 x4 (CPU), 1× M.2 PCIe 3.0 x4 / SATA (chipset), 4× SATA 6 Gb/s - Expansion: 1× PCIe 4.0 x16, 1× PCIe 3.0 x1 - USB: 6× USB 3.2 Gen 1, 8× USB 2.0/1.1 - LAN: Realtek 8118 GbE (1 Gbit/100 Mbit) - Audio: Realtek HD Audio CODEC, 7.1-channel - Video Out: 1× D-Sub (1920×1200@60 Hz), 1× HDMI 2.0 (4096×2160@30 Hz) - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash Plus - Warranty: 3 Years

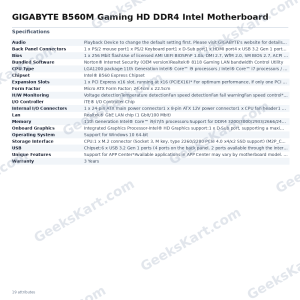

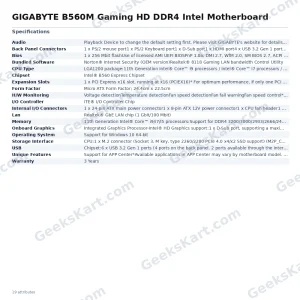

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B560 Express Chipset |
| CPU Type | |
| Lan | Realtek® GbE LAN chip (1 Gbit/100 Mbit) |
| USB | Chipset:6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)Chipset+USB 2.0 Hub:8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software."}"> Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channe* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software |
| Memory | 11th Generation Intel® Core™ i9/i7/i5 processors:Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules10th Generation Intel® Core™ i9/i7 processors:Support for DDR4 2933/2666/2400/2133 MHz memory modules10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:Support for DDR4 2666/2400/2133 MHz memory modules2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)1 x PCI Express x1 slot (PCIEX1)(The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
| Unique Features | Support for APP Center*Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)Realtek® 8118 Gaming LAN bandwidth Control Utility |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 2.0 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)4 x SATA 6Gb/s connectorsIntel® Optane™ Memory Ready* System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed |
| Back Panel Connectors | 1 x PS/2 mouse port1 x PS/2 Keyboard port1 x D-Sub port1 x HDMI port4 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header3 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button |
