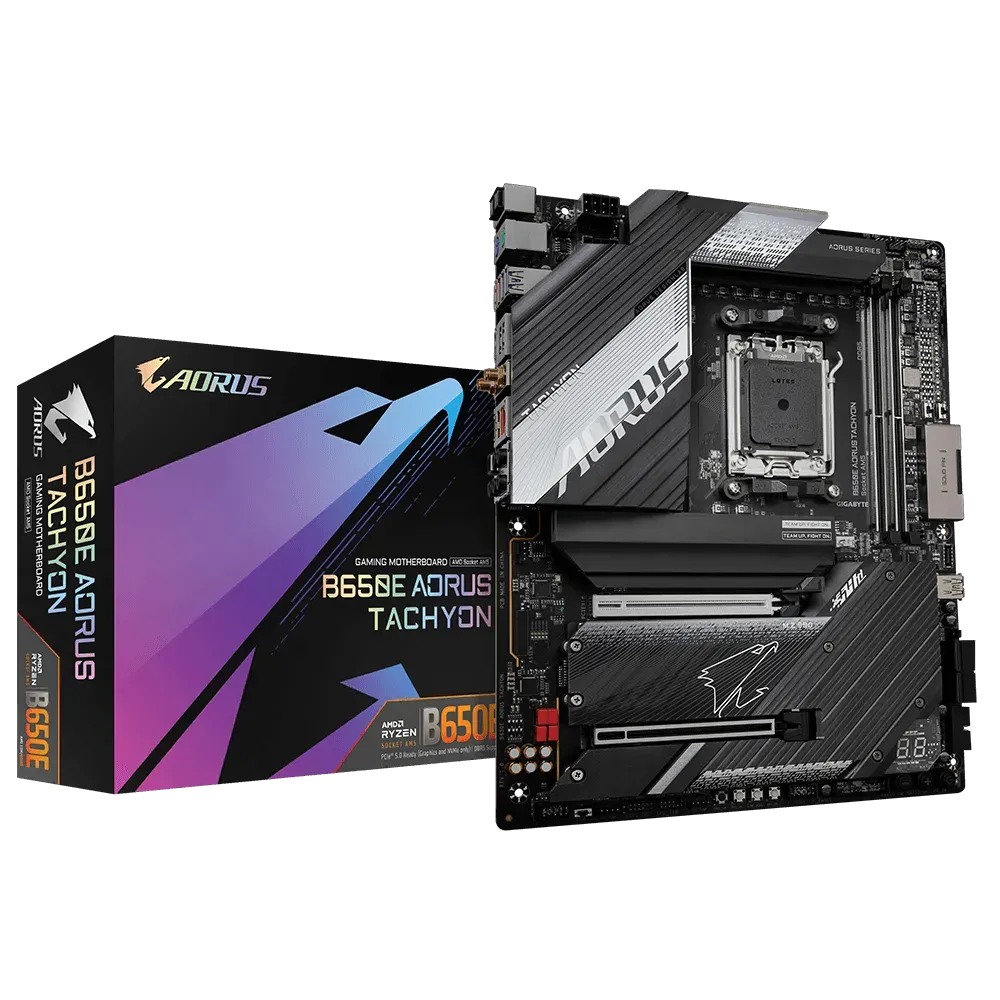

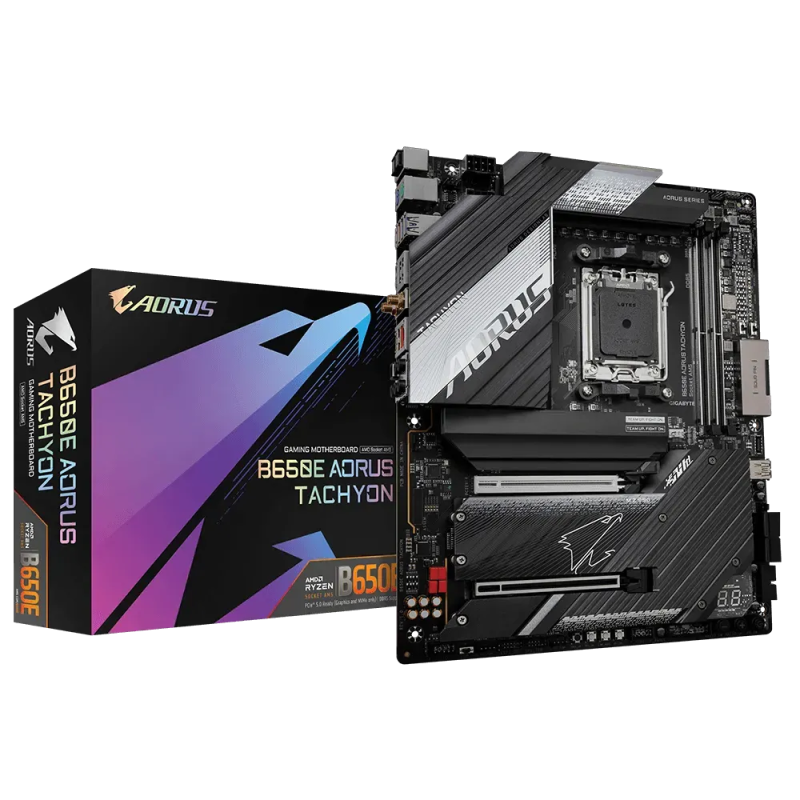

GIGABYTE B650E Aorus Tachyon Wifi DDR5 AMD Motherboard
MPN GIGABYTE-B650E-AORUS-TACHYON · Brand Gigabyte · ATX
The GIGABYTE B650E Aorus Tachyon WiFi DDR5 is an ATX AM5 overclocking motherboard supporting AMD Ryzen 7000/8000/9000 CPUs, DDR5 up to 8400 MT/s (OC), dual PCIe 5.0 M.2 slots, and Wi-Fi 6E
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B650E Aorus Tachyon WiFi DDR5 is an ATX-form-factor motherboard built for AMD Socket AM5, supporting AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 series processors. Anchored by the AMD B650E chipset, it pairs an enthusiast-grade VRM featuring dual 8-pin ATX 12V power connectors and 100% full tantalum polymer capacitors with a 2-DIMM daisy-chain memory trace layout designed to minimise the electrical path between the CPU and memory slots — a configuration Gigabyte states enables DDR5 frequencies up to DDR5-8400 (OC) and beyond. The board provides two DDR5 DIMM sockets accommodating up to 128 GB of system memory (64 GB per single DIMM), with native support for DDR5-4400/4800/5200 and overclocked profiles spanning DDR5-5600 through DDR5-8400 MT/s. Both AMD EXPO and Intel XMP profiles are supported from BIOS, and Gigabyte's SPD write utility allows users to define and save custom memory profiles to EXPO or XMP 3.0 slots for portability. For storage, the board houses three M.2 connectors: two CPU-attached slots (M2A_CPU supporting up to type 25110; M2B_CPU supporting up to type 22110) each capable of PCIe 5.0 x4 with Ryzen 7000-series CPUs, plus one chipset-attached M.2 (M2C_SB, PCIe 4.0 x4). Four SATA 6 Gb/s ports round out storage, with RAID 0, 1, and 10 support for both NVMe and SATA arrays. Expansion is handled by one CPU-connected PCIe x16 slot (PCIe 5.0 x16 with Ryzen 7000) and one chipset PCIe x16 slot running at x4 (PCIe 4.0). Wireless connectivity comes via the AMD Wi-Fi 6E RZ616 module, covering 2.4 GHz, 5 GHz, and 6 GHz bands with 11ax 160 MHz support and Bluetooth 5.2. Wired networking is handled by an Intel 2.5GbE LAN controller. The rear I/O includes HDMI 2.1 (up to 4096×2160 @ 60 Hz via integrated AMD Radeon graphics), one USB Type-C (USB 3.2 Gen 2), three USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 ports, optical S/PDIF out, and five audio jacks backed by a Realtek ALC1220-VB codec with DTS:X Ultra support. OC-focused hardware controls on the board include dedicated power, reset, Clear CMOS, Cold Reset, Protection Mode, CPU Ratio Up/Down buttons, an OC Trigger switch, and a dual-BIOS switch. Verified Specifications: - Socket: AMD AM5 | Chipset: AMD B650E - Memory: 2x DDR5 DIMM, up to 128 GB, DDR5-4400 to DDR5-8400 (OC) - PCIe: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x4 (chipset) - M.2 Slots: 3x (2x PCIe 5.0 x4 via CPU with Ryzen 7000; 1x PCIe 4.0 x4 chipset) - SATA: 4x SATA 6 Gb/s with RAID 0/1/10 - Wi-Fi: Wi-Fi 6E (2.4/5/6 GHz, 160 MHz), Bluetooth 5.2 - LAN: Intel 2.5GbE - Audio: Realtek ALC1220-VB, 7.1-channel, DTS:X Ultra, S/PDIF - BIOS: Dual AMI UEFI BIOS (2x 256 Mbit flash) - Form Factor: ATX, 30.5 cm × 24.4 cm - OS Support: Windows 11 64-bit, Windows 10 64-bit

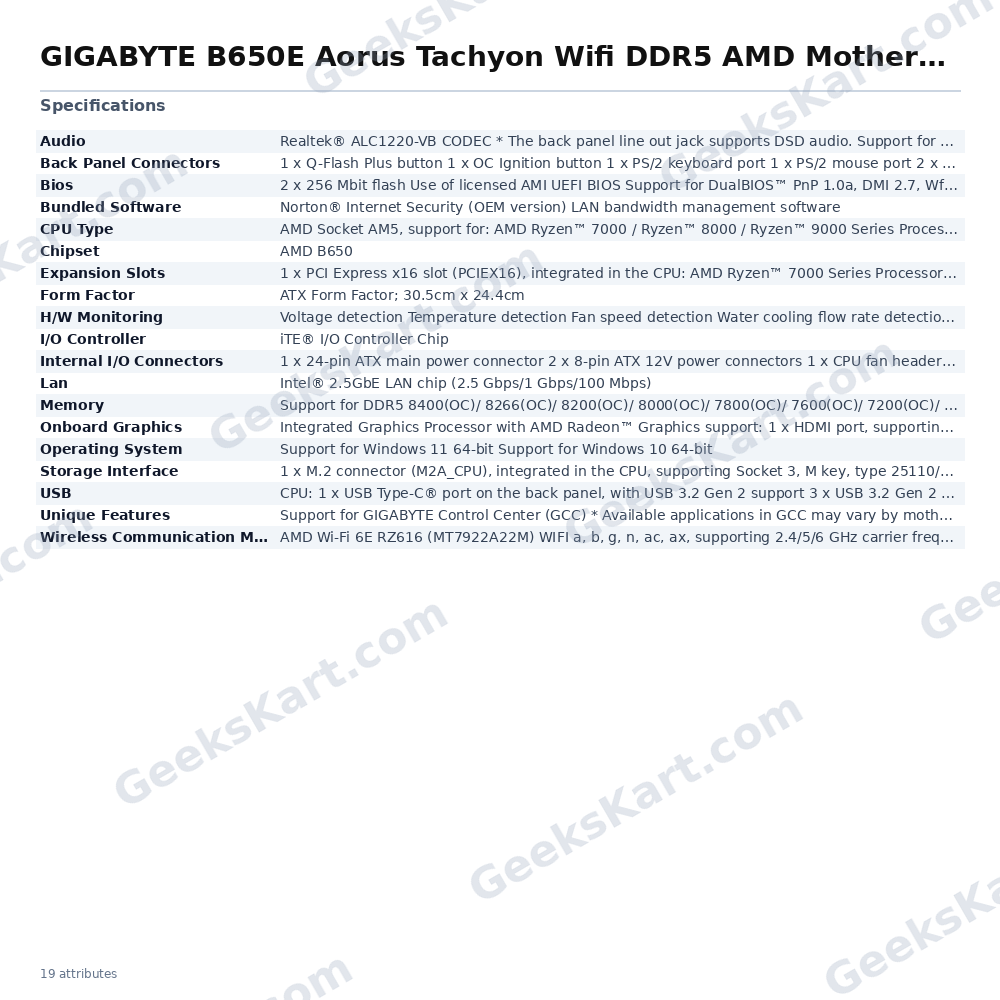

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | AMD B650 |
| CPU Type | AMD Socket AM5, support for: AMD RyzenTM 7000 / RyzenTM 8000 / RyzenTM 9000 Series Processors |
| Lan | Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+ASMedia® USB 3.2 Gen 2 Controller: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 2.0/1.1 ports available through the internal USB header |
| Bios | 2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
| Memory | Support for DDR5 8400(OC)/ 8266(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport forAMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 1 x Q-Flash Plus button 1 x OC Ignition button 1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 3 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 3 x system fan/water cooling pump headers 1 x CPU cooler LED strip/RGB LED strip header 1 x addressable LED strip header 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 2 Type-A port 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted PlatformModule header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x noise detection header 2 x temperature sensor headers Voltage Measurement Points 1 x power button (PW) 1 x reset button (RST) 1 x Clear CMOS button (CMOS) 1 x Cold Reset button (RTY) 1 x Protection Mode button (LIMP_MODE) 1 x CPU Ratio Up button (CLK+) x CPU Ratio Down button (CLK-) 1 x BIOS switch (BIOS_SW) 1 x OC Trigger switch (TGR_SW) 1 x Reserved switch (RSV_SW) |
| Wireless Communication Module | AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard |
