GIGABYTE B660M Aorus Pro AX Wifi DDR4 Intel Motherboard
MPN GIGABYTE-B660M-AORUS-PRO-AX · Brand Gigabyte · mATX

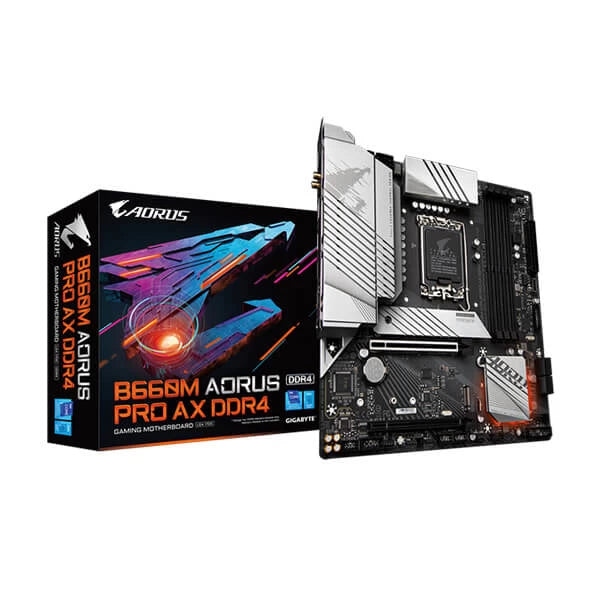

The GIGABYTE B660M Aorus Pro AX DDR4 is a Micro-ATX LGA1700 motherboard featuring Intel B660 chipset, WiFi 6 (802.11ax), Intel 2.5GbE LAN, dual PCIe 4.0 M.2 slots with Thermal Guard, and USB 3.2 Gen 2x2 Type-C connectivity
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B660M Aorus Pro AX is a Micro-ATX motherboard built on the Intel B660 Express Chipset and the LGA1700 socket, supporting 12th Generation and 13th Generation Intel Core, Pentium Gold, and Celeron processors. It measures 24.4 cm x 24.4 cm and fits standard Micro-ATX enclosures. The board features a 12+1+1 Twin Hybrid Digital VRM design with 60A DrMOS power stages, backed by fully covered MOSFET heatsinks to manage thermals under sustained workloads. Memory support spans four DDR4 DIMM slots in a dual-channel configuration, accommodating up to 128 GB total capacity (32 GB per DIMM). DDR4 speeds range from 2133 MHz up to 5333 MHz (O.C.) with Extreme Memory Profile (XMP) support and shielded memory routing for improved overclocking stability. Storage is handled by two M.2 connectors, both running PCIe 4.0 x4 — one routed through the CPU (M2A_CPU, supporting 2260/2280 form factors) and one through the chipset (M2P_SB, supporting 2260/2280/22110), each protected by a Thermal Guard heatsink. Four SATA 6 Gb/s ports support RAID 0, 1, 5, and 10 configurations. Wired networking is provided by an Intel 2.5GbE LAN chip operating at 2.5 Gbps, 1 Gbps, or 100 Mbps. Wireless connectivity uses a WiFi 6 (802.11ax) 2T2R module covering 2.4 GHz and 5 GHz bands with 160 MHz channel support for up to 2.4 Gbps theoretical throughput, paired with Bluetooth 5.2. The rear I/O includes one USB 3.2 Gen 2x2 Type-C port (20 Gb/s), one USB 3.2 Gen 2 Type-A port, four USB 3.2 Gen 1 ports, four USB 2.0 ports, one HDMI 2.1 output (up to 4096×2160 @ 60 Hz), one DisplayPort 1.2 output (up to 4096×2304 @ 60 Hz), an RJ-45 LAN port, an optical S/PDIF output, and two audio jacks. Internal connectors include headers for USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, and dual USB 2.0 rows, plus two Thunderbolt add-in card connectors. Audio is powered by a Realtek High Definition Audio CODEC supporting 2/4/5.1/7.1-channel output with S/PDIF out. RGB FUSION 2.0 controls multi-zone addressable LED lighting via two ARGB headers and two standard RGB headers. Fan management runs through Smart Fan 6 with five fan/pump headers supporting hybrid Fan Stop functionality. The BIOS uses a licensed AMI UEFI implementation stored on a 256 Mbit flash chip, with Q-Flash Plus enabling BIOS updates without an installed CPU or memory. The board ships with a pre-installed I/O shield. Bundled software includes Norton Internet Security (OEM) and cFosSpeed. Windows 10 and Windows 11 64-bit are officially supported. The product carries a 3-year warranty. Verified Specifications: - Socket: LGA1700 | Chipset: Intel B660 Express - Form Factor: Micro ATX, 24.4 cm × 24.4 cm - Memory: 4× DDR4 DIMM, up to 128 GB, DDR4-2133 to DDR4-5333 (O.C.), XMP supported - Storage: 2× PCIe 4.0 x4 M.2 (with Thermal Guard), 4× SATA 6 Gb/s, RAID 0/1/5/10 - GPU Slot: 1× PCIe 4.0 x16, 1× PCIe 3.0 x4 - LAN: Intel 2.5GbE - WiFi: 802.11ax (WiFi 6) 2T2R, Bluetooth 5.2 - Rear USB: 1× USB 3.2 Gen 2x2 Type-C, 1× USB 3.2 Gen 2 Type-A, 4× USB 3.2 Gen 1, 4× USB 2.0 - Display: 1× HDMI 2.1, 1× DisplayPort 1.2 - VRM: 12+1+1 phases, 60A DrMOS - Warranty: 3 Years

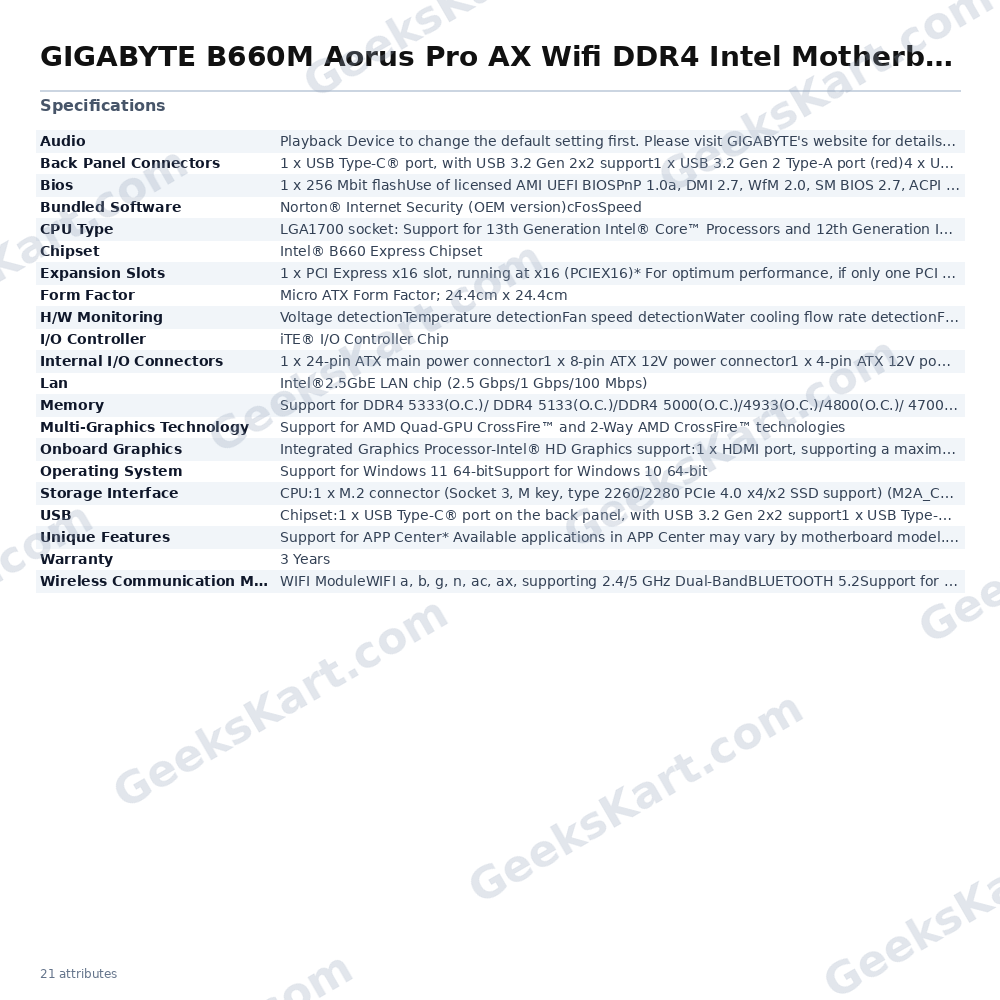

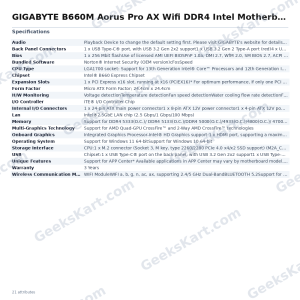

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B660 Express Chipset |
| CPU Type | LGA1700 socket: Support for 13th Generation Intel® CoreTM Processors and 12th Generation Intel® CoreTM, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU |
| Lan | Intel®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header1 x USB 3.2 Gen 2 Type-A port (red) on the back panelChipset+2 USB 3.2 Gen 1 Hubs:6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.\nSupport for S/PDIF Out"}"> Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.Support for S/PDIF Out |
| Memory | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 4.0 standard.)1 x PCI Express x16 slot, running at x4 (PCIEX4)(The PCIEX4 slot conforms to PCI Express 3.0 standard |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version)cFosSpeed |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Storage Interface | CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsSupport for SATA RAID 0, RAID 1, RAID 5, and RAID 10Intel® Optane™ Memory Ready* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connector supported by the Chipset |
| Back Panel Connectors | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI port1 x DisplayPort1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x reset button1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies |
| Wireless Communication Module | WIFI ModuleWIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-BandBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment |
