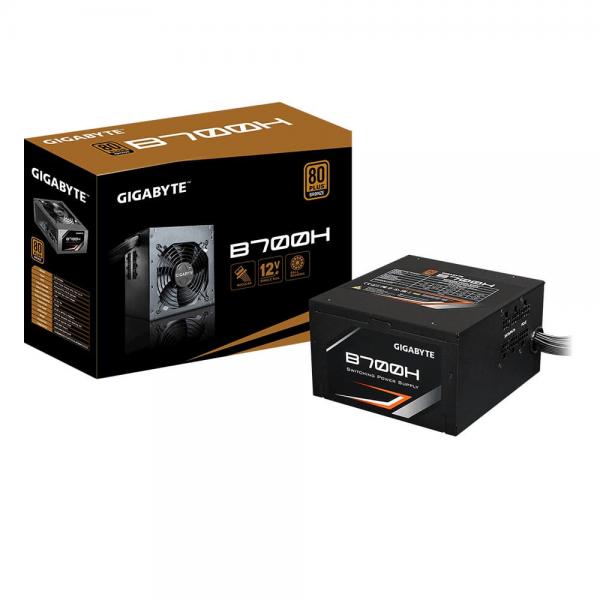

GIGABYTE B700H 80 + Bronze Semi Modular ATX 2.0 Power Supply
MPN GIGABYTE-B700H · Brand Gigabyte
Features of GIGABYTE B700H Modular Design High quality Japanese electrolytic capacitors 120mm smart control fan 80 Plus Bronze certified Single 12V rail Supports NVIDIA SLI / AMD CROSSFIRE Modular Design The black flat cables on the GIGABYTE B700H 700 W Power Supply are modular. Installing only the cables you need to increase the airflow and to improve the chassis thermal performance. High Quality Japanese Electrolytic Capacitors Main electrolytic capacitors are high quality Japanese electrolyti
Inclusive of GST · GST invoice available
Overview
Features of GIGABYTE B700H
- Modular Design
- High quality Japanese electrolytic capacitors
- 120mm smart control fan
- 80 Plus Bronze certified
- Single 12V rail
- Supports NVIDIA SLI / AMD CROSSFIRE
Modular Design
The black flat cables on the GIGABYTE B700H 700 W Power Supply are modular. Installing only the cables you need to increase the airflow and to improve the chassis thermal performance.
High Quality Japanese Electrolytic Capacitors
Main electrolytic capacitors are high quality Japanese electrolytic capacitors, to produce the efficient performance and to ensure the longer reliability.
120mm Smart Control Fan
Gigabyte Power Supply has 120mm cooling fan with smart control system optimizes the noise reduction and the performance. The fan speed is adjusted according to the automatic power detection. The ball bearing fan provides longer and more stable life time.
80 Plus Bronze Certified
80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise.
Single +12V Rail
Single +12V rail provides the best power output, stability and compatibility for the hardware. And it is the best design for overclocking.
Get the best 80 Plus Gold computer smps price from us today!

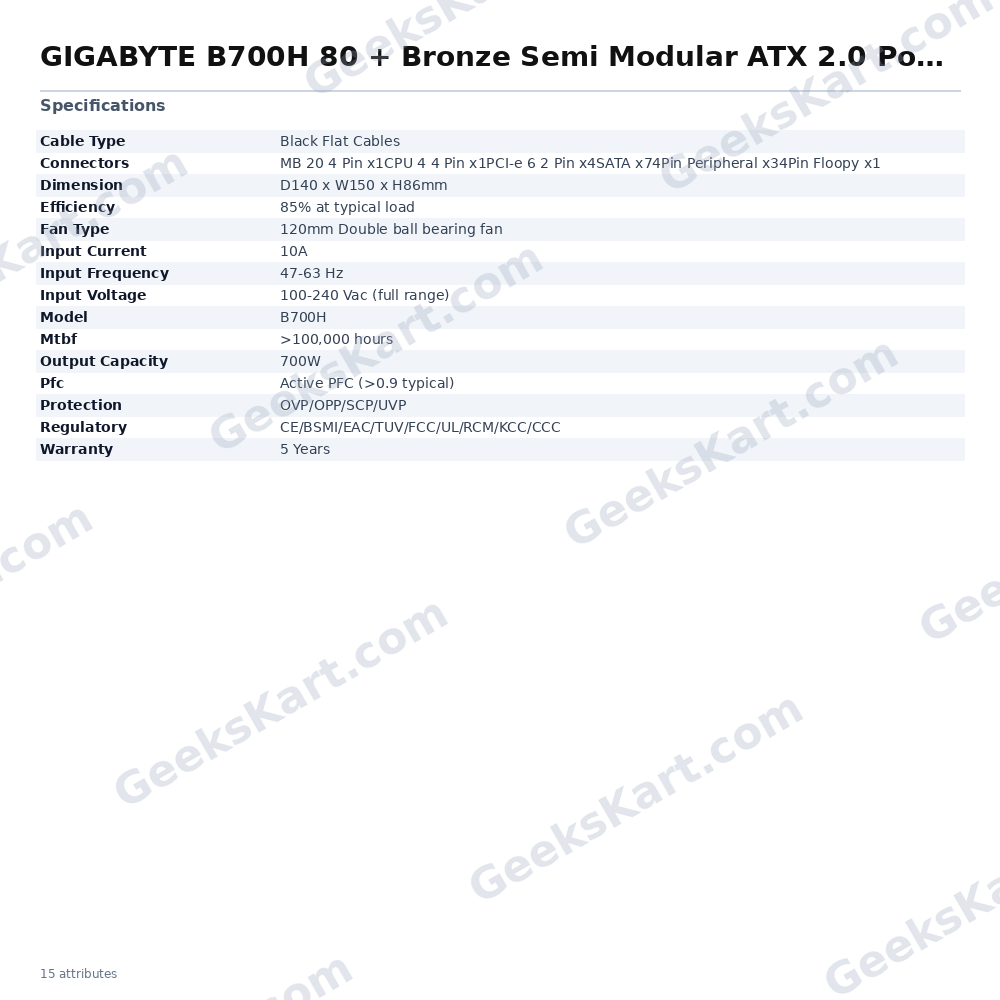

Specifications of GIGABYTE B700H
| Model | B700H |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 10A |
| Input Frequency | 47-63 Hz |
| Output Capacity | 700W |
| Dimension | D140 x W150 x H86mm |
| Fan Type | 120mm Double ball bearing fan |
| Efficiency | 85% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP |
| Regulatory | CE/BSMI/EAC/TUV/FCC/UL/RCM/KCC/CCC |
| Connectors | MB 20 4 Pin x1 CPU 4 4 Pin x1 PCI-e 6 2 Pin x4 SATA x7 4Pin Peripheral x3 4Pin Floopy x1 |
| Cable Type | Black Flat Cables |
| Warranty | 5 Years |
| Note | ***Features, Price and specifications are subject to change without notice |
Datasheet
| Warranty | 5 Years |
|---|---|
| Pfc | Active PFC (>0.9 typical) |
| Mtbf | >100,000 hours |
| Model | B700H |
| Fan Type | 120mm Double ball bearing fan |
| Dimension | D140 x W150 x H86mm |
| Cable Type | Black Flat Cables |
| Connectors | MB 20 4 Pin x1CPU 4 4 Pin x1PCI-e 6 2 Pin x4SATA x74Pin Peripheral x34Pin Floopy x1 |
| Efficiency | 85% at typical load |
| Protection | OVP/OPP/SCP/UVP |
| Regulatory | CE/BSMI/EAC/TUV/FCC/UL/RCM/KCC/CCC |
| Input Current | 10A |
| Input Voltage | 100-240 Vac (full range) |
| Input Frequency | 47-63 Hz |
| Output Capacity | 700W |
