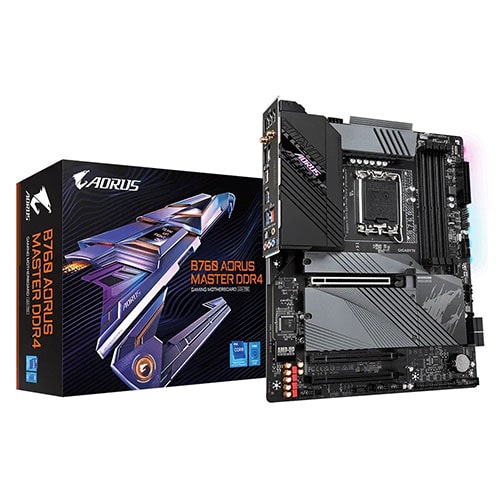

GIGABYTE B760 A Master DDR4 Intel Motherboard
MPN B760-A-MASTER · Brand Gigabyte · ATX
The GIGABYTE B760 A Master DDR4 is an ATX motherboard for 12th and 13th Gen Intel processors, featuring an LGA1700 socket, four DDR4 slots (up to 128 GB), PCIe 4.0 x16, Intel 2.5GbE LAN, USB 3.2 Gen 2x2, and Realtek ALC1220-VB 7.1-channel audio
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B760 A Master DDR4 is a full-size ATX motherboard built on Intel's B760 chipset, designed to work with 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors using the LGA1700 socket. At 30.5 cm x 24.4 cm, it fits standard mid-tower and full-tower ATX cases and is powered by a 24-pin ATX main connector alongside an 8-pin plus 4-pin ATX 12V CPU power arrangement, giving builders ample headroom for higher-TDP processors. Memory support is a standout feature of this board. Four DDR4 DIMM slots operate in dual-channel mode and can accommodate up to 128 GB of RAM. Speeds range from standard JEDEC profiles up to DDR4 5333 via XMP overclocking, giving enthusiasts flexibility without requiring a platform upgrade. For expansion, the board provides one PCIe 4.0 x16 slot for the primary graphics card, a second physical x16 slot running at PCIe 3.0 x4 bandwidth, and a third x16-length slot running at PCIe 3.0 speeds, enabling multi-card or add-in card configurations. Storage is handled by four SATA 6 Gb/s connectors for traditional drives; M.2 slot count is not detailed in the available source data. Connectivity on the rear I/O panel is comprehensive: one USB Type-C port with USB 3.2 Gen 2x2 (up to 20 Gbps), one USB 3.2 Gen 2 Type-A port, four USB 3.2 Gen 1 ports, and four USB 2.0/1.1 ports. Networking is handled by an Intel 2.5GbE LAN chip supporting 2.5 Gbit, 1 Gbit, and 100 Mbit speeds. Display outputs on the rear panel include one HDMI port and one DisplayPort, useful when paired with a CPU featuring integrated graphics. Audio is powered by the Realtek ALC1220-VB codec supporting 2, 4, 5.1, and 7.1-channel configurations, with five rear audio jacks and one optical S/PDIF output for digital audio devices. Verifiable Specifications: - Brand: GIGABYTE | Model: B760 A MASTER - CPU Socket: LGA1700 | Chipset: Intel B760 - Supported CPUs: 12th & 13th Gen Intel Core, Pentium Gold, Celeron - Memory: 4 x DDR4 DIMM, Dual Channel, up to 128 GB, DDR4 5333 (O.C.) max - PCIe Slots: 1x PCIe 4.0 x16; 1x PCIe 3.0 x4 (x16 physical); 1x PCIe 3.0 (x16 physical) - Storage: 4 x SATA 6 Gb/s - Rear USB: 1x USB-C 3.2 Gen 2x2; 1x USB-A 3.2 Gen 2; 4x USB 3.2 Gen 1; 4x USB 2.0 - LAN: Intel 2.5GbE (2.5G/1G/100M) - Audio: Realtek ALC1220-VB, up to 7.1-channel, optical S/PDIF out - Video Out: 1x HDMI, 1x DisplayPort - Power: 24-pin ATX + 8-pin + 4-pin ATX 12V - Form Factor: ATX | Dimensions: 30.5 cm x 24.4 cm

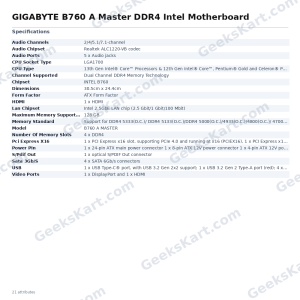

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | INTEL B760 |
| CPU Type | 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| USB | 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support; 1 x USB 3.2 Gen 2 Type-A port (red); 4 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports |
| HDMI | 1 x HDMI |
| Model | B760 A MASTER |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Dimensions | 30.5cm x 24.4cm |
| S/Pdif Out | 1 x optical S/PDIF Out connector |
| Sata 3Gb/S | 4 x SATA 6Gb/s connectors |
| Audio Ports | 5 x Audio jacks |
| Lan Chipset | Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Video Ports | 1 x DisplayPort and 1 x HDMI |
| Audio Chipset | Realtek ALC1220-VB codec |
| Audio Channels | 2/4/5.1/7.1-channel |
| CPU Socket Type | LGA1700 |
| Memory Standard | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800( |
| Pci Express X16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4), 1 x PCI Express x16 slot, supporting PCIe 3.0 and |
| Channel Supported | Dual Channel DDR4 Memory Technology |
| Number Of Memory Slots | 4 x DDR4 |
| Maximum Memory Supported | 128 GB |
