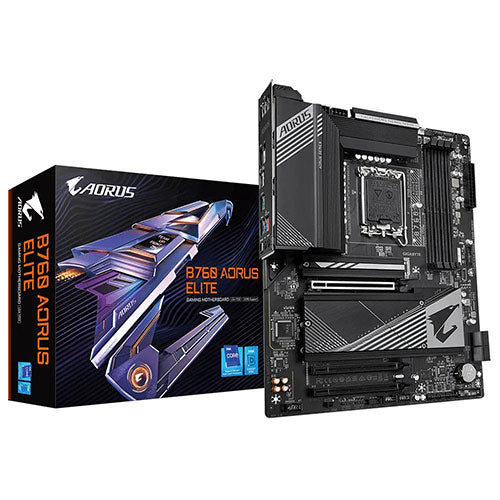

The Gigabyte B760 Aorus Elite DDR5 is an ATX-form-factor motherboard built on the Intel B760 Express chipset and designed for Intel’s LGA1700 socket. It supports 12th-generation and 13th-generation Intel Core processors as well as compatible Pentium Gold and Celeron models, making it a capable platform for mainstream gaming and productivity builds alike. Memory flexibility is a standout trait of this board. Four DDR5 DIMM slots support dual-channel operation with a maximum capacity of 128 GB. Native DDR5-4800 is supported out of the box, while XMP/OC profiles extend that range up to DDR5-7600, giving users room to extract additional bandwidth from high-performance memory kits as their needs evolve. For graphics, the board features one PCIe 4.0 x16 slot for the primary discrete GPU, complemented by two additional PCIe 3.0 slots running at x1 for expansion cards. Storage connectivity includes four SATA 6 Gb/s ports for traditional drives. Rear-panel display outputs — one HDMI and one DisplayPort — cater to systems using Intel integrated graphics. Networking is handled by a Realtek 2.5GbE LAN controller, offering speeds of 2.5 Gbps, 1 Gbps, and 100 Mbps to suit different network environments. Onboard audio is delivered via a Realtek audio codec, with two audio jacks accessible on the rear panel. Power delivery uses a 24-pin ATX main connector alongside an 8-pin and a 4-pin ATX 12V connector, providing the headroom needed for mid-to-high-end 13th-gen processors. Verifiable Specifications: – Model: B760 AORUS ELITE – Brand: Gigabyte – Chipset: Intel B760 Express – CPU Socket: LGA1700 – Supported CPUs: Intel 12th & 13th Gen Core, Pentium Gold, Celeron – Memory Slots: 4 x DDR5 DIMM (Dual Channel) – Max Memory: 128 GB – Memory Speed: DDR5-4800 (native); up to DDR5-7600 (O.C.) – PCIe: 1 x PCIe 4.0 x16; 2 x PCIe 3.0 x1 – Storage: 4 x SATA 6 Gb/s – LAN: Realtek 2.5GbE (2.5G/1G/100M) – Audio: Realtek audio codec; 2 x rear audio jacks – Video Out: 1 x HDMI, 1 x DisplayPort – Form Factor: ATX (305 mm × 244 mm) – Power: 24-pin ATX + 8-pin ATX 12V + 4-pin ATX 12V
ASROCK B650 Pro RS DDR5 AMD Motherboard
₹19,790.00
GIGABYTE X670 Aorus Elite AX Wifi DDR5 AMD Motherboard
₹23,910.00
GIGABYTE B760 Aorus Elite DDR5 Intel Motherboard
₹20,975.00
The Gigabyte B760 Aorus Elite DDR5 is an LGA1700 ATX motherboard supporting Intel 12th and 13th Gen CPUs, DDR5 memory up to 128 GB (7600 MHz OC), PCIe 4.0 x16, and Realtek 2.5GbE networking
Out of stock

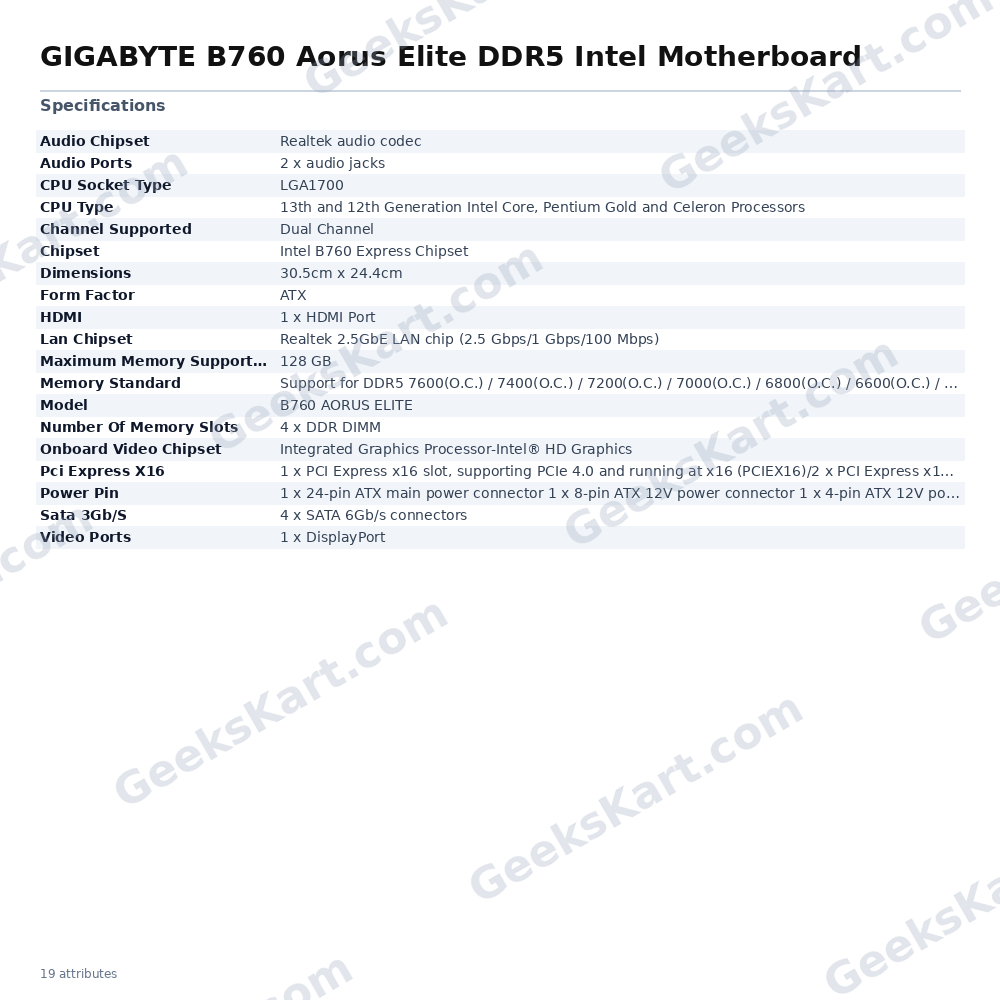

Additional information
| Form Factor | ATX |
|---|---|
| Chipset | Intel B760 Express Chipset |
| CPU Type | 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| HDMI | 1 x HDMI Port |
| Model | B760 AORUS ELITE |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Dimensions | 30.5cm x 24.4cm |
| Sata 3Gb/S | 4 x SATA 6Gb/s connectors |
| Audio Ports | 2 x audio jacks |
| Lan Chipset | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Video Ports | 1 x DisplayPort |
| Audio Chipset | Realtek audio codec |
| CPU Socket Type | LGA1700 |
| Memory Standard | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT |
| Pci Express X16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)/2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| Channel Supported | Dual Channel |
| Onboard Video Chipset | Integrated Graphics Processor-Intel® HD Graphics |
| Number Of Memory Slots | 4 x DDR DIMM |
| Maximum Memory Supported | 128 GB |
Reviews
There are no reviews yet.
