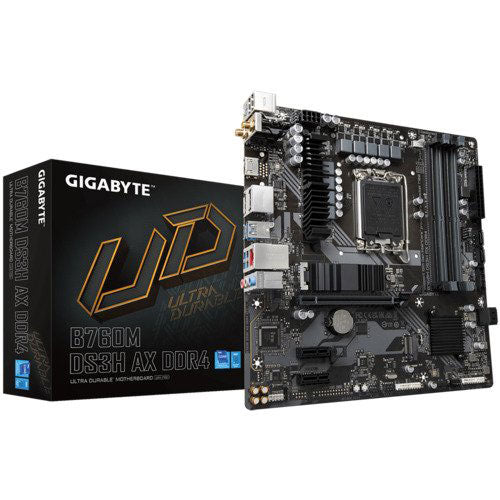

GIGABYTE B760 DS3H AX DDR4 Intel Motherboard
MPN B760-DS3H-AX · Brand Gigabyte · ATX
The Gigabyte B760 DS3H AX DDR4 is an ATX motherboard for 12th and 13th Gen Intel LGA1700 processors, offering PCIe 4.0, dual-channel DDR4 up to 128 GB, built-in Wi-Fi, and Gigabit LAN
Inclusive of GST · GST invoice available
Overview
The Gigabyte B760 DS3H AX DDR4 is an ATX form-factor motherboard built around Intel's B760 Express Chipset, designed to support 12th and 13th Generation Intel Core processors as well as Pentium Gold and Celeron CPUs via the LGA1700 socket. Whether you are assembling a capable home workstation or a mid-range gaming rig, this board provides a solid and feature-rich foundation without unnecessary complexity. Memory flexibility is a key strength here. The board features four DDR4 DIMM slots supporting dual-channel operation and a maximum capacity of 128 GB. Overclockers will appreciate memory speed headroom extending up to DDR4 5333 MHz (O.C.), while native JEDEC speeds are also supported for plug-and-play simplicity. For graphics, the primary PCIe x16 slot runs at PCIe 4.0 bandwidth, ensuring compatibility with modern discrete GPUs without bottlenecking bandwidth. Additional PCIe 3.0 x1 slots provide room for expansion cards such as sound cards or capture cards. Storage connectivity is handled by four SATA 6Gb/s ports, covering HDDs and SSDs alike. Built-in wireless connectivity — reflected in the 'AX' designation — brings Wi-Fi capability to the platform, freeing builds from ethernet cable dependency. Wired networking is handled by a Realtek Gigabit Ethernet chip supporting speeds up to 1 Gbps. Audio is managed by a Realtek audio codec feeding three rear-panel audio jacks. Display output for integrated graphics is available through one HDMI port and one DisplayPort on the rear I/O panel, suitable for CPUs with Intel integrated graphics. Additional rear I/O includes a PS/2 keyboard/mouse combo port. Power delivery uses a standard 24-pin ATX main connector paired with an 8-pin ATX 12V CPU power connector. Verified Specifications: - Socket: LGA1700 - Chipset: Intel B760 Express - CPU Compatibility: 12th and 13th Gen Intel Core, Pentium Gold, Celeron - Form Factor: ATX (244 mm x 244 mm) - Memory: 4 x DDR4 DIMM, dual-channel, up to 128 GB, up to DDR4 5333 (O.C.) - PCIe: 1 x PCIe 4.0 x16; up to 4 x PCIe 3.0 x1 - Storage: 4 x SATA 6Gb/s - LAN: Realtek GbE (1 Gbps/100 Mbps) - Audio: Realtek codec, 3 x rear audio jacks - Display Output: 1 x HDMI, 1 x DisplayPort - Power: 24-pin ATX + 8-pin ATX 12V - Wireless: Yes (AX-class Wi-Fi per SKU designation)

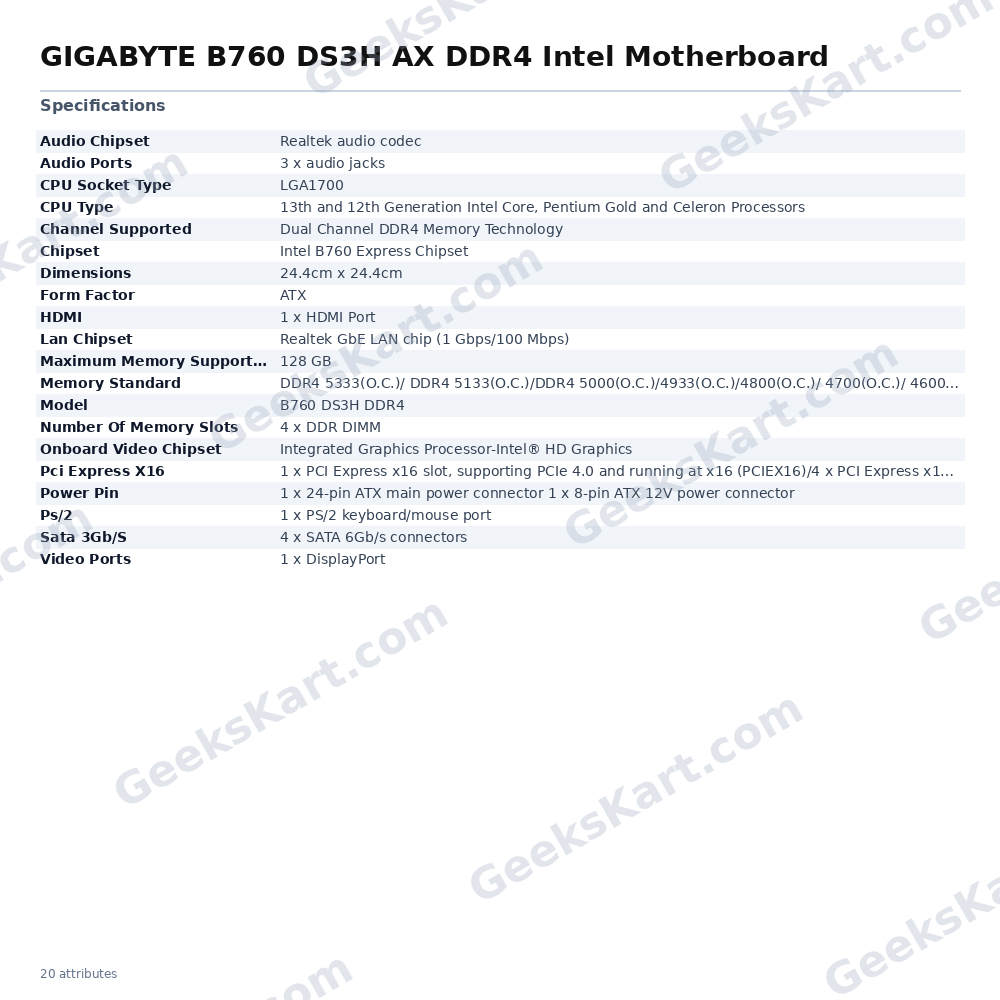

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | Intel B760 Express Chipset |
| CPU Type | 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| HDMI | 1 x HDMI Port |
| Ps/2 | 1 x PS/2 keyboard/mouse port |
| Model | B760 DS3H DDR4 |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Dimensions | 24.4cm x 24.4cm |
| Sata 3Gb/S | 4 x SATA 6Gb/s connectors |
| Audio Ports | 3 x audio jacks |
| Lan Chipset | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Video Ports | 1 x DisplayPort |
| Audio Chipset | Realtek audio codec |
| CPU Socket Type | LGA1700 |
| Memory Standard | DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733 |
| Pci Express X16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)/4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) |
| Channel Supported | Dual Channel DDR4 Memory Technology |
| Onboard Video Chipset | Integrated Graphics Processor-Intel® HD Graphics |
| Number Of Memory Slots | 4 x DDR DIMM |
| Maximum Memory Supported | 128 GB |
