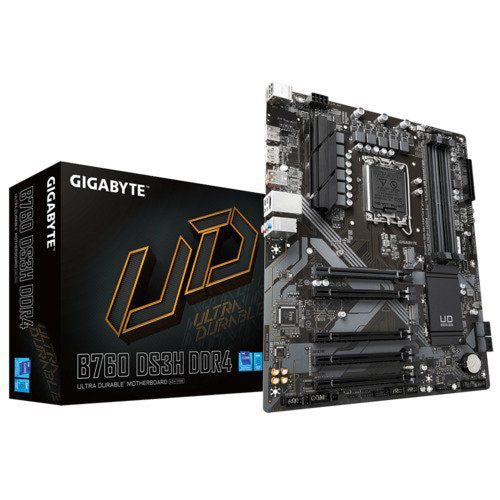

GIGABYTE B760 DS3H DDR4 Intel Motherboard
MPN B760-DS3H-DDR4 · Brand Gigabyte · ATX
The Gigabyte B760 DS3H DDR4 is an ATX motherboard with LGA1700 socket, Intel B760 chipset, support for 12th and 13th Gen Intel processors, four DDR4 slots up to 128 GB, and PCIe 4.0 x16 for discrete GPUs
Inclusive of GST · GST invoice available
Overview
The Gigabyte B760 DS3H DDR4 is an ATX-form-factor motherboard built around the Intel B760 Express Chipset and the LGA1700 socket, making it compatible with both 12th-generation (Alder Lake) and 13th-generation (Raptor Lake) Intel Core, Pentium Gold, and Celeron processors. It is a solid platform for builders who want a stable, mid-range Intel foundation without paying for high-end chipset features they may not need. Memory flexibility is a key strength of this board. Four DDR4 DIMM slots support dual-channel operation with a maximum capacity of 128 GB. Speeds range from DDR4 3733 MHz at native JEDEC profiles up to DDR4 5333 MHz via XMP overclocking, giving enthusiasts meaningful headroom for performance tuning. For graphics, the primary PCIe x16 slot operates at PCIe 4.0 x16, ensuring full bandwidth for current-generation discrete GPUs. Four additional PCIe slots run at PCIe 3.0 x1, suitable for expansion cards such as sound cards, capture cards, or networking adapters. Storage connectivity is handled by four SATA 6 Gb/s ports, catering to SSDs and traditional hard drives alike. The board notes no onboard USB header details in the available specification data, so builders relying heavily on front-panel USB connectivity should verify header availability before purchase. Rear-panel I/O includes one DisplayPort output and one HDMI port for integrated graphics scenarios, three audio jacks driven by a Realtek audio codec, and a Realtek Gigabit Ethernet port (1 Gbps/100 Mbps). A PS/2 combo port for legacy keyboards or mice is also present. The power delivery section uses a standard 24-pin ATX main connector paired with an 8-pin ATX 12V CPU power connector. The board measures 30.5 cm × 24.4 cm, conforming to standard ATX chassis compatibility. Verified Specifications: • Socket: LGA1700 • Chipset: Intel B760 Express • CPU Support: Intel 12th & 13th Gen Core, Pentium Gold, Celeron • Memory: 4 × DDR4 DIMM, dual-channel, up to 128 GB; DDR4 3733–5333 MHz (XMP O.C.) • PCIe: 1 × PCIe 4.0 x16; 4 × PCIe 3.0 x1 (physical x16) • Storage: 4 × SATA 6 Gb/s • Display Out: 1 × HDMI, 1 × DisplayPort (Intel iGPU required) • Audio: Realtek codec, 3 × rear audio jacks • LAN: Realtek GbE (1 Gbps/100 Mbps) • Form Factor: ATX (30.5 cm × 24.4 cm) • Power: 24-pin ATX + 8-pin ATX 12V

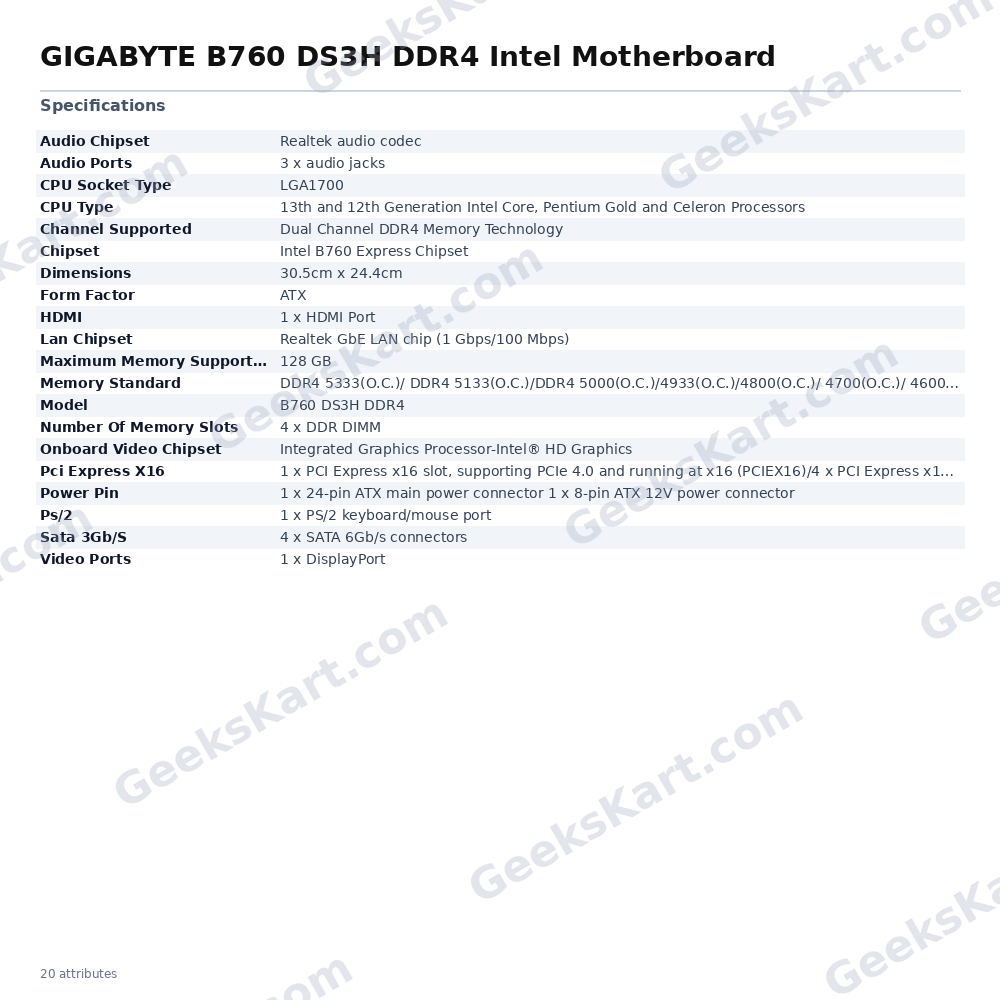

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | Intel B760 Express Chipset |
| CPU Type | 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| HDMI | 1 x HDMI Port |
| Ps/2 | 1 x PS/2 keyboard/mouse port |
| Model | B760 DS3H DDR4 |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Dimensions | 30.5cm x 24.4cm |
| Sata 3Gb/S | 4 x SATA 6Gb/s connectors |
| Audio Ports | 3 x audio jacks |
| Lan Chipset | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Video Ports | 1 x DisplayPort |
| Audio Chipset | Realtek audio codec |
| CPU Socket Type | LGA1700 |
| Memory Standard | DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733 |
| Pci Express X16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)/4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) |
| Channel Supported | Dual Channel DDR4 Memory Technology |
| Onboard Video Chipset | Integrated Graphics Processor-Intel® HD Graphics |
| Number Of Memory Slots | 4 x DDR DIMM |
| Maximum Memory Supported | 128 GB |
