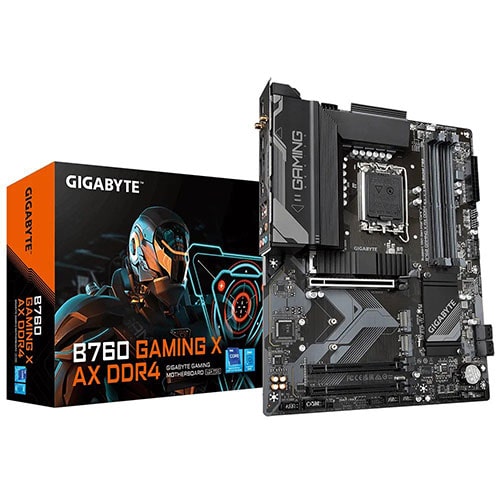

GIGABYTE B760 Gaming X AX DDR4 Intel Motherboard
MPN B760-GAMING-X-AX · Brand Gigabyte · ATX
Gigabyte B760 Gaming X AX DDR4 ATX motherboard with LGA1700, Intel B760 Express Chipset, support for 12th/13th Gen Intel CPUs, 4 DDR4 slots up to 128 GB, PCIe 4.0, 2.5GbE LAN, Wi-Fi, and dual display outputs
Inclusive of GST · GST invoice available
Overview
The Gigabyte B760 Gaming X AX DDR4 is an ATX-form-factor motherboard built around the Intel B760 Express Chipset, designed to support Intel 12th and 13th Generation Core processors as well as Pentium Gold and Celeron chips via the LGA1700 socket. It is a capable platform for gaming and productivity builds where DDR4 memory compatibility and solid connectivity are priorities. Memory support spans four DDR4 DIMM slots capable of holding up to 128 GB total. Out-of-the-box the board runs standard DDR4 frequencies, and the XMP/OC profile list extends up to DDR4 5333 MHz, giving enthusiasts meaningful headroom for performance tuning. On the expansion side, a primary PCIe x16 slot runs at PCIe 4.0 x16 bandwidth, ideal for a modern discrete GPU. Two additional PCIe x16 physical slots operate at PCIe 3.0 x1 electrical, suitable for add-in cards. Storage connectivity is handled by four SATA 6 Gb/s ports. The source data lists the SATA header column header as "3Gb/s" but specifies the actual transfer rate as 6 Gb/s; the 6 Gb/s figure is used here as it is explicitly stated in the specification value. Networking is a clear strength of this model: the board carries a Realtek 2.5GbE LAN chip supporting 2.5 Gbps, 1 Gbps, and 100 Mbps link speeds, plus the "AX" designation confirms Wi-Fi is present (reflected in the model name and the product SKU suffix). The audio subsystem uses a Realtek audio codec feeding six rear-panel audio jacks. Video output for integrated graphics is provided through one HDMI port and one DisplayPort, routed through Intel's integrated HD Graphics processor. The rear panel also features a full complement of connectivity typical for an ATX board. Verified Specifications: - Form Factor: ATX - Socket: LGA1700 - Chipset: Intel B760 Express - Supported CPUs: Intel 12th & 13th Gen Core, Pentium Gold, Celeron - Memory: 4 x DDR4 DIMM slots, max 128 GB, up to DDR4 5333 MHz (O.C.) - PCIe: 1 x PCIe 4.0 x16 (primary GPU), 2 x PCIe 3.0 x1 (physical x16 slots) - Storage: 4 x SATA 6 Gb/s - LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) - Wireless: Wi-Fi included (AX model) - Audio: Realtek codec, 6 x rear audio jacks - Video Out: 1 x HDMI, 1 x DisplayPort (Intel integrated graphics) - Onboard Video: Intel HD Graphics (integrated) This board suits builders who want an Intel platform with modern wired and wireless networking, PCIe 4.0 GPU bandwidth, and flexible DDR4 memory overclocking, while staying within a mainstream B760 budget

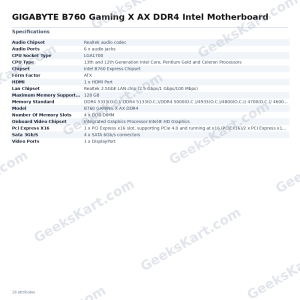

Datasheet
| Form Factor | ATX |
|---|---|
| Chipset | Intel B760 Express Chipset |
| CPU Type | 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| HDMI | 1 x HDMI Port |
| Model | B760 GAMING X AX DDR4 |
| Sata 3Gb/S | 4 x SATA 6Gb/s connectors |
| Audio Ports | 6 x audio jacks |
| Lan Chipset | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Video Ports | 1 x DisplayPort |
| Audio Chipset | Realtek audio codec |
| CPU Socket Type | LGA1700 |
| Memory Standard | DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733 |
| Pci Express X16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)/2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| Onboard Video Chipset | Integrated Graphics Processor-Intel® HD Graphics |
| Number Of Memory Slots | 4 x DDR DIMM |
| Maximum Memory Supported | 128 GB |
