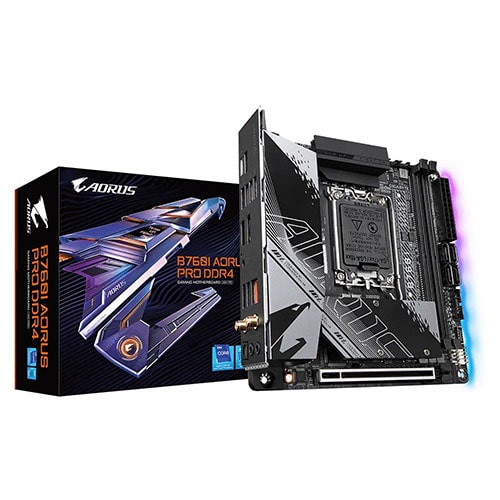

GIGABYTE B760I Aorus Pro DDR4 Intel Motherboard
MPN B760I-AORUS-PRO · Brand Gigabyte · Mini-ITX
The GIGABYTE B760I Aorus Pro DDR4 is a Mini ITX LGA1700 motherboard featuring Intel B760 chipset, dual-channel DDR4 support up to 64 GB, PCIe 4.0 x16, 2.5GbE LAN, and HDMI plus DisplayPort outputs — ideal for compact Intel 12th or 13th Gen builds
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B760I Aorus Pro DDR4 is a Mini ITX form-factor motherboard built on the Intel B760 Express chipset, designed to pair with 12th and 13th Generation Intel Core, Pentium Gold, and Celeron processors via the LGA1700 socket. Measuring just 17.0 x 17.0 cm, it delivers a capable feature set in a space-efficient package that suits compact and small-form-factor PC builds without requiring a compromise on connectivity or expandability. Memory support is handled through two DDR4 DIMM slots running in dual-channel configuration, with a maximum capacity of 64 GB. The board accommodates a wide range of DDR4 speeds including native DDR4 3733 and overclocked profiles reaching up to DDR4 5333 (O.C.), giving builders flexibility to balance performance and budget. A single PCIe 4.0 x16 slot handles discrete graphics, while four SATA 6 Gb/s connectors provide ample storage connectivity for drives alongside any M.2 storage the board supports through its chipset lanes. Network performance is handled by a Realtek 2.5GbE LAN chip, supporting 2.5 Gbps, 1 Gbps, and 100 Mbps speeds — a meaningful upgrade over standard gigabit Ethernet for file transfers and low-latency gaming. Onboard audio is provided via a Realtek audio codec with two audio jacks on the rear panel. For display output, the rear I/O includes one HDMI port and one DisplayPort, enabling connection to monitors through the CPU's integrated Intel HD Graphics when a discrete GPU is not in use. Power delivery is managed through a standard 24-pin ATX main connector and an 8-pin ATX 12V connector. GIGABYTE's Ultra Durable construction philosophy applies reinforced component selection and slot construction across the board. Verified Specifications: - Form Factor: Mini ITX (17.0 x 17.0 cm) - Socket: LGA1700 - Chipset: Intel B760 Express - CPU Support: 12th and 13th Gen Intel Core, Pentium Gold, Celeron - Memory: 2 x DDR4 DIMM, dual-channel, up to 64 GB, DDR4 3733 native / up to DDR4 5333 (O.C.) - PCIe: 1 x PCIe 4.0 x16 - Storage: 4 x SATA 6 Gb/s - LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps) - Audio: Realtek audio codec, 2 x rear audio jacks - Video Output: 1 x HDMI, 1 x DisplayPort (via integrated graphics) - Power: 24-pin ATX + 8-pin ATX 12V - Onboard Video: Intel HD Graphics (CPU-dependent)
Datasheet
| Form Factor | Mini-ITX |
|---|---|
| Chipset | Intel B760 Express Chipset |
| CPU Type | 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| HDMI | 1 x HDMI Port |
| Model | B760I AORUS PRO DDR4 |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Dimensions | 17.0 x 17.0cm |
| Sata 3Gb/S | 4 x SATA 6Gb/s connectors |
| Audio Ports | 2 x audio jacks |
| Lan Chipset | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Video Ports | 1 x DisplayPort |
| Audio Chipset | Realtek audio codec |
| CPU Socket Type | LGA1700 |
| Memory Standard | DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733 |
| Pci Express X16 | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
| Channel Supported | Dual Channel DDR4 Memory Technology |
| Onboard Video Chipset | Integrated Graphics Processor-Intel® HD Graphics |
| Number Of Memory Slots | 2 x DDR4 DIMM |
| Maximum Memory Supported | 64GB |
