Gigabyte B760M DS3H WiFi 6E Gen5 Motherboard (LGA1700, DDR5, PCIe 5.0)
MPN B760M-DS3H-WF6E-GEN5 · Brand Gigabyte · mATX
Gigabyte B760M DS3H WiFi 6E Gen5 is a Micro-ATX LGA1700 motherboard with Intel B760 chipset, PCIe 5.0 x16, DDR5 support up to 7600 MHz, Wi-Fi 6E, 2.5GbE LAN, and 3-year warranty
Inclusive of GST · GST invoice available
Overview

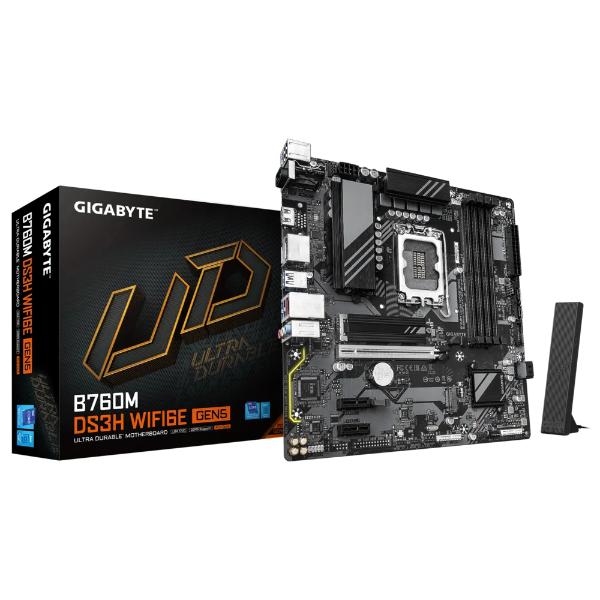

The Gigabyte B760M DS3H WiFi 6E Gen5 is a Micro-ATX motherboard built on Intel's B760 chipset, designed for the LGA 1700 socket and compatible with Intel 12th, 13th, and 14th Generation Core processors as well as Pentium Gold and Celeron CPUs. It brings PCIe 5.0 connectivity to a value-oriented platform, featuring a primary x16 slot running at PCIe 5.0 speeds — doubling the data transfer rate from 16 GT/s to 32 GT/s per lane compared to PCIe 4.0 — alongside two PCIe 3.0 x1 slots for additional expansion. Memory flexibility is a strong point: four DIMM slots support dual-channel DDR5 with speeds up to 7600 MHz via XMP profiles, and the board accommodates up to 256 GB of RAM. ECC Un-buffered modules are supported in non-ECC mode, broadening compatibility for workstation-adjacent builds. Storage options include two M.2 Socket 3 connectors (PCIe 4.0 x4) for high-speed NVMe drives, and four SATA 6 Gb/s connectors for traditional drives. Networking is handled by integrated 2.5 GbE LAN and Wi-Fi 6E (802.11ax) with Bluetooth 5.3, using a 2T2R antenna configuration. The WIFI EZ-Plug design simplifies antenna installation, while WIFI Compass auto-selects the optimal antenna orientation. The power delivery uses a 6+2+1 phase hybrid VRM design with premium chokes and capacitors, supported by a 6-layer PCB and Gigabyte's UD Power Connector for improved thermal dissipation. The PCIe x16 slot features EZ-Latch for tool-free graphics card removal and PCIe UD Slot reinforcement for heavy GPU support. Rear I/O includes 1x USB-C (USB 3.2 Gen 2, 10 Gb/s), 3x USB 3.2 Gen 1 Type-A, 2x USB 2.0, 2x DisplayPort, 1x HDMI, RJ-45, PS/2, and 3x audio jacks. RGB headers (2x ARGB Gen2 + 1x RGB) and Smart Fan 6 with multiple thermal sensors and hybrid fan headers with FAN STOP support complete the feature set. Q-Flash Plus allows BIOS updates without a CPU or memory installed. Key Verified Specifications: - Socket: LGA 1700 - Chipset: Intel B760 - Form Factor: Micro-ATX - CPU Support: Intel 12th / 13th / 14th Gen Core, Pentium Gold, Celeron - Memory: 4x DDR5 DIMM, Dual Channel, up to 256 GB, up to 7600 MHz (XMP) - PCIe Slots: 1x PCIe 5.0 x16 (CPU), 2x PCIe 3.0 x1 (Chipset) - Storage: 2x M.2 PCIe 4.0 x4, 4x SATA 6 Gb/s - Networking: 2.5 GbE LAN, Wi-Fi 6E (802.11ax), Bluetooth 5.3 - Rear USB: 1x USB-C 3.2 Gen 2, 3x USB 3.2 Gen 1, 2x USB 2.0 - Display Out: 2x DisplayPort, 1x HDMI - VRM: 6+2+1 Phase Hybrid Design - Warranty: 3 Years
Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| color | Black |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron |
| Max Memory | 256 GB |
| Memory Speed | up to 7600 |
| Platform | INTEL |
| Graphics Port | 2 x DisplayPort, 1 x HDMI |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU andmemory configurationmay affect the supportedmemory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on Brand website for more information.) |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: – 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Channel Supported | Dual Channel |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |

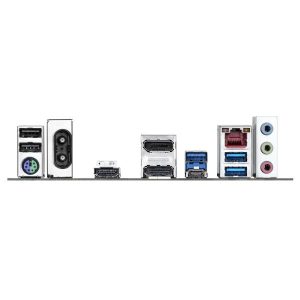

| Back Panel I/O Ports | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x antenna connectors (2T2R) 1 x HDMI port (Note) 2 x DisplayPorts (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| Motherboard Series | Gigabyte Ultra Durable |
