Gigabyte B760M Gaming X AX DDR4 WiFi6E M-ATX Motherboard
MPN B760M-G-X-AX-DDR4 · Brand GIGABYTE · mATX
The GIGABYTE B760M Gaming X AX DDR4 Micro-ATX motherboard supports Intel 12th, 13th, and 14th Gen processors on LGA1700, with Wi-Fi 6E, 2.5GbE LAN, dual PCIe 4.0 x4 M.2 slots, and DDR4 XMP support up to 5333 MHz — all in a compact Micro-ATX footprint
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B760M Gaming X AX DDR4 is a Micro-ATX motherboard built on Intel's B760 chipset with an LGA1700 socket, designed to support Intel Core 12th, 13th, and 14th generation processors as well as Pentium Gold and Celeron variants. Whether you are assembling a compact gaming desktop or a capable productivity workstation, this board delivers a well-rounded feature set without requiring a full-ATX chassis. Power delivery is handled by a Hybrid 8+1+1 phase digital VRM solution, backed by a one-piece TMOS heatsink that maximises surface area for heat dissipation and keeps VRM temperatures stable under sustained workloads. Four DDR4 DIMM slots support dual-channel memory in configurations up to 128 GB, with XMP profiles validated up to 5333 MHz — ideal for users who want to extract additional bandwidth from high-speed kits. ECC Un-buffered DIMM modules (operating in non-ECC mode) are also compatible. For storage, two M.2 Socket 3 connectors each run at PCIe 4.0 x4, enabling fast NVMe SSDs with M.2 Thermal Guard heatsinks protecting drive temperatures. Four SATA 6 Gb/s ports provide additional capacity for traditional drives or SATA SSDs. The primary x16 PCIe slot (CPU-direct, PCIe 4.0) features GIGABYTE's EZ-Latch mechanism for tool-free GPU installation and removal, while a second x16-keyed slot from the chipset runs at PCIe 3.0 x4 for add-in cards. Connectivity is a clear strength. The onboard Intel Wi-Fi 6E (802.11ax) module operates across the 2.4 GHz, 5 GHz, and 6 GHz bands with a 2T2R antenna configuration supporting theoretical wireless speeds up to 2.4 Gbps, alongside Bluetooth 5.3. A Realtek 2.5GbE wired LAN port ensures low-latency network performance for gaming. The rear I/O includes an HDMI 2.0 port and a DisplayPort output for CPU-integrated graphics, three USB 3.2 Gen 1 Type-A ports, five USB 2.0/1.1 ports, and three audio jacks. Internally, a USB Type-C header with USB 3.2 Gen 2 (10 Gb/s) support brings high-speed front-panel connectivity to compatible cases. Smart Fan 6 technology provides granular fan control across multiple headers, including hybrid FAN STOP mode for silent operation under light loads. Q-Flash Plus allows BIOS updates without a CPU or memory installed — a practical convenience during platform upgrades. Verified Specifications: - Socket: LGA1700 - Chipset: Intel B760 - Form Factor: Micro-ATX - Memory: 4x DDR4 DIMM, Dual Channel, max 128 GB, XMP up to 5333 MHz - Storage: 2x M.2 PCIe 4.0 x4 (with M.2 Thermal Guard), 4x SATA 6 Gb/s - PCIe: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x4 (chipset, x16 physical) - Wireless: Wi-Fi 6E 802.11ax (2T2R), Bluetooth 5.3 - LAN: 2.5 GbE - Rear USB: 3x USB 3.2 Gen 1, 5x USB 2.0/1.1 - Front Panel: 1x USB Type-C (USB 3.2 Gen 2, 10 Gb/s), 1x USB 3.2 Gen 1 header, 2x USB 2.0 headers - Video Output: 1x HDMI 2.0, 1x DisplayPort - Audio: 3x rear audio jacks, S/PDIF Out header, Audio Noise Guard - RGB: 2x Addressable (ARGB) headers, 2x RGB headers - Warranty: 3 Years

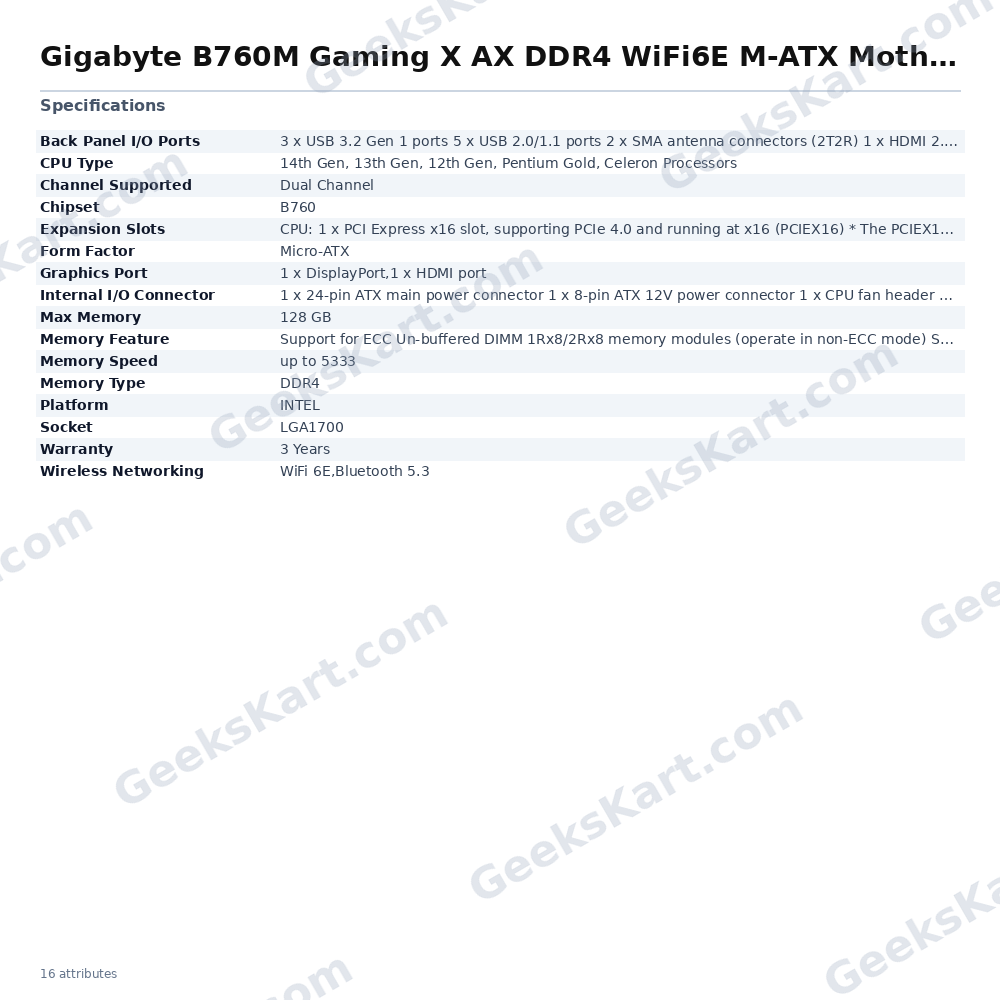

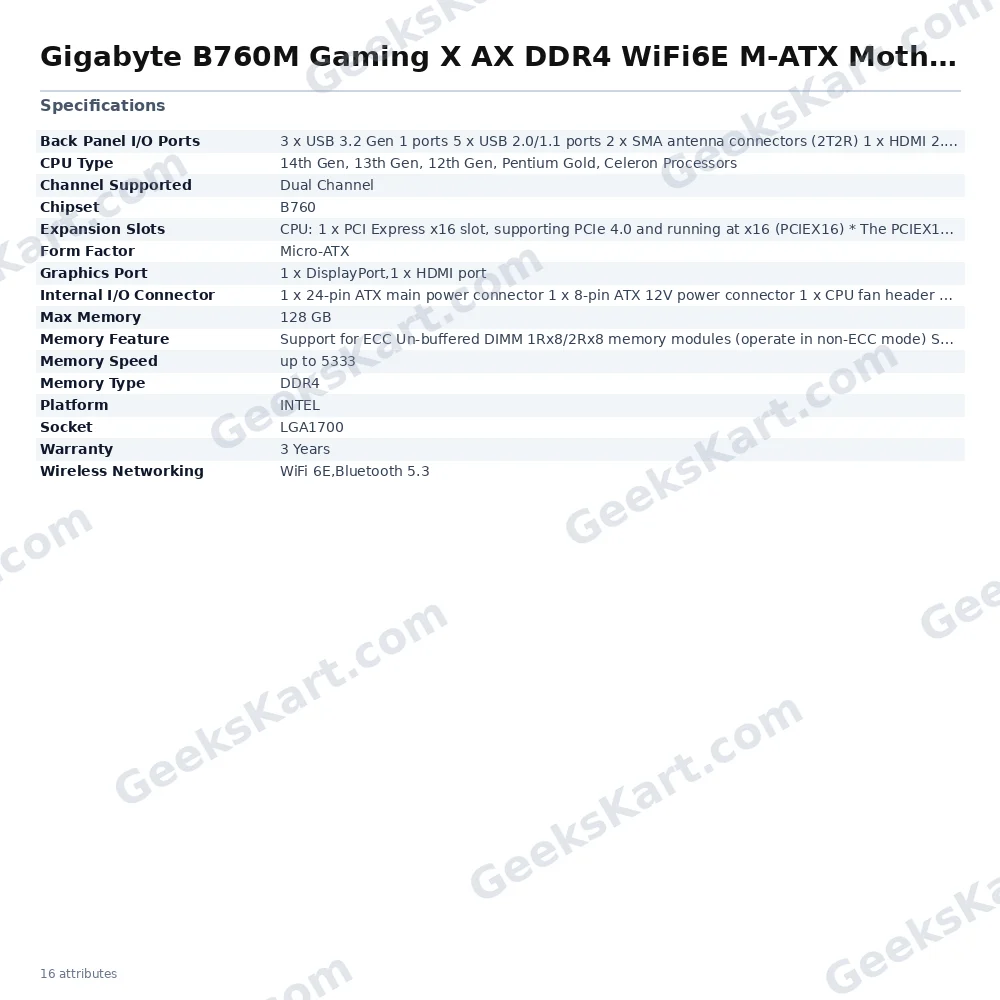

Datasheet
| Memory Type | DDR4 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Max Memory | 128 GB |
| Memory Speed | up to 5333 |
| Platform | INTEL |
| Graphics Port | 1 x DisplayPort,1 x HDMI port |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
