Gigabyte B760M Gaming X WiFi6E DDR4 GEN5 Micro-ATX Motherboard
MPN B760M-G-X-WF6E-D4-GEN5 · Brand GIGABYTE · mATX
The Gigabyte B760M Gaming X WiFi6E DDR4 GEN5 is a Micro-ATX motherboard with an Intel B760 chipset, LGA1700 socket, PCIe 5.0 x16 slot, Wi-Fi 6E, 2.5GbE LAN, and DDR4 support for Intel 12th through 14th Gen CPUs
Inclusive of GST · GST invoice available
Overview
The Gigabyte B760M Gaming X WiFi6E DDR4 GEN5 is a Micro-ATX motherboard built on Intel's B760 chipset for LGA1700 processors, supporting Intel Core 12th, 13th, and 14th generation CPUs as well as Pentium Gold and Celeron processors. Designed for gamers and system builders who want PCIe 5.0 capability without sacrificing affordability, this board pairs a capable VRM with modern connectivity across a compact form factor. At the heart of its power delivery is a Hybrid 8+1+1 phase VRM solution using 60A DrMOS components. A dedicated VRM Thermal Armor heatsink works in tandem with the M.2 Thermal Guard to keep critical components cool under sustained load, reducing the risk of throttling during extended gaming sessions or content creation tasks. Connectivity is a standout: the board ships with an integrated Wi-Fi 6E (802.11ax) module paired with Bluetooth 5.3, plus a WIFI EZ-Plug antenna connector and WIFI Compass technology that assists in finding the optimal antenna orientation. Wired networking is handled by a 2.5GbE LAN port for low-latency, high-throughput connections. Display outputs include one HDMI port and one DisplayPort for integrated graphics use. Storage expansion is handled by two M.2 Socket 3 connectors, both running PCIe 4.0 x4, alongside four SATA 6Gb/s ports. The primary PCIe x16 slot supports PCIe 5.0 and is reinforced with GIGABYTE's PCIe UD Slot armor and an EZ-Latch quick-release mechanism for straightforward GPU installation and removal. A secondary x16-length slot runs at PCIe 3.0 x4 via the chipset. Memory support spans four DDR4 DIMM slots in dual-channel configuration, with a maximum capacity of 128 GB and support for XMP profiles up to 5333 MT/s. ECC unbuffered modules are also supported in non-ECC mode. The front-panel USB header includes a USB Type-C port with USB 3.2 Gen 2 (10 Gb/s) support, expanding high-speed connectivity to the chassis front. Additional builder-friendly features include Q-Flash Plus for BIOS updates without a CPU or RAM installed, Smart Fan 6 with multiple temperature sensors and hybrid fan headers supporting FAN STOP, three addressable LED strip headers, one RGB LED strip header, and two Thunderbolt add-in card connectors. Verified Specifications: - Socket: LGA1700 - Chipset: Intel B760 - Form Factor: Micro-ATX - CPU Support: Intel Core 12th / 13th / 14th Gen, Pentium Gold, Celeron (LGA1700) - Memory: 4 x DDR4 DIMM, Dual Channel, max 128 GB, XMP up to 5333 MT/s - PCIe Slots: 1 x PCIe 5.0 x16 (CPU), 1 x PCIe 3.0 x4 (chipset, x16 length) - Storage: 2 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s - Wireless: Wi-Fi 6E 802.11ax (2T2R), Bluetooth 5.3 - LAN: 2.5GbE - Rear USB: 3 x USB 3.2 Gen 1, 5 x USB 2.0/1.1 - Front USB: 1 x USB Type-C (USB 3.2 Gen 2 / 10 Gb/s), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers - Display Output: 1 x HDMI, 1 x DisplayPort - VRM: Hybrid 8+1+1 phases, 60A DrMOS - Audio: 3 x rear audio jacks, front audio header, S/PDIF Out header - Warranty: 3 Years

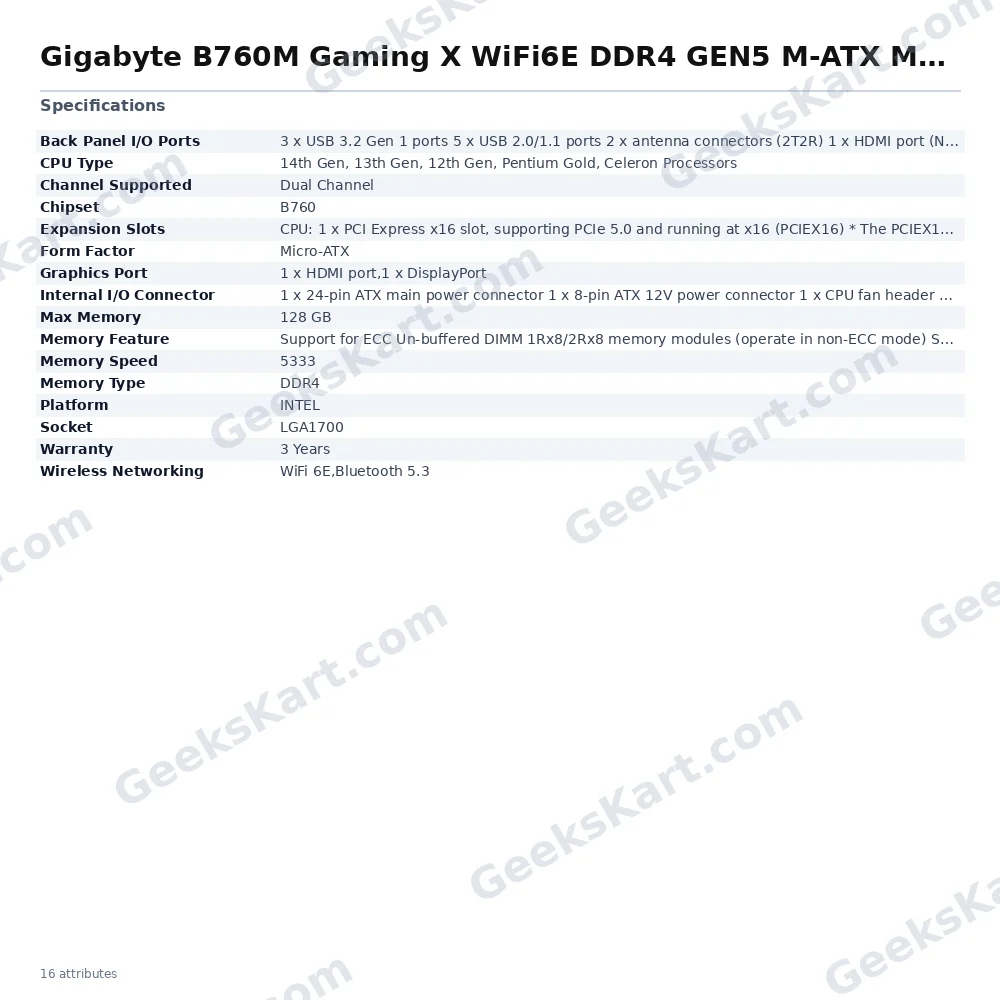

Datasheet
| Memory Type | DDR4 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B760 |
| Socket | LGA1700 |
| CPU Type | 14th Gen, 13th Gen, 12th Gen, Pentium Gold, Celeron Processors |
| Max Memory | 128 GB |
| Memory Speed | 5333 |
| Platform | INTEL |
| Graphics Port | 1 x HDMI port,1 x DisplayPort |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on Brand website for more information.) |
| Expansion Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x HDMI port (Note) 1 x DisplayPort (Note) 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 3 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
