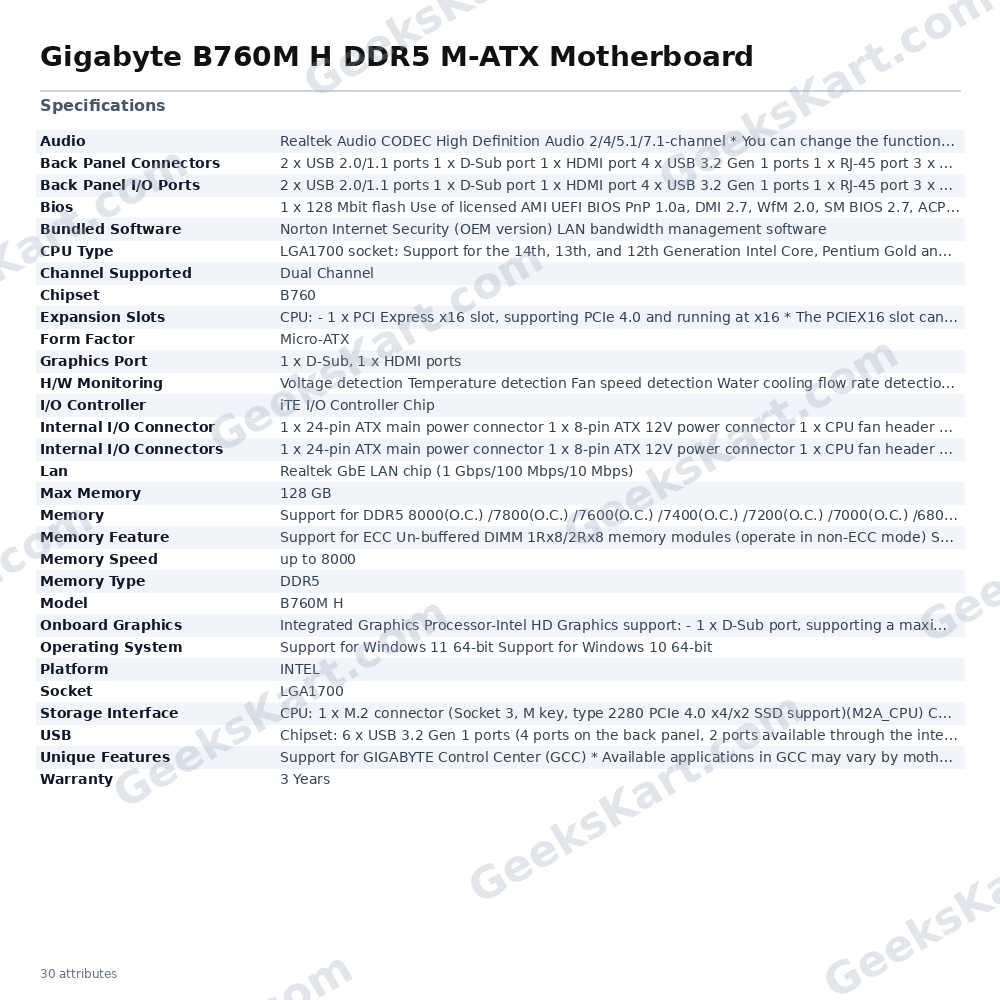

Gigabyte B760M H DDR5 M-ATX Motherboard

The Gigabyte B760M H is a Micro-ATX motherboard built on Intel’s B760 Express chipset, designed for LGA1700 socket processors from Intel’s 12th, 13th, and 14th Generation Core lineup, as well as Pentium Gold and Celeron processors. It offers a well-rounded feature set for compact desktop builds that demand modern DDR5 performance and PCIe 4.0 storage without stepping up to a full-size ATX footprint. The board uses a 6+1+1 phase hybrid digital VRM solution with low RDS MOSFETs, premium chokes, and capacitors to deliver stable power delivery to the CPU. Two DDR5 DIMM slots support dual-channel memory configurations up to 96 GB (48 GB per DIMM), with native speeds of 4800 MT/s and overclocked profiles reaching up to 8000 MT/s via XMP. ECC Un-buffered DIMMs are also accepted, operating in non-ECC mode. Storage options are handled by two M.2 connectors — one routed through the CPU (M2A_CPU) and one through the chipset (M2P_SB), both supporting PCIe 4.0 x4 NVMe SSDs in the 2280 form factor. Four SATA 6 Gb/s ports round out storage with support for RAID 0, 1, 5, and 10 configurations. Display output is available directly from Intel’s integrated graphics via a D-Sub port (up to 1920×1200 @ 60 Hz) and an HDMI 2.1 port (up to 4096×2160 @ 60 Hz, HDCP 2.3). Networking is handled by a Realtek GbE LAN chip supporting 1 Gbps, 100 Mbps, and 10 Mbps connections. Audio is delivered through a Realtek High Definition Audio CODEC supporting up to 7.1-channel output and S/PDIF Out. USB connectivity includes 6 x USB 3.2 Gen 1 ports (4 on the rear panel, 2 via internal header) and 6 x USB 2.0/1.1 ports (2 on the rear panel, 4 via internal headers). The rear I/O also features an RJ-45 port and three audio jacks. The board includes an RGB LED strip header for basic lighting support. Smart Fan 6 technology provides granular fan control across multiple headers supporting both PWM and DC modes, with multiple temperature sensor inputs for custom fan curves. BIOS management is handled via AMI UEFI with Q-Flash support for easy firmware updates. GIGABYTE Control Center software is included for system monitoring and tuning under Windows 10 and Windows 11 (64-bit). Verified Specifications: – Form Factor: Micro-ATX (23.0 cm × 21.5 cm) – Socket: LGA1700 – Chipset: Intel B760 Express – CPU Support: 12th, 13th, 14th Gen Intel Core; Pentium Gold; Celeron – Memory: 2 × DDR5 DIMM, up to 96 GB, dual-channel, XMP, DDR5-4800 native / DDR5-8000 (O.C.) – Storage: 2 × M.2 PCIe 4.0 x4 (2280); 4 × SATA 6 Gb/s; RAID 0/1/5/10 – Expansion: 1 × PCIe 4.0 x16; 1 × PCIe 3.0 x1 – Display: 1 × D-Sub (1920×1200 @ 60 Hz); 1 × HDMI 2.1 (4096×2160 @ 60 Hz) – LAN: Realtek 1 GbE – USB (rear): 4 × USB 3.2 Gen 1, 2 × USB 2.0 – Audio: Realtek HD Audio, 7.1-channel, S/PDIF Out – BIOS: 128 Mbit flash, AMI UEFI, Q-Flash – Warranty: 3 Years
