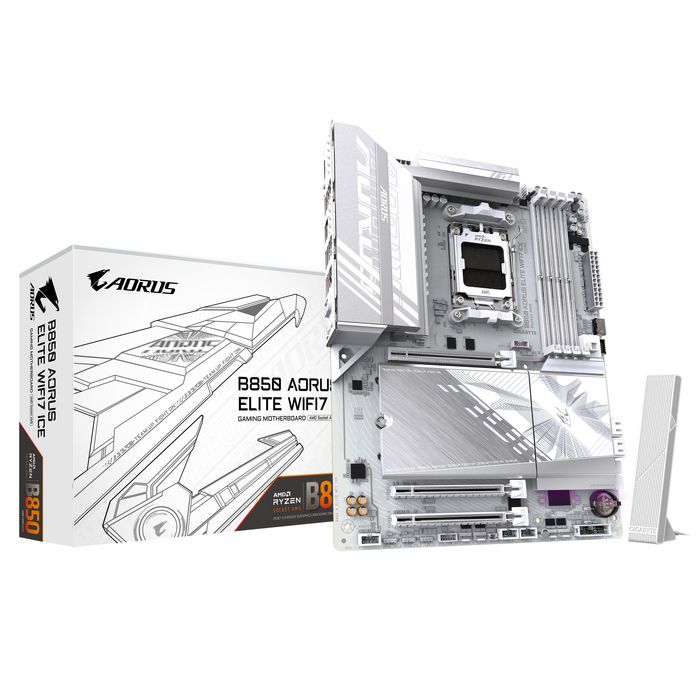

Gigabyte B850 AORUS ELITE WIFI7 ICE Motherboard
MPN B850-A-ELITE-WF7-ICE · Brand Gigabyte · ATX
Inclusive of GST · GST invoice available
Overview

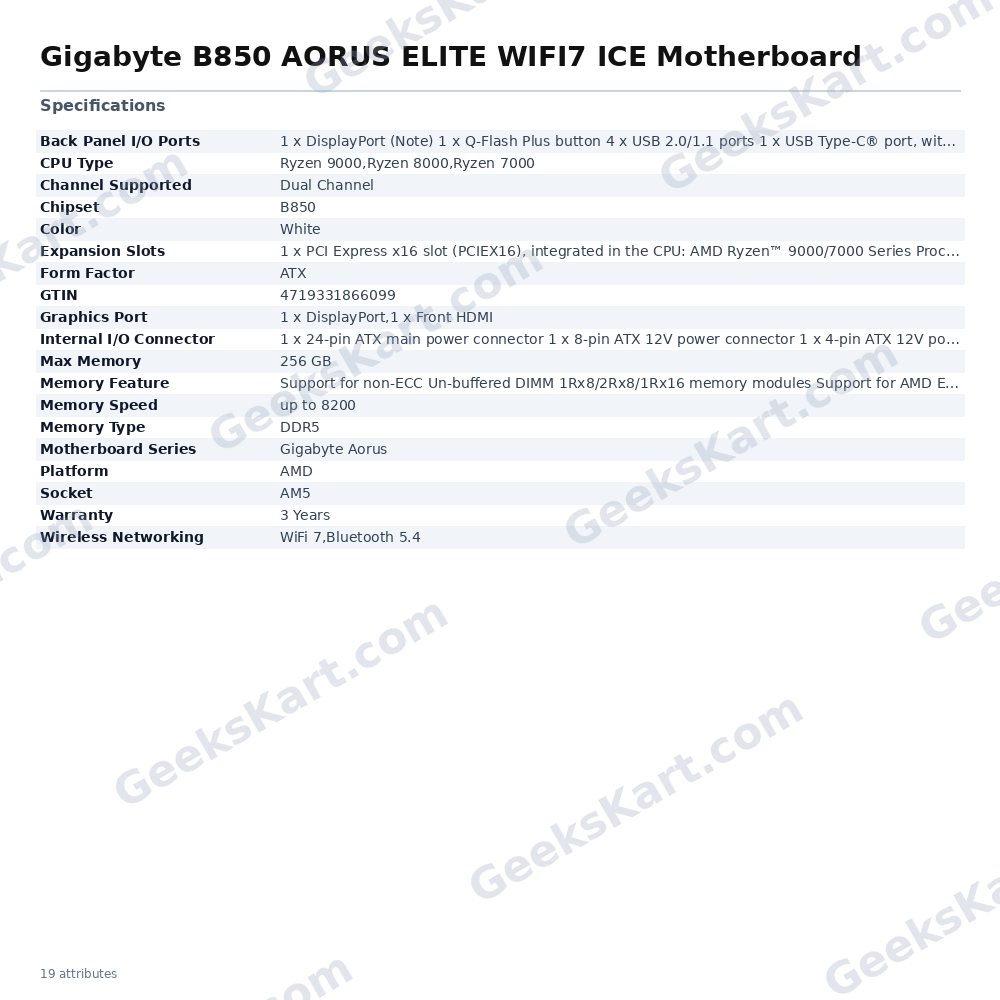

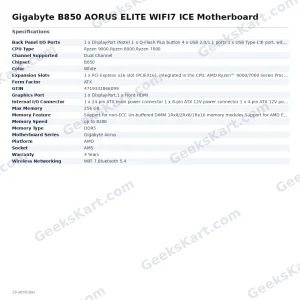

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| color | White |
| Chipset | B850 |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 256 GB |
| Memory Speed | up to 8200 |
| Motherboard Series | Gigabyte Aorus |
| Platform | AMD |
| Graphics Port | 1 x DisplayPort,1 x Front HDMI |
| Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on Brand website for more information.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |

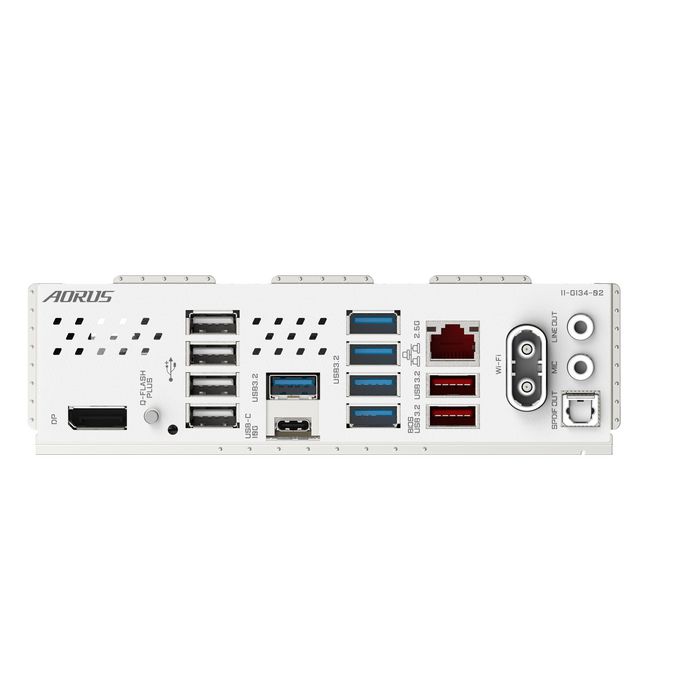

| Back Panel I/O Ports | 1 x DisplayPort (Note) 1 x Q-Flash Plus button 4 x USB 2.0/1.1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
