The Gigabyte B850 Aorus Stealth Ice is a full-sized ATX motherboard built on the AMD B850 chipset with an AM5 socket, designed to support AMD Ryzen 9000, 8000, and 7000 series processors. With its clean white aesthetic and premium feature set, it suits builders who want high-end connectivity and overclocking headroom without moving to a flagship X870E platform. Powering the CPU is a digital 14+2+2 phase VRM solution, reinforced by a VRM Thermal Armor Advanced heatsink to manage heat during sustained loads. The board includes Gigabyte’s X3D Turbo Mode, a BIOS-level feature that targets improved performance with AMD X3D processors. BIOS flashing is supported via Q-Flash Plus, allowing firmware updates without a CPU installed. Memory support spans four DDR5 DIMM slots in dual-channel configuration, accepting up to 256 GB total (64 GB per DIMM). Memory can be overclocked up to 8200 MT/s with support for both AMD EXPO and Intel XMP profiles. Storage is handled by four M.2 Socket 3 slots—one of which operates at PCIe 5.0 x4 speed—alongside two SATA 6 Gb/s ports. Gigabyte’s M.2 EZ-Flex design incorporates a patented flexible baseplate for easier SSD installation, while M.2 Thermal Guard heatsinks control drive temperatures. Networking is a standout feature: a 5GbE RJ-45 LAN port delivers fast wired throughput, and an onboard Wi-Fi 7 module (with a 2T2R directional antenna via WIFI EZ-Plug) provides modern wireless connectivity alongside Bluetooth 5.4. The DriverBIOS feature pre-installs the Wi-Fi driver into the BIOS, enabling network access immediately after first power- The primary PCIe x16 slot (PCIEX16) runs at PCIe 5.0 x16 with Ryzen 9000/7000 series CPUs and features Gigabyte’s PCIe UD (Ultra Durable) slot design with 10× reinforcement and a UD Base Plate for heavier graphics cards. EZ-Latch Plus provides screwless PCIe and M.2 slot release. Rear I/O includes HDMI output, 2× USB 3.2 Gen 2 Type-A (red), 1× USB 3.2 Gen 2 Type-C, 4× USB 3.2 Gen 1, 4× USB 2.0/1.1, optical S/PDIF out, and dual audio jacks. Internal headers add USB 3.2 Gen 2×2 Type-C and standard USB headers. Fan control covers 1× CPU fan, 1× CPU fan/pump, 4× system fan, and 2× system fan/pump headers, supplemented by 3× addressable RGB Gen2 and 1× RGB strip headers. Verifiable Specifications: – Socket: AMD AM5 – Chipset: AMD B850 – Form Factor: ATX – Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 series – Memory: 4× DDR5 DIMM, dual-channel, up to 256 GB, up to 8200 MT/s (EXPO / XMP) – Storage: 4× M.2 (PCIe 5.0 x4 / PCIe 4.0), 2× SATA 6 Gb/s – Primary PCIe Slot: PCIe 5.0 x16 (Ryzen 9000/7000); PCIe 4.0 x8/x4 (Ryzen 8000 Phoenix) – LAN: 5GbE – Wireless: Wi-Fi 7, Bluetooth 5.4 (2T2R antenna) – VRM: 14+2+2 digital phases – Rear USB: 2× USB 3.2 Gen 2 Type-A, 1× USB 3.2 Gen 2 Type-C, 4× USB 3.2 Gen 1, 4× USB 2.0/1.1 – Video Output: 1× HDMI – Warranty: 3 Years
Gigabyte B850 Aorus Stealth Ice WIFI7 ATX Motherboard
₹32,780.00
The Gigabyte B850 Aorus Stealth Ice is an AMD AM5 ATX motherboard with B850 chipset, DDR5 support up to 8200 MT/s, PCIe 5.0 x16, Wi-Fi 7, 5GbE LAN, and a 14+2+2 phase VRM—compatible with Ryzen 9000, 8000, and 7000 series processors

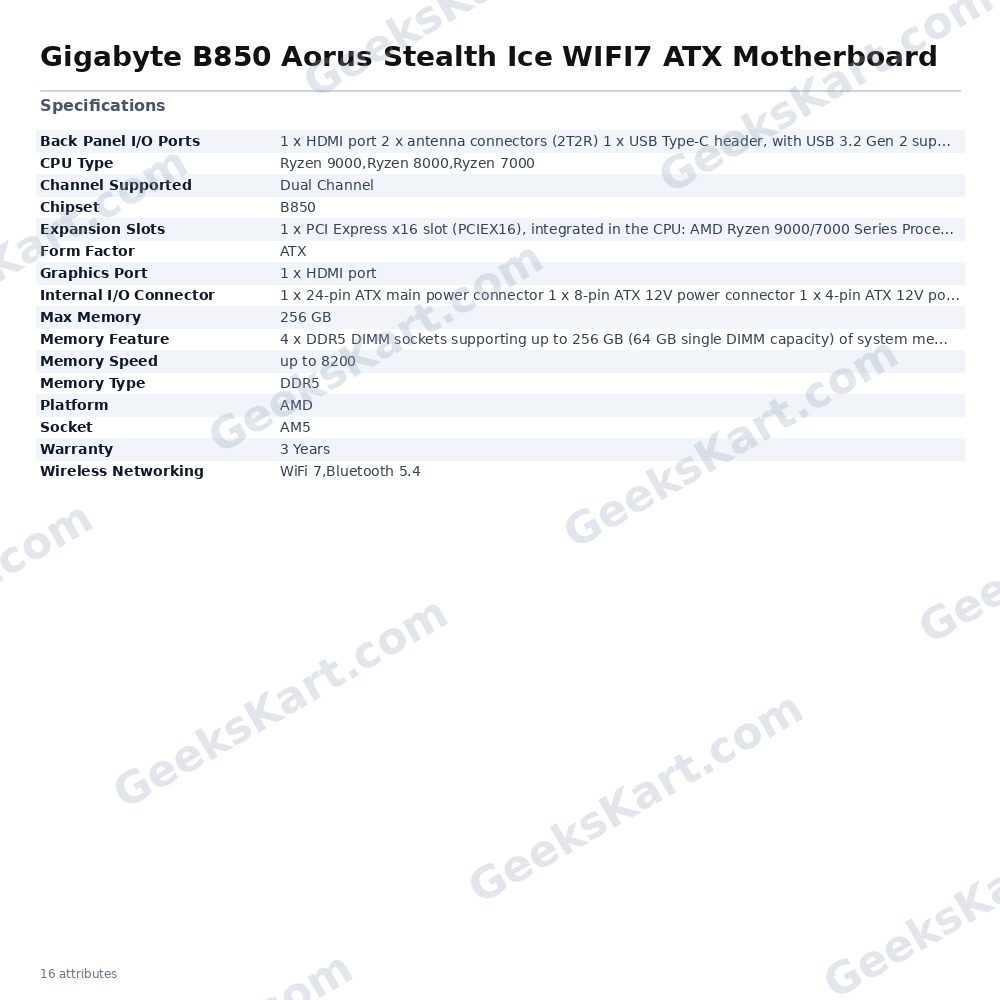

Additional information
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | ATX |
| Chipset | B850 |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 256 GB |
| Memory Speed | up to 8200 |
| Platform | AMD |
| Graphics Port | 1 x HDMI port |
| Memory Feature | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 1 x HDMI port 2 x antenna connectors (2T2R) 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x power button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |
