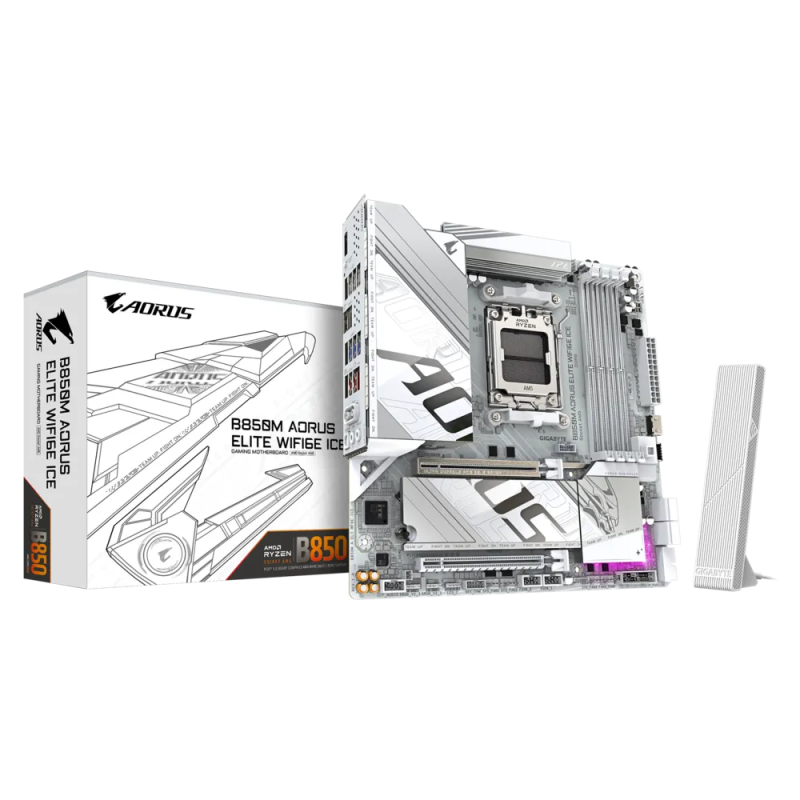

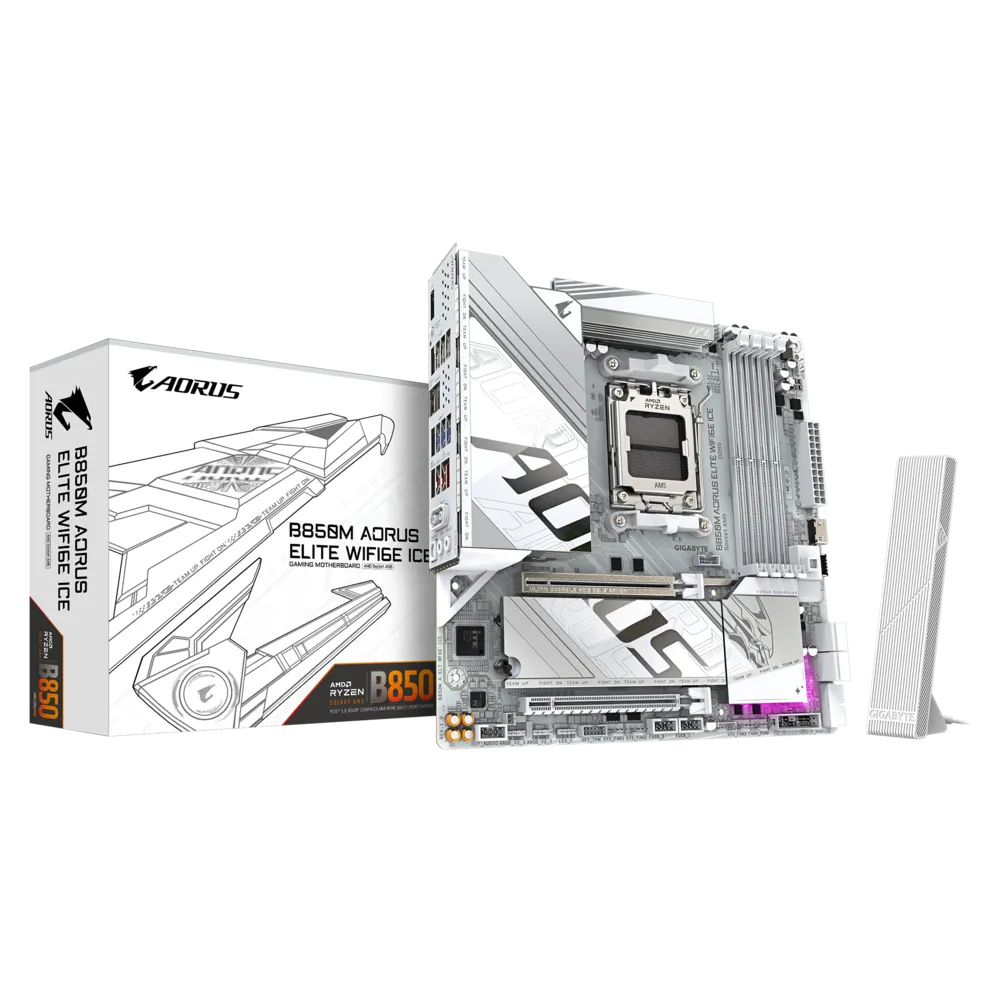

GIGABYTE B850M Aorus Elite Wifi6E ICE DDR5 AMD Motherboard
MPN GIGABYTE-B850M-AORUS-ELITE-WIFI6E-ICE · Brand GIGABYTE · mATX
The GIGABYTE B850M Aorus Elite WiFi 6E ICE is a Micro ATX AM5 motherboard featuring AMD B850 chipset, DDR5 support up to 256 GB, PCIe 5.0 storage and graphics, Wi-Fi 6E with Bluetooth 5.3, and 2.5GbE LAN — suited for AMD Ryzen 7000, 8000, and 9000 series builds
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B850M Aorus Elite WiFi 6E ICE is a Micro ATX motherboard built on the AMD B850 chipset, designed for AMD Socket AM5 processors including Ryzen 9000, Ryzen 8000, and Ryzen 7000 series CPUs. Its white ICE aesthetic and compact 24.4 cm x 24.4 cm form factor make it an appealing choice for space-conscious builds without sacrificing capability. At the core of the platform is support for DDR5 memory across four DIMM slots in a dual-channel configuration, accommodating up to 256 GB (with 64 GB single-DIMM capacity). Standard speeds of 4400, 4800, and 5200 MT/s are supported natively, while overclocked profiles reach up to DDR5-8200 via O.C. settings. Both AMD EXPO and Intel XMP profiles are supported, giving builders flexibility in memory tuning. Storage options are comprehensive. The primary M.2 slot (M2A_CPU) supports PCIe 5.0 x4 NVMe SSDs with Ryzen 9000 and 7000 CPUs, while the secondary M.2 slot (M2B_CPU) runs at PCIe 4.0 x4. Four SATA 6 Gb/s ports provide additional storage connectivity, with RAID 0, 1, 5 (Ryzen 9000 only), and 10 support for NVMe arrays, and RAID 0, 1, and 10 for SATA arrays. The primary PCIe x16 slot delivers PCIe 5.0 x16 bandwidth with Ryzen 9000 and 7000 processors, and a secondary chipset-connected PCIe x16 slot runs at PCIe 3.0 x4 for additional expansion cards. Connectivity is strong. Wired networking is handled by a Realtek 2.5GbE LAN chip supporting 2.5 Gbps, 1 Gbps, and 100 Mbps. Wireless is provided by the Realtek RTL8852CE Wi-Fi 6E module, covering 2.4 GHz, 5 GHz, and 6 GHz bands with 802.11ax and 160 MHz channel support, complemented by Bluetooth 5.3. A directional ultra-high-gain antenna is included for improved signal strength. The back panel provides one USB Type-C (USB 3.2 Gen 2), two USB 3.2 Gen 2 Type-A ports, five USB 3.2 Gen 1 ports, four USB 2.0 ports, one DisplayPort (up to 3840×2160 @ 144 Hz via integrated Radeon graphics), one RJ-45 jack, two audio jacks, and one optical S/PDIF output. Internal headers include a USB Type-C with USB 3.2 Gen 2x2 support, addressable RGB Gen2 headers (x3), one RGB header, and fan/pump headers supporting both PWM and DC modes with up to 24 W per header. The Q-Flash Plus button enables BIOS updates without a CPU or memory installed. GIGABYTE's BIOS incorporates X3D Turbo Mode, which applies optimised parameters to enhance gaming frame rates on Ryzen 9000 X3D and compatible non-X3D processors with a single click. Auto CPU and DDR5 Memory Boost functionality is also present for one-click performance tuning. GIGABYTE Control Center software provides system monitoring and fan curve customisation in Windows 10 and Windows 11 64-bit environments. Verifiable Specifications: - Chipset: AMD B850 - Socket: AMD AM5 - Form Factor: Micro ATX, 24.4 cm x 24.4 cm - Memory: 4x DDR5 DIMM, up to 256 GB, DDR5-4400 to DDR5-8200 (O.C.), dual channel, AMD EXPO & XMP - Primary M.2: PCIe 5.0 x4 (CPU, Ryzen 9000/7000) - Secondary M.2: PCIe 4.0 x4 (CPU, Ryzen 9000/7000) - SATA: 4x 6 Gb/s - Primary PCIe Slot: PCIe 5.0 x16 (Ryzen 9000/7000) - LAN: Realtek 2.5GbE - Wi-Fi: Realtek RTL8852CE Wi-Fi 6E (2.4/5/6 GHz), Bluetooth 5.3 - Audio: Realtek HD Audio CODEC, 7.1-channel, S/PDIF out - Rear USB: 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 2, 5x USB 3.2 Gen 1, 4x USB 2.0 - Display: 1x DisplayPort 1.4 (3840×2160 @ 144 Hz), 1x front HDMI 1.4 header - BIOS: AMI UEFI, 256 Mbit flash, Q-Flash, Q-Flash Plus

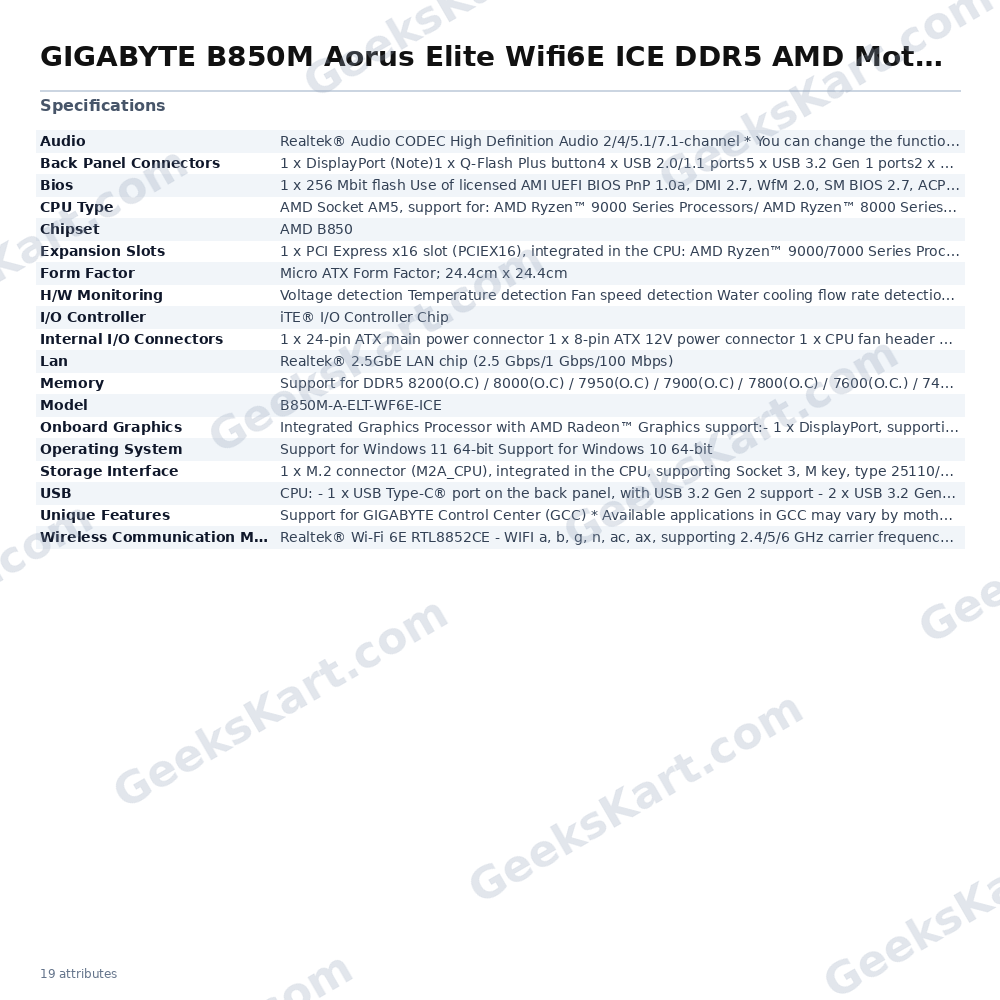

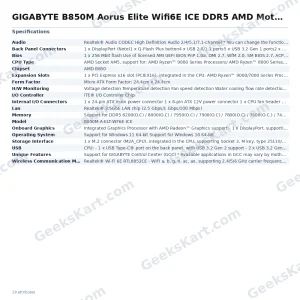

Datasheet
| Form Factor | mATX |
|---|---|
| Chipset | AMD B850 |
| CPU Type | AMD Socket AM5, support for: AMD RyzenTM 9000 Series Processors/ AMD RyzenTM 8000 Series Processors/ AMD RyzenTM 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU: – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| Model | B850M-A-ELT-WF6E-ICE |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support:- 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz* Support for DisplayPort 1.4 version and HDR.- 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz* Support for HDMI 1.4 version(Graphics specifications may vary depending on CPU support.)" |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 1 x DisplayPort (Note)1 x Q-Flash Plus button4 x USB 2.0/1.1 ports5 x USB 3.2 Gen 1 ports2 x USB 3.2 Gen 2 Type-A ports (red)1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x RJ-45 port2 x antenna connectors (2T2R)2 x audio jacks1 x optical S/PDIF Out connector(Note) Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper (Note) Actual support may vary by CPU |
| Wireless Communication Module | Realtek® Wi-Fi 6E RTL8852CE – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands – BLUETOOTH 5.3 – Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
