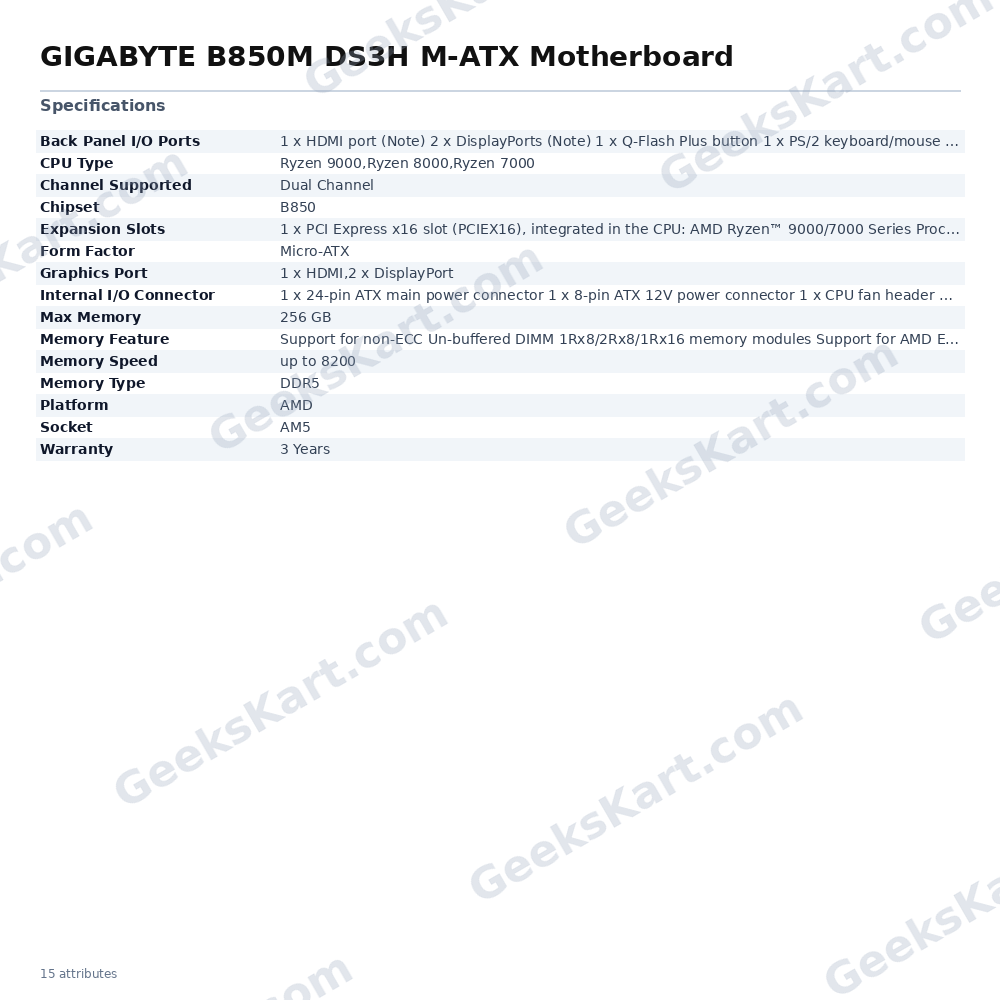

GIGABYTE B850M DS3H M-ATX Motherboard

The GIGABYTE B850M DS3H is a Micro-ATX motherboard built on the AMD B850 chipset, designed for the AM5 platform and compatible with AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors. Fitting neatly into compact builds without sacrificing modern connectivity, it delivers a capable foundation for gaming rigs and productivity workstations alike. At the heart of its power delivery sits a digital twin 8+2+2 phase VRM solution, engineered to provide stable voltage regulation across a range of Ryzen processor configurations. The board supports dual-channel DDR5 memory across four DIMM slots, with speeds rated up to 8200 MT/s and compatibility with both AMD EXPO and XMP profiles for straightforward memory overclocking. Maximum supported memory capacity is 256 GB using non-ECC unbuffered modules. Storage is a clear strength of the B850M DS3H. Two M.2 Socket 3 connectors are onboard: one supporting PCIe 5.0 speeds for next-generation NVMe SSDs, and a second operating on PCIe 4.0. A thermal guard over the M.2 slots helps maintain SSD temperatures under sustained workloads. Four SATA 6 Gb/s connectors add traditional drive connectivity for HDDs and SSDs. The primary PCIe x16 slot supports PCIe 5.0 x16 mode with Ryzen 9000 and 7000 processors, dropping to PCIe 4.0 x8 or x4 modes with certain Ryzen 8000 Phoenix variants. A chipset-connected PCIe x16 slot running at x4 (PCIe 3.0) is also present for additional expansion. Networking is handled by a 2.5GbE LAN port, offering substantially higher throughput than legacy gigabit connections. Display outputs include one HDMI port and two DisplayPorts on the rear I/O, supporting integrated graphics on compatible APUs. GIGABYTE's X3D Turbo Mode, accessible through the BIOS, applies optimisation parameters that can elevate gaming frame rates on both X3D and non-X3D Ryzen 9000 processors. For builders, EZ-Latch on the PCIe x16 slot enables quick graphics card removal, while M.2 EZ-Latch Plus allows screwless SSD installation. Three addressable RGB Gen2 headers and one standard RGB header provide lighting flexibility. The rear I/O panel includes USB 3.2 Gen 2 Type-A and Type-C ports, multiple USB 3.2 Gen 1 and USB 2.0 ports, and a Q-Flash Plus button for BIOS updates without a CPU or RAM installed. A 3-year warranty is included. Verified Specifications: - Socket: AMD AM5 - Chipset: AMD B850 - Form Factor: Micro-ATX - CPU Compatibility: AMD Ryzen 9000 / 8000 / 7000 Series - Memory: 4x DDR5 DIMM, Dual Channel, up to 8200 MT/s, max 256 GB, AMD EXPO & XMP support - Primary PCIe Slot: PCIe 5.0 x16 (Ryzen 9000/7000) / PCIe 4.0 x8 or x4 (Ryzen 8000) - M.2 Slots: 2x M.2 Socket 3 (1x PCIe 5.0, 1x PCIe 4.0) - SATA: 4x SATA 6 Gb/s - LAN: 2.5GbE - Rear USB: USB 3.2 Gen 2 Type-A, USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1, 4x USB 2.0 - Display Output: 1x HDMI, 2x DisplayPort - VRM: 8+2+2 phase digital twin - Warranty: 3 Years
