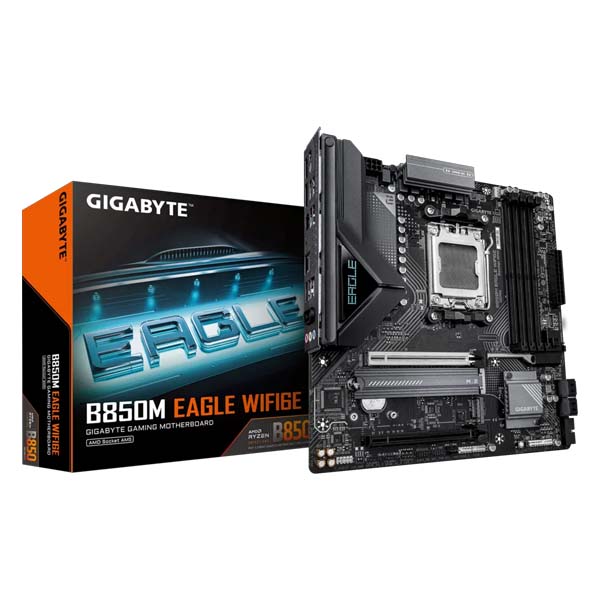

Gigabyte B850M EAGLE WIFI6E M-ATX Motherboard
MPN B850M-EAGLE-WF6E · Brand Gigabyte · mATX
The Gigabyte B850M Eagle WiFi 6E is a Micro-ATX AM5 motherboard featuring the B850 chipset, DDR5 support up to 8200 MT/s, PCIe 5.0 storage and graphics, built-in WiFi 6E, and 2.5 GbE LAN — compatible with AMD Ryzen 9000, 8000, and 7000 Series processors
Inclusive of GST · GST invoice available
Overview

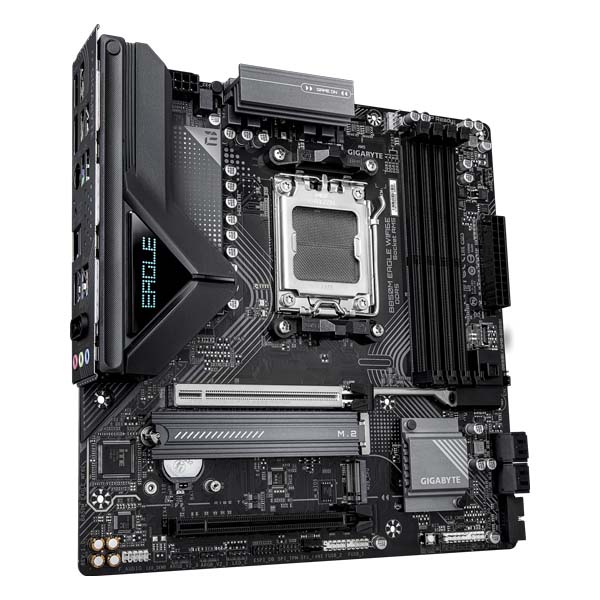

The Gigabyte B850M Eagle WiFi 6E is a Micro-ATX motherboard built on AMD's B850 chipset, designed for the AM5 socket platform. It is compatible with AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series processors, giving builders a future-ready foundation without needing to upgrade the platform. At its core is an 8+2+2 phase digital twin VRM solution backed by a 6-layer PCB, premium chokes, and solid capacitors, ensuring stable power delivery for sustained processor performance. Memory support is handled by four DDR5 DIMM slots in a dual-channel configuration, capable of accommodating up to 256 GB of RAM (with 64 GB maximum per single DIMM). The board supports DDR5 overclocking up to 8200 MT/s, along with both AMD EXPO and Intel XMP memory profiles for straightforward performance tuning. Storage options include two M.2 slots — one PCIe 5.0 x4 and one PCIe 4.0 — alongside four SATA 6 Gb/s ports, covering both high-speed NVMe and traditional drive configurations. Connectivity is a strong suit: integrated WiFi 6E with a 2T2R directional ultra-high gain antenna and Bluetooth 5.3 handle wireless needs, while a 2.5 GbE LAN port serves wired networking. The primary PCIe x16 slot runs at PCIe 5.0 x16 with Ryzen 9000 and 7000 Series CPUs (PCIe 4.0 modes with Ryzen 8000 Series), and a secondary PCIe 3.0 x4 slot is also available. GIGABYTE's PCIe UD Slot uses SMD PCIe 5.0 Armor for reinforced graphics card support. Displays are served via one HDMI and two DisplayPorts on the rear I/O. USB connectivity includes USB 3.2 Gen 2 Type-A and Type-C ports, USB 3.2 Gen 1 ports, and USB 2.0 ports on the back panel, with additional front-panel headers internally. Three addressable RGB Gen2 headers and one standard RGB header accommodate lighting customization. Assembly is eased by EZ-Latch Plus (screwless PCIe and M.2 release), EZ-Latch Click (screwless M.2 heatsinks), and an EZ-Plug antenna connector. Thermal management is addressed by VRM Thermal Armor Advanced and M.2 Thermal Guard heatsinks. GIGABYTE's X3D Turbo Mode BIOS feature applies optimization parameters aimed at improving gaming frame rates and reducing latency on compatible Ryzen processors. The board carries a 3-year warranty. — Verified Specifications — Socket: AMD AM5 | Chipset: B850 | Form Factor: Micro-ATX | CPU Compatibility: Ryzen 9000 / 8000 / 7000 Series | Memory: 4x DDR5 DIMM, Dual Channel, up to 256 GB, up to 8200 MT/s OC, AMD EXPO & XMP support | Primary PCIe Slot: PCIe 5.0 x16 (Ryzen 9000/7000); PCIe 4.0 x8/x4 (Ryzen 8000) | Secondary Slot: PCIe 3.0 x4 | Storage: 1x PCIe 5.0 M.2, 1x PCIe 4.0 M.2, 4x SATA 6 Gb/s | Networking: 2.5 GbE LAN, WiFi 6E (2T2R), Bluetooth 5.3 | Display Outputs: 1x HDMI, 2x DisplayPort | Rear USB: 1x USB 3.2 Gen 2 Type-A, 1x USB 3.2 Gen 2 Type-C, 2x USB 3.2 Gen 1, 4x USB 2.0 | RGB Headers: 3x ARGB Gen2, 1x RGB | VRM: 8+2+2 Phase Digital Twin | PCB: 6-Layer Mid-Loss | Warranty: 3 Years

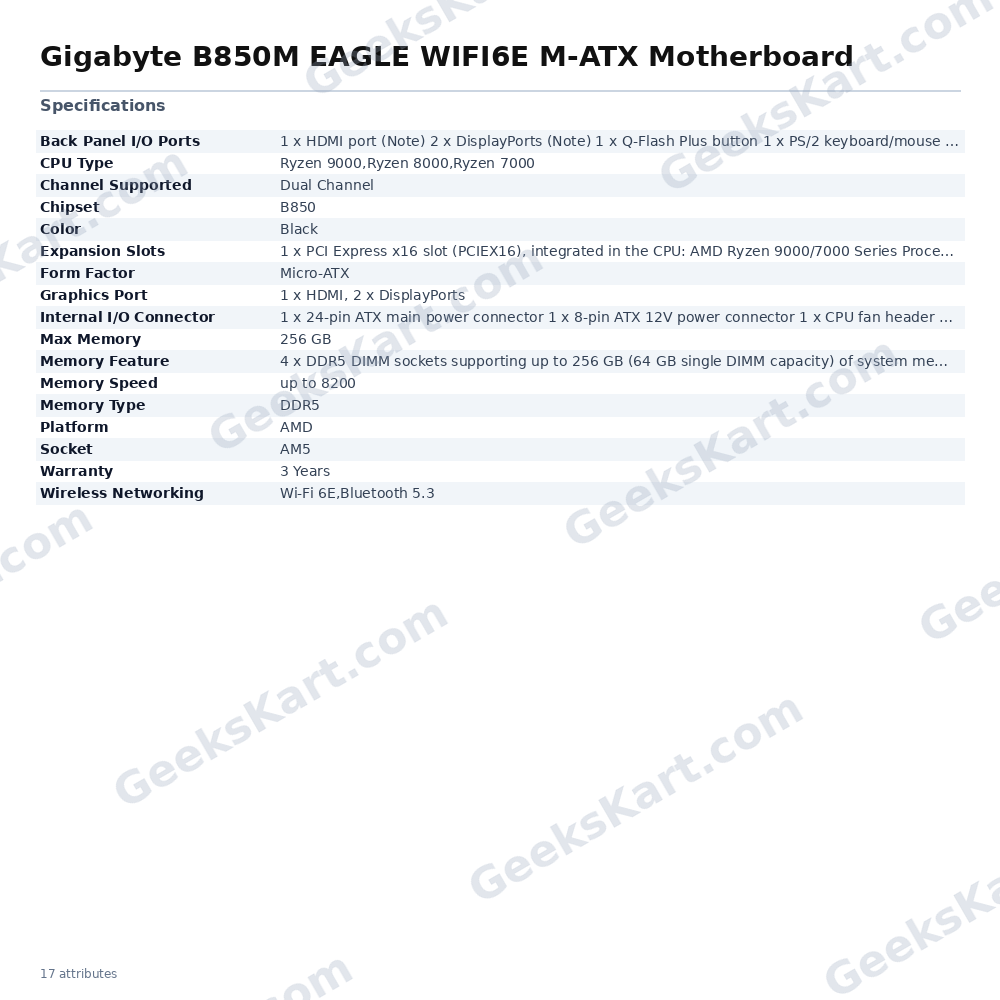

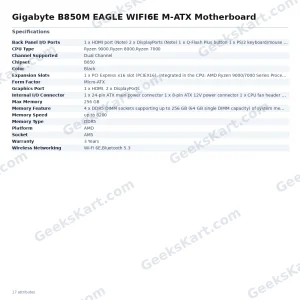

Datasheet
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| color | Black |
| Chipset | B850 |
| Socket | AM5 |
| CPU Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Max Memory | 256 GB |
| Memory Speed | up to 8200 |
| Platform | AMD |
| Graphics Port | 1 x HDMI, 2 x DisplayPorts |
| Memory Feature | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Channel Supported | Dual Channel |
| Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |

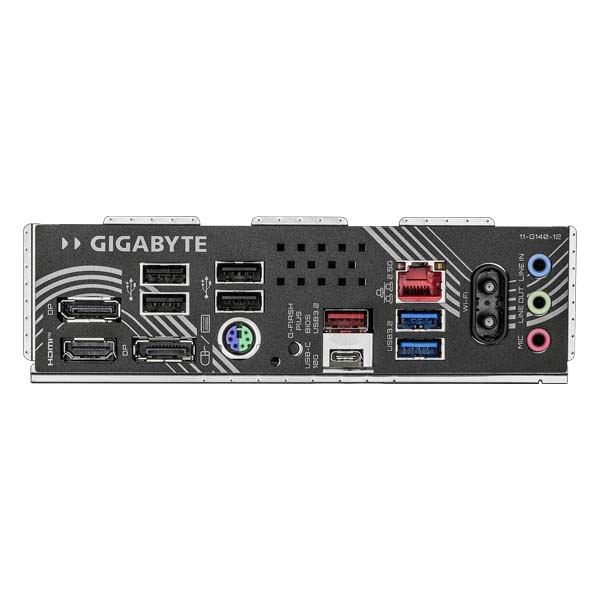

| Back Panel I/O Ports | 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
