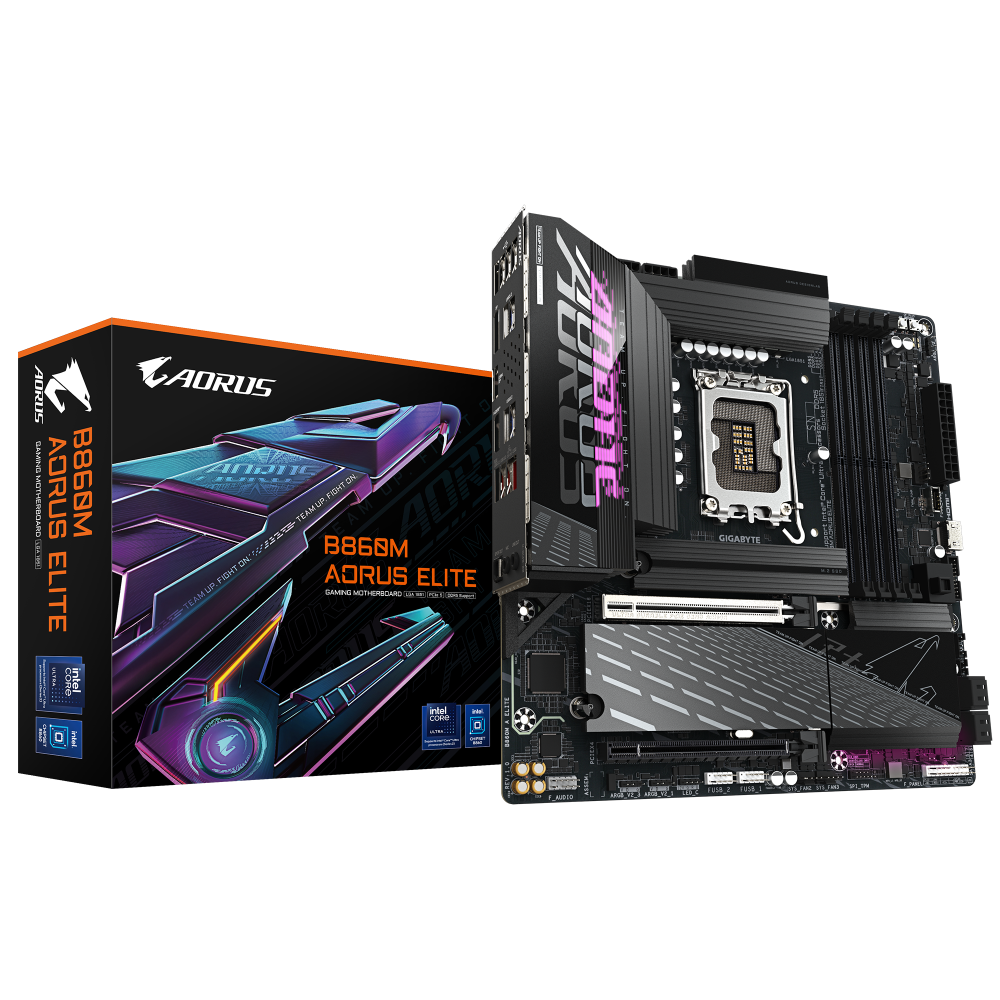

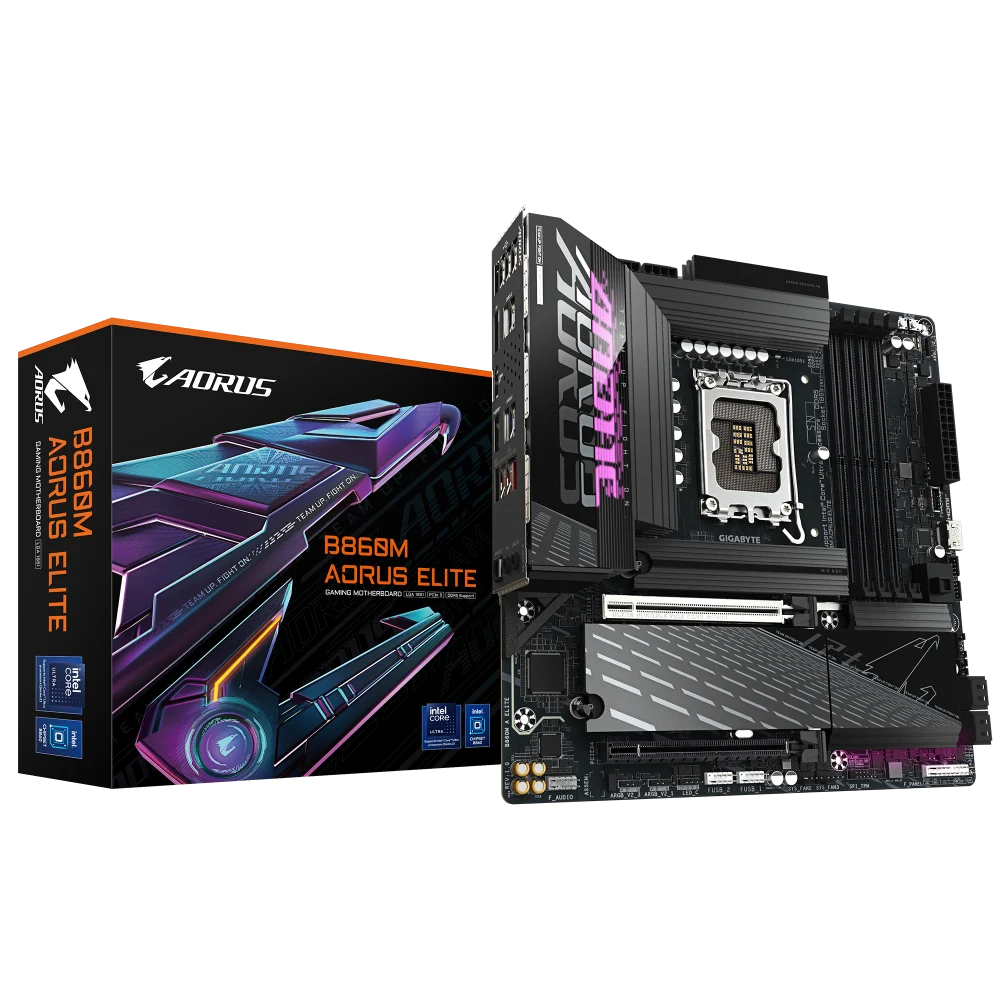

GIGABYTE B860M Aorus Elite Wifi6E DDR5 Intel Motherboard
MPN GIGABYTE-B860M-AORUS-ELITE-WIFI6E · Brand GIGABYTE · mATX
GIGABYTE B860M Aorus Elite WiFi 6E is a Micro ATX motherboard for Intel LGA1851 Core Ultra (Series 2) CPUs, featuring a 12+1+2 phase Digital Twin VRM, PCIe 5.0 x16 and M.2, quad DDR5 slots up to 256 GB, Wi-Fi 6E, USB4 Type-C, and three M.2 slots
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B860M Aorus Elite WiFi 6E is a Micro ATX motherboard built on the Intel B860 Express Chipset and designed for the LGA1851 socket, making it fully compatible with Intel Core Ultra processors (Series 2). Its compact 24.4 cm × 24.4 cm footprint fits a wide range of mid-tower and mATX cases without sacrificing feature density. At the heart of the power delivery is a Digital Twin 12+1+2 phase VRM solution. The twelve VCORE phases utilise 60A DrMOS components in a 6+6 parallel configuration, while a dedicated 40A DrMOS VCCGT phase handles integrated GPU demands and two 60A DrMOS VCCSA phases supply stable power to PCIe-connected lanes. VRM Thermal Armor Advanced and M.2 Thermal Guard Extended heatsinks keep temperatures in check under sustained loads. Memory support covers four DDR5 DIMM slots in dual-channel configuration, accommodating up to 256 GB (using 64 GB modules) and speeds from 5600 MT/s up to 9200 MT/s via XMP overclocking. CUDIMM support is also present. The AI Perfdrive feature applies optimised BIOS profiles automatically, while D5 Bionic Corsa is GIGABYTE's platform for tuning DDR5 bandwidth. Storage is plentiful: one PCIe 5.0 x4 M.2 slot (CPU-direct, type 2280) delivers next-generation SSD throughput, complemented by two chipset-connected PCIe 4.0 x4 M.2 slots and four SATA 6 Gb/s ports with RAID 0/1/5/10 support. The primary PCIe x16 slot runs PCIe 5.0 at full x16 bandwidth for the graphics card, and a second x16-form-factor slot provides PCIe 4.0 x4 for additional expansion. Connectivity is extensive. Networking combines a Realtek 2.5GbE LAN chip with Wi-Fi 6E and a directional high-gain antenna. The back panel hosts a USB4 Type-C port (supporting DisplayPort Alt Mode up to 3840×2160@144 Hz via DisplayPort 2.1), two USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 ports, and four USB 2.0 ports. Display outputs include DisplayPort 2.1 (3840×2160@144 Hz), HDMI 2.1 (4096×2160@60 Hz with HDCP 2.3), and USB4 Type-C DP Alt, enabling up to four simultaneous displays. Audio is handled by a Realtek HD Audio CODEC with 2/4/5.1/7.1-channel output and optical S/PDIF out. Assembly-friendly features include EZ-Latch Plus for tool-free PCIe and M.2 installation, EZ-Latch Click for screwless M.2 heatsink removal, a Sensor Panel Link onboard header, Q-Flash Plus for BIOS updates without a CPU installed, and onboard power and reset buttons. Three addressable RGB Gen2 headers and one standard RGB header allow lighting customisation through GIGABYTE Control Center. Key Specifications: • Socket: LGA1851 | Chipset: Intel B860 Express • Form Factor: Micro ATX, 24.4 cm × 24.4 cm • Memory: 4× DDR5 DIMM, up to 256 GB, 5600–9200(O.C.) MT/s, XMP, CUDIMM • VRM: 12+1+2 phase Digital Twin (12× VCORE 60A, 1× VCCGT 40A, 2× VCCSA 60A DrMOS) • PCIe Slots: 1× PCIe 5.0 x16 (CPU), 1× PCIe 4.0 x4 (Chipset) • M.2: 3× (1× PCIe 5.0 x4 CPU, 2× PCIe 4.0 x4 Chipset) • SATA: 4× SATA 6 Gb/s, RAID 0/1/5/10 • LAN: Realtek 2.5GbE | Wireless: Wi-Fi 6E • USB: 1× USB4 Type-C, 2× USB 3.2 Gen 2, 4× USB 3.2 Gen 1, 8× USB 2.0 (total) • Display: DP 2.1, HDMI 2.1, USB4 DP Alt (quad-display capable) • Audio: Realtek HD Audio CODEC, 7.1-channel, S/PDIF out • BIOS: AMI UEFI, 256 Mbit flash, Q-Flash, Q-Flash Plus • OS Support: Windows 11 64-bit • Warranty: 3 Years

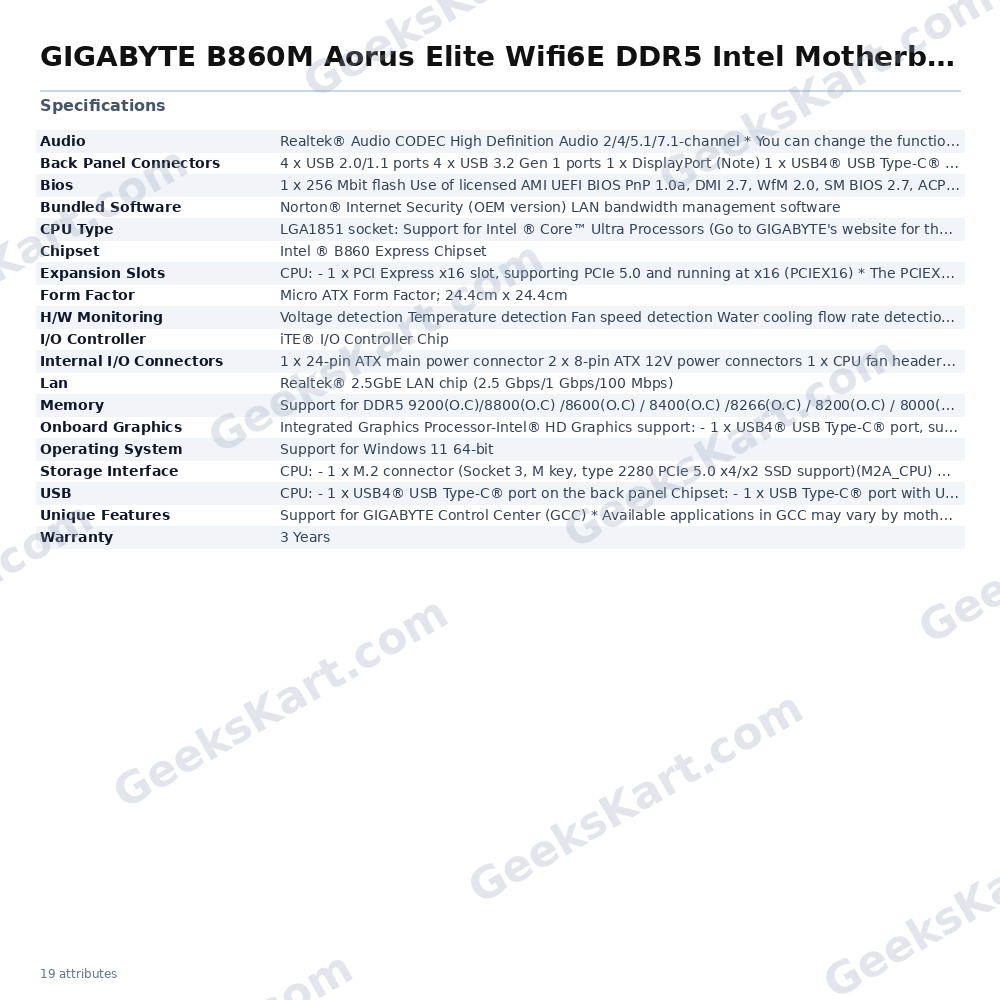

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel ® B860 Express Chipset |
| CPU Type | LGA1851 socket: Support for Intel ® CoreTM Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | CPU: – 1 x USB4® USB Type-C® port on the back panel Chipset: – 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel – 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: – 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: – 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Memory | Support for DDR5 9200(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: – 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 2.1 version. – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz * Support for DisplayPort 2.1 version. – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz * Support for HDMI 1.4 version. (Graphics specifications may vary depending on CPU support.) Support for up to quad-display at the same time |
| Operating System | Support for Windows 11 64-bit |
| Storage Interface | CPU: – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: – 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0×4/x2 SSD support) (M2N_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x DisplayPort (Note) 1 x USB4® USB Type-C® port (DisplayPort (Note)) 1 x HDMI port (Note) 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x audio jacks 1 x optical S/PDIF Out connector (Note) Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper (Note) Actual support may vary by CPU |
