Features: B860M AORUS ELITE WIFI6E ICE Supports Intel Core Ultra processors (Series 2) Digital twin 12+1+2 phases VRM solution Dual Channel DDR5: 4*DIMMs with XMP Memory Module Support D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive: Provides optimal and customized BIOS preset profile for users EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click: M.2 heatsinks with screwless design Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4 Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext. Fast Networking: 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna Extended Connectivity: USB4 Type-C with DP-Alt, HDMI, DisplayPort Infinite Memory Performance AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods. Comprehensive Thermal Elite motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient Born from Ultra Durable Technology embodies our commitment to excellence, providing gamers with a platform that’s not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel. Collaborative Excellence in Computing GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power

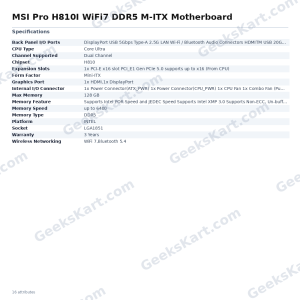

MSI Pro H810I WiFi7 DDR5 M-ITX Motherboard
₹15,710.00
MSI B760M Gaming Wifi DDR5 Intel Motherboard
₹12,170.00

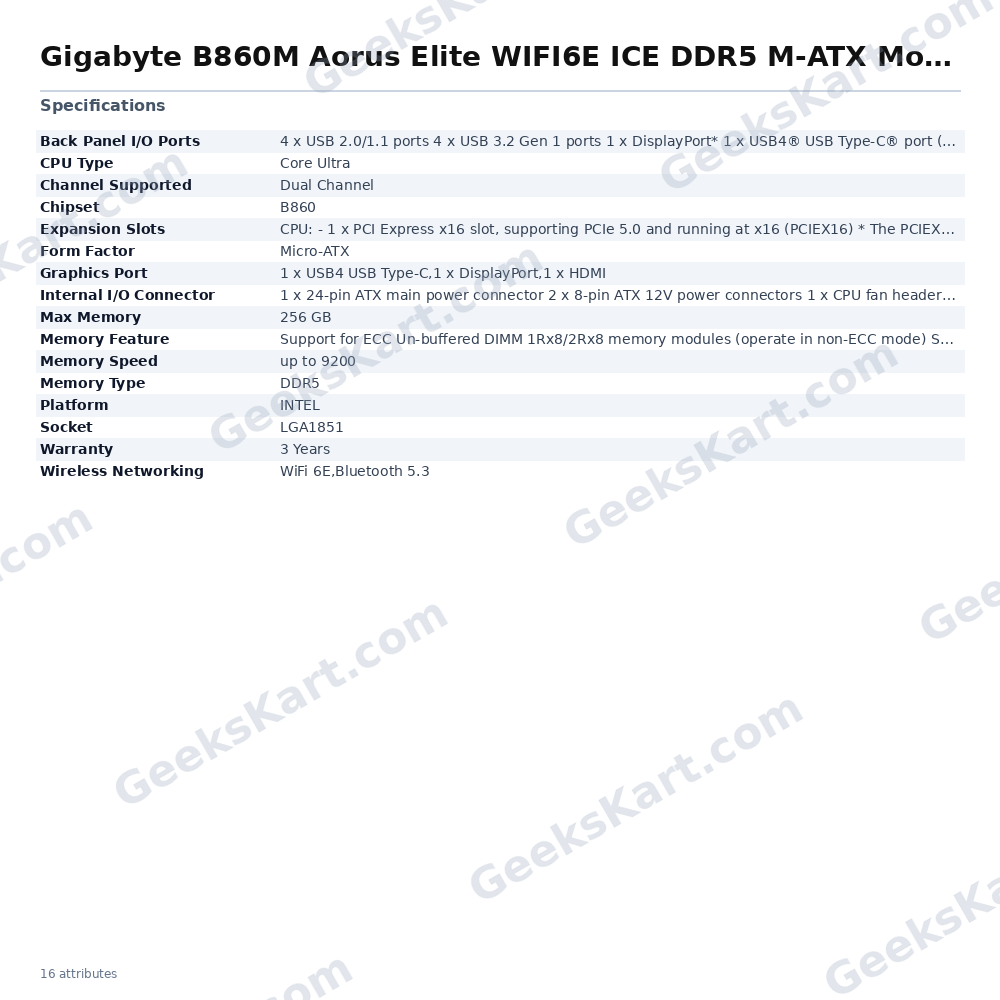

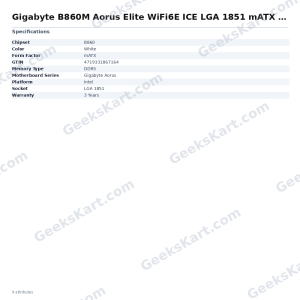

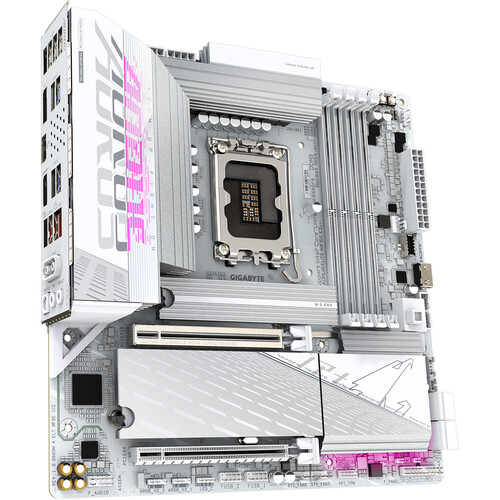

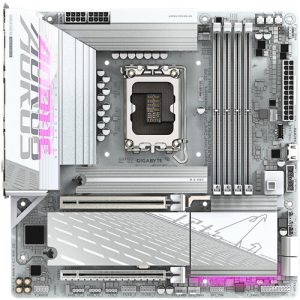

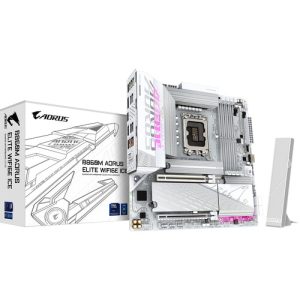

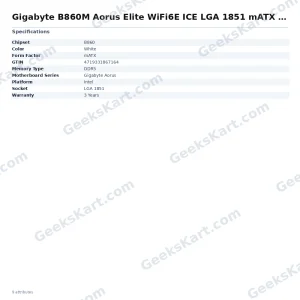

Gigabyte B860M Aorus Elite WIFI6E ICE DDR5 M-ATX Motherboard
₹21,295.00
Features: B860M AORUS ELITE WIFI6E ICE Supports Intel Core Ultra processors (Series 2) Digital twin 12+1+2 phases VRM solution Dual Channel DDR5: 4*DIMMs with XMP Memory Module Support D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive: Provides optimal and customized BIOS preset profile for users EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click: M.2 heatsinks with screwless design Sensor Panel Link: Onboard video port for hassle-free in-chass
Additional information
| Memory Type | DDR5 |
|---|---|
| Warranty | 3 Years |
| Form Factor | mATX |
| Chipset | B860 |
| Socket | LGA1851 |
| CPU Type | Core Ultra |
| Max Memory | 256 GB |
| Memory Speed | up to 9200 |
| Platform | INTEL |
| Graphics Port | 1 x USB4 USB Type-C,1 x DisplayPort,1 x HDMI |
| Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Channel Supported | Dual Channel |
| Wireless Networking | WiFi 6E,Bluetooth 5.3 |
| Back Panel I/O Ports | 4 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 1 x DisplayPort* 1 x USB4® USB Type-C® port (DisplayPort*) 1 x HDMI port* 1 x RJ-45 port 2 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port* 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
