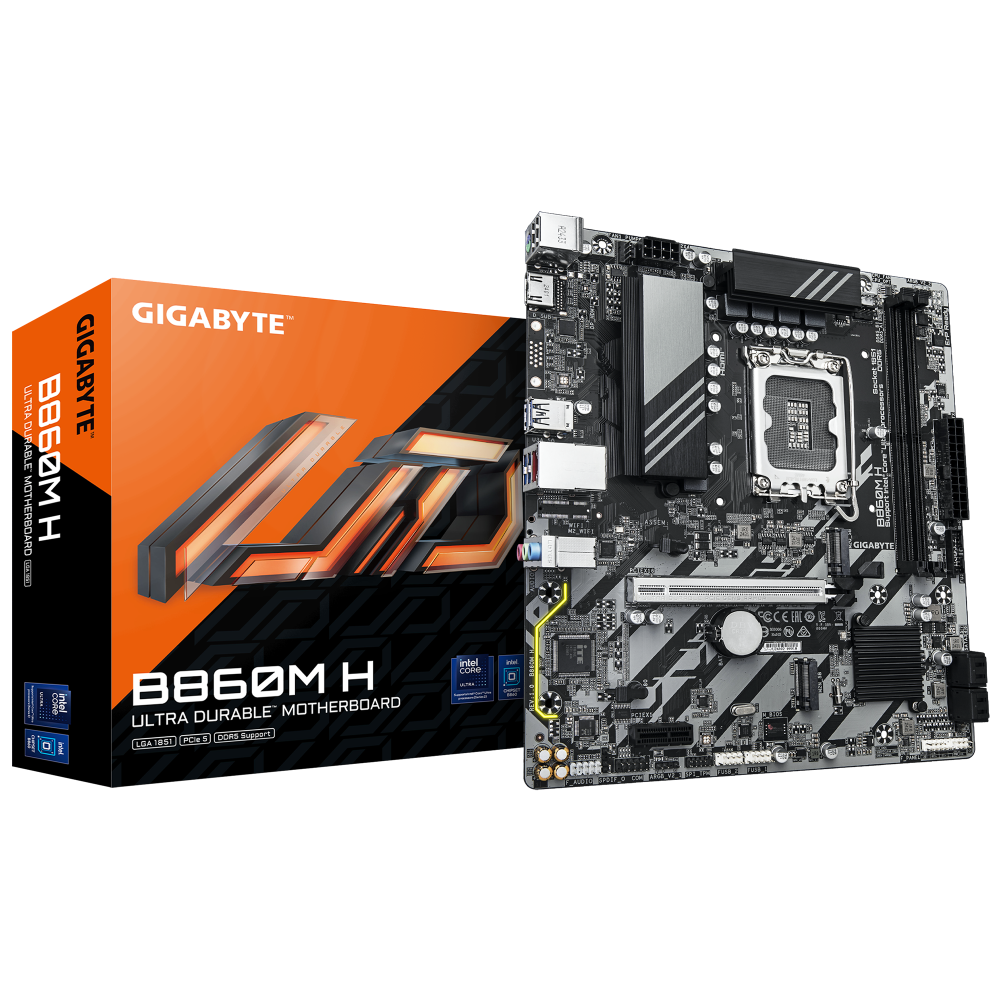

GIGABYTE B860M H DDR5 Intel Motherboard
MPN GIGABYTE-B860M-H · Brand GIGABYTE · mATX
The GIGABYTE B860M H DDR5 is a Micro ATX motherboard featuring the Intel B860 chipset, PCIe 5.0 x16, dual M.2 PCIe 4.0 slots, 2.5GbE LAN, and support for DDR5 memory up to 128 GB with Intel Core Ultra Series 2 processors
Inclusive of GST · GST invoice available
Overview
The GIGABYTE B860M H DDR5 is a Micro ATX motherboard built on the Intel B860 Express Chipset, designed to support Intel Core Ultra processors (Series 2). Measuring 24.4 cm x 21.5 cm, it fits compact mid-tower and Micro ATX cases while delivering a capable feature set for productivity and gaming system builds. At its core, the board uses a Hybrid 4+1+2 phase VRM configuration to deliver stable power to supported Intel processors. Memory support is handled by two DDR5 DIMM slots in a dual-channel configuration, accommodating up to 128 GB of system memory (up to 64 GB per single DIMM). Native speeds of 5600 MT/s and 6400 MT/s are supported, with overclocked profiles reaching up to 8800 MT/s via XMP. The board also supports ECC Unbuffered DIMMs operating in non-ECC mode, and XMP 3.0 memory profiles for simplified memory tuning through GIGABYTE's DDR5 XMP Booster feature. Expansion is handled by a PCIe 5.0 x16 slot from the CPU for a discrete graphics card or NVMe SSD, plus a chipset-connected PCIe 4.0 x1 slot. Storage options include two M.2 connectors (PCIe 4.0 x4, type 2280) and four SATA 6Gb/s ports, with support for RAID 0, 1, 5, and 10 across SATA devices. Networking is provided by a Realtek 2.5GbE LAN chip supporting speeds of 2.5 Gbps, 1 Gbps, and 100 Mbps. The back panel includes an HDMI 2.1 output capable of 4096x2160 at 60 Hz (subject to CPU support), four USB 3.2 Gen 1 ports, two USB 2.0 ports, a PS/2 port, and three audio jacks. Audio is managed by a Realtek High Definition Audio CODEC supporting up to 7.1-channel output with S/PDIF Out. Board management features include GIGABYTE's AI Perfdrive for customised BIOS profiles, the EZ-Latch PCIe quick-release mechanism, Q-Flash BIOS update utility, EZ Debug Zone LEDs, and a DRAM slot indicator LED. Two addressable RGB Gen 2 headers are included for LED strip connectivity. The AMI UEFI BIOS supports PnP 1.0a, DMI 2.7, ACPI 5.0, and SM BIOS 2.7. Hardware monitoring covers voltage, temperature, fan speed, and water cooling flow rate. The board carries a 3-year manufacturer warranty and supports Windows 10 and Windows 11 64-bit operating systems. Verified Specifications: - Chipset: Intel B860 Express - Form Factor: Micro ATX, 24.4 cm x 21.5 cm - CPU Support: Intel Core Ultra Series 2 - Memory: 2x DDR5 DIMM, up to 128 GB, 5600–8800 MT/s (OC), dual-channel, XMP support - PCIe: 1x PCIe 5.0 x16 (CPU), 1x PCIe 4.0 x1 (chipset) - Storage: 2x M.2 PCIe 4.0 x4 (2280), 4x SATA 6Gb/s, RAID 0/1/5/10 - LAN: Realtek 2.5GbE (2.5G/1G/100M) - Display: HDMI 2.1 up to 4K@60Hz - USB (rear): 4x USB 3.2 Gen 1, 2x USB 2.0 - Audio: Realtek HD Audio, 7.1-channel, S/PDIF Out - BIOS: 256 Mbit flash, AMI UEFI - Warranty: 3 Years

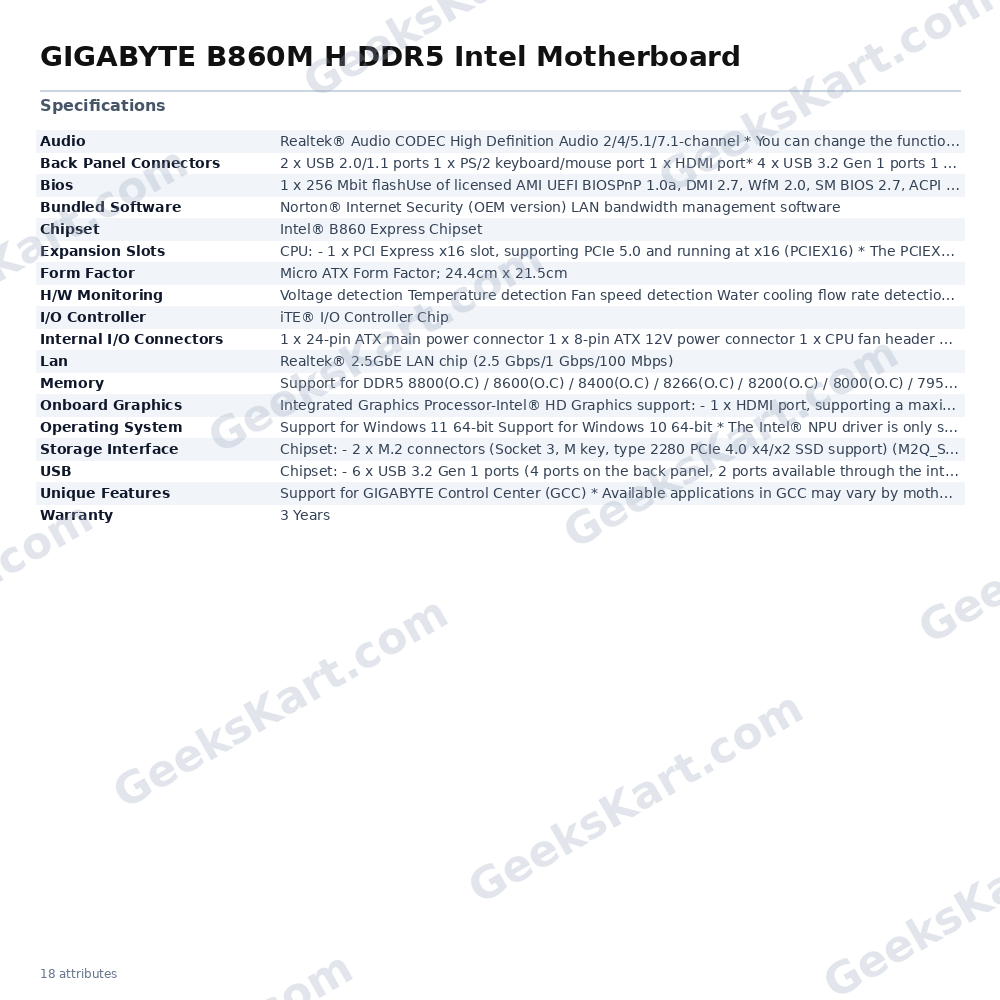

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® B860 Express Chipset |
| Lan | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| USB | Chipset: – 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) – 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: – 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Memory | Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | CPU: – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: – 1 x PCI Express x1 slot, supporting PCIe 4.0 and running at x1 (PCIEX1) |
| Unique Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit * The Intel® NPU driver is only supported on Windows 11 |
| Storage Interface | Chipset: – 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB) – 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Back Panel Connectors | 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x HDMI port* 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks * Actual support may vary by CPU |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan/water cooling pump header 2 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper |
