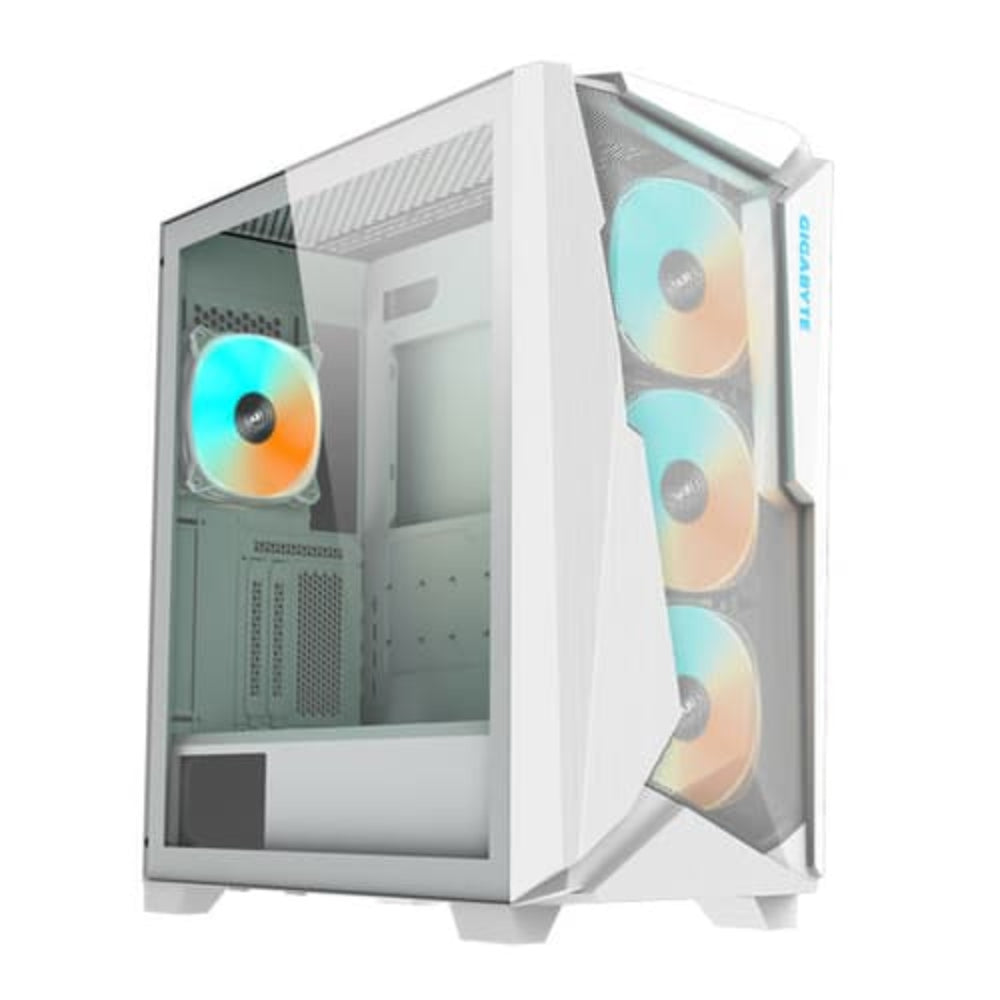

GIGABYTE C301 V2 Glass ARGB EATX Mid Tower Cabinet ( White )
MPN GIGABYTE-C301-V2-GLASS-ARGB-EATX-WHITE · Brand GIGABYTE · Mid Tower
The GIGABYTE C301 V2 (GB-C301GW-V2) is a white E-ATX mid-tower case featuring 4 pre-installed ARGB PWM fans, dual 360 mm radiator positions, a 4 mm tempered glass side panel, and vertical GPU mount support for up to 400 mm cards
Inclusive of GST · GST invoice available
Overview
The GIGABYTE C301 V2 Glass ARGB (model GB-C301GW-V2) is a white mid-tower PC chassis engineered to accommodate demanding builds while keeping thermals and aesthetics in balance. Its large mesh front panel and vented top combine to channel generous airflow through the interior, reducing heat build-up even under sustained workloads. Out of the box the case ships with four pre-installed 120 mm ARGB PWM fans — three mounted at the front intake and one at the rear exhaust — giving builders an immediate foundation for active cooling without additional purchases. GIGABYTE's RGB Fusion ecosystem is supported via a built-in ARGB connector hub carrying six 5 V 3-pin connectors, letting you daisy-chain additional LED strips or fan controllers and manage all lighting through compatible software with access to 16.7 million colours and multiple lighting modes. A physical LED switch on the front I/O panel offers quick colour cycling without opening software. The chassis accepts motherboards from Mini-ITX through Micro-ATX and ATX up to E-ATX, covering virtually every mainstream form factor. GPU clearance extends to 400 mm in length, and the case includes a dedicated vertical GPU mount with a VGA holder bracket providing 100 mm total clearance, perfect for showcasing high-end graphics cards through the 4 mm white tempered glass side panel. The non-drilled glass design minimises fragmentation risk and simplifies removal. Liquid cooling is well catered for: the front supports radiators up to 360 mm, the top also accepts up to 360 mm, and the rear fits a 120 mm unit. CPU cooler height clearance is 170 mm. A PSU shroud with a left-side window hides cabling neatly while keeping the power supply's aesthetic visible. Dual-sided dust filters — one magnetic at the top, one removable at the bottom — protect internals with minimal maintenance effort. Storage options include two combo 3.5″/2.5″ drive bays and two dedicated 2.5″ bays, with seven expansion slots rounding out the layout. The front I/O panel provides USB 3.1 Gen 2 Type-C ×1, USB 3.0 ×2, and HD Audio in/out. A standard ATX PSU (not included) of up to 180 mm length is supported. Verified Specifications: • Model: GB-C301GW-V2 • Form Factor: Mid Tower • Motherboard Support: Mini-ITX / Micro-ATX / ATX / E-ATX • Dimensions (H×W×D): 486 × 220 × 473 mm (±1%) • Weight: 7.8 kg (net) / 9.0 kg (gross) • Pre-installed Fans: 3× 120 mm ARGB PWM (front) + 1× 120 mm ARGB PWM (rear) • Fan Support: Front 120×3/140×3 | Top 120×3/140×2 | Rear 120×1 • Radiator Support: Front max 360 mm | Top max 360 mm | Rear max 120 mm • GPU Clearance: 400 mm | CPU Height: 170 mm | PSU Length: 180 mm • Vertical GPU Mount: Yes (100 mm clearance) • I/O: USB 3.1 Gen 2 Type-C ×1, USB 3.0 ×2, HD Audio In/Out, LED Switch • Drive Bays: 2× 3.5″/2.5″ combo + 2× 2.5″ dedicated • Expansion Slots: 7 • Side Panel: 4 mm tempered glass • Dust Filters: Top (magnetic), Bottom (removable) • Materials: Steel, Plastic, Glass • Warranty: 1 Year

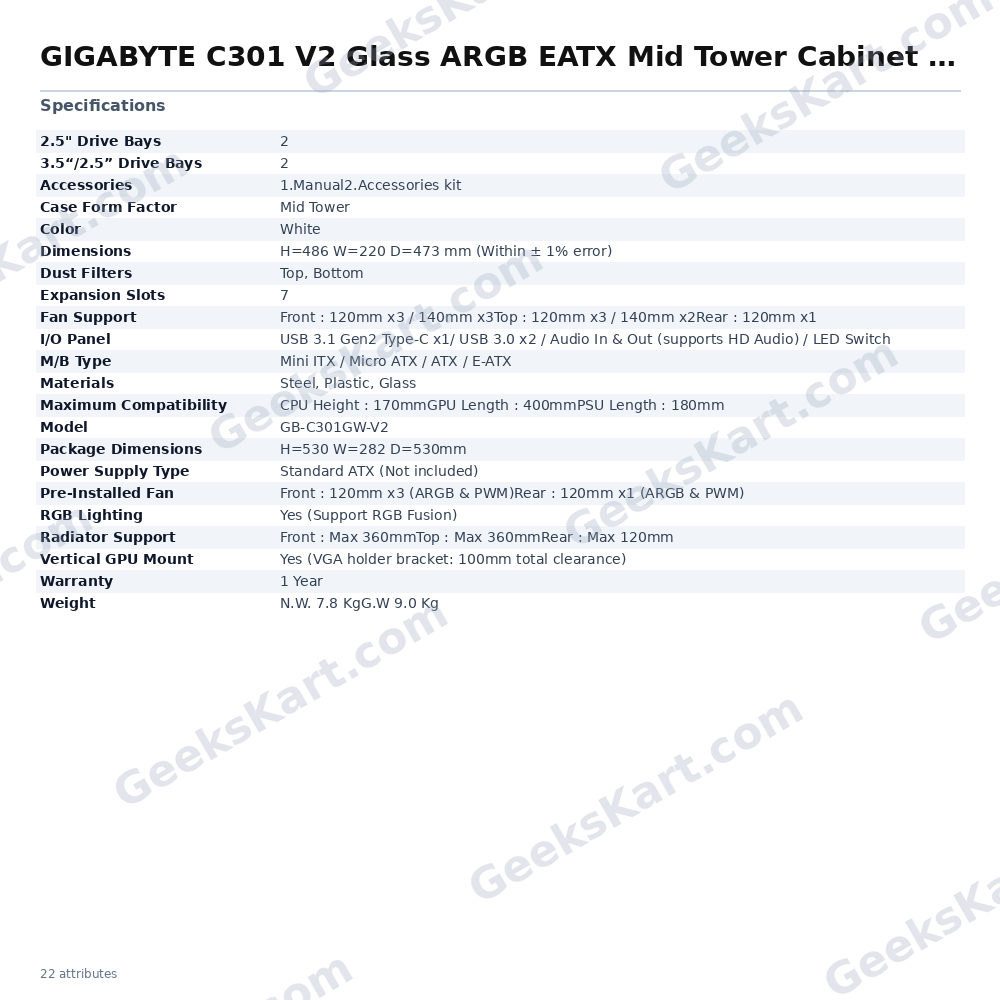

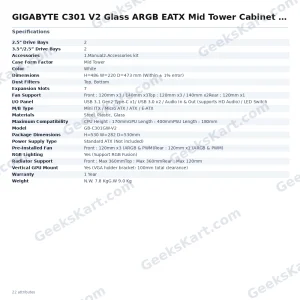

Datasheet
| Warranty | 1 Year |
|---|---|
| color | White |
| Weight | N.W. 7.8 KgG.W 9.0 Kg |
| M/B Type | Mini ITX / Micro ATX / ATX / E-ATX |
| Model | GB-C301GW-V2 |
| I/O Panel | USB 3.1 Gen2 Type-C x1/ USB 3.0 x2 / Audio In & Out (supports HD Audio) / LED Switch |
| Materials | Steel, Plastic, Glass |
| Dimensions | H=486 W=220 D=473 mm (Within ± 1% error) |
| Accessories | 1.Manual2.Accessories kit |
| Fan Support | Front : 120mm x3 / 140mm x3Top : 120mm x3 / 140mm x2Rear : 120mm x1 |
| Dust Filters | Top, Bottom |
| RGB Lighting | Yes (Support RGB Fusion) |
| 2.5" Drive Bays | 2 |
| Expansion Slots | 7 |
| Case Form Factor | Mid Tower |
| Radiator Support | Front : Max 360mmTop : Max 360mmRear : Max 120mm |
| Power Supply Type | Standard ATX (Not included) |
| Pre-Installed Fan | Front : 120mm x3 (ARGB & PWM)Rear : 120mm x1 (ARGB & PWM) |
| Package Dimensions | H=530 W=282 D=530mm |
| Vertical GPU Mount | Yes (VGA holder bracket: 100mm total clearance) |
| Maximum Compatibility | CPU Height : 170mmGPU Length : 400mmPSU Length : 180mm |
| 3.5“/2.5” Drive Bays | 2 |
