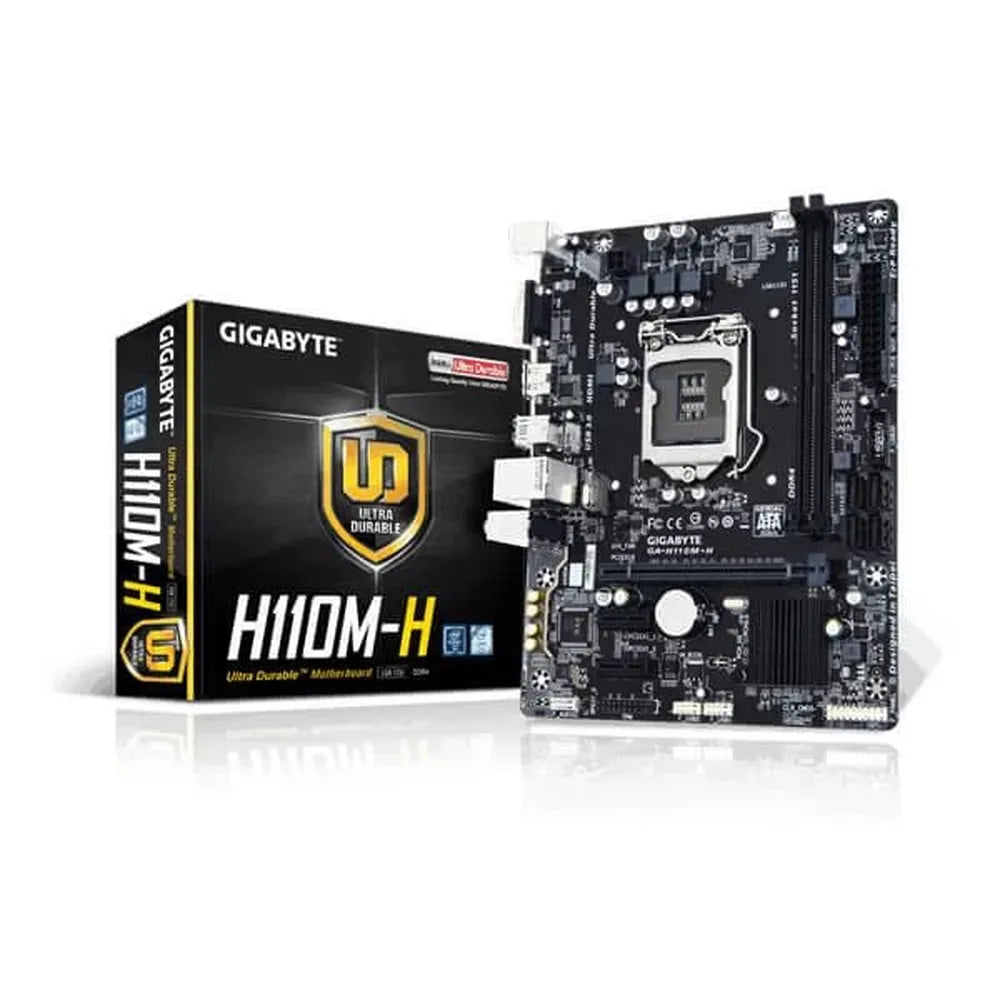

GIGABYTE GA-H110M-H (Rev. 2.0) DDR4 Intel Motherboard
MPN GIGABYTE-GA-H110M-H · Brand Gigabyte · mATX
The Gigabyte GA-H110M-H (Rev. 2.0) is an Intel H110 Micro-ATX motherboard for LGA1151 processors, featuring dual-channel DDR4 up to 32 GB, HDMI 1.4, PCIe 3.0 x16, and Realtek Gigabit LAN — a reliable platform for 6th and 7th Gen Intel Core builds
Inclusive of GST · GST invoice available
Overview
The Gigabyte GA-H110M-H (Rev. 2.0) is a Micro-ATX form factor motherboard built on the Intel H110 Express Chipset, designed for LGA1151 socket processors. It supports 6th and 7th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors — note that 7th Generation CPU support requires a BIOS update to the latest version before installation. Memory configuration consists of two DDR4 DIMM slots supporting dual-channel architecture with a maximum capacity of 32 GB. Compatible memory speeds include DDR4 2400 and 2133 MHz modules, and both ECC UDIMM (operating in non-ECC mode) and non-ECC UDIMM configurations are supported. For display output, the board includes an integrated Intel HD Graphics processor accessible via one D-Sub port (up to 1920×1200 at 60 Hz) and one HDMI 1.4 port (up to 4096×2160 at 24 Hz), with a maximum shared video memory of 1024 MB. Audio is handled by a Realtek ALC887 codec delivering High Definition Audio with support for 2, 4, 5.1, and 7.1-channel output — 7.1-channel requires an HD front panel audio module. S/PDIF Out is also supported. Network connectivity is provided by a Realtek Gigabit Ethernet LAN chip (10/100/1000 Mbit) with bundled cFosSpeed internet accelerator software. Expansion is provided through one PCIe x16 slot (PCIe 3.0) and two PCIe x1 slots (PCIe 2.0). Storage connectivity includes four SATA 6 Gb/s ports. USB ports total ten: four USB 3.0/2.0 (two on the rear panel, two via internal header) and six USB 2.0/1.1 (two on the rear panel, four via internal headers). The BIOS uses a licensed AMI UEFI implementation stored on a 64 Mbit flash chip, compliant with PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0. Software utilities include Gigabyte APP Center, Q-Flash, EasyTune, Fast Boot, Smart Backup, and USB Blocker. Hardware monitoring covers system voltage, CPU and system temperatures, fan speeds, and overheat/fan-fail warnings. A TPM header and Clear CMOS jumper are also present on the board. Verified Specifications: - Form Factor: Micro-ATX, 22.6 cm x 17.4 cm - Socket: LGA1151 - Chipset: Intel H110 Express - CPU Support: 6th/7th Gen Intel Core i7/i5/i3, Pentium, Celeron (7th Gen requires BIOS update) - Memory: 2x DDR4 DIMM, dual-channel, up to 32 GB, DDR4 2400/2133 MHz - Display: 1x D-Sub (1920×1200@60 Hz), 1x HDMI 1.4 (4096×2160@24 Hz) - Audio: Realtek ALC887, HD Audio, up to 7.1-channel, S/PDIF Out - LAN: Realtek GbE (10/100/1000 Mbit) - Expansion: 1x PCIe x16 (3.0), 2x PCIe x1 (2.0) - Storage: 4x SATA 6 Gb/s - USB: 4x USB 3.0/2.0, 6x USB 2.0/1.1 - BIOS: AMI UEFI, 64 Mbit flash - Warranty: 3 Years

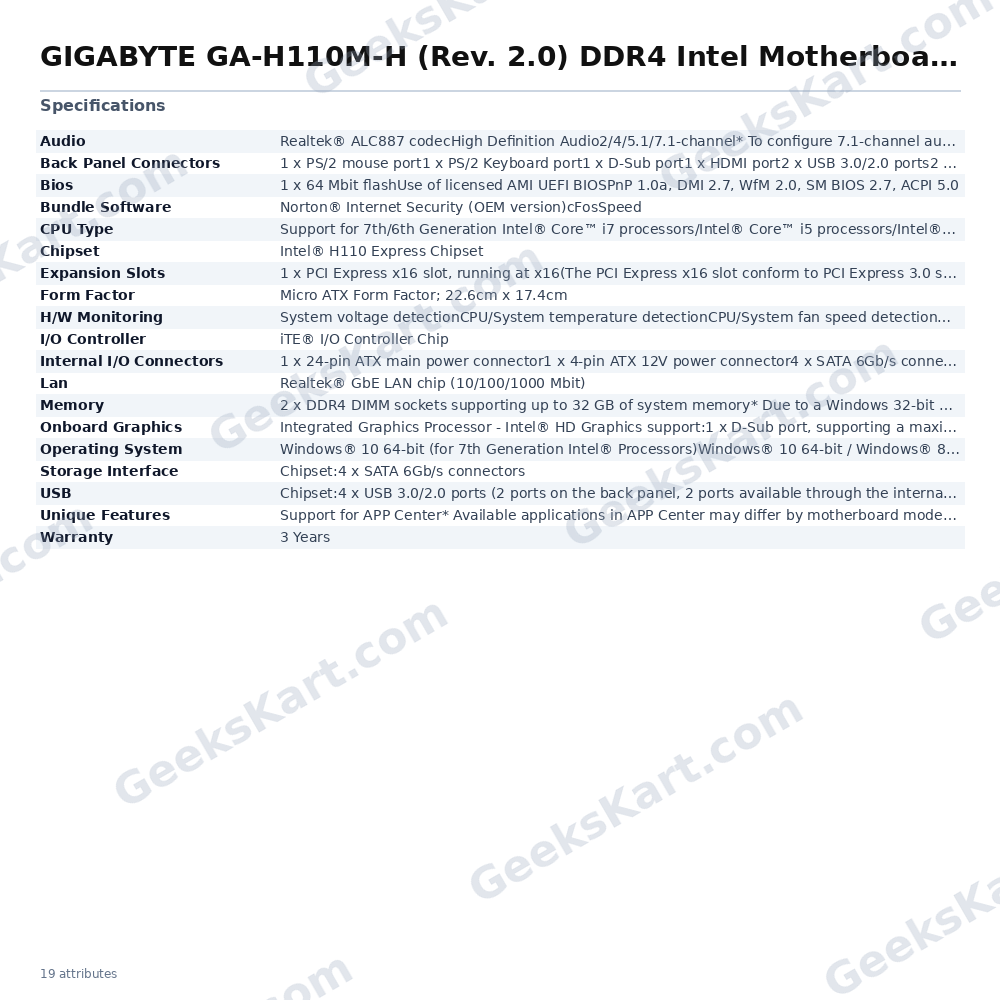

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® H110 Express Chipset |
| CPU Type | |
| Lan | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| USB | Chipset:4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
| Bios | 1 x 64 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® ALC887 codecHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.Support for S/PDIF Out |
| Memory | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.Dual channel memory architectureSupport for DDR4 2400/2133 MHz memory modulesSupport for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules |
| H/W Monitoring | System voltage detectionCPU/System temperature detectionCPU/System fan speed detectionCPU/System overheating warningCPU/System fan fail warningCPU/System fan speed control* Whether the fan speed control function is supported will depend on the cooler you install |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version)cFosSpeed |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16(The PCI Express x16 slot conform to PCI Express 3.0 standard.)2 x PCI Express x1 slots(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| Unique Features | Support for APP Center* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.3D OSD@BIOSAutoGreenCloud StationEasyTuneFast BootSmart TimeLockSmart KeyboardSmart BackupSystem Information ViewerUSB Blocker Support for Q-FlashSupport for Smart SwitchSupport for Xpress Install |
| Onboard Graphics | Integrated Graphics Processor – Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz1 x HDMI port, supporting a maximum resolution of 4096×2160@24 Hz* Support for HDMI 1.4 version.Maximum shared memory of 1024 MB |
| Operating System | Windows® 10 64-bit (for 7th Generation Intel® Processors)Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7 |
| Storage Interface | Chipset:4 x SATA 6Gb/s connectors |
| Back Panel Connectors | 1 x PS/2 mouse port1 x PS/2 Keyboard port1 x D-Sub port1 x HDMI port2 x USB 3.0/2.0 ports2 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks (Line In, Line Out, Mic In) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.0/2.0 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header1 x Clear CMOS jumper |
