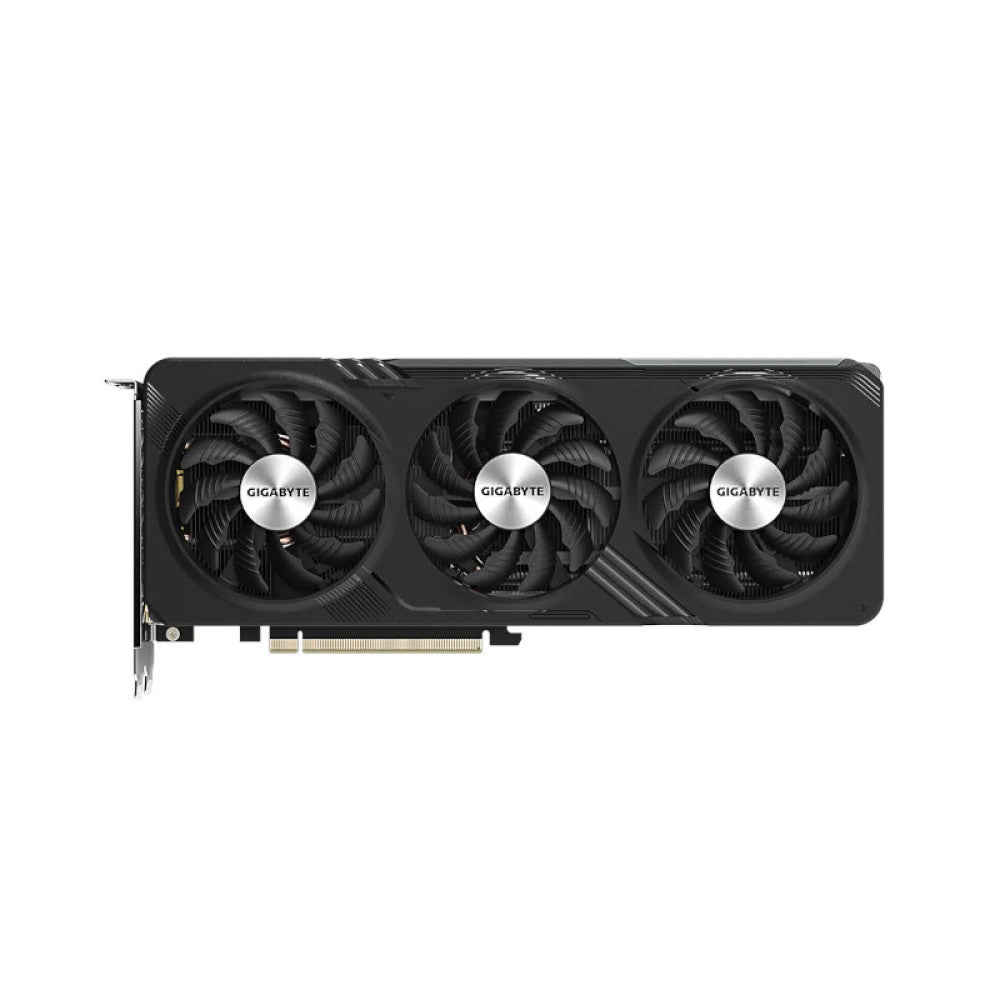

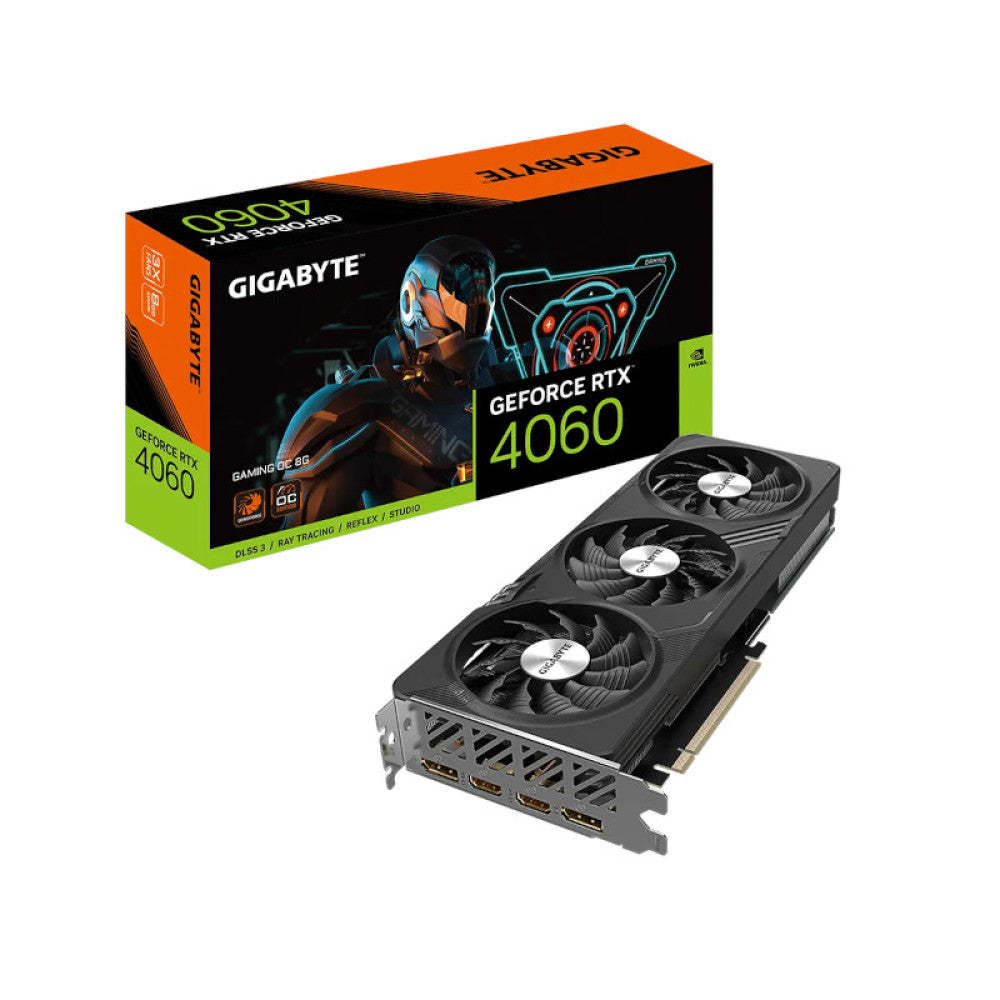

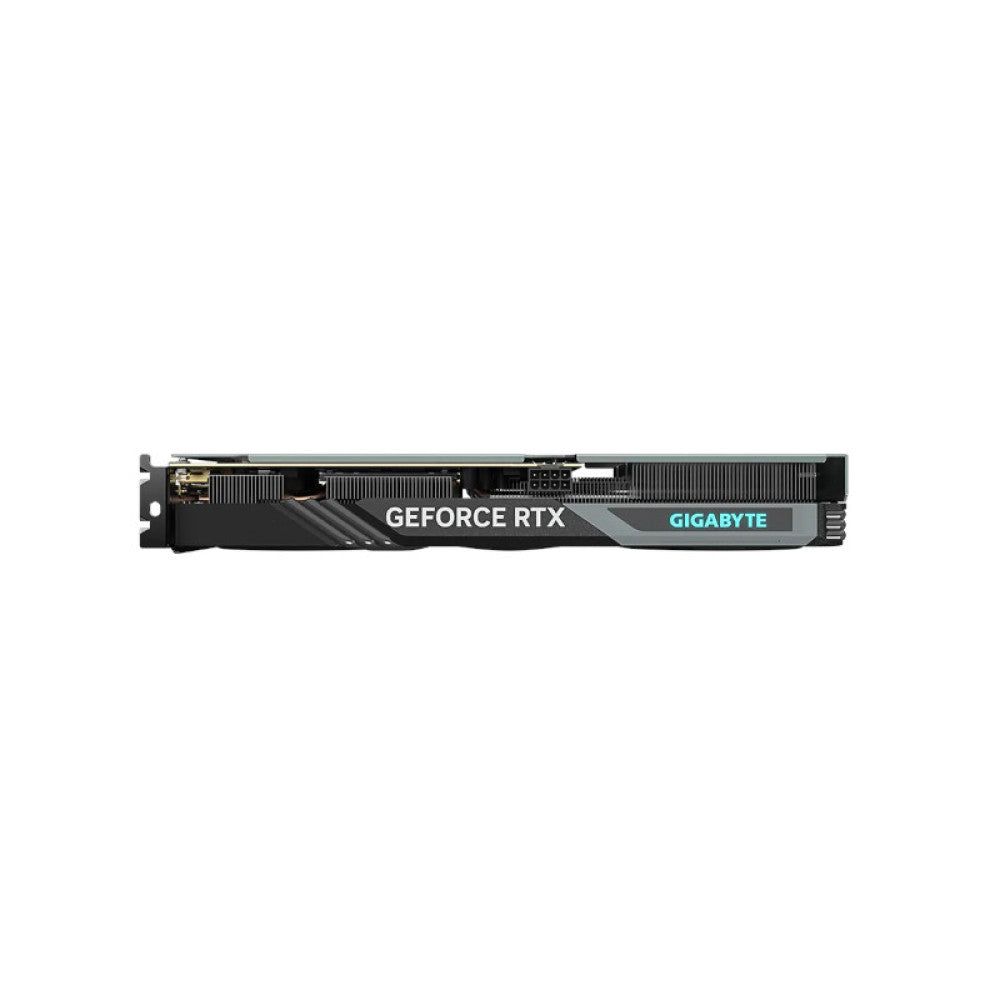

GIGABYTE GeForce RTX 4060 Gaming OC 8GB Nvidia Graphic Card
MPN GIGABYTE-GEFORCE-RTX-4060-GAMING-OC-8GB-GDDR6 · Brand Gigabyte
Features Of GIGABYTE GeForce RTX 4060 Gaming OC ALTERNATE SPINNING Reduce the turbulence of adjacent fans and increase airflow pressure. 3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. UNIQUE BLADE FAN The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface GRAPHENE NANO LUBRICANT Graphene nano lubricant can extend the life of sleeve bearing fan
Inclusive of GST · GST invoice available
Overview
Features Of GIGABYTE GeForce RTX 4060 Gaming OC
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
GIGABYTE GeForce RTX 4060 Gaming graphics card for pc comes With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA COOLING
Lower RDS MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
KEY FEATURE
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by gigabyte rtx 4060
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS

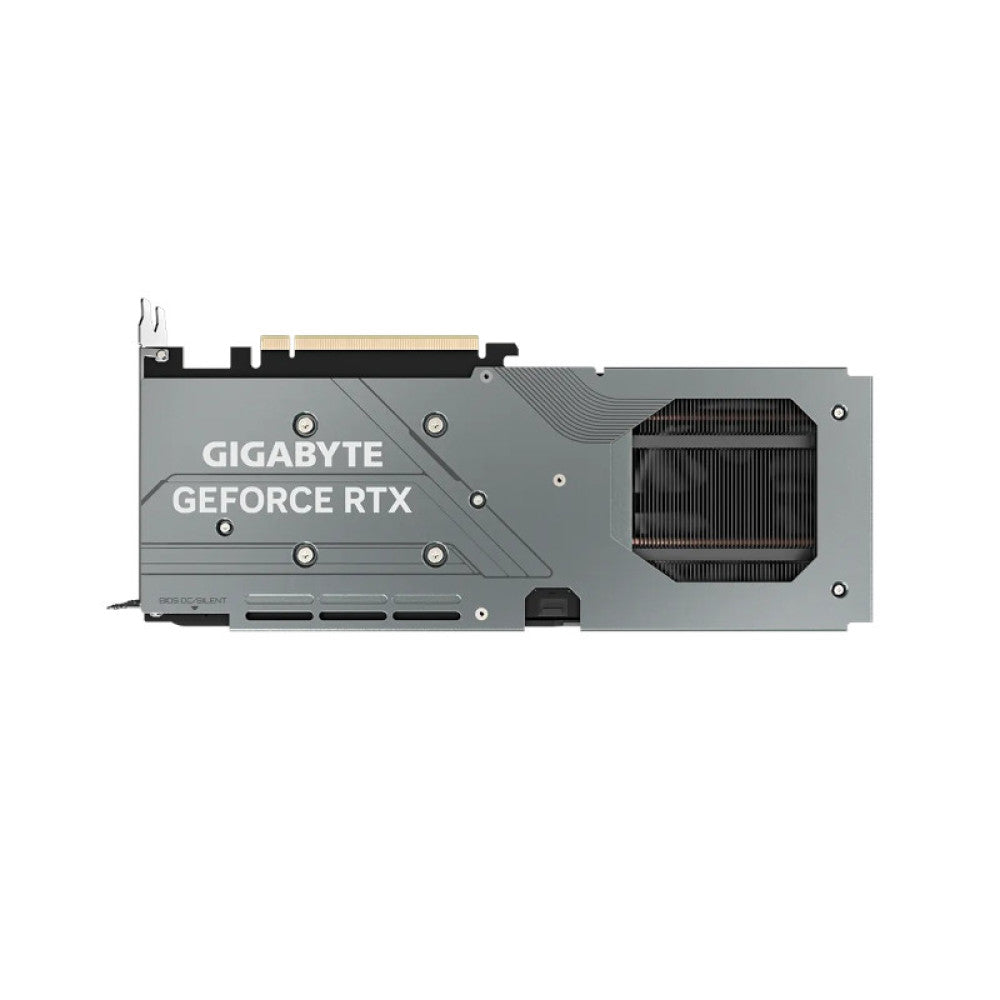

- Protection metal back plate
CORE CLOCK
- 2550 MHz (Reference card: 2460 MHz)
Specifications Of GIGABYTE GeForce RTX 4060 Gaming OC
| Chipset |
GeForce RTX™ 4060
|
| Core Clock |
2550 MHz (Reference card: 2460 MHz)
|
| CUDA® Cores | 3072 |
| Memory Clock | 17 Gbps |
| Memory Size | 8 GB |
| Memory Bus | 128 bit |
| Memory Type | GDDR6 |
| Card Bus | PCI-E 4.0 |
| Resolution | 7680x4320 |
| Multi-view | 4 |
| Dimension |
L=281 W=114 H=40 mm
|
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 450 W |
| Power Connectors | 8 Pin*1 |

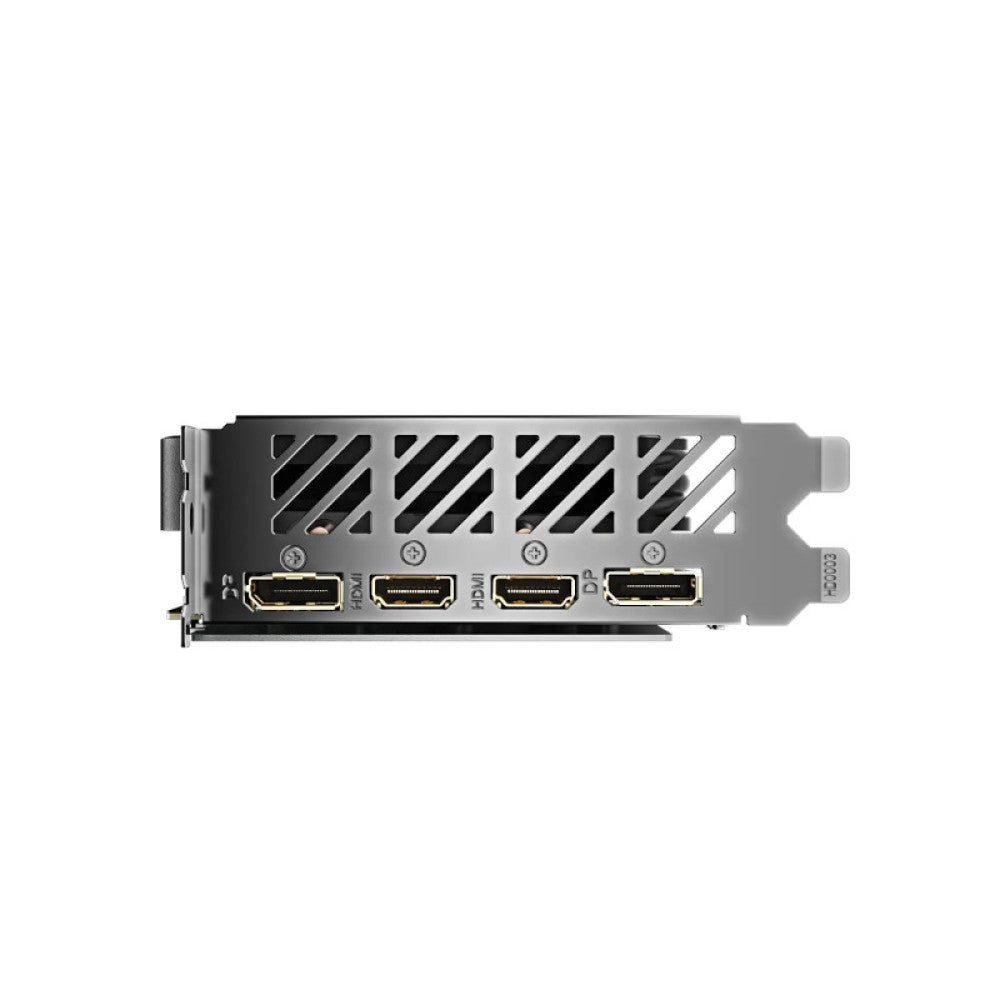

| Output |
DisplayPort 1.4a*2
HDMI 2.1a*2 |
| Accessories | Quick guide |
| Warranty |
3 Years Warranty
|
| Note* |
Price, feature and specifications are subject to change without notice.
|
| Note* |
Price, feature and specifications are subject to change without notice.
|

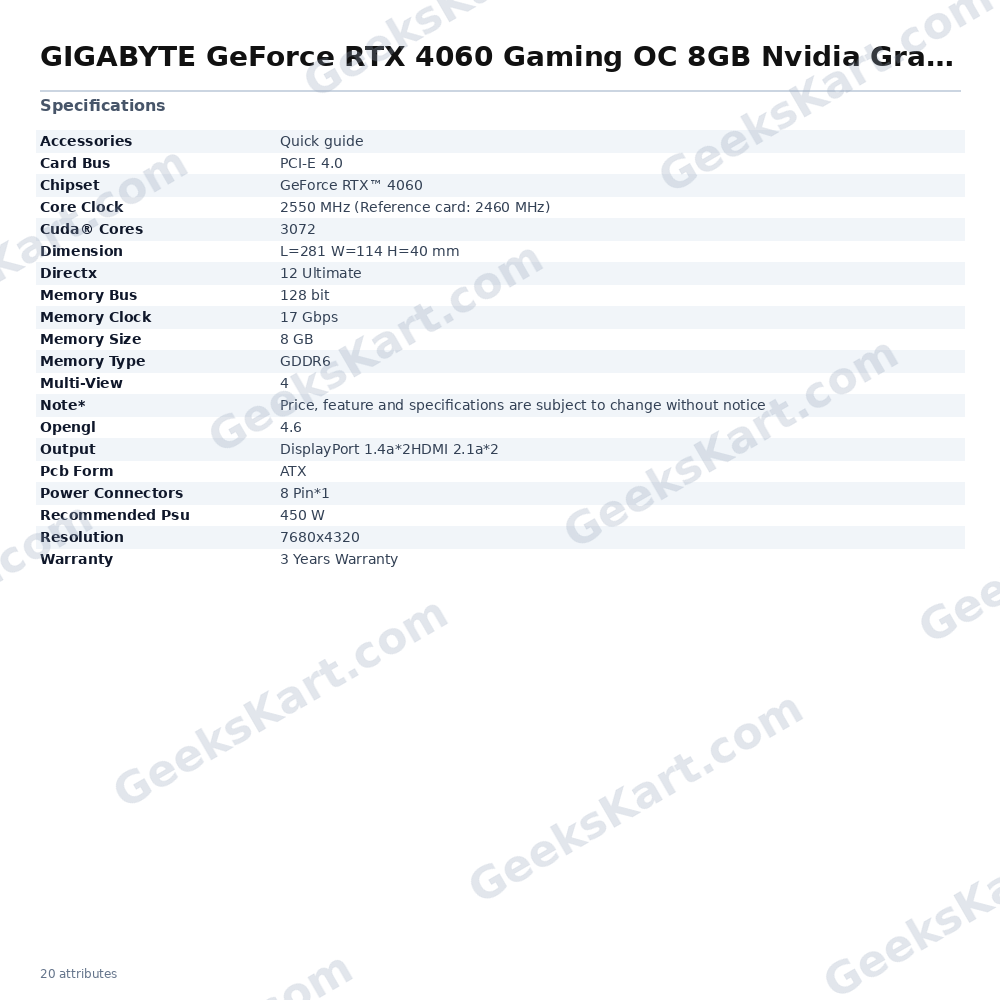

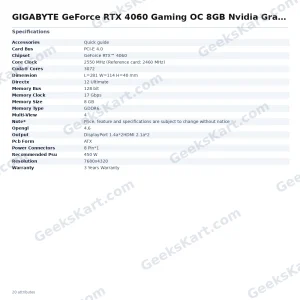

Datasheet
| Note* | Price, feature and specifications are subject to change without notice |
|---|---|
| Opengl | 4.6 |
| Output | DisplayPort 1.4a*2HDMI 2.1a*2 |
| Directx | 12 Ultimate |
| Card Bus | PCI-E 4.0 |
| Pcb Form | ATX |
| Dimension | L=281 W=114 H=40 mm |
| Core Clock | 2550 MHz (Reference card: 2460 MHz) |
| Memory Bus | 128 bit |
| Multi-View | 4 |
| Accessories | Quick guide |
| Cuda® Cores | 3072 |
| Power Connectors | 8 Pin*1 |
| Memory Type | GDDR6 |
| Warranty | 3 Years |
| Chipset | GeForce RTX™ 4060 |
| Memory Size | 8 GB |
| Memory Clock | 17 Gbps |
| Recommended PSU | 450 W |
| Resolution | 7680×4320 |
