GIGABYTE GeForce RTX 4060 Ti Eagle 8GB Nvidia Graphic Card
MPN GIGABYTE-RTX-4060-TI-EAGLE-8GB-GDDR6-GRAPHICS-CARD · Brand Gigabyte
Features Of GIGABYTE GeForce RTX 4060 Ti Eagle Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering 3rd Generation RT Cores: Up to 2X ray tracing performance Powered by GIGABYTE GeForce RTX 4060 Ti Eagle graphics card for pc Integrated with 8GB GDDR6 128bit memory interface WINDFORCE cooling system Dual BIOS Protection back plate WINDFORCE COOLING SYSTEM The WINDFORCE cooling syst
Inclusive of GST · GST invoice available
Overview
Features Of GIGABYTE GeForce RTX 4060 Ti Eagle
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS
- 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GIGABYTE GeForce RTX 4060 Ti Eagle graphics card for pc
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Dual BIOS
- Protection back plate

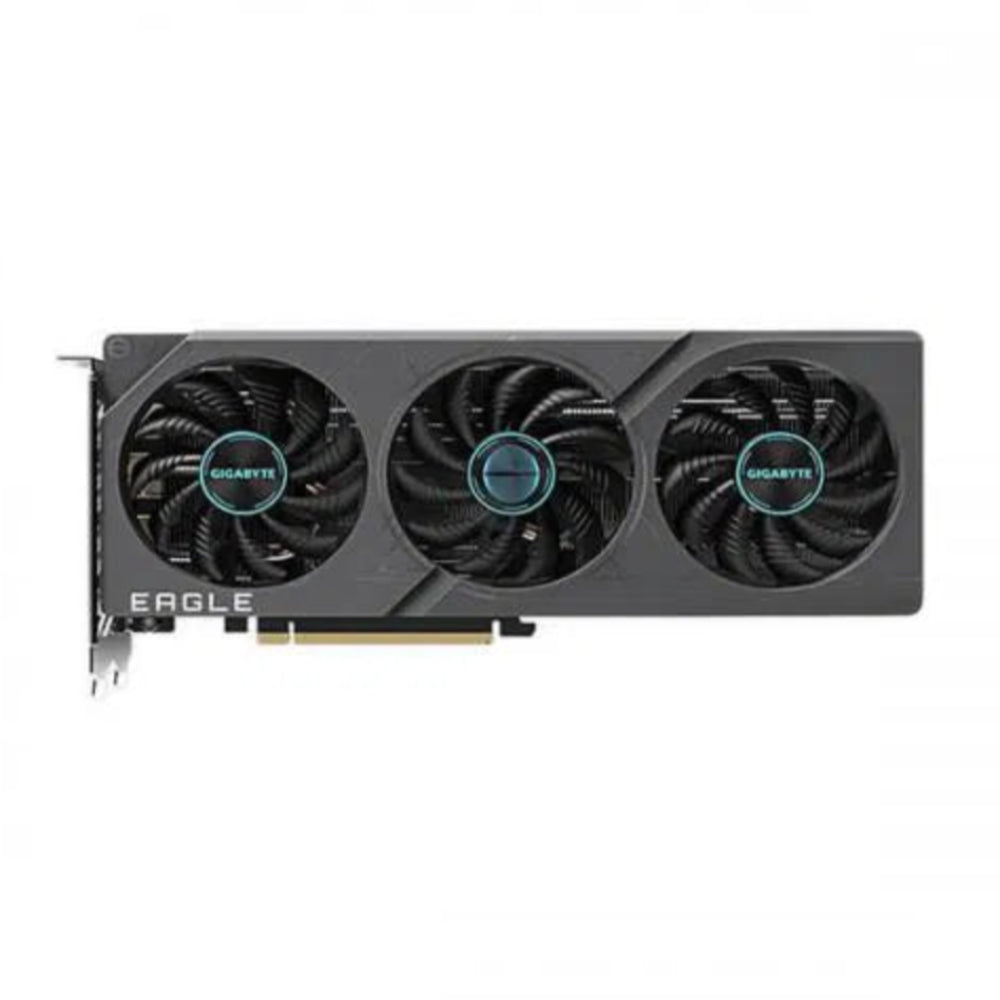

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

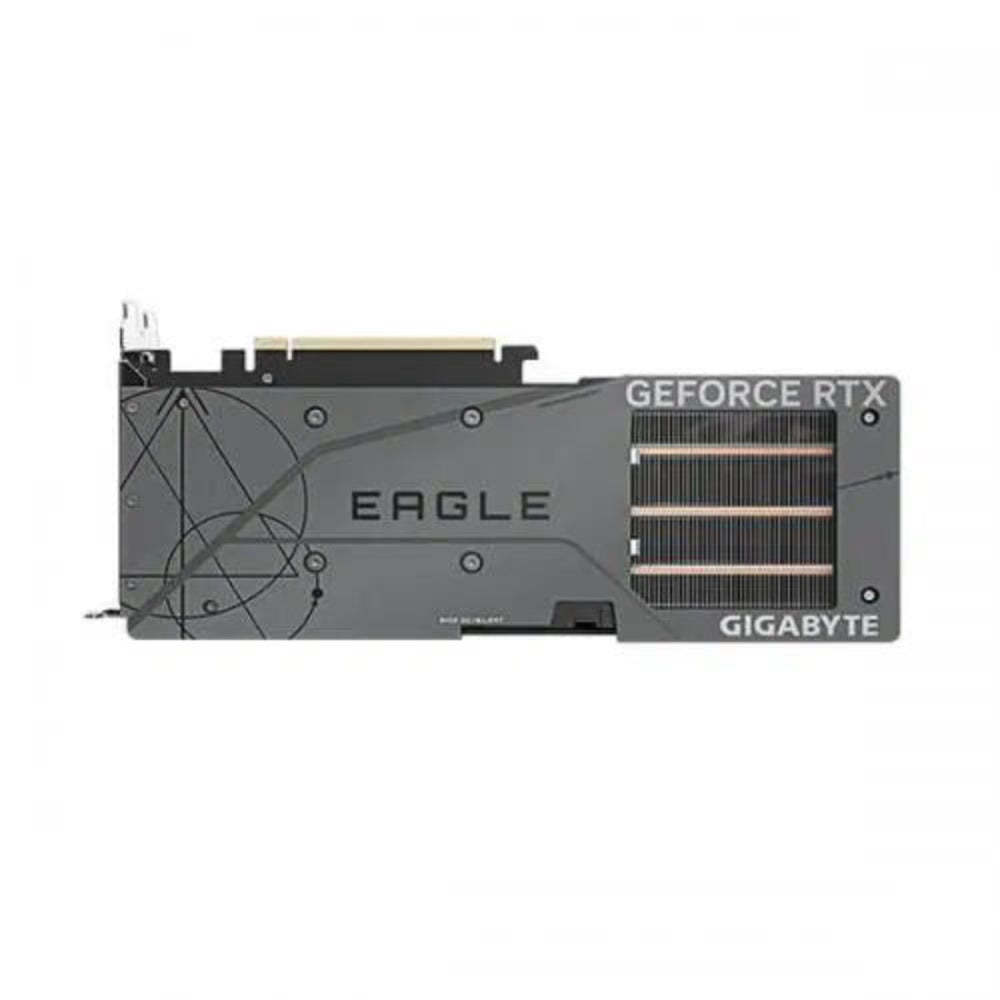

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.

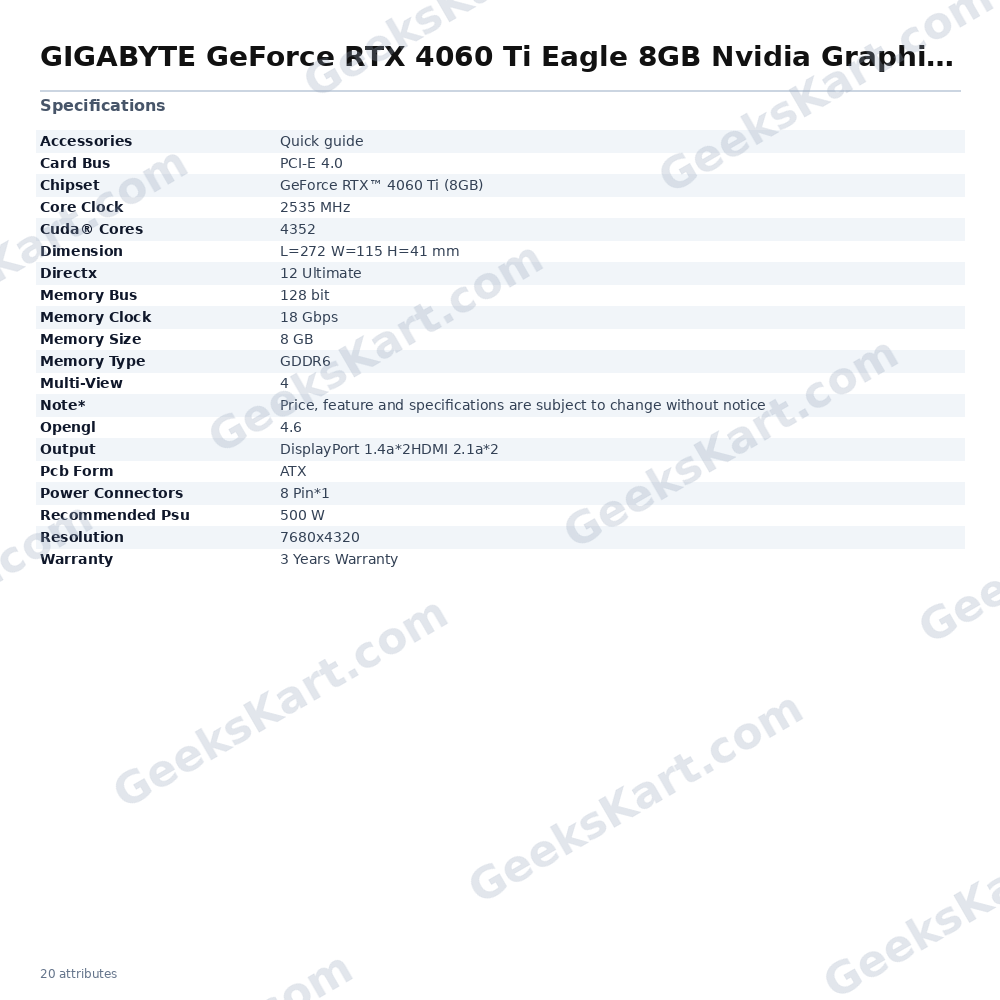

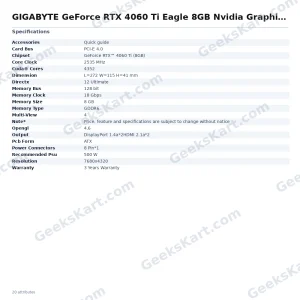

Specifications Of GIGABYTE GeForce RTX 4060 Ti Eagle
| Chipset |
GeForce RTX™ 4060 Ti (8GB)
|
| Core Clock | 2535 MHz |
| CUDA® Cores | 4352 |
| Memory Clock | 18 Gbps |
| Memory Size | 8 GB |
| Memory Bus | 128 bit |
| Memory Type | GDDR6 |
| Card Bus | PCI-E 4.0 |
| Resolution | 7680x4320 |
| Multi-view | 4 |
| Dimension |
L=272 W=115 H=41 mm
|
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 500 W |
| Power Connectors | 8 Pin*1 |

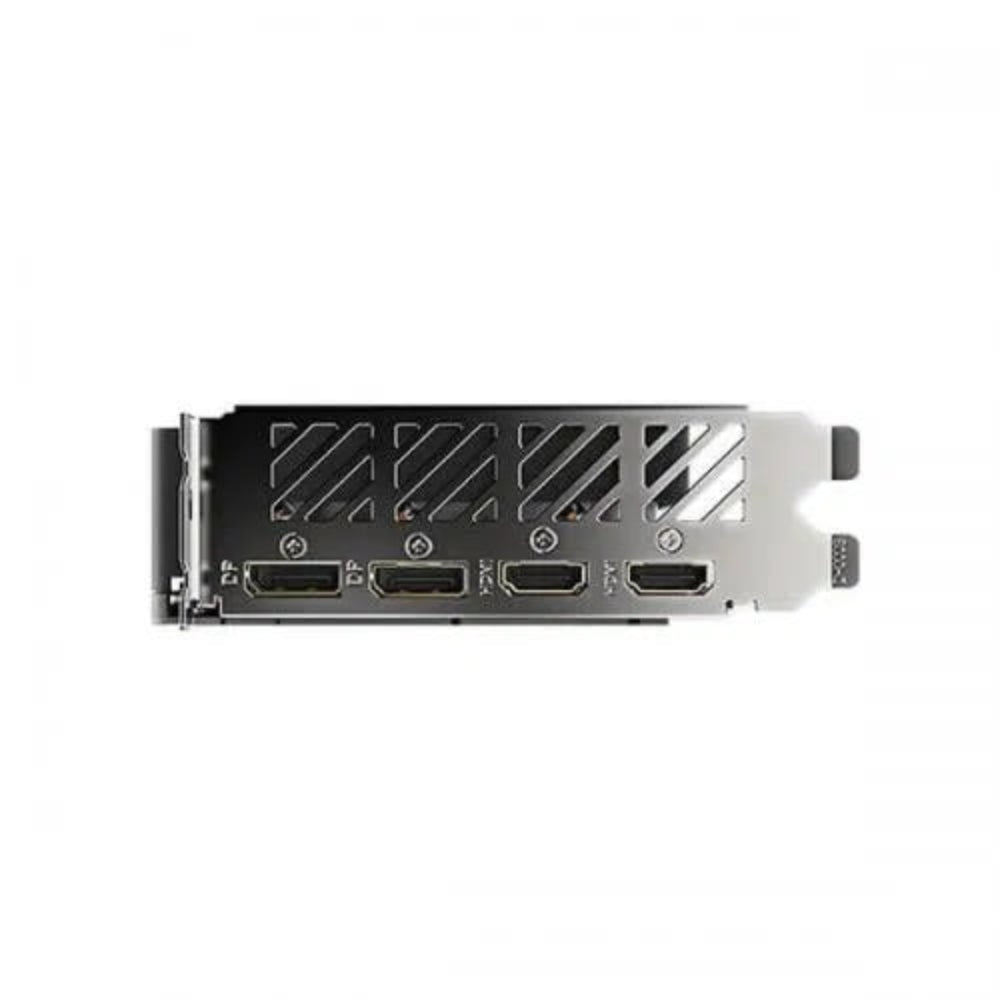

| Output |
DisplayPort 1.4a*2
HDMI 2.1a*2 |
| Accessories | Quick guide |
| Warranty |
3 Years Warranty
|
| Note* |
Price, feature and specifications are subject to change without notice.
|
Datasheet
| Note* | Price, feature and specifications are subject to change without notice |
|---|---|
| Opengl | 4.6 |
| Output | DisplayPort 1.4a*2HDMI 2.1a*2 |
| Directx | 12 Ultimate |
| Card Bus | PCI-E 4.0 |
| Pcb Form | ATX |
| Dimension | L=272 W=115 H=41 mm |
| Core Clock | 2535 MHz |
| Memory Bus | 128 bit |
| Multi-View | 4 |
| Accessories | Quick guide |
| Cuda® Cores | 4352 |
| Power Connectors | 8 Pin*1 |
| Memory Type | GDDR6 |
| Warranty | 3 Years |
| Chipset | GeForce RTX™ 4060 Ti (8GB) |
| Memory Size | 8 GB |
| Memory Clock | 18 Gbps |
| Recommended PSU | 500 W |
| Resolution | 7680×4320 |
