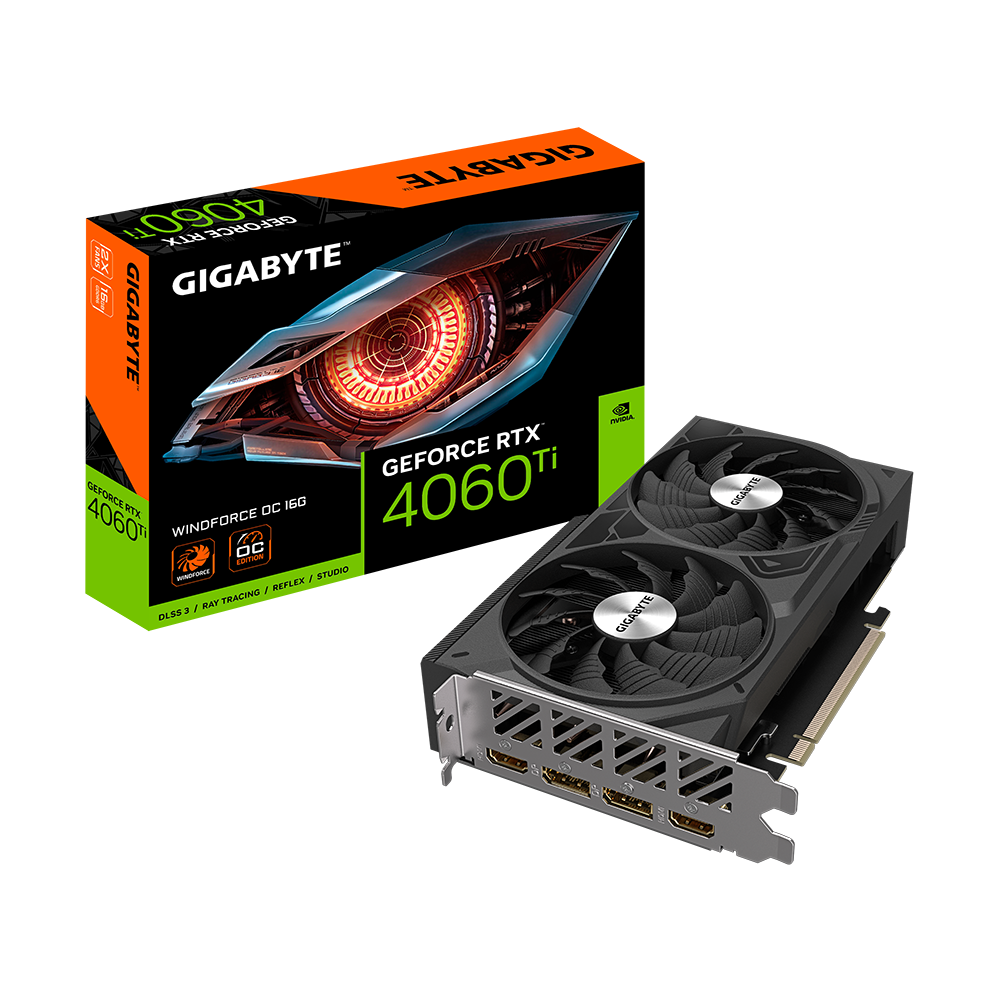

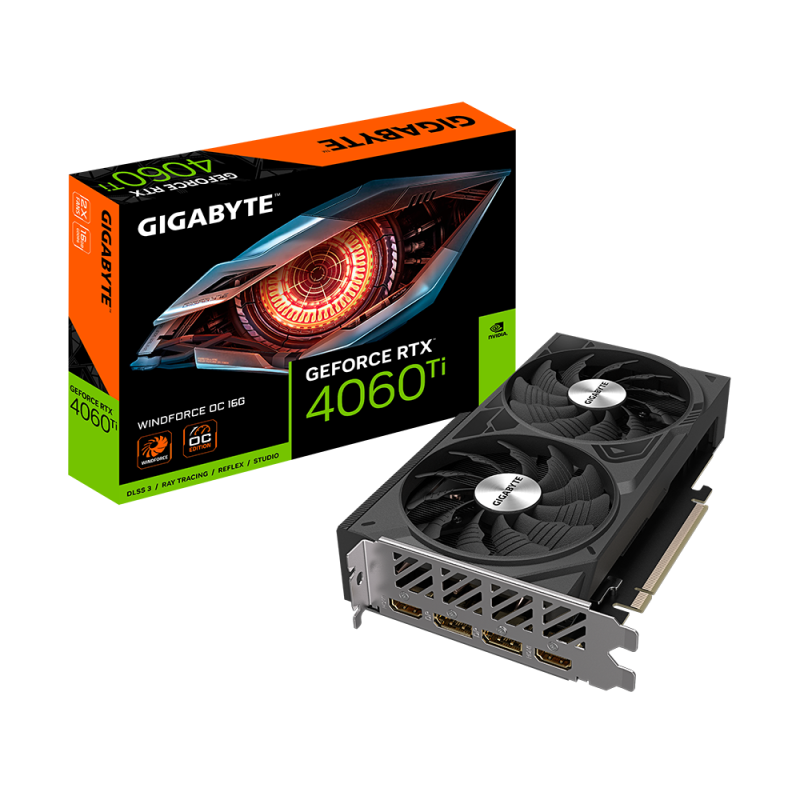

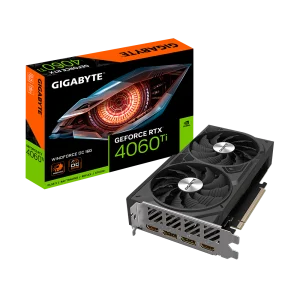

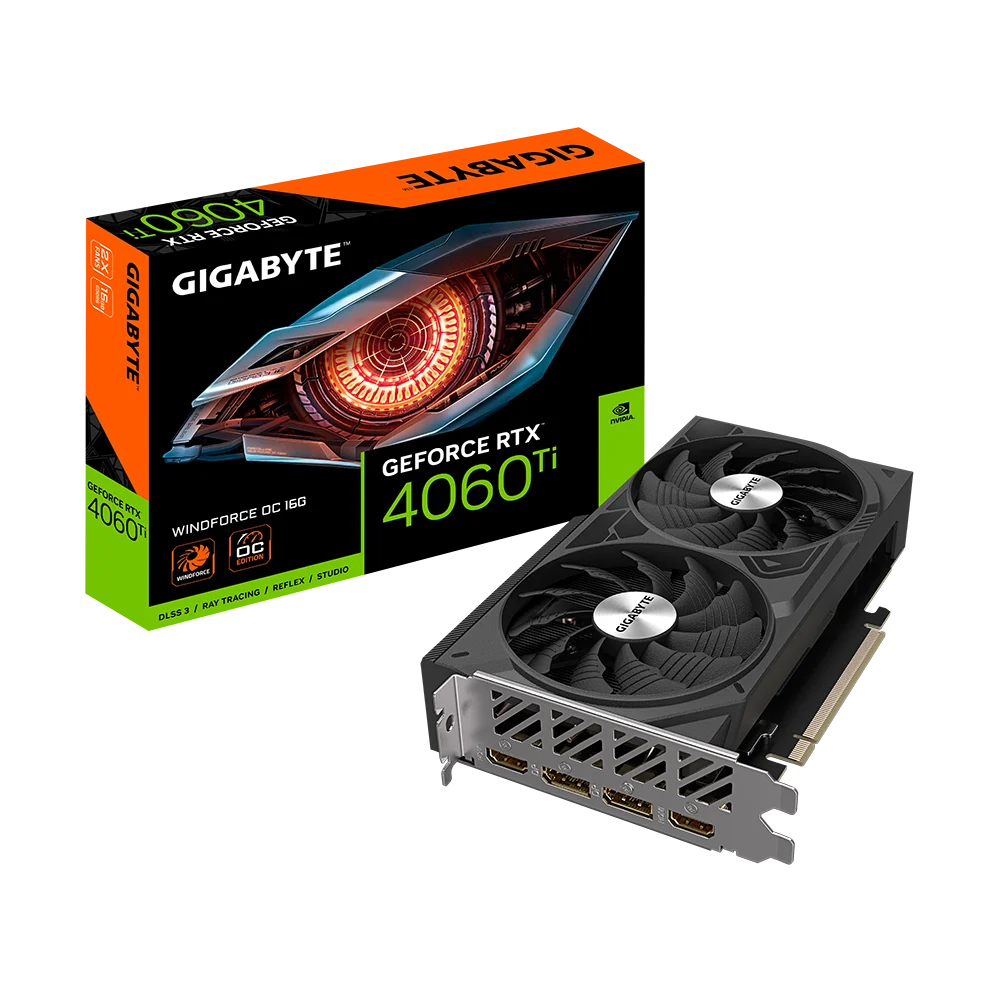

GIGABYTE GeForce RTX 4060 Ti WindForce OC 16GB Nvidia Graphic Card
MPN GIGABYTE-GEFORCE-RTX-4060-TI-WINDFORCE-OC-16GB · Brand Gigabyte
Features of GIGABYTE GeForce RTX 4060 Ti WindForce OC 16GB Nvidia Graphic Card Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering 3rd Generation RT Cores: Up to 2X ray tracing performance Powered by GeForce RTX™ 4060 Ti (16GB) Integrated with 16GB GDDR6 128bit memory interface WINDFORCE cooling system Protection metal back plate WINDFORCE COOLING SYSTEM The GIGABYTE GeForce RTX
Inclusive of GST · GST invoice available
Overview
Features of GIGABYTE GeForce RTX 4060 Ti WindForce OC 16GB Nvidia Graphic Card
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060 Ti (16GB)
- Integrated with 16GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Protection metal back plate
WINDFORCE
COOLING SYSTEM
The GIGABYTE GeForce RTX 4060 Ti WindForce OC 16GB Nvidia graphics card for pc have a cooling system which features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications of GIGABYTE GeForce RTX 4060 Ti WindForce OC 16GB Nvidia Graphic Card
| Graphics Processing | GeForce RTX™ 4060 Ti (16GB) |
| Core Clock | 2565 MHz (Reference Card: 2535 MHz) |
| CUDA® Cores | 4352 |
| Memory Clock | 18 Gbps |
| Memory Size | 16 GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=201 W=120 H=41 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 500W |
| Power Connectors | 8 pin*1 |
| Output | DisplayPort 1.4a*2 |
| HDMI 2.1a*2 | |
| Accessories | Quick guide |
Datasheet
| Opengl | 4.6 |
|---|---|
| Output | DisplayPort 1.4a*2 |
| Directx | 12 Ultimate |
| Card Bus | PCI-E 4.0 |
| Pcb Form | ATX |
| Card Size | L=201 W=120 H=41 mm |
| Core Clock | 2565 MHz (Reference Card: 2535 MHz) |
| Memory Bus | 128 bit |
| Multi-View | 4 |
| Accessories | Quick guide |
| Cuda® Cores | 4352 |
| Power Connectors | 8 pin*1 |
| Graphics Processing | GeForce RTX™ 4060 Ti (16GB) |
| Digital Max Resolution | 7680×4320 |
| Memory Type | GDDR6 |
| Memory Size | 16 GB |
| Memory Clock | 18 Gbps |
| Recommended PSU | 500W |
