GIGABYTE GeForce RTX 4060 WindForce OC 8GB Nvidia Graphic Card
MPN GV-N4060WF2OC-8GD · Brand Gigabyte
Features Of GIGABYTE GeForce RTX 4060 WindForce OC Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering 3rd Generation RT Cores: Up to 2X ray tracing performance Powered by GIGABYTE GeForce RTX 4060 WindForce OC graphics card for pc gigabyte rtx 4060 comes with 8GB GDDR6 128bit memory interface WINDFORCE Cooling System Protection back plate WINDFORCE COOLING SYSTEM The WINDFORCE c
Inclusive of GST · GST invoice available
Overview
Features Of GIGABYTE GeForce RTX 4060 WindForce OC
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GIGABYTE GeForce RTX 4060 WindForce OC graphics card for pc
- gigabyte rtx 4060 comes with 8GB GDDR6 128bit memory interface
- WINDFORCE Cooling System
- Protection back plate

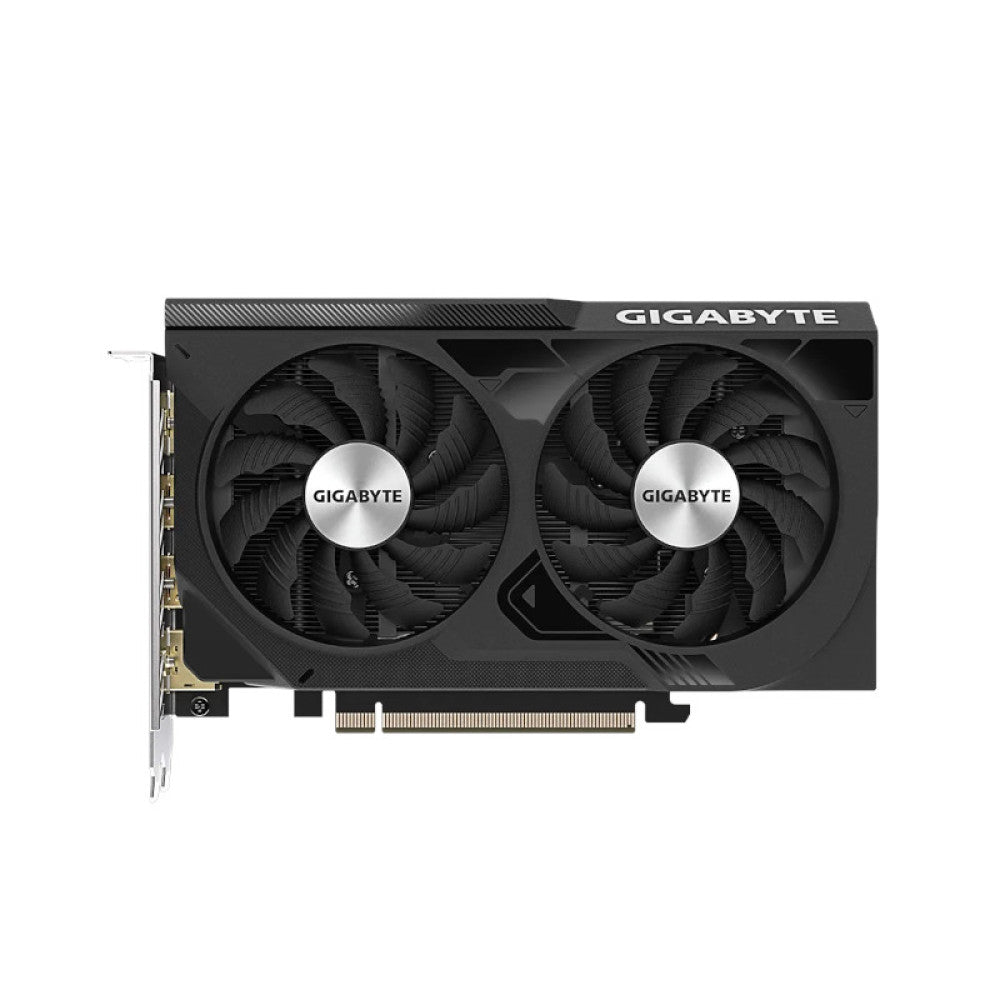

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features two 80mm unique blade fans, alternate spinning, a composite copper heat pipe that directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
OPTIMIZED THERMAL MODULE
The pure copper heat pipe makes direct contact with the GPU to facilitate enhanced heat transfer to the heatsink, optimizing the cooling efficiency of the graphics card.

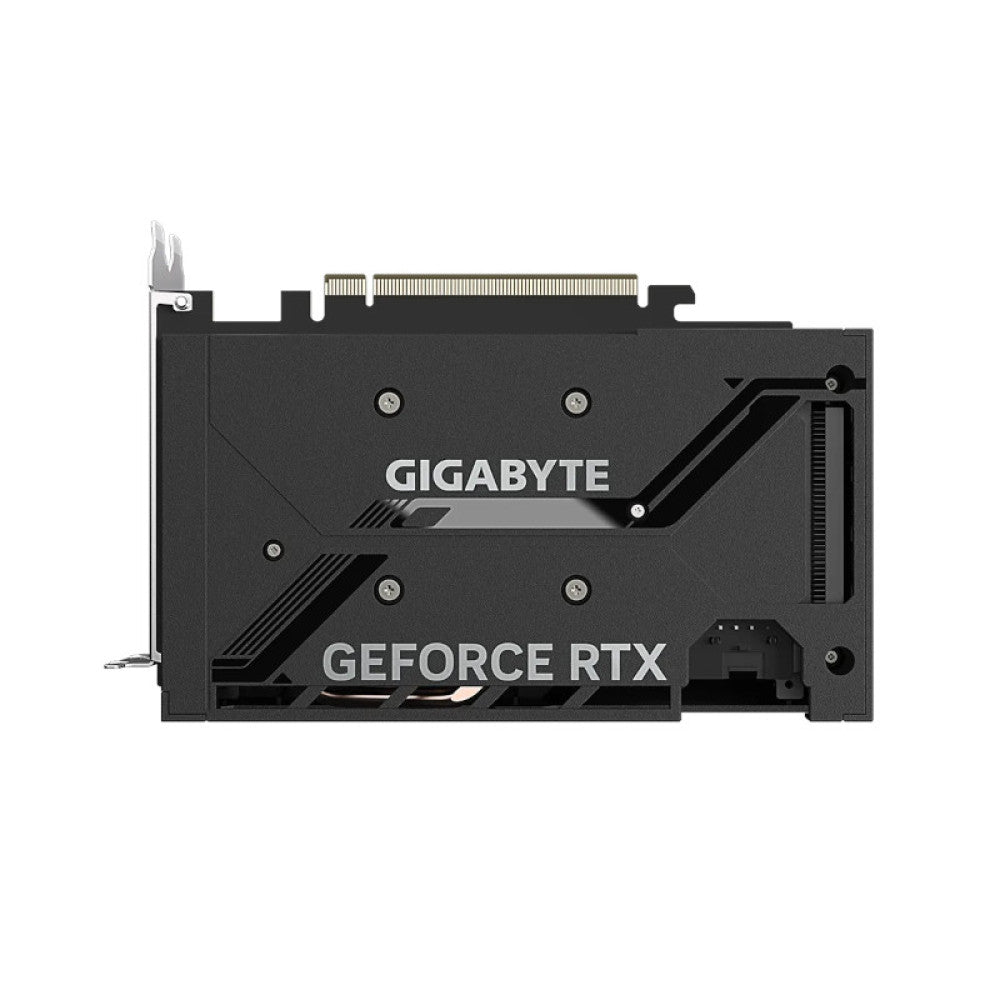

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Specifications Of GIGABYTE GeForce RTX 4060 WindForce OC
| Chipset |
GeForce RTX™ 4060
|
| Core Clock |
2475 MHz (Reference card: 2460 MHz)
|
| CUDA® Cores | 3072 |
| Memory Clock | 17 Gbps |
| Memory Size | 8 GB |
| Memory Bus | 128 bit |
| Memory Type | GDDR6 |
| Card Bus | PCI-E 4.0 |
| Resolution | 7680x4320 |
| Multi-view | 4 |
| Dimension |
L=192 W=120 H=41 mm
|
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 450 W |
| Power Connectors | 8 Pin*1 |

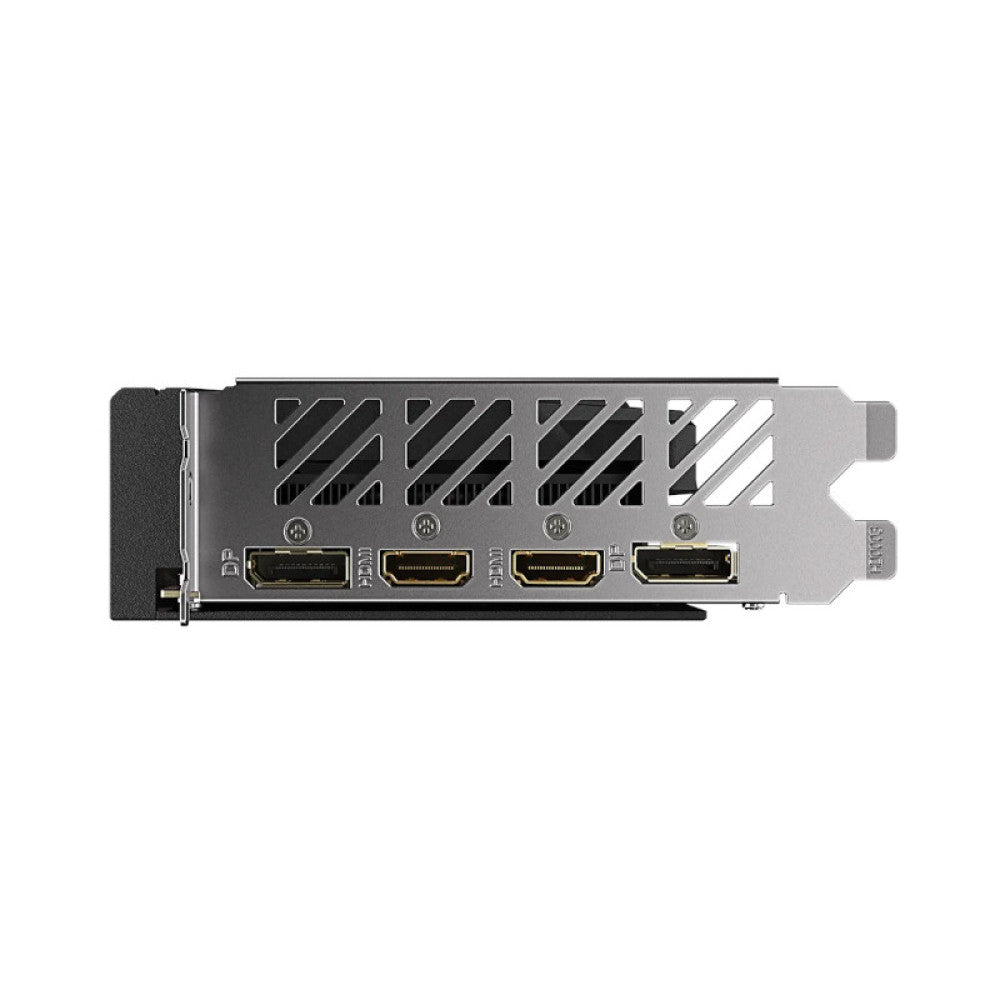

| Output |
DisplayPort 1.4a*2
HDMI 2.1a*2 |
| Accessories | Quick guide |
| Warranty |
3 Years Warranty
|
| Note* |
Price, feature and specifications are subject to change without notice.
|

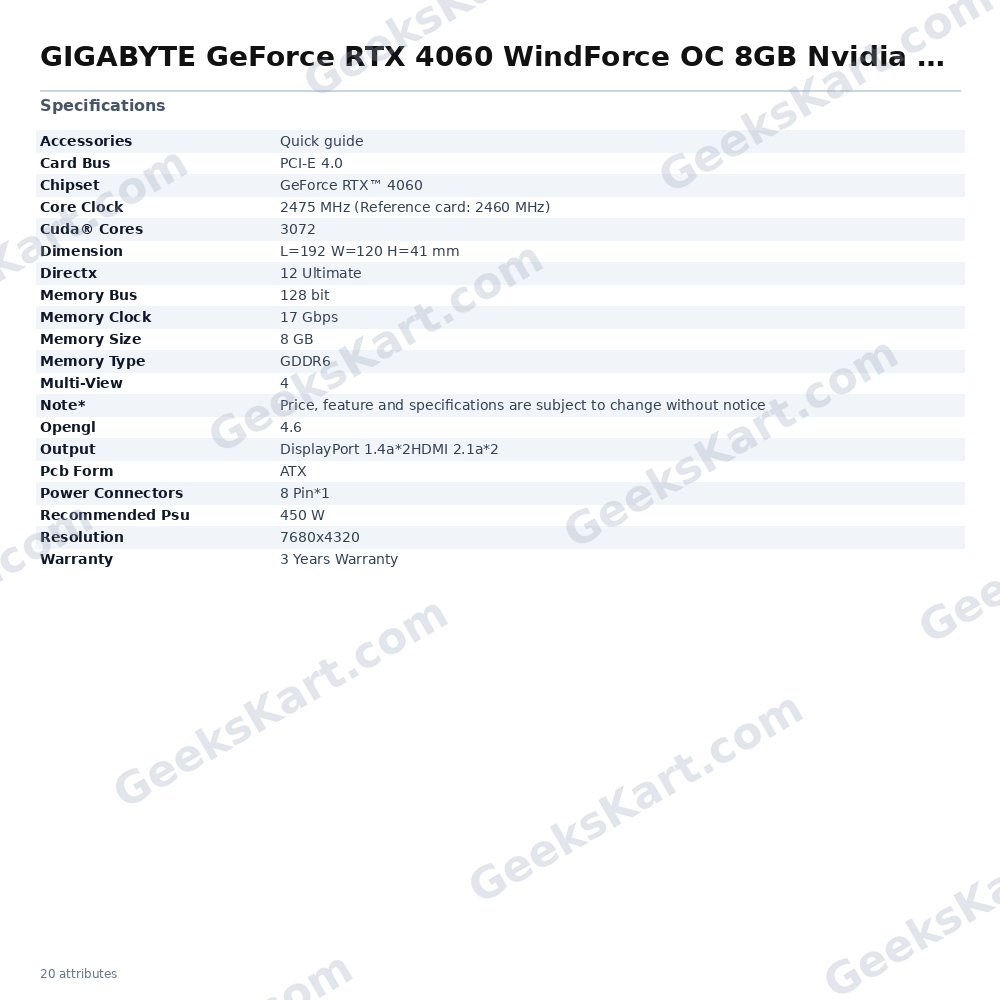

Datasheet
| Note* | Price, feature and specifications are subject to change without notice |
|---|---|
| Opengl | 4.6 |
| Output | DisplayPort 1.4a*2HDMI 2.1a*2 |
| Directx | 12 Ultimate |
| Card Bus | PCI-E 4.0 |
| Pcb Form | ATX |
| Dimension | L=192 W=120 H=41 mm |
| Core Clock | 2475 MHz (Reference card: 2460 MHz) |
| Memory Bus | 128 bit |
| Multi-View | 4 |
| Accessories | Quick guide |
| Cuda® Cores | 3072 |
| Power Connectors | 8 Pin*1 |
| Memory Type | GDDR6 |
| Warranty | 3 Years |
| Chipset | GeForce RTX™ 4060 |
| Memory Size | 8 GB |
| Memory Clock | 17 Gbps |
| Recommended PSU | 450 W |
| Resolution | 7680×4320 |
