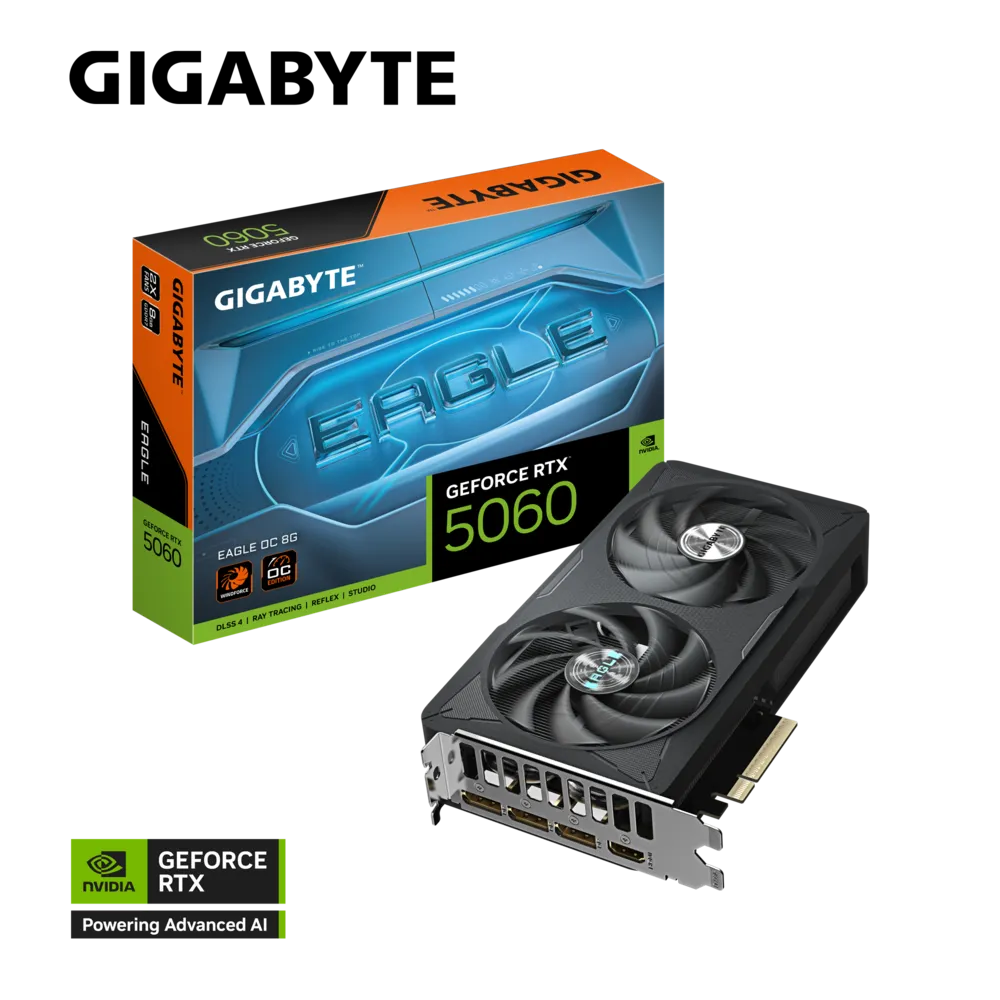

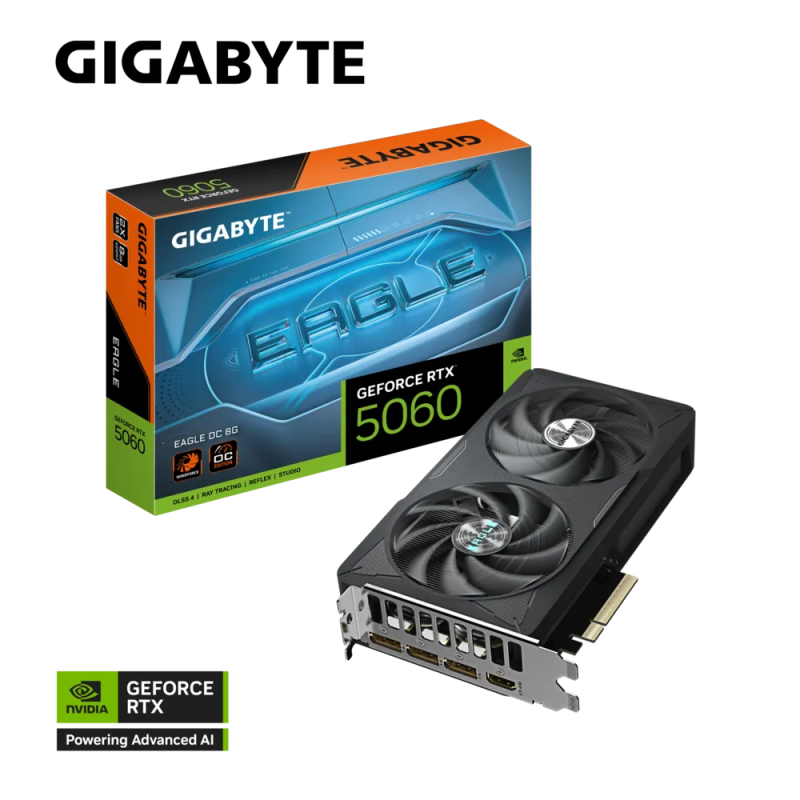

GIGABYTE GeForce RTX 5060 Eagle OC 8GB NVIDIA Graphic Card

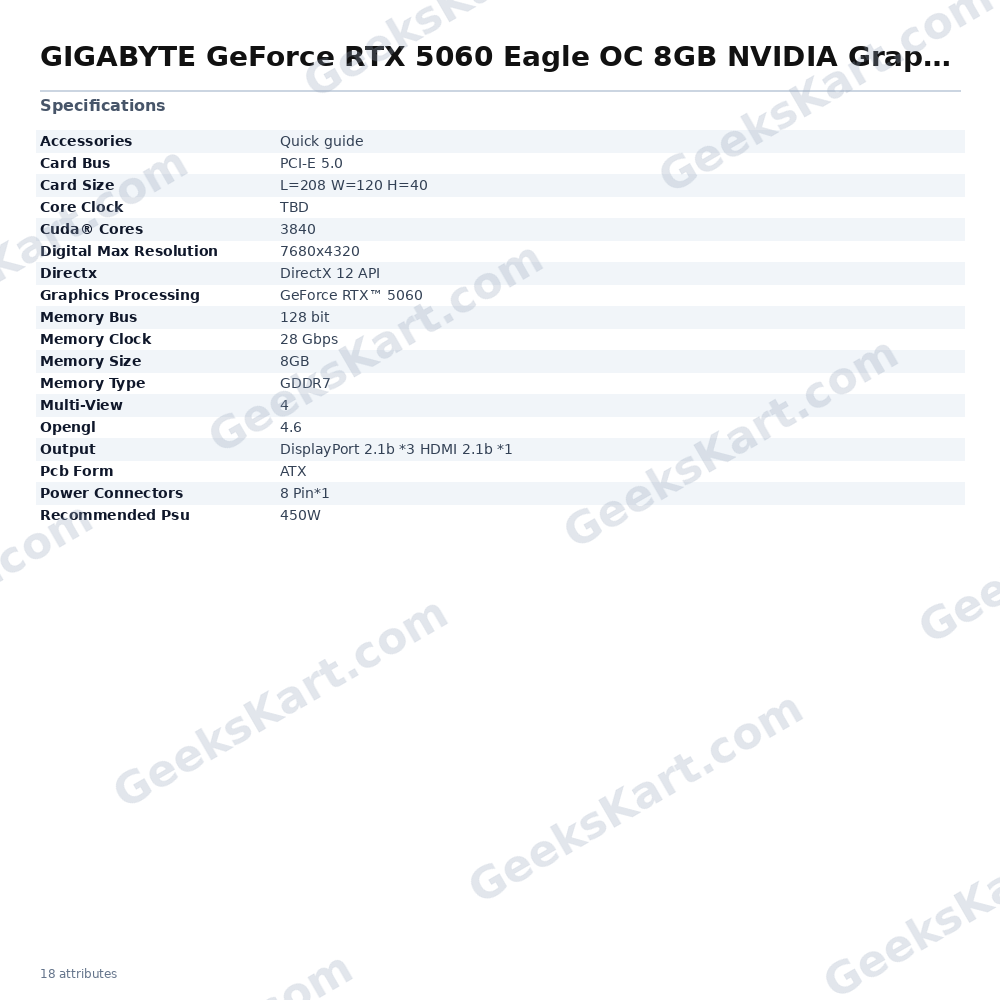

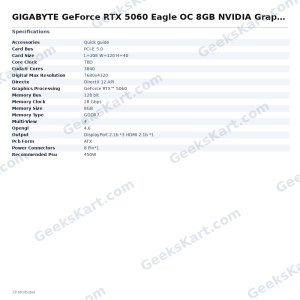

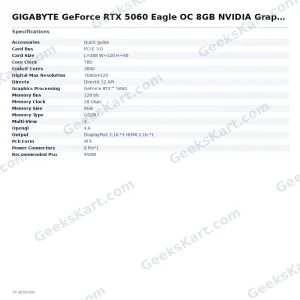

The GIGABYTE GeForce RTX 5060 Eagle OC 8GB is a desktop graphics card built on NVIDIA’s GeForce RTX 5060 GPU. It pairs 3840 CUDA cores with 8 GB of GDDR7 memory running at 28 Gbps across a 128-bit bus, delivering strong bandwidth for 1080p and 1440p gaming workloads. The card connects via a PCI Express 5.0 slot and requires a single 8-pin power connector alongside a recommended 450 W power supply. NVIDIA’s fifth-generation Tensor Cores enable FP4 precision and DLSS 4 AI-upscaling, while the fourth-generation Ray Tracing Cores are designed for complex geometry workloads. New Streaming Multiprocessors support neural shader pipelines introduced with the Blackwell architecture. GIGABYTE equips the Eagle OC with its WINDFORCE cooling system. The centrepiece is a trio of Hawk Fans, whose blade geometry is modelled on eagle-wing aerodynamics to achieve up to a 53.6% increase in air pressure and a 12.5% increase in air volume compared to prior designs. Adjacent fans spin in alternating directions to reduce turbulence and improve airflow consistency. The 3D Active Fan feature allows the fans to stop entirely under light loads for silent operation. Sleeve bearings are lubricated with graphene nano lubricant, extending bearing life by approximately 2.1 times relative to standard lubricants. Server-grade thermal conductive gel — rather than conventional thermal pads — contacts VRAM and MOSFET surfaces for reliable heat transfer. A copper plate sits directly on the GPU die, feeding composite copper heat pipes that spread heat across the full heatsink array. The display output cluster offers three DisplayPort 2.1b ports and one HDMI 2.1b port, supporting up to four simultaneous displays and a maximum digital resolution of 7680×4320 (8K). The card measures 208 mm × 120 mm × 40 mm (L×W×H) on an ATX PCB form factor, making it compatible with most mid-tower and full-tower cases. Software is managed through GIGABYTE Control Center (GCC), which provides real-time adjustment of clock speed, voltage, fan mode, and power target via a unified interface. The card supports DirectX 12 and OpenGL 4.6. Verified Specifications: • GPU: GeForce RTX 5060 • CUDA Cores: 3840 • Memory: 8 GB GDDR7 • Memory Speed: 28 Gbps • Memory Bus: 128-bit • Interface: PCI-E 5.0 • Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b • Max Resolution: 7680×4320 • Multi-display: Up to 4 • Power Connector: 1× 8-pin • Recommended PSU: 450 W • Card Dimensions: 208 × 120 × 40 mm • DirectX: 12 | OpenGL: 4.6 • Core Clock: TBD (not disclosed at time of listing)
