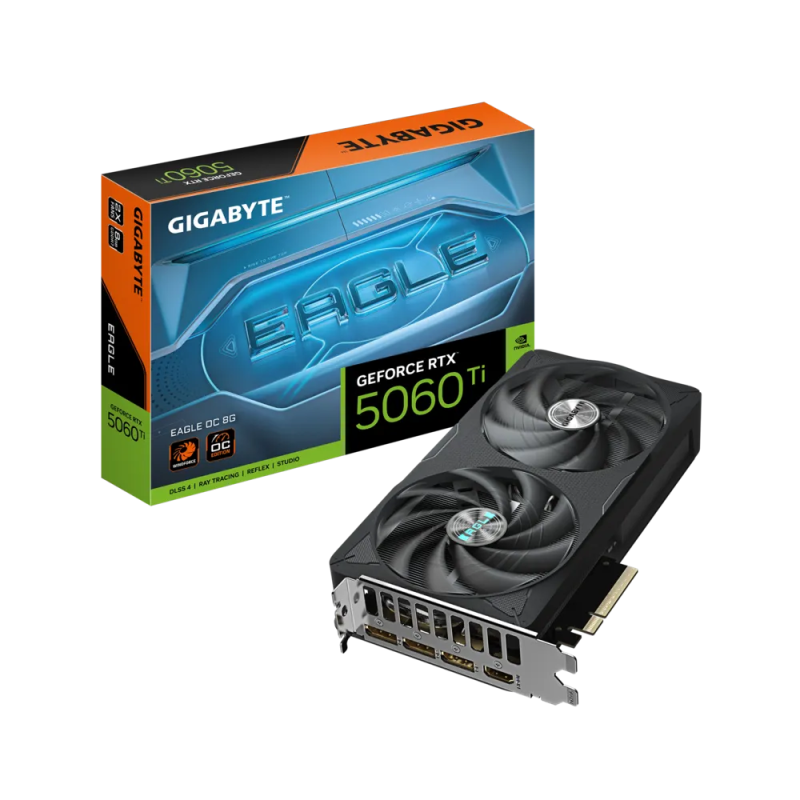

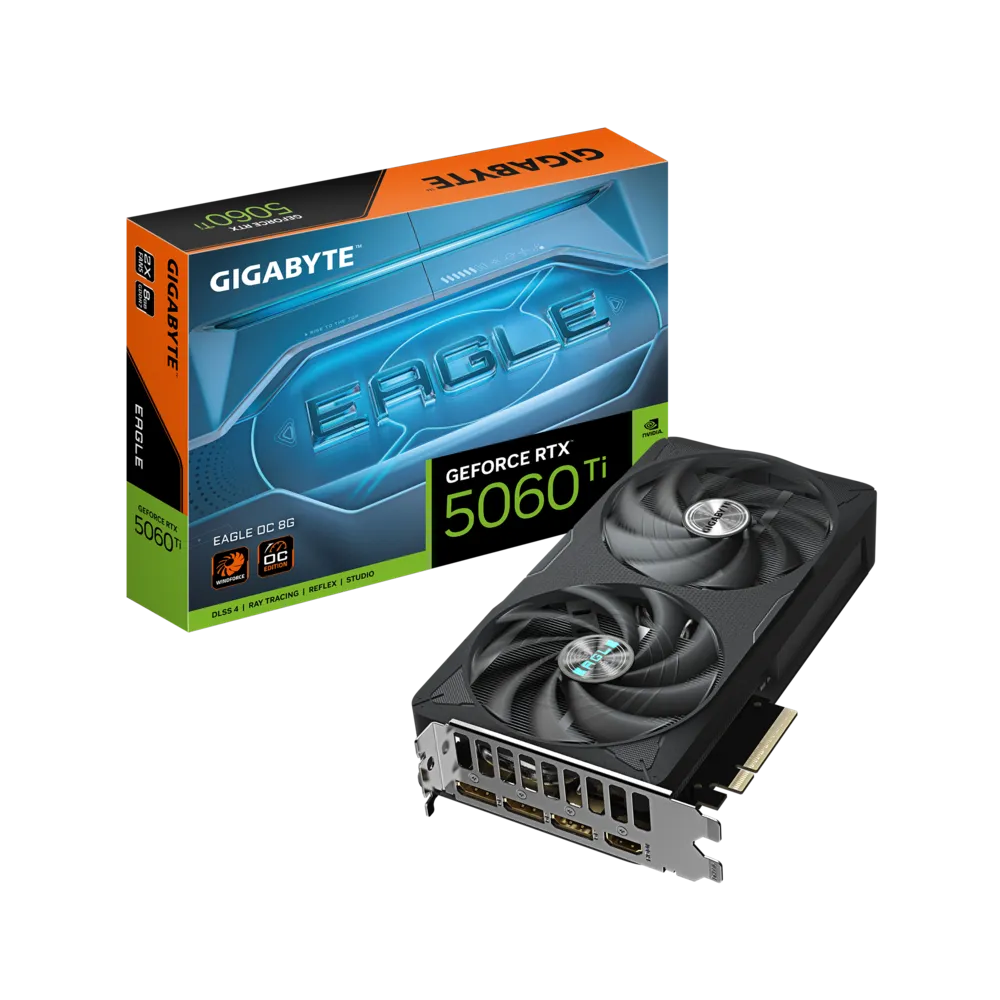

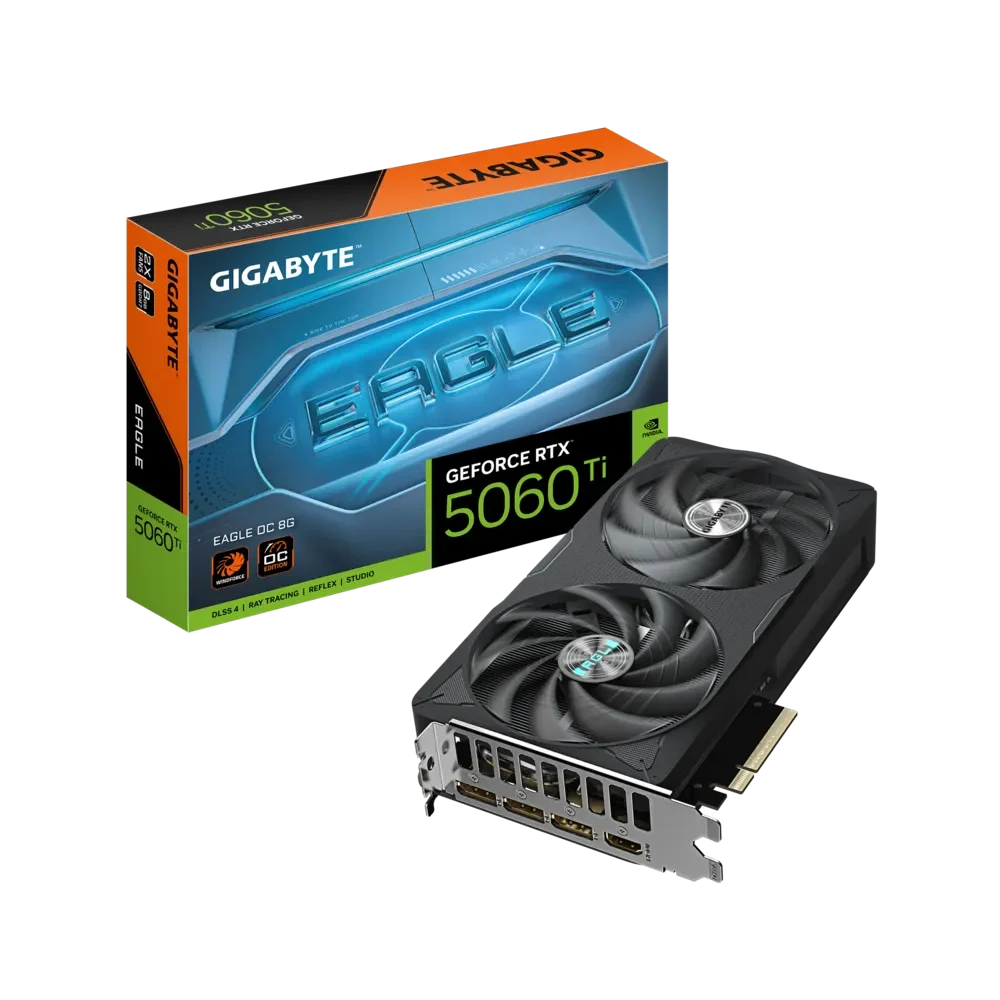

GIGABYTE GeForce RTX 5060 Ti Eagle OC 8GB Nvidia Graphic Card

The GIGABYTE GeForce RTX 5060 Ti Eagle OC 8GB (model GV-N506TEAGLE-OC-8GD) is built on NVIDIA’s Blackwell architecture, bringing fifth-generation Tensor Cores with FP4 support and DLSS 4 to mid-range gaming and creative workloads. Fourth-generation Ray Tracing Cores handle complex lighting calculations, while the new Streaming Multiprocessors are optimised for neural shading techniques, enabling more realistic scenes without proportional performance penalties. GIGABYTE has tuned the Eagle OC edition to a boost clock of 2617 MHz — 45 MHz above the 2572 MHz reference specification — providing a modest but measurable frequency advantage out of the box. Thermal management is handled by the WINDFORCE cooling system, which combines several technologies into a single solution. The signature Hawk Fan features a blade profile inspired by raptor-wing aerodynamics, reducing air resistance and raising air pressure by up to 53.6% and air volume by up to 12.5% compared to conventional designs, according to GIGABYTE’s published data. Adjacent fans spin in alternating directions to reduce turbulence and improve overall airflow pressure. The 3D Active Fan mode keeps all fans off under light load, lowering noise during everyday desktop use. Graphene nano lubricant extends sleeve-bearing fan life by up to 2.1 times, approaching the longevity of double ball-bearing designs. A direct-contact copper plate paired with composite copper heat pipes rapidly transfers heat from the GPU die and VRAM to the heatsink fins, while server-grade thermal conductive gel — rather than conventional thermal pads — provides reliable, long-term contact on VRAM and MOSFET surfaces. A screen-cooling aperture in the extended heatsink allows additional airflow through the fin stack. The card’s aerospace-and-sci-fi-inspired exterior features curved contours, segmented panel lines, and a reinforced metal backplate with a bent-edge design anchored to the I/O bracket for structural rigidity. GIGABYTE Control Center (GCC) software provides real-time tuning of clock speed, voltage, fan curves, and power targets from a unified interface. Key Verified Specifications: • GPU: NVIDIA GeForce RTX 5060 Ti (Blackwell architecture) • CUDA Cores: 4,608 • Boost Clock: 2,617 MHz (reference: 2,572 MHz) • Memory: 8 GB GDDR7, 128-bit bus, 28 Gbps • Interface: PCI Express 5.0 • Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b • Max Resolution: 7680 × 4320 (8K) • Multi-display Support: Up to 4 displays • API Support: DirectX 12, OpenGL 4.6 • Power Connector: 1× 8-pin • Recommended PSU: 650 W • Dimensions: 215 mm (L) × 122 mm (W) × 40 mm (H) • PCB Form: ATX • Warranty: 3 years • Part Number: GV-N506TEAGLE-OC-8GD
