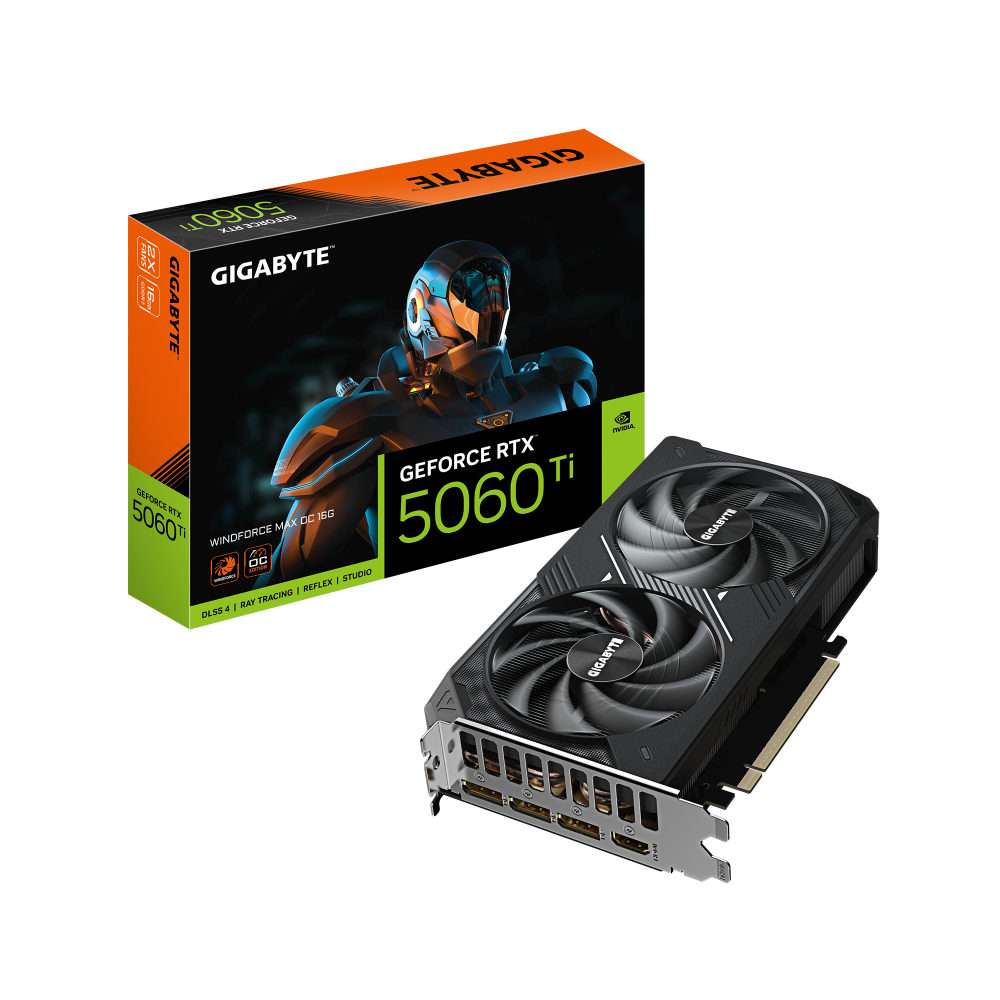

GIGABYTE GeForce RTX 5060 TI Windforce Max OC 16GB Nvidia Graphic Card

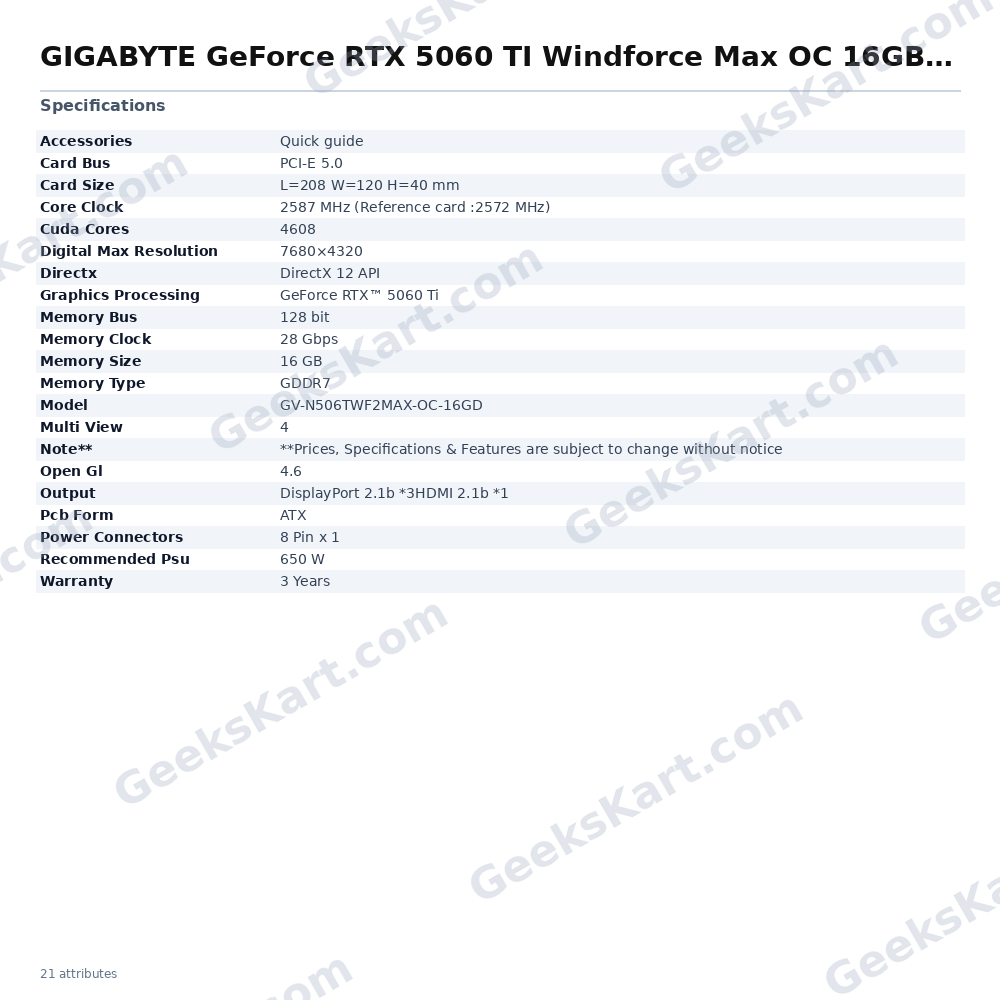

The GIGABYTE GeForce RTX 5060 Ti Windforce Max OC 16GB is a mid-to-high-range discrete graphics card built on NVIDIA’s GeForce RTX 5060 Ti GPU. It ships with 16 GB of GDDR7 video memory across a 128-bit memory bus running at 28 Gbps, delivering strong bandwidth for modern gaming workloads at 1080p and 1440p resolutions. The card carries 4608 CUDA cores and operates at a boost clock of 2587 MHz out of the box — 15 MHz above the 2572 MHz reference specification — thanks to GIGABYTE’s factory overclock. The WINDFORCE cooling solution uses three Hawk fans, each shaped with aerodynamic blade geometry that GIGABYTE states reduces air resistance while increasing air pressure by up to 53.6% and air volume by up to 12.5% versus conventional designs. Alternate spinning on adjacent fans reduces turbulence and improves overall airflow pressure. A graphene nano lubricant is applied to the sleeve bearings, extending bearing life by approximately 2.1 times compared to a standard sleeve bearing according to GIGABYTE’s published data. The 3D Active Fan feature keeps all fans stopped when the GPU is at low load or in low-power scenarios, reducing noise during light tasks and desktop use. Heat is transferred away from the GPU die via composite copper heat pipes and a copper base plate, and a metal backplate reinforced to the I/O bracket adds structural rigidity to the full-length PCB. Connectivity is handled by three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting up to four simultaneous displays at a maximum digital resolution of 7680×4320 (8K). The card uses a single PCI-E 5.0 x16 slot and requires one 8-pin power connector with a recommended system power supply of 650 W. Software control is provided through GIGABYTE Control Center (GCC), which lets users adjust GPU clock speed, voltage, fan profile, and power target in real time. Verified Specifications: – Model: GV-N506TWF2MAX-OC-16GD – GPU: NVIDIA GeForce RTX 5060 Ti – CUDA Cores: 4608 – Core Clock: 2587 MHz (Reference: 2572 MHz) – Memory: 16 GB GDDR7 – Memory Bus: 128-bit – Memory Speed: 28 Gbps – Interface: PCI-E 5.0 – Display Outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b – Max Resolution: 7680×4320 – Multi-Display: Up to 4 – Power Connector: 1× 8-pin – Recommended PSU: 650 W – Card Dimensions: 208 mm (L) × 120 mm (W) × 40 mm (H) – DirectX: 12 – OpenGL: 4.6 – Warranty: 3 Years
