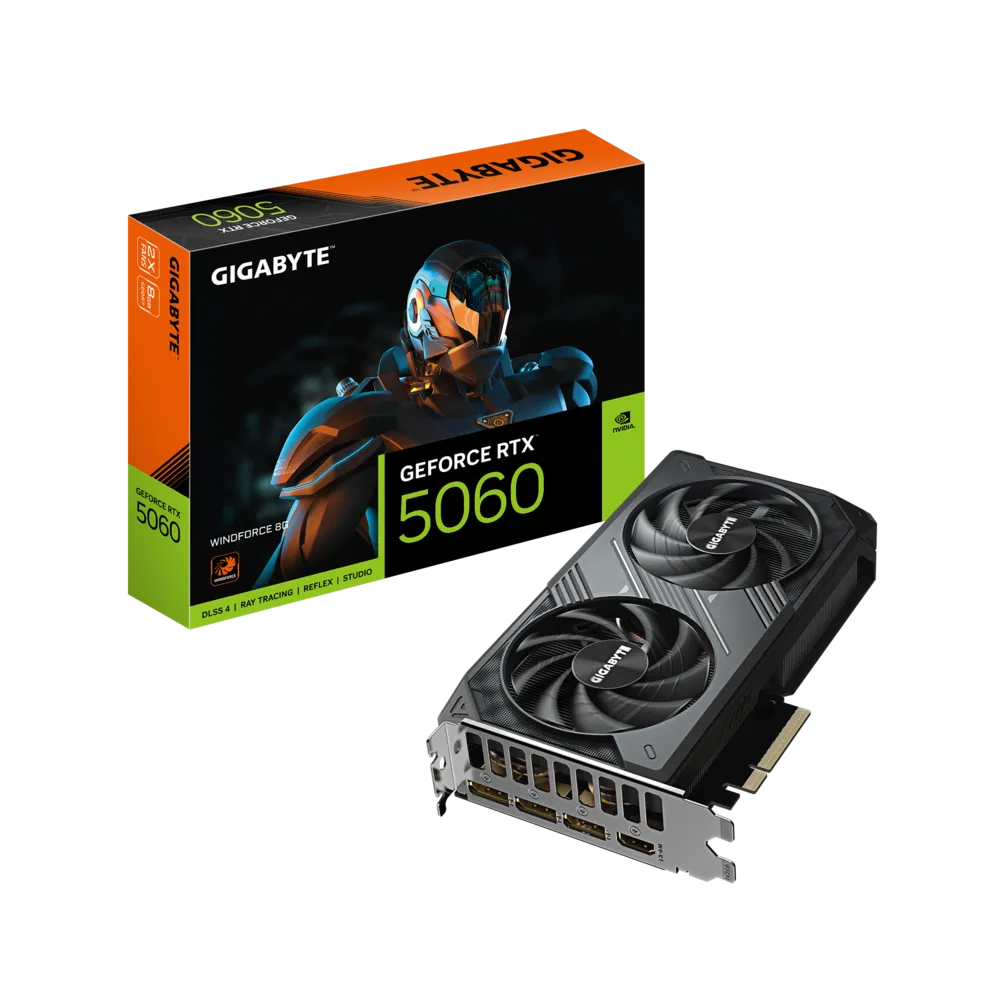

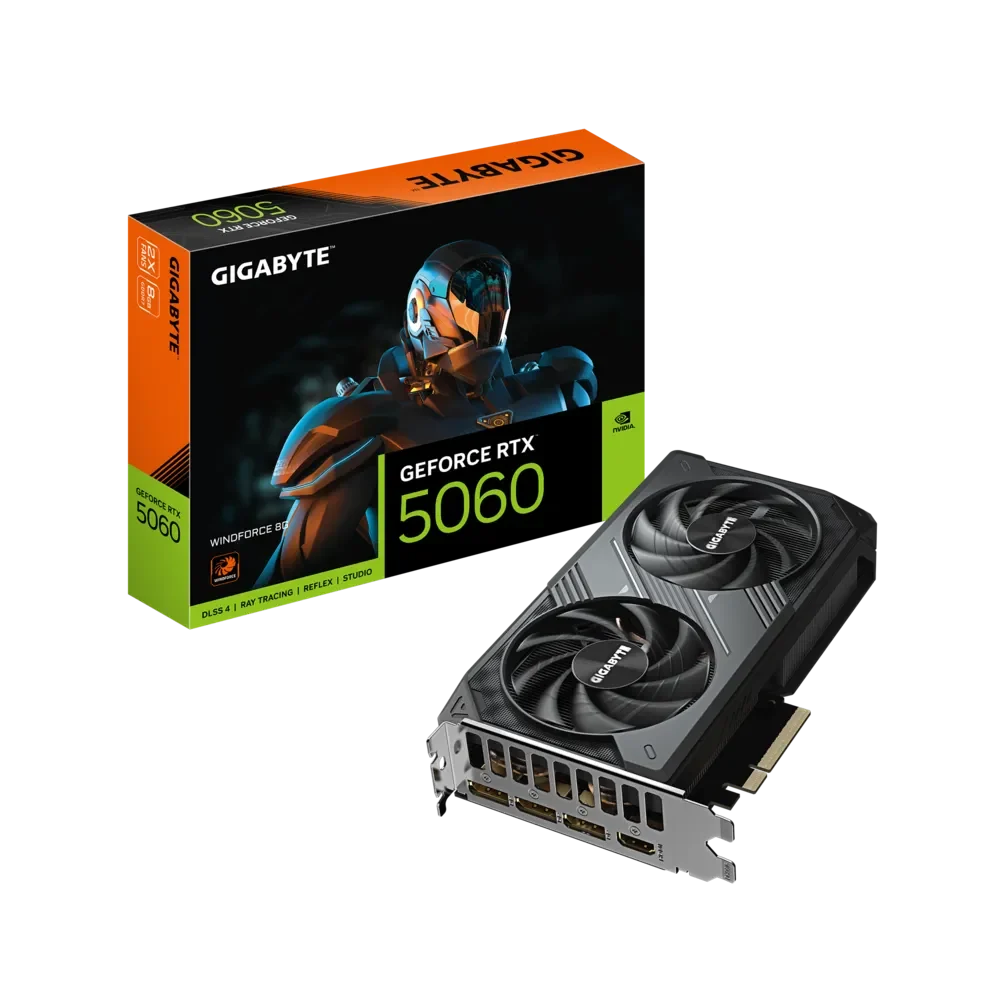

GIGABYTE Geforce RTX 5060 WindForce 8GB NVIDIA Graphic Card

The GIGABYTE GeForce RTX 5060 WindForce 8GB (model GV-N5060WF2-8GD) is a mid-range discrete graphics card built on the NVIDIA Blackwell architecture. It targets gamers and content creators who need capable 1080p and 1440p performance with access to NVIDIA’s latest AI-accelerated feature set, including DLSS 4 and Multi Frame Generation. At the heart of this card sits the GeForce RTX 5060 GPU with 3840 CUDA Cores, fifth-generation Tensor Cores for FP4-precision AI workloads, and fourth-generation Ray Tracing Cores engineered for Mega Geometry rendering. New Streaming Multiprocessors are optimised for neural shaders, extending the programmable shading pipeline in ways that benefit both real-time graphics and compute tasks. The 8 GB GDDR7 frame buffer operates over a 128-bit memory bus at 28 Gbps, providing the high bandwidth GDDR7 demands even at this interface width. The card connects via PCI Express 5.0, supports up to four simultaneous displays at a digital maximum resolution of 7680×4320, and outputs through three DisplayPort 2.1b and one HDMI 2.1b port. GIGABYTE’s WINDFORCE cooling solution on this model combines several thermal technologies: Hawk Fan blades, whose eagle-wing-inspired geometry is stated to increase air pressure by up to 53.6% and air volume by up to 12.5% versus a conventional design; alternate-spinning adjacent fans to reduce turbulence; a copper plate in direct contact with the GPU die; composite copper heat pipes; and a screen-cooling extended heatsink. Server-grade thermal conductive gel — a highly deformable, non-fluid compound — is applied to VRAM and MOSFETs in place of traditional thermal pads for consistent long-term contact. The 3D Active Fan feature keeps fans stopped entirely under low-load conditions, reducing noise. Graphene nano lubricant on the sleeve bearing is stated to extend bearing life by 2.1 times compared with an unlubriciated sleeve bearing. Power delivery relies on Ultra Cooling low-RDS MOSFETs, metal chokes for reduced core energy loss, and lower-ESR solid capacitors. A fully automated PCB production process eliminates sharp solder-connector protrusions. The reinforced backplate is fastened to the I/O bracket for structural rigidity. GIGABYTE Control Center (GCC) software provides real-time adjustment of clock speed, voltage, fan mode, and power target from a single unified interface. Verified Specifications: — Model: GV-N5060WF2-8GD — GPU: GeForce RTX 5060 (NVIDIA Blackwell) — CUDA Cores: 3840 — Core Clock: 2497 MHz — Memory: 8 GB GDDR7, 128-bit bus, 28 Gbps — Interface: PCI-E 5.0 — Display outputs: 3× DisplayPort 2.1b, 1× HDMI 2.1b (max 4 displays) — Max resolution: 7680×4320 — DirectX: 12 API | OpenGL: 4.6 — Power connector: 1× 8-pin — Recommended PSU: 450 W — Card dimensions: 199 mm (L) × 116 mm (W) × 40 mm (H) — PCB form: ATX
