GIGABYTE Geforce RTX 5060 WindForce Max OC 8GB NVIDIA Graphic Card

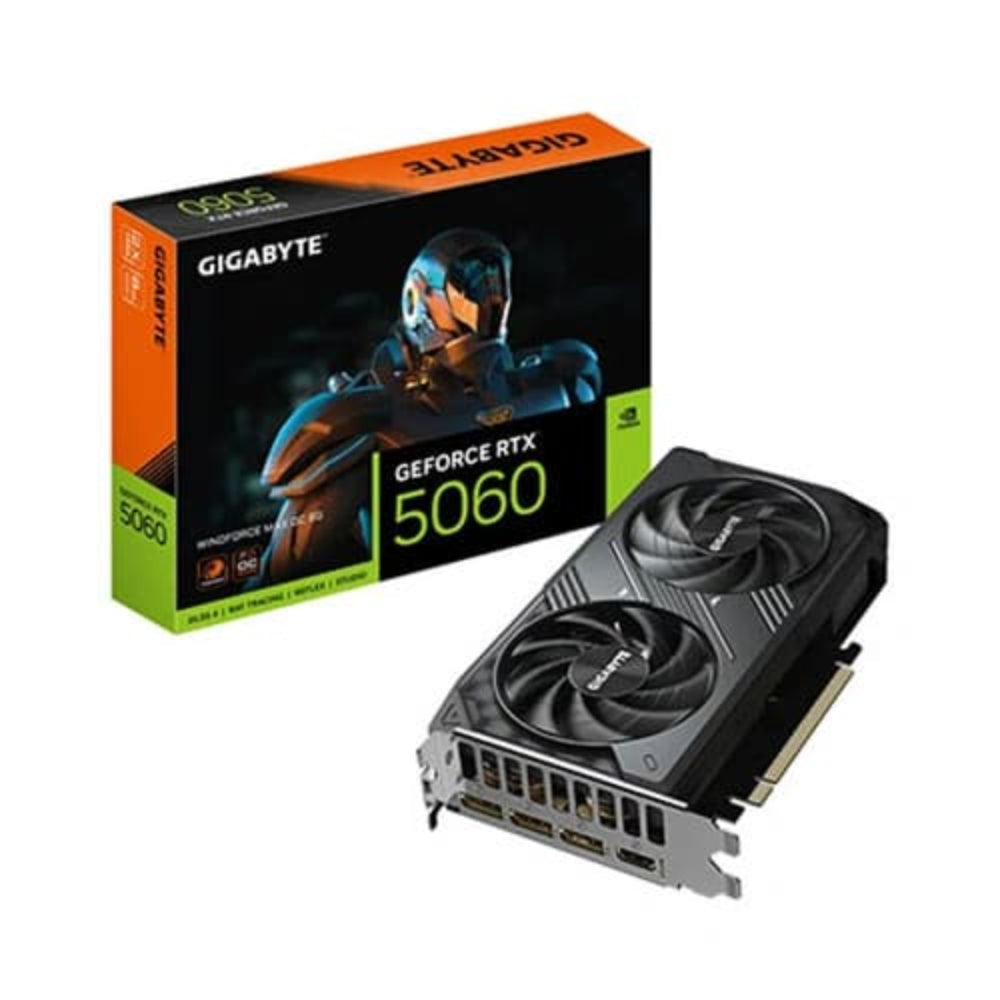

The GIGABYTE GeForce RTX 5060 WindForce Max OC 8GB (model GV-N5060WF2MAX-OC-8GD) is a desktop graphics card built on NVIDIA’s Blackwell architecture and powered by the GeForce RTX 5060 GPU. It ships with 3,840 CUDA cores and a factory-overclocked boost clock of 2,512 MHz, slightly above the reference specification of 2,497 MHz. The 8 GB GDDR7 frame buffer operates over a 128-bit memory interface at 28 Gbps, delivering strong bandwidth for 1080p and 1440p workloads. The card supports NVIDIA DLSS 4, enabling AI-driven upscaling and frame generation to lift frame rates in compatible titles. Display connectivity covers up to four monitors simultaneously via HDMI and DisplayPort outputs, with a maximum supported resolution of 7,680 × 4,320 (8K). Additional API support includes DirectX 12, OpenGL 4.6, and PCIe 5.0 interface compatibility. GIGABYTE’s WINDFORCE cooling system combines multiple technologies to manage thermals effectively. Two Hawk fans — whose blade geometry is designed to reduce air resistance — spin in alternating directions to minimise inter-fan turbulence and improve static pressure. Composite copper heat pipes and a direct-contact copper plate transfer GPU and VRAM heat to the heatsink quickly. Server-grade thermal conductive gel replaces traditional thermal pads on critical components such as VRAM and MOSFETs, providing stable contact across uneven surfaces and resisting long-term deformation. An extended heatsink with screen-cooling passages allows additional airflow through the fin array. The 3D Active Fan feature keeps both fans off under light loads, reducing noise during everyday desktop use. Graphene nano lubricant on the sleeve bearings is stated to extend bearing service life by approximately 2.1 times compared with standard sleeve bearings. Structurally, a reinforced backplate with bent edges is anchored to the I/O bracket, adding rigidity to reduce PCB flex. The card requires a single 8-pin power connector and a recommended PSU of 550 W. A 3-year warranty is included. Verified Specifications: • GPU: NVIDIA GeForce RTX 5060 (Blackwell) • CUDA Cores: 3,840 • Boost Clock: 2,512 MHz (ref. 2,497 MHz) • Memory: 8 GB GDDR7, 128-bit, 28 Gbps • Interface: PCIe 5.0 • Display Outputs: HDMI + DisplayPort (max 4 displays) • Max Resolution: 7,680 × 4,320 • Cooler: Dual Hawk fan WINDFORCE • Power Connector: 1 × 8-pin • Recommended PSU: 550 W • DirectX: 12 | OpenGL: 4.6 • Warranty: 3 Years • Part Number: GV-N5060WF2MAX-OC-8GD
