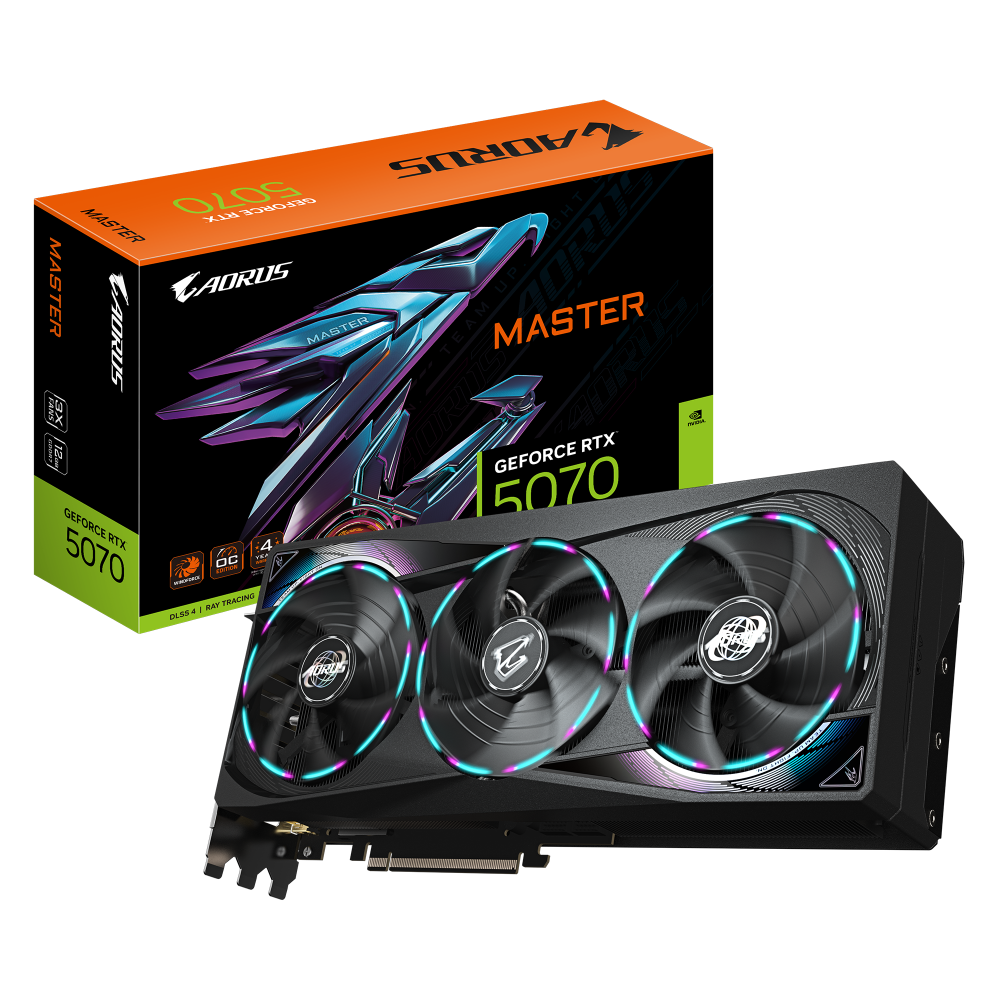

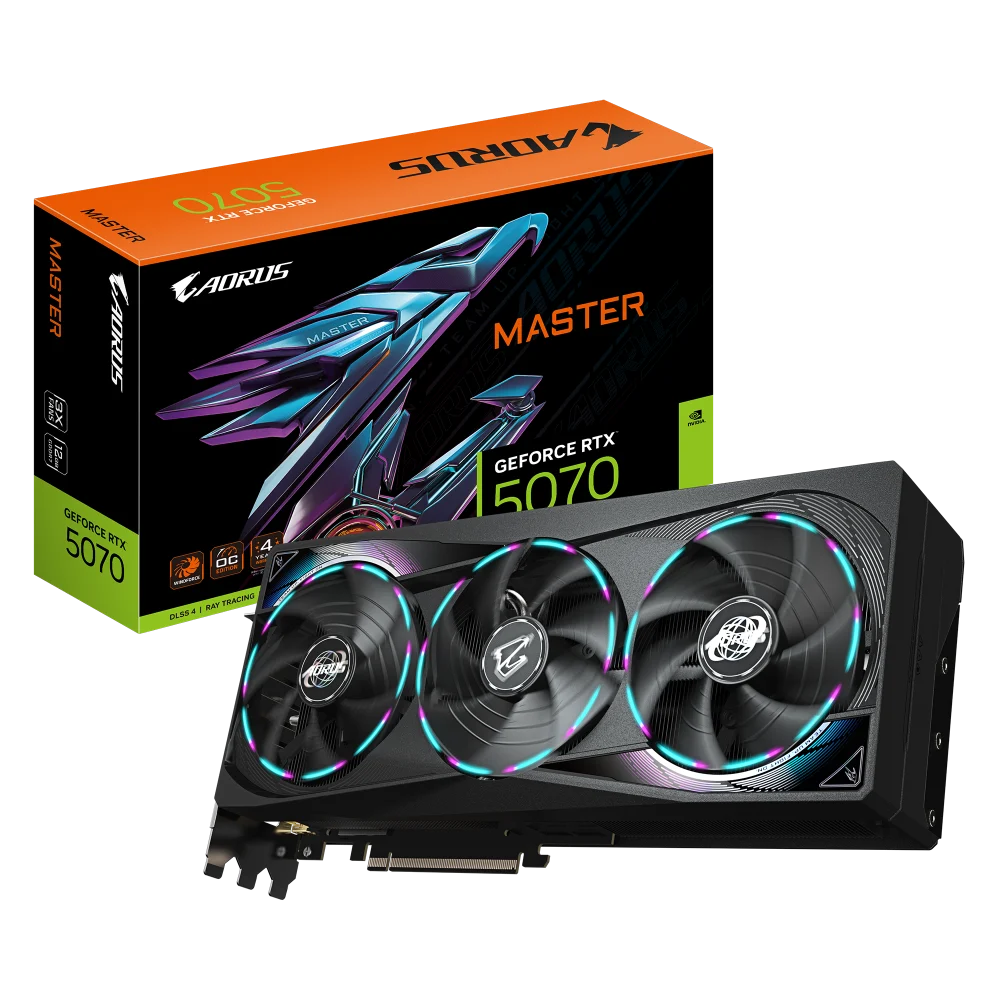

GIGABYTE GeForce RTX 5070 AORUS MASTER 12GB Nvidia Graphic Card
MPN GIGABYTE-GEFORCE-RTX-5070-AORUS-MASTER-12GB · Brand GIGABYTE
The GIGABYTE RTX 5070 AORUS MASTER 12GB delivers NVIDIA Blackwell architecture with 6,144 CUDA cores, 12 GB GDDR7 memory at 28 Gbps, a 2,715 MHz factory overclock, WINDFORCE cooling, and Dual BIOS in an ATX form factor
Inclusive of GST · GST invoice available
Overview
The GIGABYTE GeForce RTX 5070 AORUS MASTER 12GB is a high-performance graphics card built on the NVIDIA Blackwell architecture, delivering a significant step forward for gaming and creative workloads. Featuring 6,144 CUDA cores and a factory-overclocked boost clock of 2,715 MHz — up from the reference card's 2,512 MHz — this card is tuned for sustained performance above the baseline specification. At the heart of the AORUS MASTER is 12 GB of GDDR7 memory running at 28 Gbps across a 192-bit bus, providing ample bandwidth for demanding titles and content creation at resolutions up to 7,680 × 4,320 (8K). The card connects via PCI-Express 5.0 and supports up to four simultaneous displays through three DisplayPort 2.1a and one HDMI 2.1b outputs. GIGABYTE's WINDFORCE cooling system equips the card with Hawk-blade fans and server-grade thermal conductive gel to manage thermals across extended sessions. The Dual BIOS feature lets you switch between Performance and Silent profiles without software, offering flexibility depending on your environment. RGB Halo lighting provides visual customisation, while the reinforced structure and included versatile VGA holder address physical stability in larger builds. On the software side, NVIDIA DLSS 4 with Multi Frame Generation, fourth-generation RT Cores for ray tracing, fifth-generation Tensor Cores for AI workloads, and NVIDIA Reflex 2 with Frame Warp latency reduction are all supported, as documented by NVIDIA for the RTX 50 Series platform. The card supports DirectX 12 API and OpenGL 4.6, making it broadly compatible with modern games and professional applications. A 750 W power supply is recommended, and the card uses a single 16-pin power connector (a 12V-2×6 to 2× PCIe 8-pin adapter is included in the box). Verified Specifications: - Model: GV-N5070AORUS-M-12GD - GPU Architecture: NVIDIA Blackwell - CUDA Cores: 6,144 - Boost Clock: 2,715 MHz (Reference: 2,512 MHz) - Memory: 12 GB GDDR7, 28 Gbps, 192-bit bus - Interface: PCI-Express 5.0 - Display Outputs: 3× DisplayPort 2.1a, 1× HDMI 2.1b - Max Resolution: 7,680 × 4,320 - Multi-display: Up to 4 - Card Dimensions: 317 mm × 136 mm × 64 mm (ATX form factor) - Power Connector: 16-pin × 1 - Recommended PSU: 750 W - DirectX: 12 API | OpenGL: 4.6 - Warranty: 4 years (online registration required) In the box: quick guide, warranty registration card, 12V-2×6 to 2× PCIe 8-pin adapter, AORUS identity stickers, AORUS metal sticker, versatile VGA holder and manual
Datasheet
| Memory Type | GDDR7 |
|---|---|
| Memory Size | 12 GB |
| Memory Clock | 28 Gbps |
| Recommended PSU | 750W |
| Opengl | 4.6 |
| Output | DisplayPort 2.1a x3HDMI 2.1b x1 |
| Directx | DirectX 12 API |
| Card Bus | PCI-E 5.0 |
| Pcb Form | ATX |
| Card Size | L=317 W=136 H=64 mm |
| Core Clock | 2715 MHz (Reference card : 2512 MHz) |
| Memory Bus | 192 bit |
| Multi-View | 4 |
| Accessories | 1. Quick guide 2. Warranty registration 3. 1x 12V-2×6 to 2x PCIe 8pin adapter 4. AORUS identity stickers 5. AORUS metal sticker 6. Versatile VGA holder 7. Versatile VGA holder manual |
| Cuda® Cores | 6144 |
| Product Code | GV-N5070AORUS-M-12GD |
| Power Connectors | 16 pin*1 |
| Digital Max Resolution | 7680 x 4320 |
