GIGABYTE GeForce RTX 5070 Eagle SFF OC 12GB Nvidia Graphic Card
MPN GIGABYTE-GEFORCE-RTX-5070-EAGLE-SFF-OC-12GB · Brand GIGABYTE
The GIGABYTE GeForce RTX 5070 Eagle SFF OC 12GB delivers Blackwell-architecture performance with 6144 CUDA Cores, 12GB GDDR7 memory, DLSS 4 support, and WINDFORCE cooling in a compact SFF-ready form factor
Inclusive of GST · GST invoice available
Overview

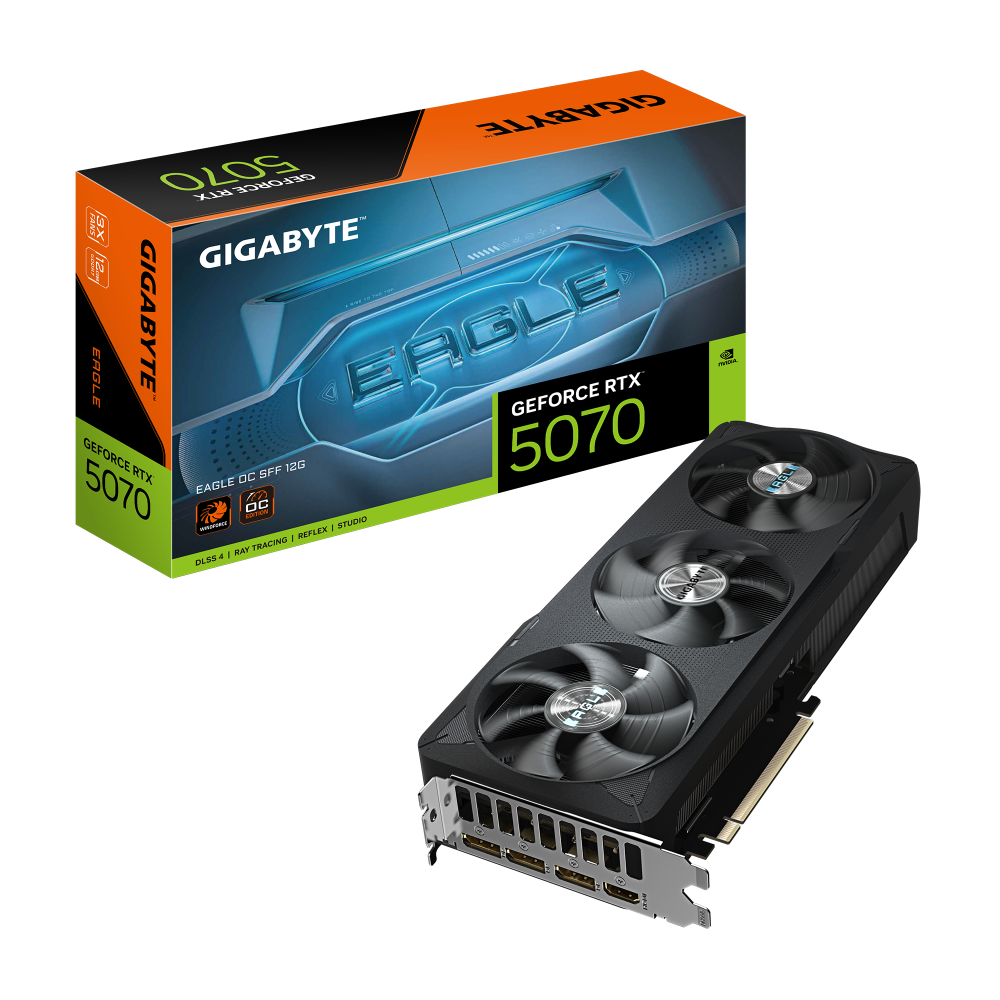

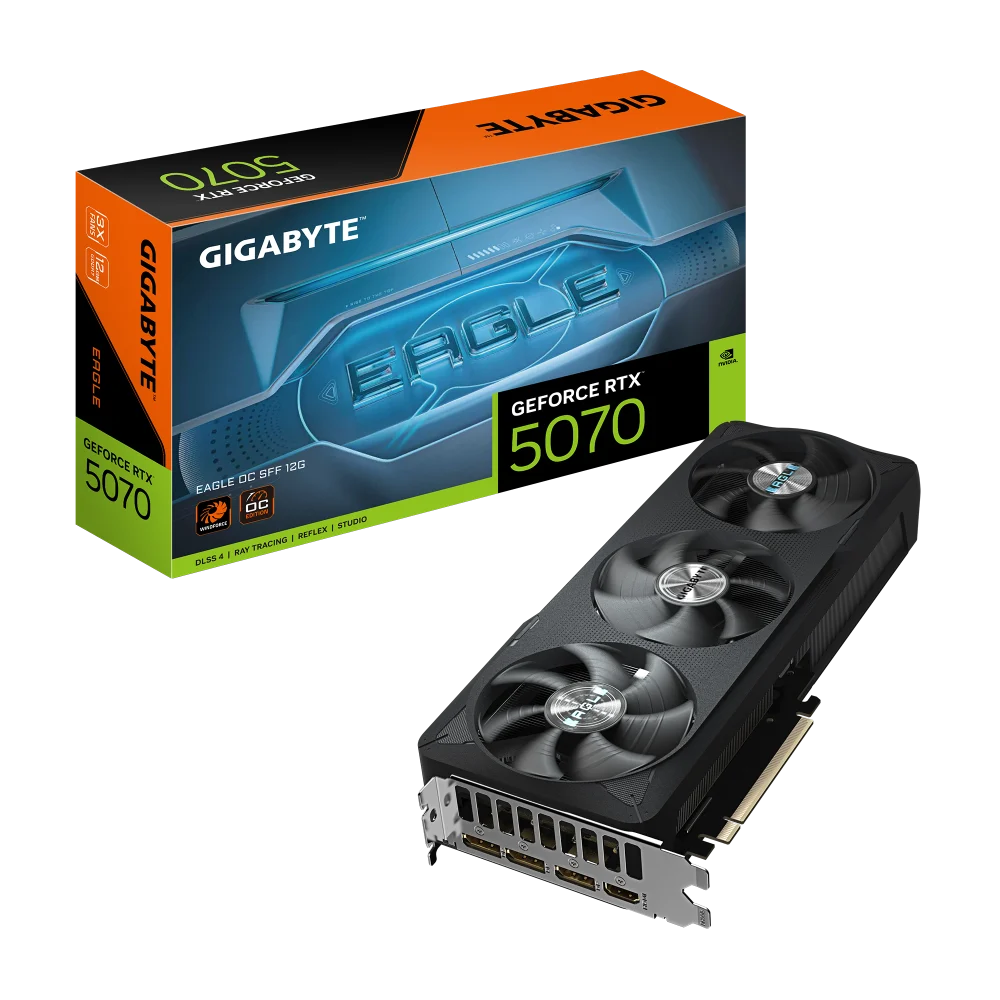

The GIGABYTE GeForce RTX 5070 Eagle SFF OC 12GB is a compact, high-performance graphics card built on NVIDIA's Blackwell architecture. Designed with the NVIDIA SFF-Ready certification in mind, this card fits into small-form-factor cases without compromising on performance, making it an excellent choice for enthusiast-class compact PC builds. At its core sits the GeForce RTX 5070 GPU, clocked at 2587 MHz boost (versus the reference 2512 MHz), delivering a meaningful factory overclock out of the box. With 6144 CUDA Cores and 12GB of GDDR7 memory running across a 192-bit bus at 28 Gbps, the card is equipped to handle demanding games, creative workloads, and AI-accelerated tasks. The WINDFORCE cooling system features GIGABYTE's Hawk fan design paired with server-grade thermal conductive gel, helping maintain efficient heat dissipation within the card's compact 290 mm × 120 mm × 50 mm footprint. RGB lighting adds a customisable aesthetic element to your build. On the software side, NVIDIA DLSS 4 leverages fifth-generation Tensor Cores to deliver AI-powered Multi Frame Generation, enhanced Ray Reconstruction, and Super Resolution — boosting frame rates while maintaining visual fidelity. Fourth-generation RT Cores enable full ray tracing for cinematic lighting and shadow effects in supported titles. NVIDIA Reflex 2 with Frame Warp technology further reduces system latency in competitive gaming scenarios. Connectivity is comprehensive, with three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting up to four simultaneous displays at a maximum digital resolution of 7680 × 4320 (8K). The card uses a PCIe 5.0 interface and requires a single 16-pin power connector, with a 12V-2×6 to 2× PCIe 8-pin adapter included in the box. Verified Specifications: - Model: GV-N5070EAGLE-OC-12GD - GPU: GeForce RTX 5070 (Blackwell) - CUDA Cores: 6144 - Core Clock: 2587 MHz (OC) / 2512 MHz (Reference) - Memory: 12GB GDDR7, 192-bit, 28 Gbps - Interface: PCI-E 5.0 - Outputs: DisplayPort 2.1b ×3, HDMI 2.1b ×1 - Max Resolution: 7680 × 4320 - Multi-display: Up to 4 - Dimensions: 290 × 120 × 50 mm - Power Connector: 16-pin ×1 (adapter included) - Recommended PSU: 750W - DirectX: 12 API | OpenGL: 4.6 - Warranty: 3 Years

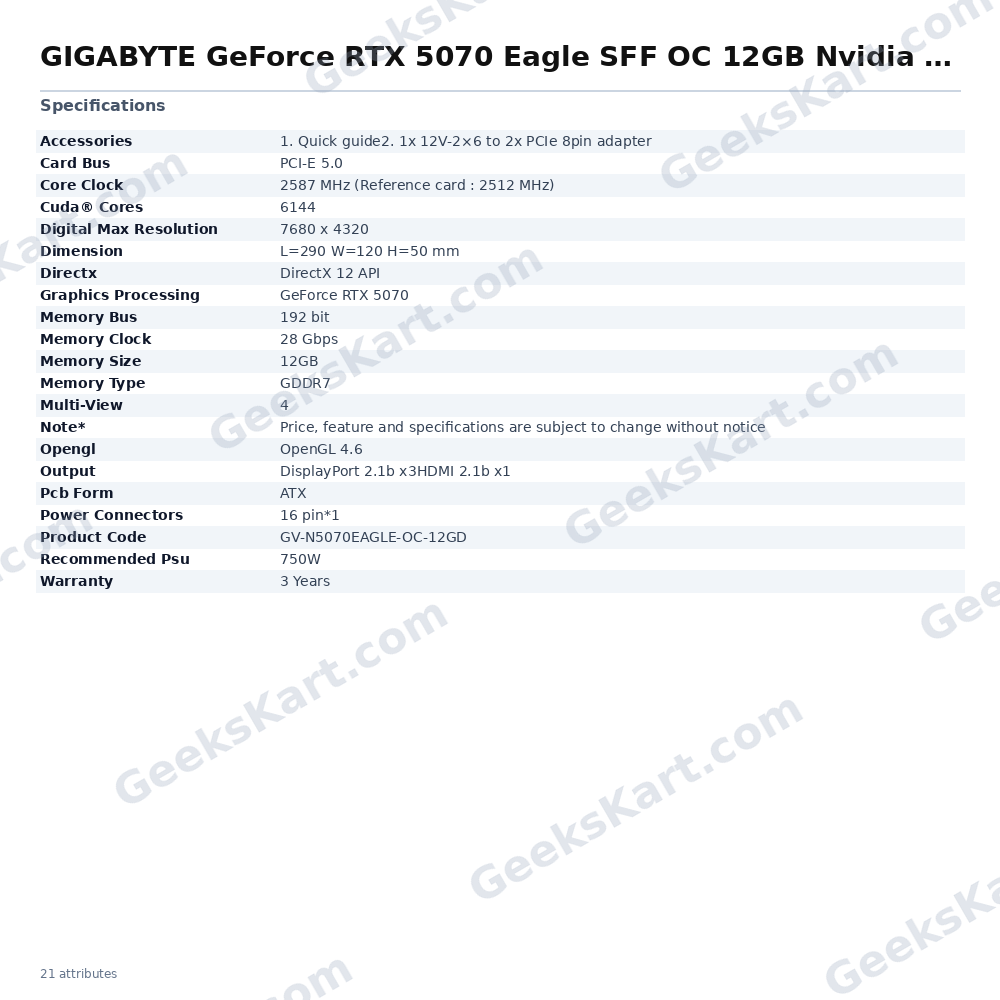

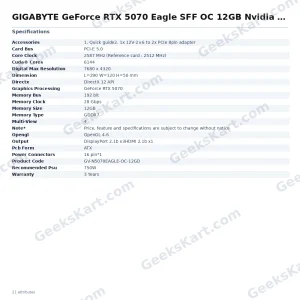

Datasheet
| Memory Type | GDDR7 |
|---|---|
| Warranty | 3 Years |
| Memory Size | 12GB |
| Memory Clock | 28 Gbps |
| Recommended PSU | 750W |
| Note* | Price, feature and specifications are subject to change without notice |
| Opengl | OpenGL 4.6 |
| Output | DisplayPort 2.1b x3HDMI 2.1b x1 |
| Directx | DirectX 12 API |
| Card Bus | PCI-E 5.0 |
| Pcb Form | ATX |
| Dimension | L=290 W=120 H=50 mm |
| Core Clock | 2587 MHz (Reference card : 2512 MHz) |
| Memory Bus | 192 bit |
| Multi-View | 4 |
| Accessories | 1. Quick guide2. 1x 12V-2×6 to 2x PCIe 8pin adapter |
| Cuda® Cores | 6144 |
| Product Code | GV-N5070EAGLE-OC-12GD |
| Power Connectors | 16 pin*1 |
| Graphics Processing | GeForce RTX 5070 |
| Digital Max Resolution | 7680 x 4320 |
