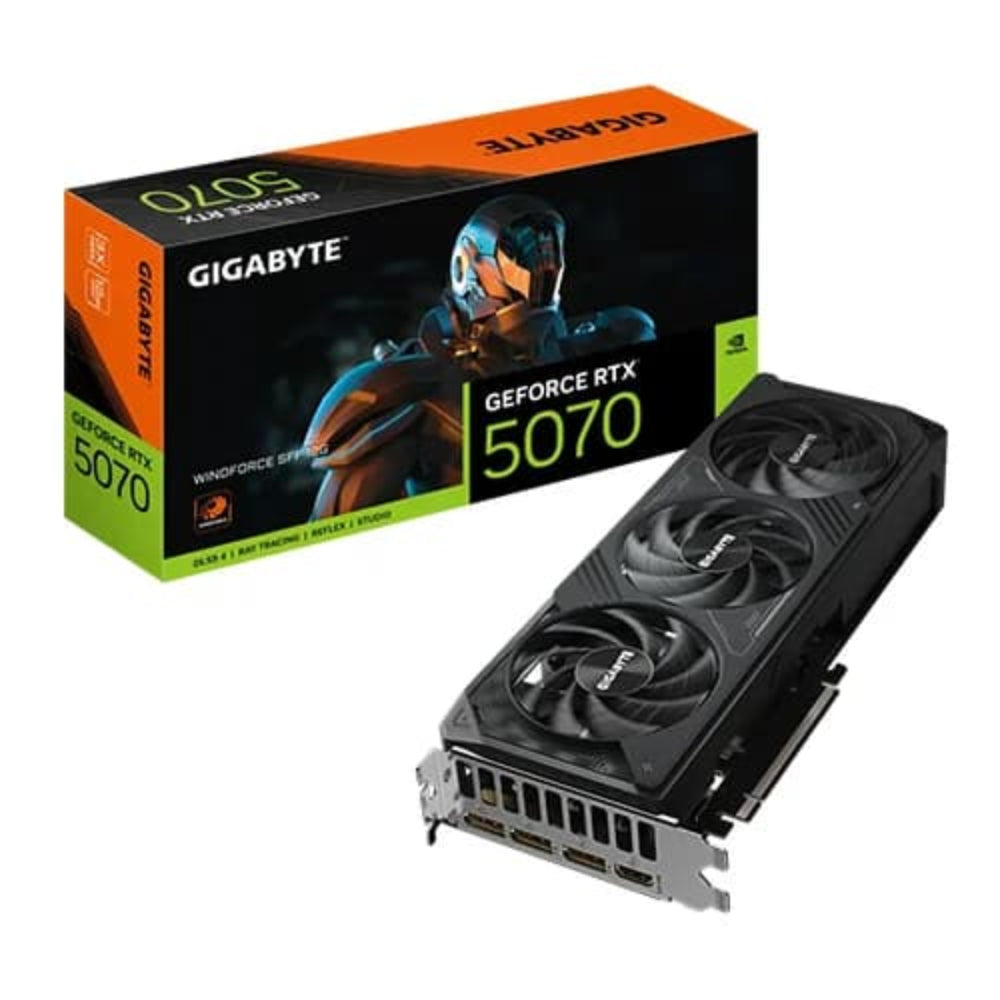

Features of GIGABYTE Geforce RTX 5070 WindForce SFF 12GB NVIDIA Graphic Card
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5070
- Integrated with 12GB GDDR7 192bit memory interface
WINDFORCE cooling system
Hawk fan - Server-grade thermal conductive gel
- NVIDIA SFF-ready
- Reinforced structure
CORE CLOCK
- 2512 MHz
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
NVIDIA SFF-READY
Complying with NVIDIA’s small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.
REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

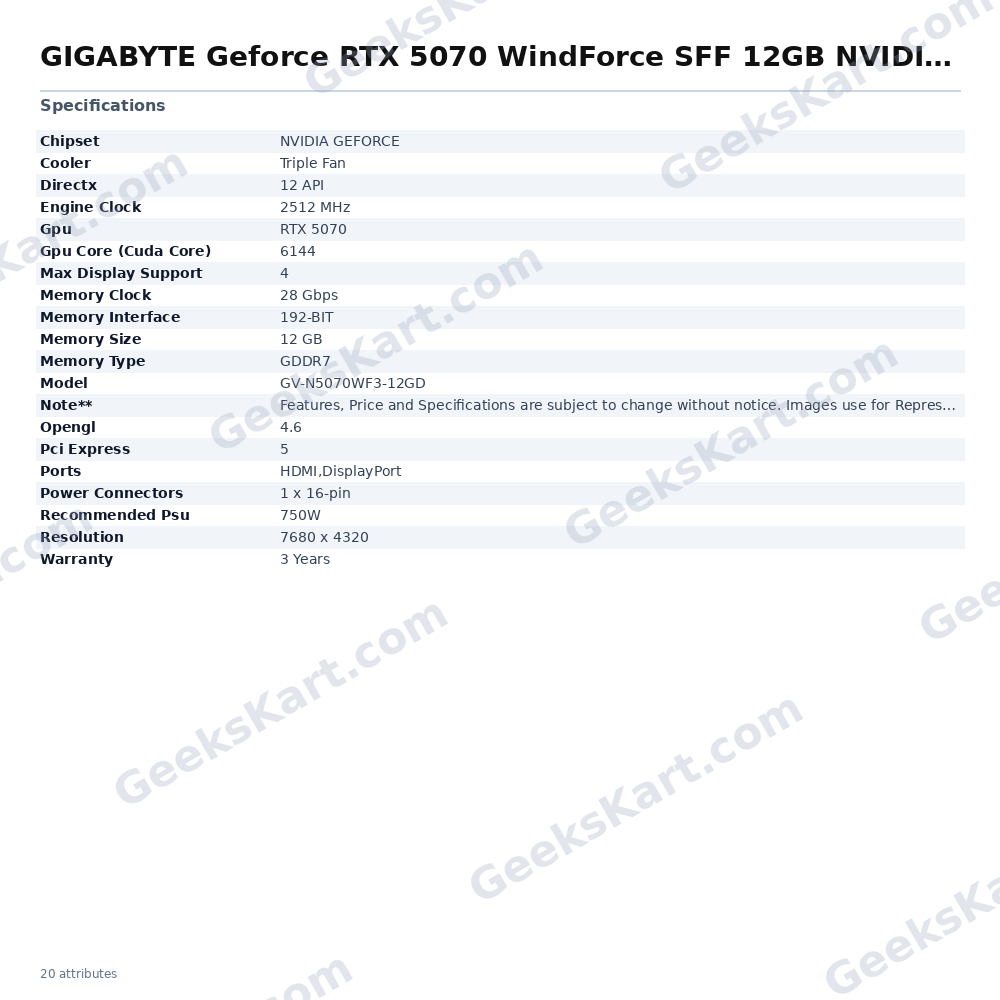

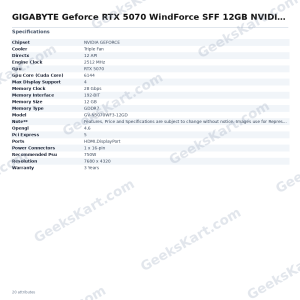

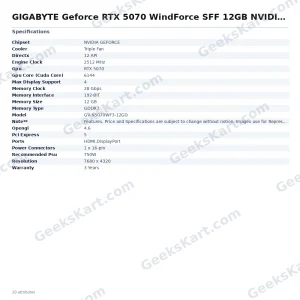

Specifications of GIGABYTE Geforce RTX 5070 WindForce SFF 12GB NVIDIA Graphic Card
| Model | GV-N5070WF3-12GD |
| Chipset | NVIDIA GEFORCE |
| GPU | RTX 5070 |
| Engine Clock | 2512 MHz |
| PCI EXPRESS | 5 |
| MEMORY CLOCK | 28 Gbps |
| MEMORY SIZE | 12 GB |
| MEMORY INTERFACE | 192-BIT |
| MEMORY TYPE | GDDR7 |
| OpenGL | 4.6 |
| PORTS | HDMI,DisplayPort |
| DirectX | 12 API |
| RESOLUTION | 7680 x 4320 |
| COOLER | Triple Fan |
| Max Display Support | 4 |
| Recommended PSU | 750W |
| GPU CORE (CUDA CORE) | 6144 |
| POWER CONNECTORS | 1 x 16-pin |
| WARRANTY | 3 Years |
| NOTE** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
