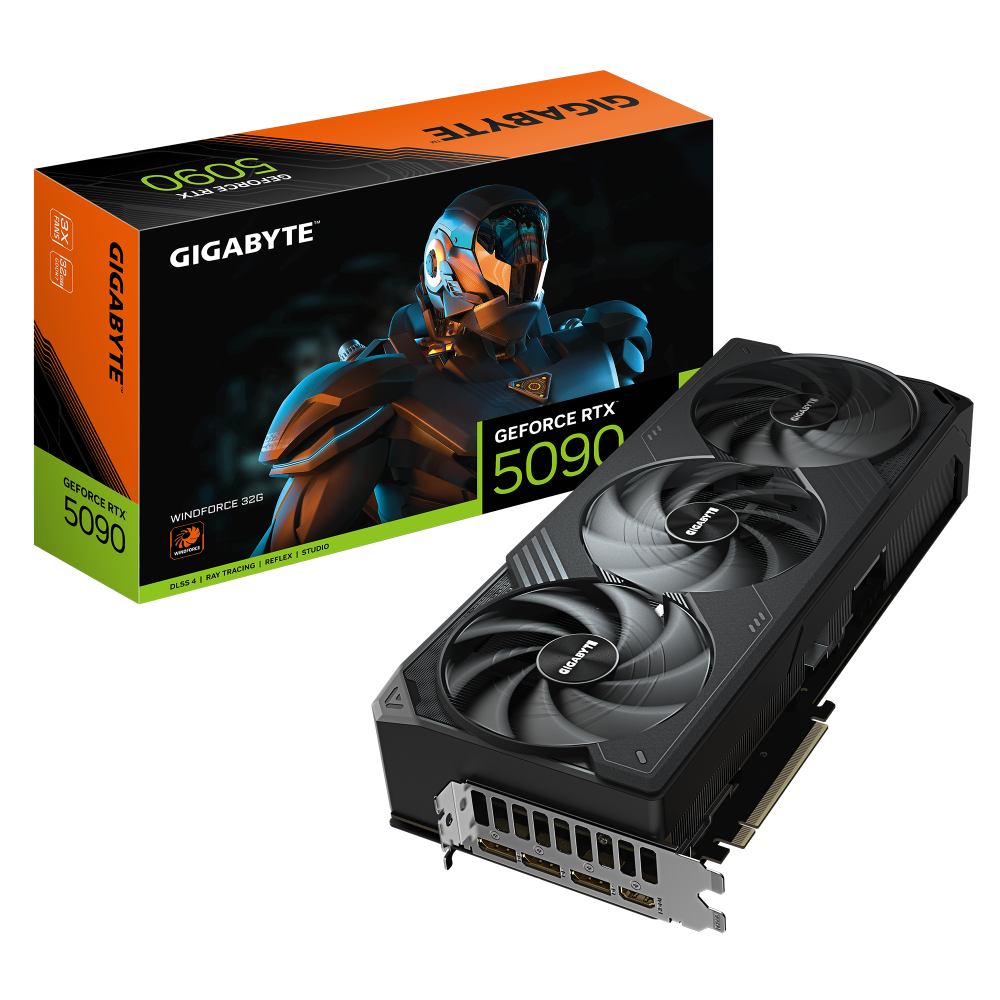

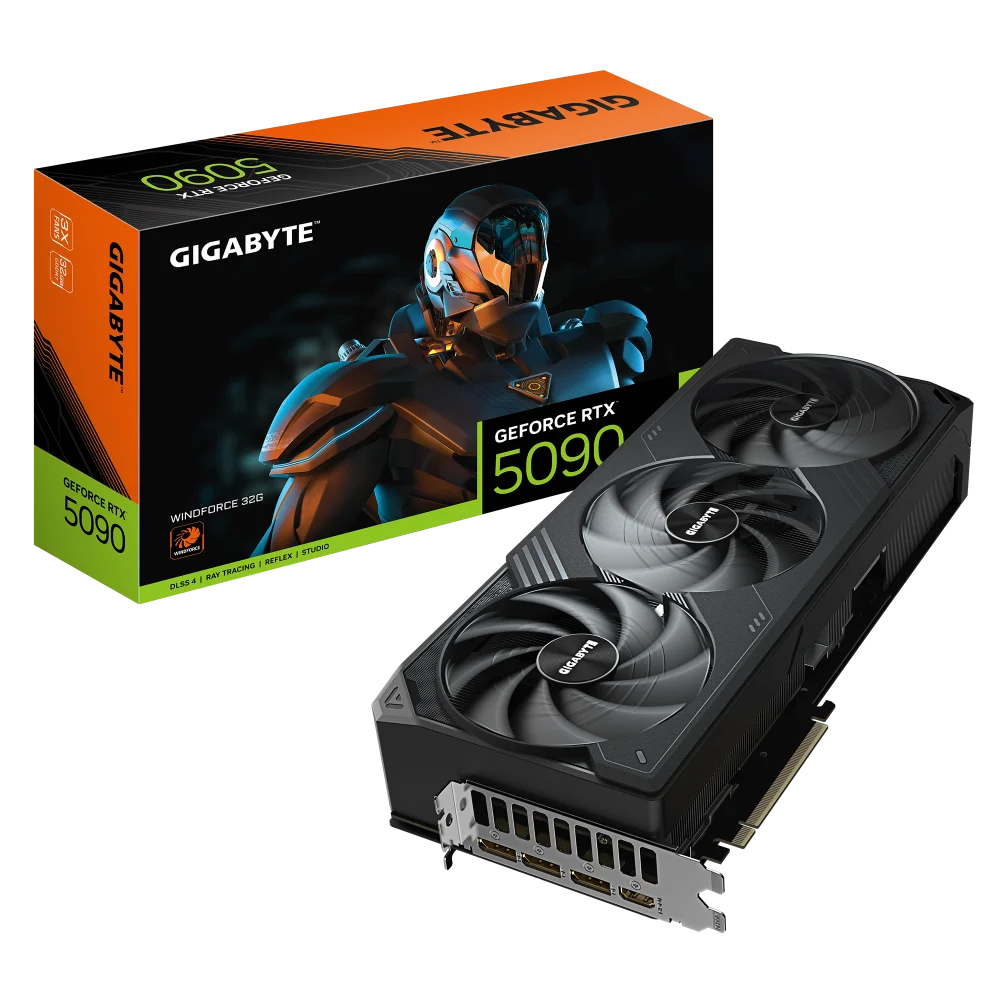

GIGABYTE GeForce RTX 5090 Windforce 32GB Nvidia Graphic Card
MPN GIGABYTE-GEFORCE-RTX-5090-WINDFORCE-32GB · Brand GIGABYTE
Features of GIGABYTE GeForce RTX 5090 Windforce 32GB Nvidia Graphic Card Powered by the NVIDIA Blackwell architecture and DLSS 4 Powered by GeForce RTX™ 5090 Integrated with 32GB GDDR7 512bit memory interface WINDFORCE cooling system Hawk fan Server-grade Thermal conductive gel Dual BIOS (Performance / Silent) Reinforced structure Versatile VGA holder The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade
Inclusive of GST · GST invoice available
Overview
Features of GIGABYTE GeForce RTX 5090 Windforce 32GB Nvidia Graphic Card
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX™ 5090
- Integrated with 32GB GDDR7 512bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade Thermal conductive gel
- Dual BIOS (Performance / Silent)
- Reinforced structure
- Versatile VGA holder
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
LARGE VAPOR CHAMBER & COMPOSITE COPPER HEAT PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
DUAL BIOS (Performance / Silent)
The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.
REINFORCED STRUCTURE
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
VERSATILE VGA HOLDER
Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
POWER THROUGH THE GAME
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

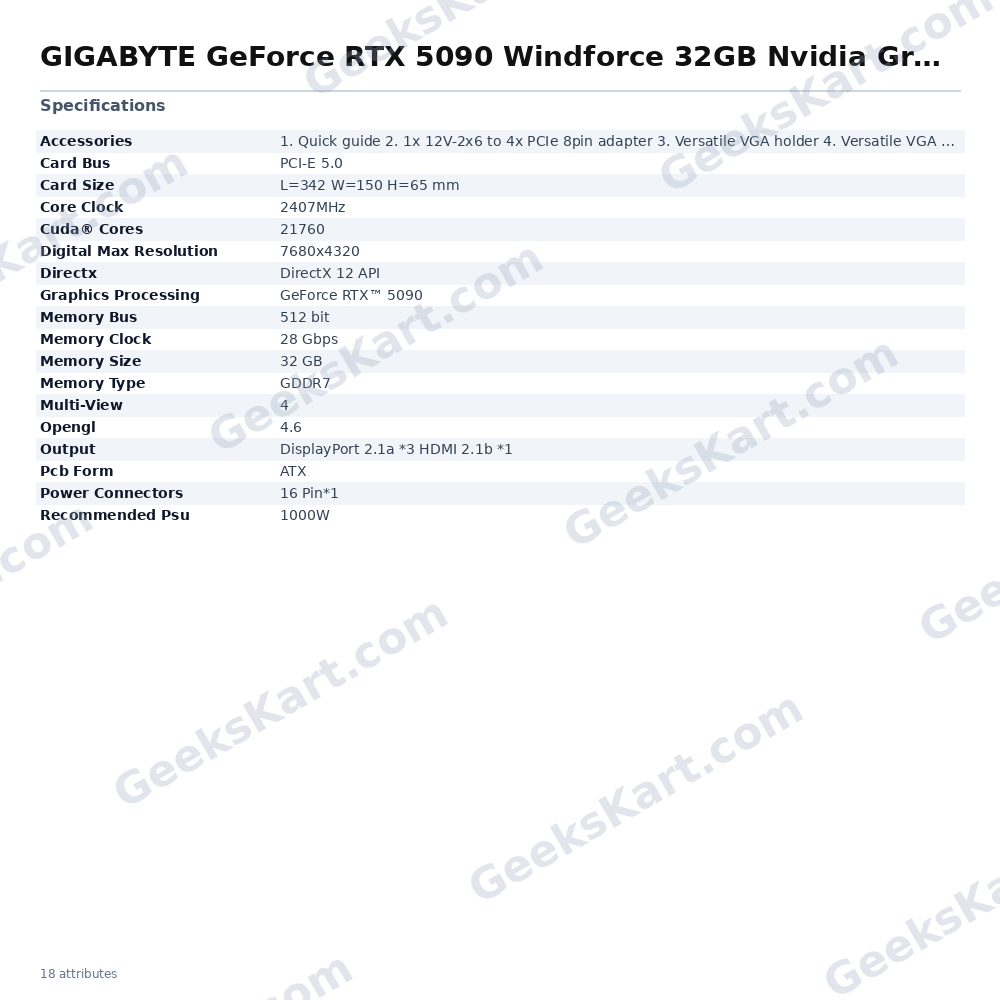

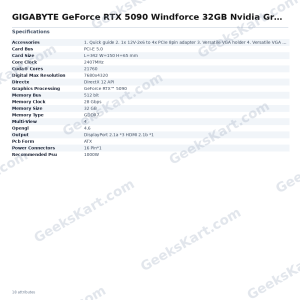

Specification of GIGABYTE GeForce RTX 5090 Windforce 32GB Nvidia Graphic Card
| Graphics Processing | GeForce RTX™ 5090 |
| Core Clock | 2407MHz |
| CUDA® Cores | 21760 |
| Memory Clock | 28 Gbps |
| Memory Size | 32 GB |
| Memory Type | GDDR7 |
| Memory Bus | 512 bit |
| Card Bus | PCI-E 5.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=342 W=150 H=65 mm |
| PCB Form | ATX |
| DirectX | DirectX 12 API |
| OpenGL | 4.6 |
| Recommended PSU | 1000W |
| Power Connectors | 16 Pin*1 |
| Output | DisplayPort 2.1a *3 HDMI 2.1b *1 |
| Accessories | 1. Quick guide 2. 1x 12V-2x6 to 4x PCIe 8pin adapter 3. Versatile VGA holder 4. Versatile VGA holder manual |
Datasheet
| Memory Type | GDDR7 |
|---|---|
| Memory Size | 32 GB |
| Memory Clock | 28 Gbps |
| Recommended PSU | 1000W |
| Opengl | 4.6 |
| Output | DisplayPort 2.1a *3 HDMI 2.1b *1 |
| Directx | DirectX 12 API |
| Card Bus | PCI-E 5.0 |
| Pcb Form | ATX |
| Card Size | L=342 W=150 H=65 mm |
| Core Clock | 2407MHz |
| Memory Bus | 512 bit |
| Multi-View | 4 |
| Accessories | 1. Quick guide 2. 1x 12V-2×6 to 4x PCIe 8pin adapter 3. Versatile VGA holder 4. Versatile VGA holder manual |
| Cuda® Cores | 21760 |
| Power Connectors | 16 Pin*1 |
| Graphics Processing | GeForce RTX™ 5090 |
| Digital Max Resolution | 7680×4320 |
