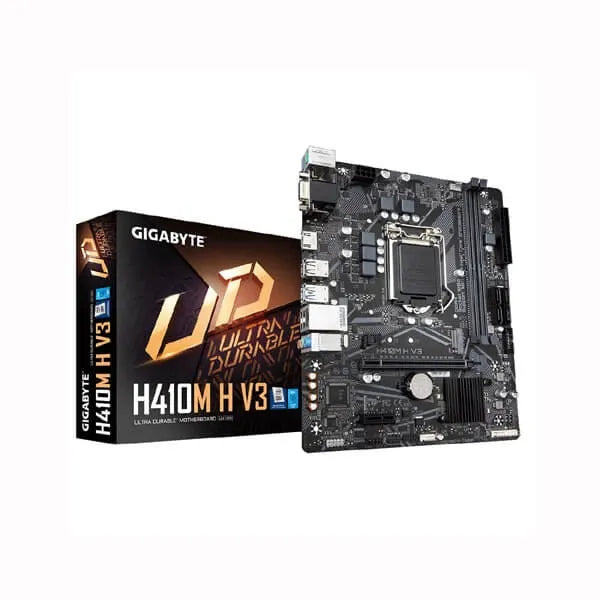

GIGABYTE H410M H V3 DDR4 Intel Motherboard
MPN GIGABYTE-H410M-H-V3 · Brand Gigabyte · mATX
The Gigabyte H410M H V3 is a Micro ATX motherboard for 10th Gen Intel Core LGA1200 CPUs, featuring dual DDR4 slots (up to 64 GB), NVMe M.2, four SATA ports, Smart Fan 5, and Gigabit LAN
Inclusive of GST · GST invoice available
Overview
The Gigabyte H410M H V3 is a Micro ATX motherboard built on the Intel H510 Express Chipset and designed for 10th Generation Intel Core processors in the LGA1200 package, including Core i9, i7, i5, i3, Pentium, and Celeron variants. Its compact 22.6 cm x 18.5 cm footprint fits most Micro ATX and mid-tower cases, making it a practical choice for space-conscious desktop builds. The board accommodates two DDR4 DIMM slots supporting up to 64 GB of system memory (32 GB per slot), with speeds up to DDR4 2933 MHz on i9/i7 CPUs and up to DDR4 2666 MHz on i5/i3/Pentium/Celeron processors. XMP memory profiles are supported, and the architecture runs in dual-channel mode for improved memory bandwidth. Storage connectivity is handled by one M.2 Socket 3 connector (M key, supporting 2242/2260/2280 PCIe x4/x2 NVMe SSDs) alongside four SATA 6 Gb/s ports, offering flexible options for fast and bulk storage simultaneously. Gigabyte's Smart Fan 5 system provides hybrid fan headers that auto-detect PWM or voltage-mode fans and pumps, with per-header fan curves configurable through the Smart Fan 5 software. Each fan header supports up to 2A/24W for high-performance coolers and AIO liquid cooling pumps. The rear I/O panel features one HDMI 1.4 port (up to 4096x2160 at 30 Hz) and one D-Sub port (up to 1920x1200 at 60 Hz) via integrated Intel HD Graphics, two USB 3.2 Gen 1 ports, four USB 2.0/1.1 ports, a Gigabit Ethernet (RJ-45) port powered by the Realtek 8118 chip, PS/2 keyboard and mouse ports, and three audio jacks. Audio is delivered through a Realtek HD Audio CODEC supporting up to 7.1-channel output with dedicated high-quality audio capacitors and a PCB-level audio noise guard. The board ships with a Gigabyte Ultra Durable design that includes anti-sulfur resistors, a glass-fabric PCB for improved moisture resistance, low RDS MOSFETs for efficient power delivery, and anti-surge IC protection. BIOS is a 256 Mbit AMI UEFI flash, compliant with PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0. Verified Specifications: - Socket: LGA1200 | Chipset: Intel H510 Express - CPU: 10th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron - Memory: 2x DDR4 DIMM, up to 64 GB, dual-channel, XMP supported - M.2: 1x Socket 3 (2242/2260/2280), PCIe x4/x2 NVMe - SATA: 4x SATA 6 Gb/s - PCIe: 1x PCIe x16 (Gen 3), 1x PCIe x1 (Gen 3) - USB (rear): 2x USB 3.2 Gen 1, 4x USB 2.0/1.1 - Video Out: 1x HDMI 1.4, 1x D-Sub - LAN: Realtek 8118 Gigabit Ethernet - Audio: Realtek HD CODEC, 7.1-channel - Form Factor: Micro ATX, 22.6 cm x 18.5 cm - Warranty: 3 Years
Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | mATX |
| Chipset | Intel® H510 Express Chipset |
| CPU Type | |
| Lan | Gigabit Ethernet Chip (1 Gbps/100 Mbps) |
| USB | Chipset:4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| Bios | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software."}"> Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.Please visit GIGABYTE's website for details on configuring the audio software |
| Memory | Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modulesIntel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Bundle Software | Norton® Internet Security (OEM version)Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Expansion Slots | 1 x PCI Express x16 slot, running at x161 x PCI Express x1 slot(The PCI Express slots conform to PCI Express 3.0 standard |
| Unique Features | Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.@BIOSAmbient LEDEasyTuneFast BootGame BoostON/OFF ChargeSmart BackupSystem Information ViewerSupport for Q-FlashSupport for Xpress Install |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.Maximum shared memory of 512 MB(Graphics specifications may vary depending on CPU support.) |
| Operating System | Support for Windows 10 64-bit |
| Storage Interface | Chipset:1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)4 x SATA 6Gb/s connectors |
| Back Panel Connectors | 1 x PS/2 keyboard port1 x PS/2 mouse port1 x D-Sub port1 x HDMI port2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x CPU fan header 1 x system fan header1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x Clear CMOS jumper＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W |
