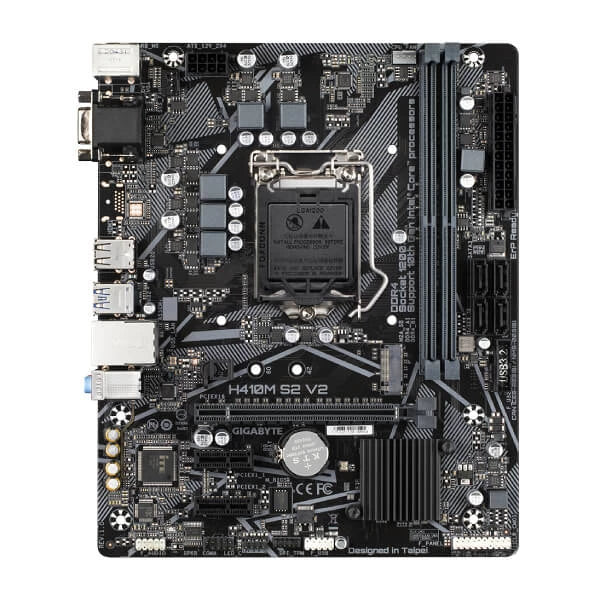

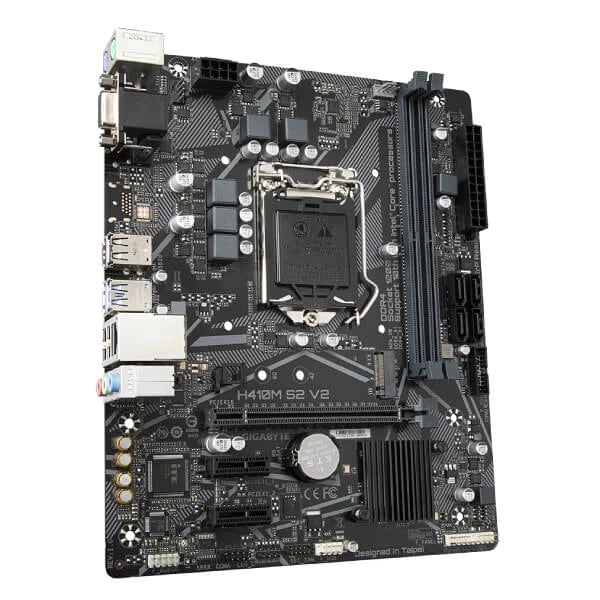

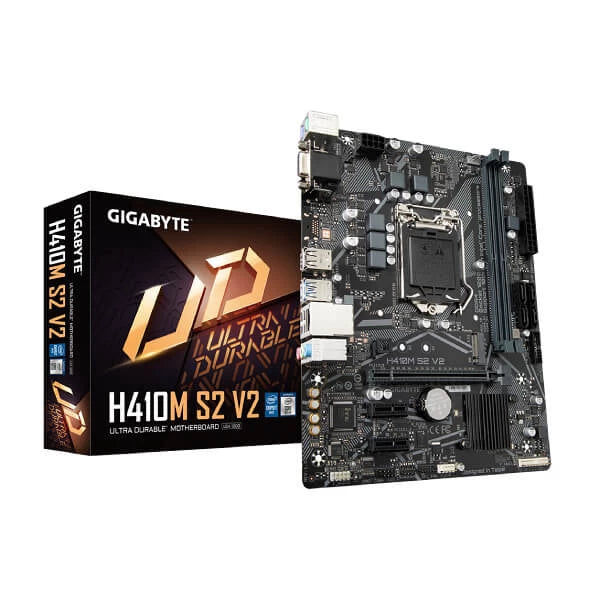

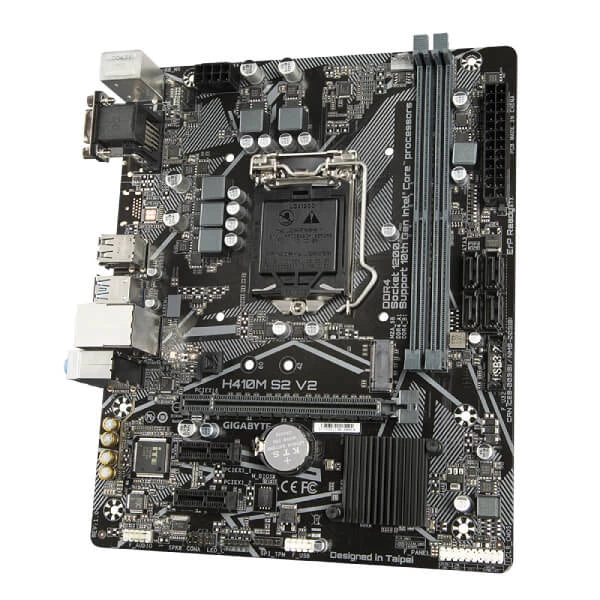

GIGABYTE H410M S2 V2 DDR4 Intel Motherboard

The Gigabyte H410M S2 V2 is a Micro ATX motherboard built on the Intel H410 Express Chipset and designed for 10th Generation Intel Core processors in the LGA1200 socket. It supports the full range of 10th Gen Intel CPUs — from Celeron and Pentium to Core i3, i5, i7, and i9 — making it a versatile foundation for budget office builds and everyday computing systems. Memory support spans two DDR4 DIMM slots with dual-channel architecture, accepting up to 64 GB of system RAM (32 GB per slot). Core i9 and i7 processors unlock speeds up to DDR4-2933, while i5, i3, Pentium, and Celeron CPUs operate at up to DDR4-2666. The board also supports XMP memory profiles for straightforward speed configuration. Storage flexibility is addressed through one M.2 Socket 3 connector (M key, supporting type 2242/2260/2280 drives in both SATA and PCIe x4/x2 NVMe modes) alongside four SATA 6 Gb/s ports, with support for RAID 0, 1, 5, and 10 configurations. Integrated Intel HD Graphics output is provided via a single D-Sub port at up to 1920×1200 @ 60 Hz, drawing on up to 512 MB of shared system memory. Connectivity is handled by an Intel GbE LAN controller (1000/100 Mbit) paired with bundled cFosSpeed traffic-management software. Audio is powered by a Realtek High Definition Audio CODEC supporting up to 7.1-channel output. Expansion slots include one PCIe x16 (running at x16) and two PCIe x1 slots, all conforming to PCIe 3.0. The Gigabyte Smart Fan 5 system provides hybrid fan headers supporting both PWM and voltage-mode fans, multiple independent temperature sensor inputs, and a FAN STOP feature that allows fans to halt completely below a user-defined temperature threshold. The board ships with an AMI UEFI BIOS (256 Mbit flash) with support for Q-Flash BIOS updates and the Gigabyte APP Center, which includes EasyTune, @BIOS, Fast Boot, Game Boost, Smart Backup, and Ambient LED control. Durability features include Anti-Sulfur Resistor design, a Glass Fabric PCB to resist moisture ingress, Low RDS MOSFETs for reduced heat output, and an anti-surge protection IC. A TPM header (compatible with Gigabyte GC-TPM2.0 SPI modules) supports platform security requirements. Key Specifications: - Socket: LGA1200 | Chipset: Intel H410 Express - CPU Support: 10th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron - Memory: 2 x DDR4 DIMM, up to 64 GB, dual-channel; DDR4-2933/2666/2400/2133 - Storage: 1 x M.2 (PCIe x4/x2 NVMe + SATA, 2242/2260/2280); 4 x SATA 6 Gb/s; RAID 0/1/5/10 - Display: 1 x D-Sub (max 1920×1200 @ 60 Hz) - Audio: Realtek HD Audio CODEC, 2/4/5.1/7.1-channel - LAN: Intel GbE (1000/100 Mbit) - USB: 4 x USB 3.2 Gen 1 + 6 x USB 2.0/1.1 (rear + internal) - Expansion: 1 x PCIe x16, 2 x PCIe x1 (PCIe 3.0) - Form Factor: Micro ATX, 22.6 cm × 18.5 cm - BIOS: AMI UEFI, 256 Mbit flash - Warranty: 3 Years
