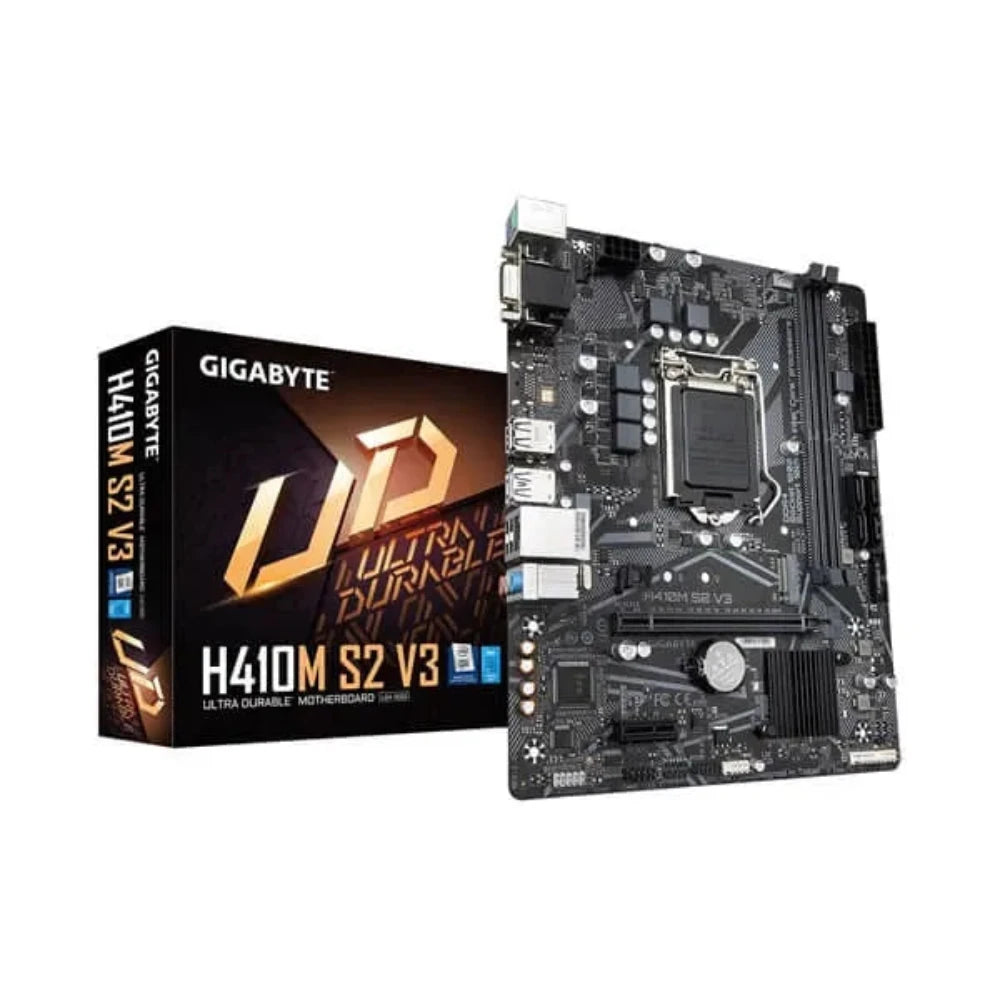

GIGABYTE H410M S2 V3 DDR4 Intel Motherboard

The Gigabyte H410M S2 V3 is a Micro ATX motherboard designed around Intel's LGA1200 socket, making it a capable platform for building a compact yet fully featured desktop PC using 10th Generation Intel Core processors. Whether you are outfitting a productivity workstation or a light gaming rig, this board delivers a solid set of features in a space-efficient 22.6 cm × 18.5 cm footprint. At the heart of the H410M S2 V3 is the Intel H510 Express Chipset paired with LGA1200 socket support for the full range of 10th Gen Intel processors — from Core i9 and i7 down to Core i5, i3, Pentium, and Celeron. Two DDR4 DIMM slots accommodate up to 64 GB of system memory (32 GB per slot), with support for DDR4 speeds up to 2933 MHz on i9/i7 CPUs and up to 2666 MHz on i5/i3/Pentium/Celeron processors. XMP profile support is also included for enthusiast memory kits. Storage flexibility is provided by a single M.2 Socket 3 connector (M key, supporting 2242/2260/2280 form factors, PCIe Gen3 x4/x2) alongside four SATA 6 Gb/s ports, giving builders ample room to combine a fast NVMe SSD with traditional hard drives or SATA SSDs. Expansion is handled by one PCIe 3.0 x16 slot for a discrete GPU and one PCIe 3.0 x1 slot for additional cards. Connectivity on the rear I/O panel includes two USB 3.2 Gen 1 ports, four USB 2.0 ports, one D-Sub video output (up to 1920×1200 @ 60 Hz via Intel HD integrated graphics), a Gigabit Ethernet RJ-45 port, three audio jacks, and legacy PS/2 keyboard and mouse ports. The Realtek 8118 Gigabit LAN chip supports automatic bandwidth prioritisation, which can be useful in environments where multiple applications compete for network throughput. Audio is handled by a Realtek HD Audio CODEC supporting up to 7.1-channel output with dedicated high-quality audio capacitors and an onboard Audio Noise Guard that isolates the analog audio circuitry from digital interference at the PCB level. Smart Fan 5 technology provides two hybrid fan headers (supporting both PWM and DC voltage control) along with four temperature sensor inputs and a FAN STOP feature, enabling quieter idle operation. Board reliability is enhanced by Anti-Sulfur Resistors, a Glass Fabric PCB for humidity resistance, Low RDS MOSFETs for reduced heat generation, and anti-surge IC protection. The AMI UEFI BIOS (128 Mbit flash) is complemented by Gigabyte's APP Center software suite, including Q-Flash for BIOS updates, EasyTune, Fast Boot, Game Boost, Smart Backup, and System Information Viewer. An onboard RGB LED strip header and TPM header (GC-TPM2.0 SPI/SPI 2.0 compatible) round out the internal connectivity. Verified Specifications: • Socket: LGA1200 | Chipset: Intel H510 Express • CPU Support: 10th Gen Intel Core i9/i7/i5/i3, Pentium, Celeron • Memory: 2 × DDR4 DIMM, up to 64 GB; DDR4-2933/2666/2400/2133 MHz; XMP support • Storage: 1 × M.2 (PCIe Gen3 x4/x2, 2242/2260/2280); 4 × SATA 6 Gb/s • PCIe Slots: 1 × PCIe 3.0 x16; 1 × PCIe 3.0 x1 • USB: 4 × USB 3.2 Gen 1; 6 × USB 2.0/1.1 (rear panel + internal headers) • Display: 1 × D-Sub (max 1920×1200 @ 60 Hz) • LAN: Realtek 8118 Gigabit Ethernet • Audio: Realtek HD Audio CODEC, 2/4/5.1/7.1-channel • Form Factor: Micro ATX, 22.6 cm × 18.5 cm • BIOS: 128 Mbit AMI UEFI • OS Support: Windows 10 64-bit • Warranty: 3 Years
