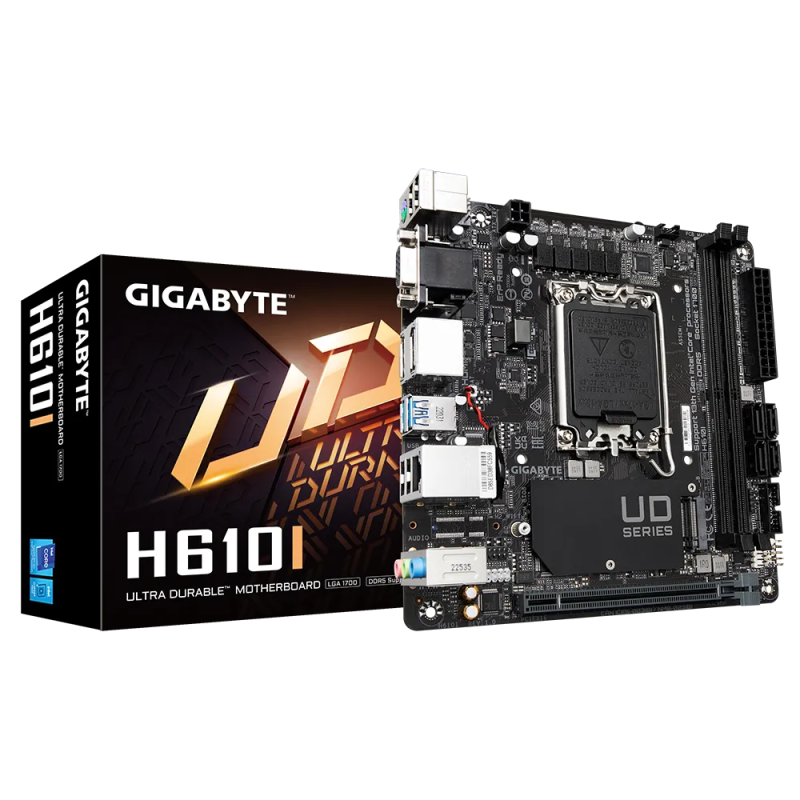

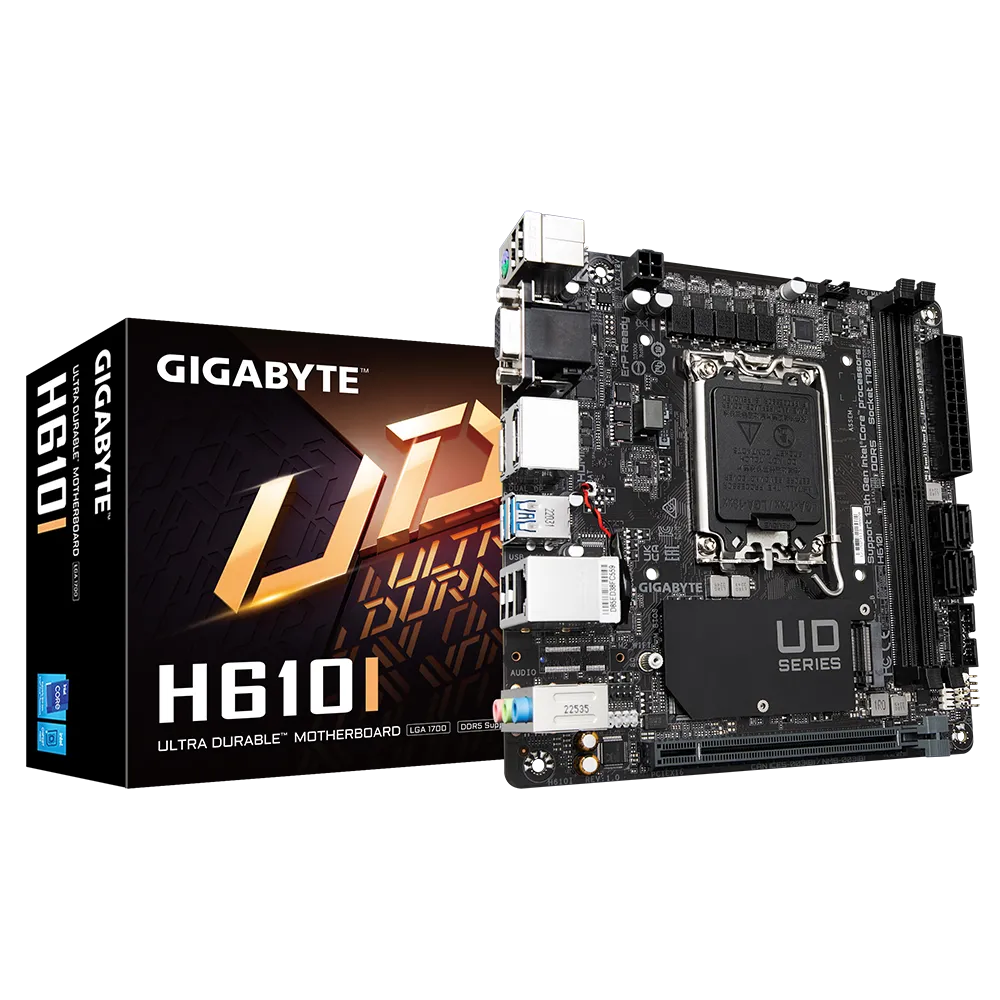

GIGABYTE H610I DDR5 Intel Motherboard
MPN GIGABYTE-H610I-DDR5 · Brand GIGABYTE · Mini-ITX
The GIGABYTE H610I DDR5 is a Mini-ITX LGA1700 motherboard featuring Intel H610 Express Chipset, dual DDR5 DIMM slots (up to 128 GB), PCIe 4.0 x16, and triple-display output — ideal for compact Intel 12th to 14th Gen builds
Inclusive of GST · GST invoice available
Overview
The GIGABYTE H610I DDR5 is a Mini-ITX form factor motherboard built on Intel's H610 Express Chipset, designed for compact PC builds that demand modern DDR5 performance without sacrificing connectivity. Its LGA1700 socket supports Intel Core 12th, 13th, and 14th Generation processors, as well as Pentium Gold and Celeron processors, making it a versatile platform for both new builds and future CPU upgrades within the same socket generation. Memory flexibility is a key strength of this board. Two DDR5 DIMM slots support up to 128 GB of system memory (64 GB per slot) in dual-channel configuration, with speeds up to DDR5 5600 MT/s on compatible 13th Gen Core i9/i7 processors. XMP memory profiles are supported, and GIGABYTE's exclusive DDR5 circuit design enables unlocked native DDR5 voltage control for improved overclocking headroom. Despite its compact 17.0 cm × 17.0 cm footprint, the H610I DDR5 offers a generous I/O configuration. Display outputs include one D-Sub port (1920×1200 @ 60 Hz), one HDMI 2.1 port (up to 4096×2160 @ 60 Hz), and two DisplayPort 1.2 outputs (up to 4096×2304 @ 60 Hz each), with support for up to three simultaneous displays via the integrated Intel HD Graphics processor. Networking is handled by an Intel GbE LAN chip with cFosSpeed traffic management software. Storage is covered by one M.2 Socket 3 connector (type 2242/2260/2280, supporting SATA and PCIe x2) and four SATA 6 Gb/s ports. The single PCIe x16 slot runs at PCIe 4.0 x16 for discrete GPU installation. Audio is delivered through a Realtek High Definition Audio CODEC supporting 2/4/5.1/7.1-channel output, complemented by high-quality audio capacitors and an audio noise guard. The board's 4+1+1 hybrid digital VRM with DrMOS and solid capacitors ensures stable power delivery across CPU load scenarios. GIGABYTE's Smart Fan 6 system provides multi-sensor fan curve control with PWM/DC support and FAN STOP capability. Anti-sulfur resistors add long-term durability in environments where airborne sulfur compounds might otherwise degrade onboard components. Verified Specifications: - Socket: LGA1700 - Chipset: Intel H610 Express - Form Factor: Mini-ITX, 17.0 cm × 17.0 cm - Memory: 2 × DDR5 DIMM, up to 128 GB, dual-channel, XMP support - DDR5 Speed (13th Gen i9/i7): up to 5600/5200/4800/4400 MT/s - DDR5 Speed (12th Gen / 13th Gen i5/i3): up to 4800/4400 MT/s - Expansion: 1 × PCIe 4.0 x16 - Storage: 1 × M.2 (PCIe x2/SATA, 2242/2260/2280), 4 × SATA 6 Gb/s - Display: 1 × D-Sub, 1 × HDMI 2.1, 2 × DisplayPort 1.2 (up to 3 simultaneous) - USB (rear): 2 × USB 3.2 Gen 1, 4 × USB 2.0/1.1 - LAN: Intel GbE (1 Gbps/100 Mbps) - Audio: Realtek HD Audio, 7.1-channel - BIOS: AMI UEFI, 256 Mbit flash - OS Support: Windows 11 64-bit, Windows 10 64-bit - Warranty: 3 Years

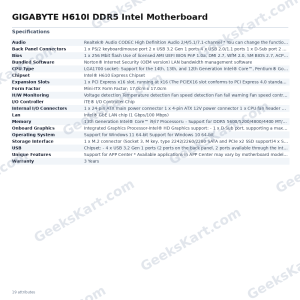

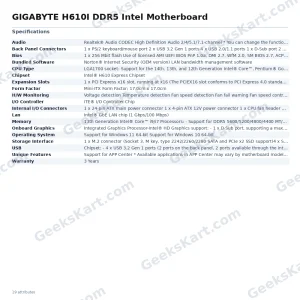

Datasheet
| Warranty | 3 Years |
|---|---|
| Form Factor | Mini-ITX |
| Chipset | Intel® H610 Express Chipset |
| CPU Type | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® CoreTM, Pentium® Gold and Celeron® Processors * Please refer to "CPU Support List" for more information. L3 cache varies with CPU |
| Lan | Intel® GbE LAN chip (1 Gbps/100 Mbps) |
| USB | Chipset: – 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) – 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: – 2 x USB 2.0/1.1 ports available through the internal USB header |
| Bios | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings |
| Memory | 13th Generation Intel® Core™ i9/i7 Processors: – Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: – Support for DDR5 4800/4400 MT/s memory module 2 x DDR DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the fan you install |
| I/O Controller | iTE® I/O Controller Chip |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) |
| Unique Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. – @BIOS – EasyTune – Ambient LED – Smart Backup – System Information Viewer Support for Q-Flash Support for Xpress Install |
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: – 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz – 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3. – 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz * Support for DisplayPort 1.2 version. (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time |
| Operating System | Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)4 x SATA 6Gb/s connectors* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x D-Sub port 2 x DisplayPorts 1 x HDMI port 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header |
