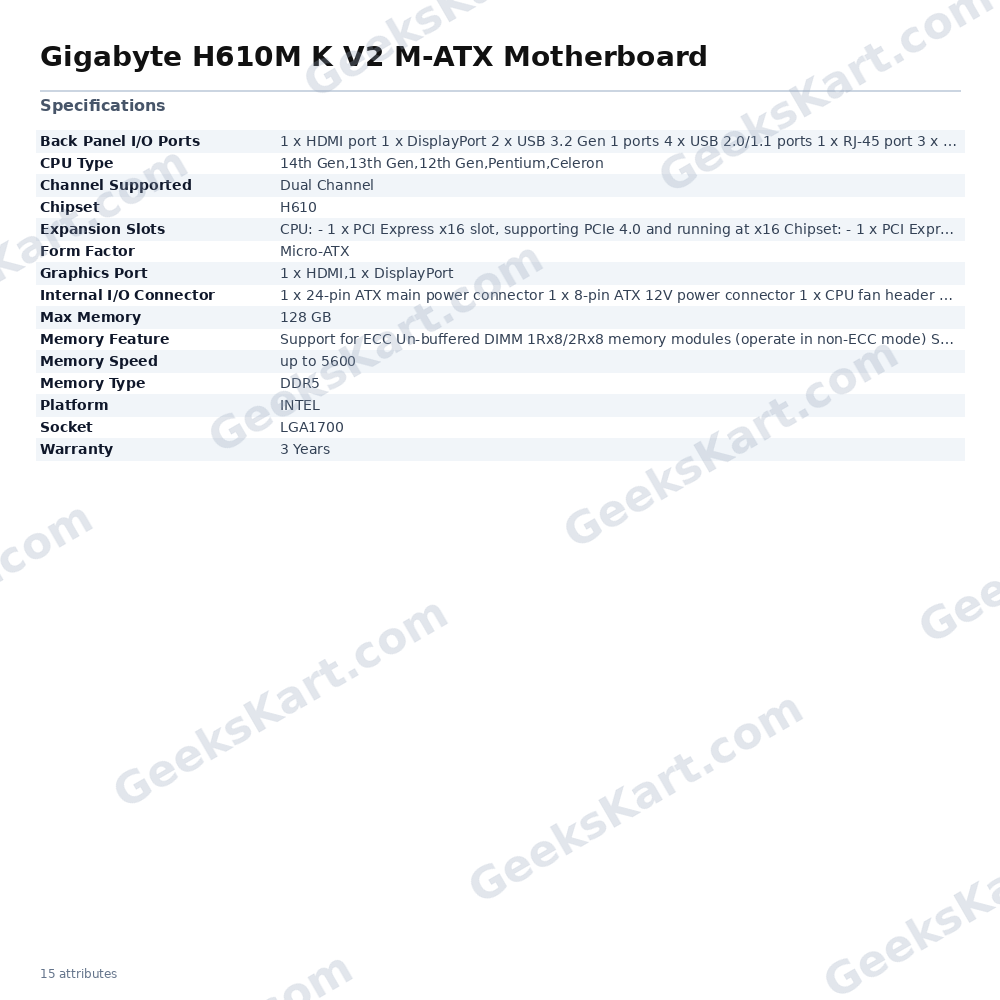

Gigabyte H610M K V2 M-ATX Motherboard

The GIGABYTE H610M K V2 is a Micro-ATX motherboard built on Intel's H610 chipset, designed to support Intel Core 12th, 13th, and 14th generation processors as well as Pentium and Celeron CPUs via the LGA1700 socket. It is a practical choice for home, office, or entry-level builds that require a modern DDR5 platform without the overhead of a premium chipset. Memory support is a standout feature on this board. Two DIMM slots accommodate Dual Channel DDR5 Non-ECC Unbuffered memory at speeds up to 5600 MHz, with XMP 3.0 profile support for straightforward performance tuning. The board also accepts ECC Unbuffered modules operating in non-ECC mode, adding flexibility for compatible configurations. Maximum supported memory capacity is 128 GB. Storage connectivity is handled by one M.2 Socket 3 connector running at PCIe Gen3 x4 for NVMe SSDs, complemented by two SATA 6 Gb/s ports. For discrete graphics or expansion cards, there is one PCIe 4.0 x16 slot from the CPU and one PCIe 3.0 x1 slot from the chipset. The rear I/O panel provides video output via one HDMI port and one DisplayPort, enabling use of Intel's integrated graphics. Connectivity includes two USB 3.2 Gen 1 ports, four USB 2.0/1.1 ports, and one RJ-45 Gigabit Ethernet port. Three audio jacks are supported by high-quality audio capacitors and an Audio Noise Guard for cleaner sound. Thermal management is handled by GIGABYTE's Smart Fan 6 system, which uses multiple temperature sensors and hybrid fan headers with FAN STOP capability, allowing fans to stop completely under low-load conditions. Anti-Sulfur Resistors are included to extend board longevity in environments with airborne contaminants. Internal headers include a 24-pin ATX main power connector, an 8-pin ATX 12V power connector, one CPU fan header, one system fan header, one USB 3.2 Gen 1 header, one USB 2.0/1.1 header, one front panel header, one front panel audio header, and one TPM header for the GC-TPM2.0 SPI V2 module. A Clear CMOS jumper is also present. Verifiable Specifications: - Socket: LGA1700 - Chipset: Intel H610 - Form Factor: Micro-ATX - CPU Support: Intel Core 12th / 13th / 14th Gen, Pentium, Celeron (LGA1700) - Memory: DDR5, 2 x DIMM, Dual Channel, up to 5600 MHz, max 128 GB - PCIe: 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (Chipset) - Storage: 1 x M.2 PCIe Gen3 x4 (NVMe), 2 x SATA 6 Gb/s - Display: 1 x HDMI, 1 x DisplayPort - USB (Rear): 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 - LAN: 1 x Gigabit Ethernet (RJ-45) - Warranty: 3 Years
